Alpine HDP-D90
Status Series 12-channel 1400 Watt car amplifier with digital signal processing
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

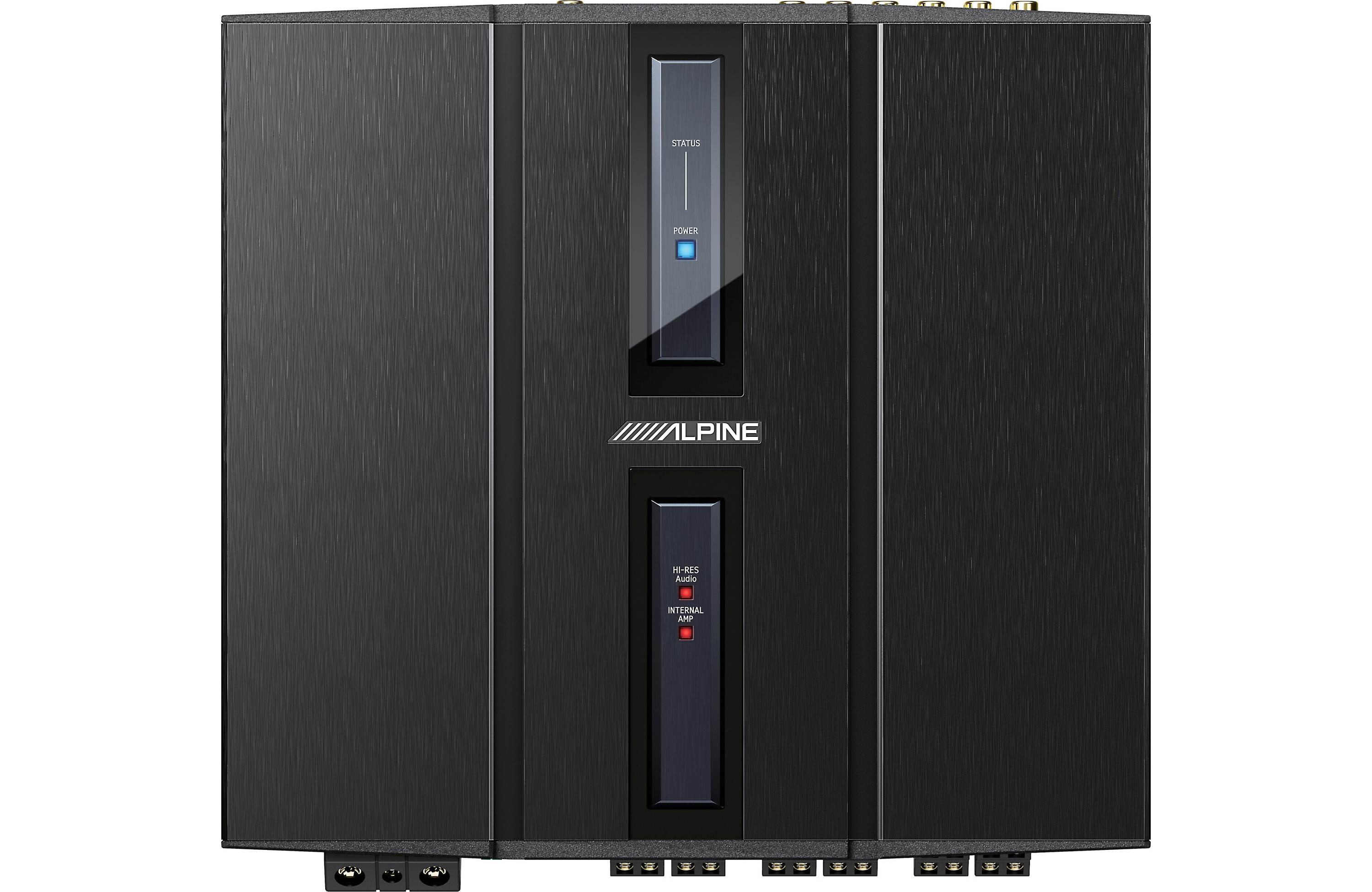

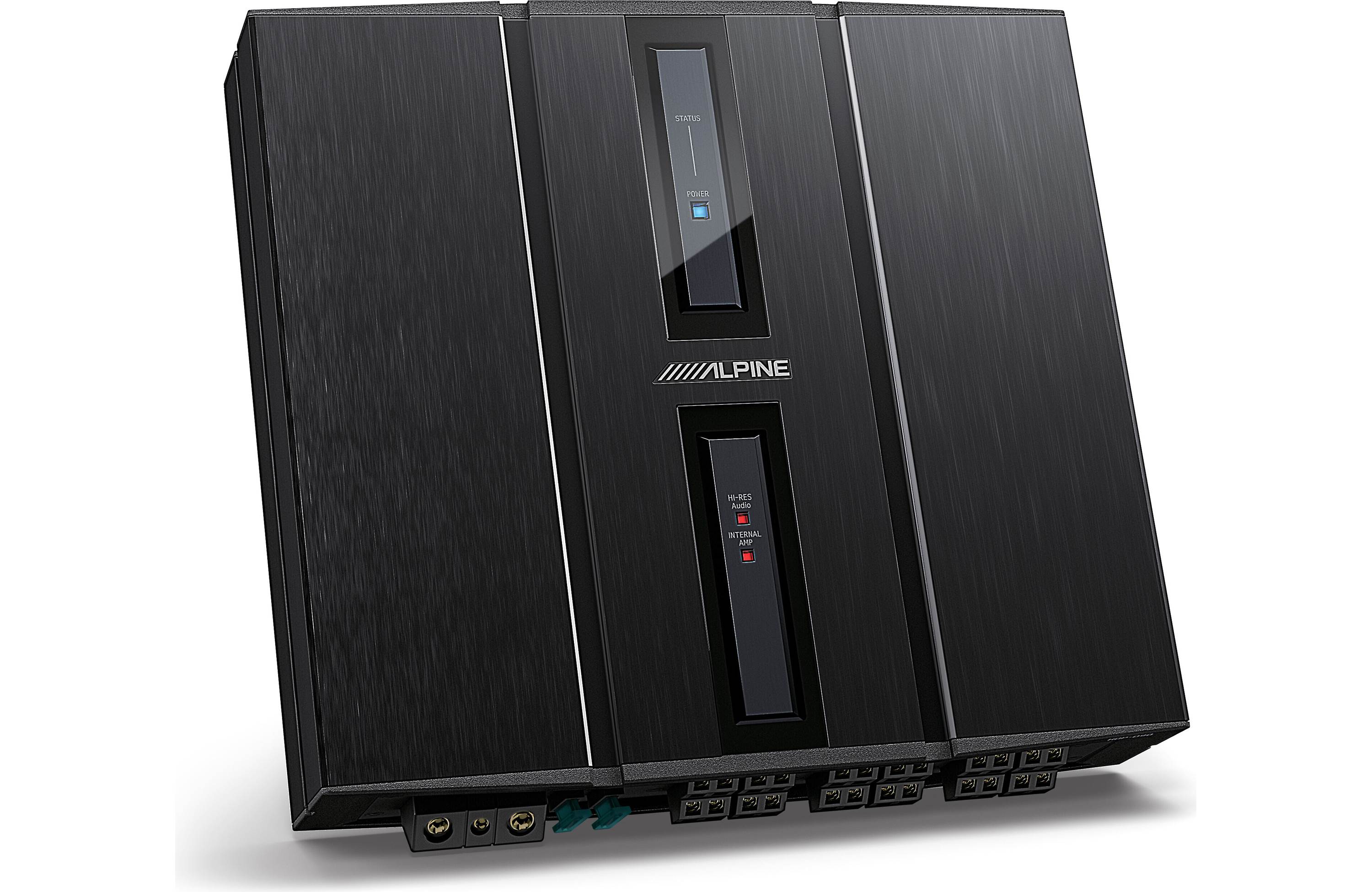

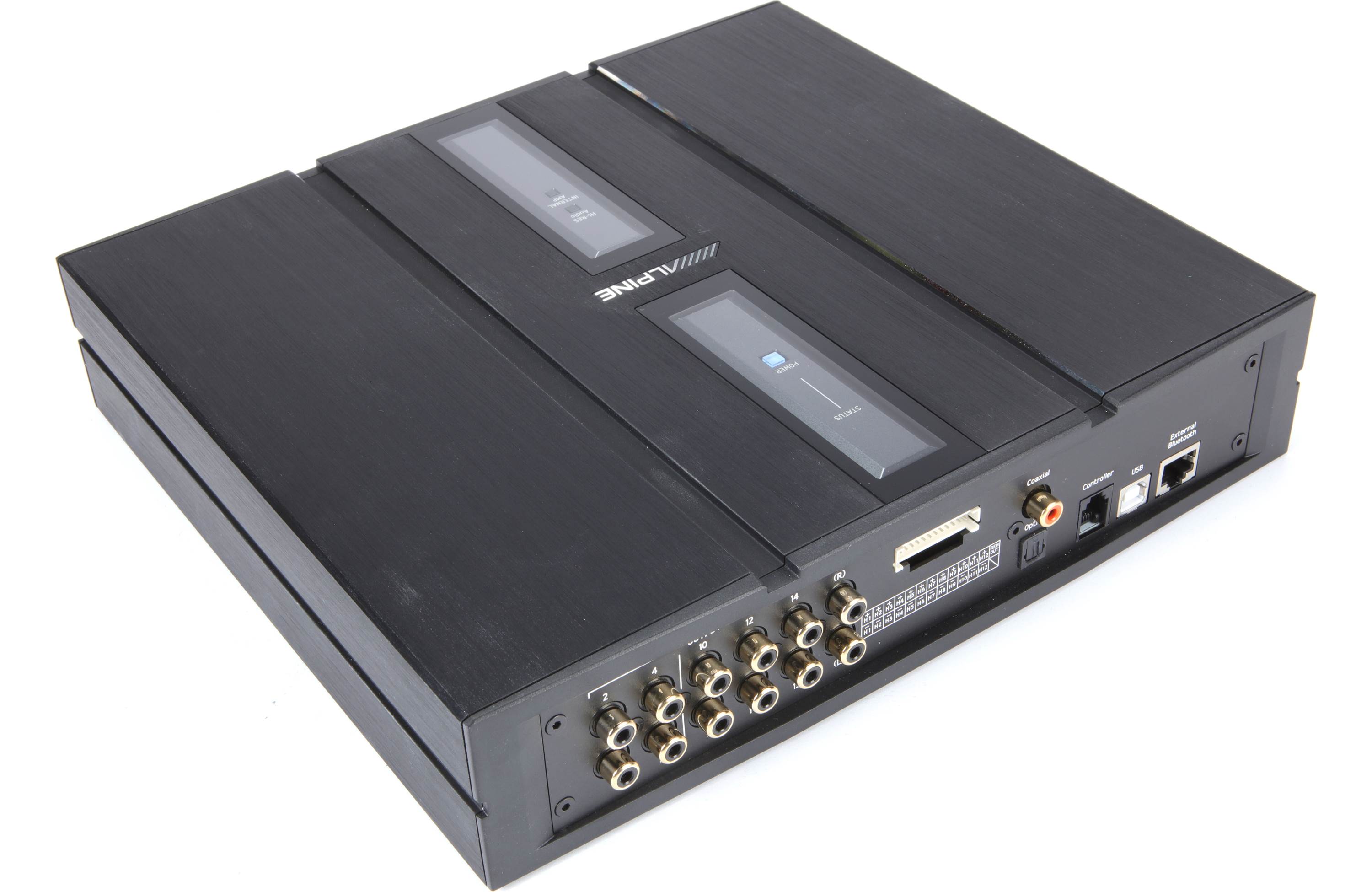

The Alpine HDP-D90 is a high-performance 12-channel digital signal processor amplifier designed for audiophiles seeking studio-quality sound in their vehicles. As part of the Alpine Status series, it combines advanced DSP capabilities with powerful amplification to deliver an immersive listening experience. With Hi-Res Audio playback, extensive tuning options, and flexible input/output configurations, the HDP-D90 is engineered for precision and versatility.
Key Features
| Feature | Details |
|---|---|
| Audio Processing | Hi-Res Audio Playback (192kHz/24Bit); Internal Sampling Rate: 192kHz/64Bit; Ultra-wide bandwidth: 10Hz–110kHz |
| Amplifier Output | Channels 1–8: 50W RMS @ 4Ω; Channels 9–12: 80W RMS @ 4Ω; Channels 9–12 (bridged): 160W RMS x 2 @ 4Ω |

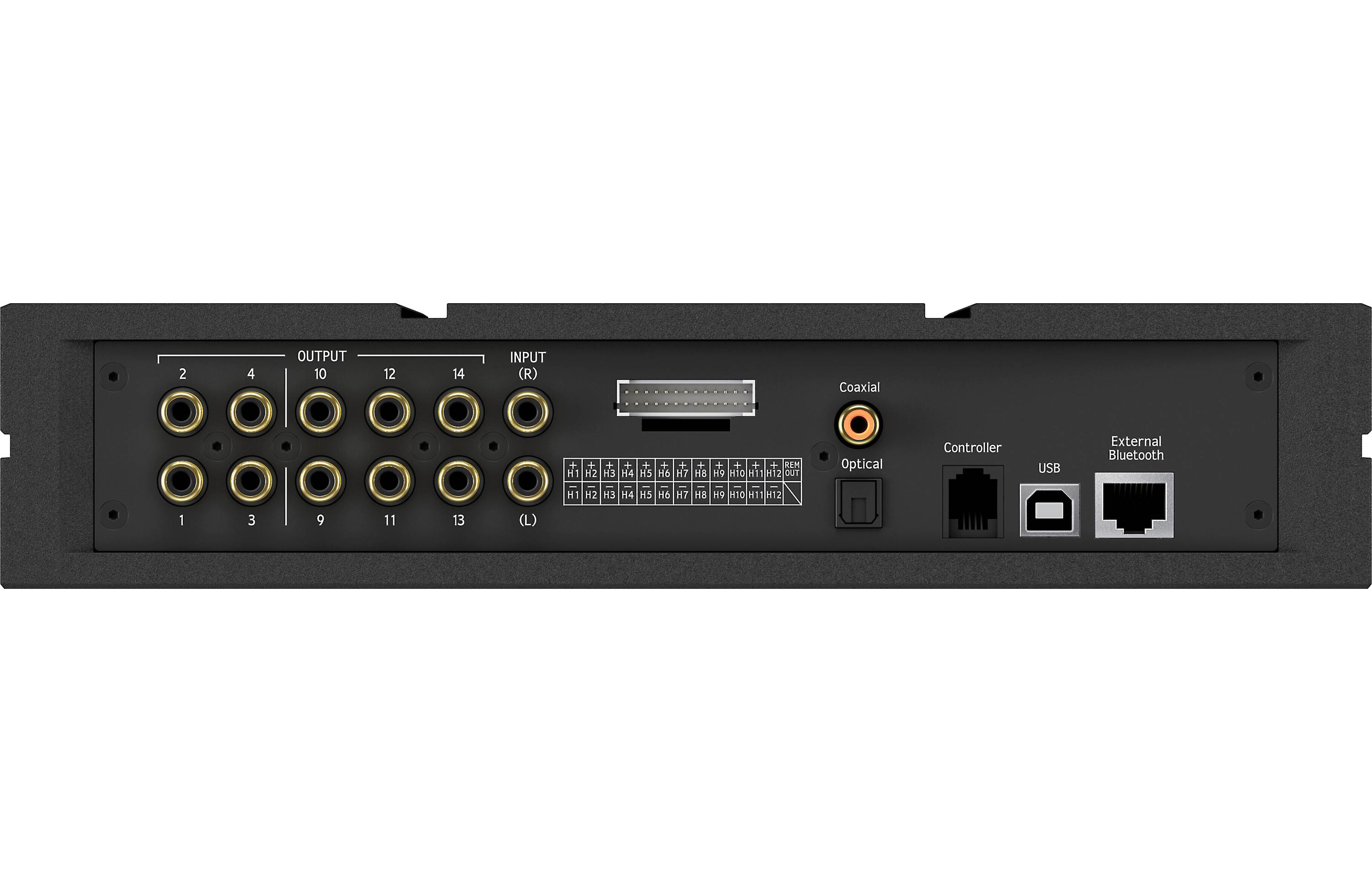

| Inputs | 12-channel high-level (up to 26V RMS); 2-channel RCA; Optical (SPDIF); Coaxial (Digital); Bluetooth audio streaming with included external module |

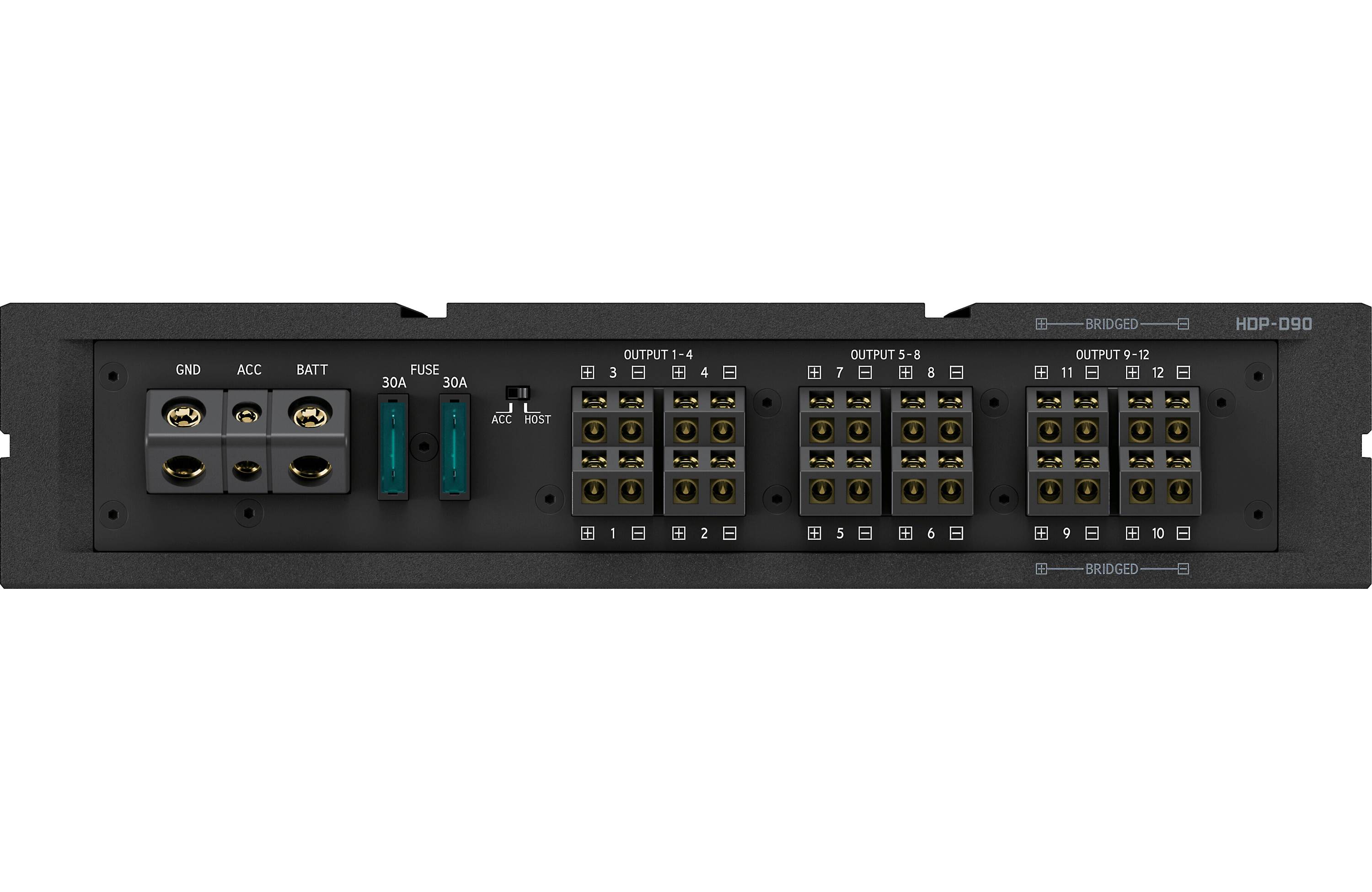

| Outputs | 10-channel RCA preamp outputs; 12-channel high-level amplified outputs |
| Equalization | 31-band parametric or graphic EQ per channel; Q: 0.404 ~ 28.85; Gain: -12.0dB ~ +12.0 dB |
| Crossovers | High-pass, low-pass, and band-pass filters per channel; Crossover points: 20Hz – 20kHz; Slopes: 12dB to 48dB/octave; Filter types: Butterworth, Linkwitz-Riley, Bessel |
| Time Correction | Up to 20ms delay per channel; Delay units: milliseconds, centimeters, or inches; Phase adjustment: 0° or 180° per channel |
| Control Interface | Wireless tuning via smartphone (iOS/Android) and PC; Optional wired LCD remote controller for volume, preset storage/recall, subwoofer level, and source selection |
| Design | Copper-plated chassis for enhanced signal-to-noise ratio (>110dB) and minimized distortion (THD: <0.001%) |
What’s in the Box
| Alpine HDP-D90 DSP Amplifier |
| 6" 26-Pin Input Harness |

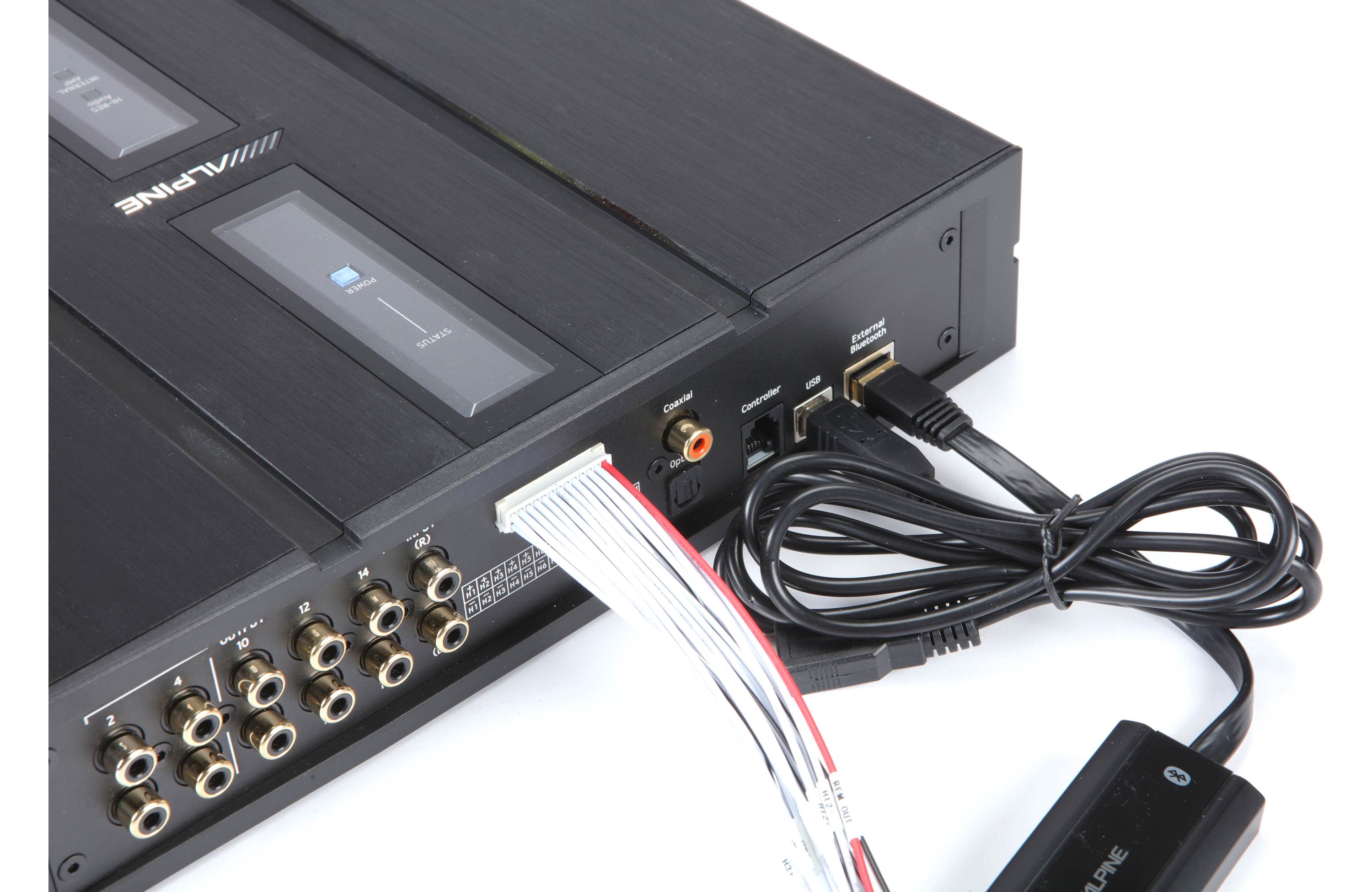

| Bluetooth Module with Attached 6" Cable (RJ-45) |

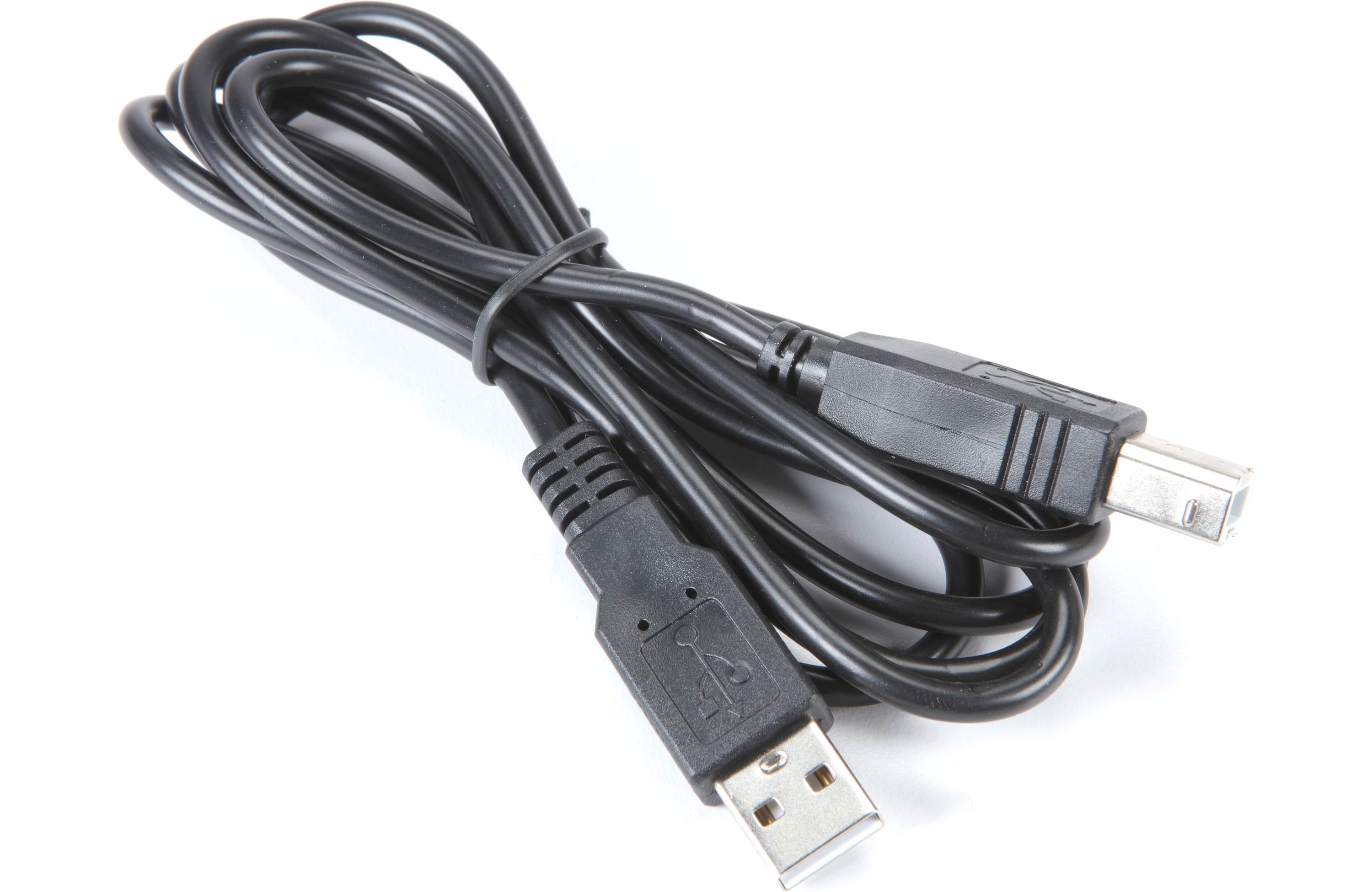

| 5' USB Cable (Type-A to Type-B) |
| 2 Mounting Brackets |
| Four 3/4" Screws |
| Four 6mm Machine Screws |
| 4 Spare Speaker Output Set-Screws |
| 1/8" Brass Plug |
| Quick Reference Guide |
| Guide Addendum |
| Warranty Information |
| Registration Information |
