High-Performance 2 Channel Digital Signal Processor for Audio Enhancement
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
تكامل OEM مع DSP مع تصحيح الوقت التلقائي والمعادل الرقمي
فيكس-82
تكامل OEM مع DSP مع تصحيح الوقت التلقائي والمعادل الرقمي. 8 الفصل. المدخلات / 2-ch. مخرجات RCA ستيريو / 1 مخرج بصري رقمي

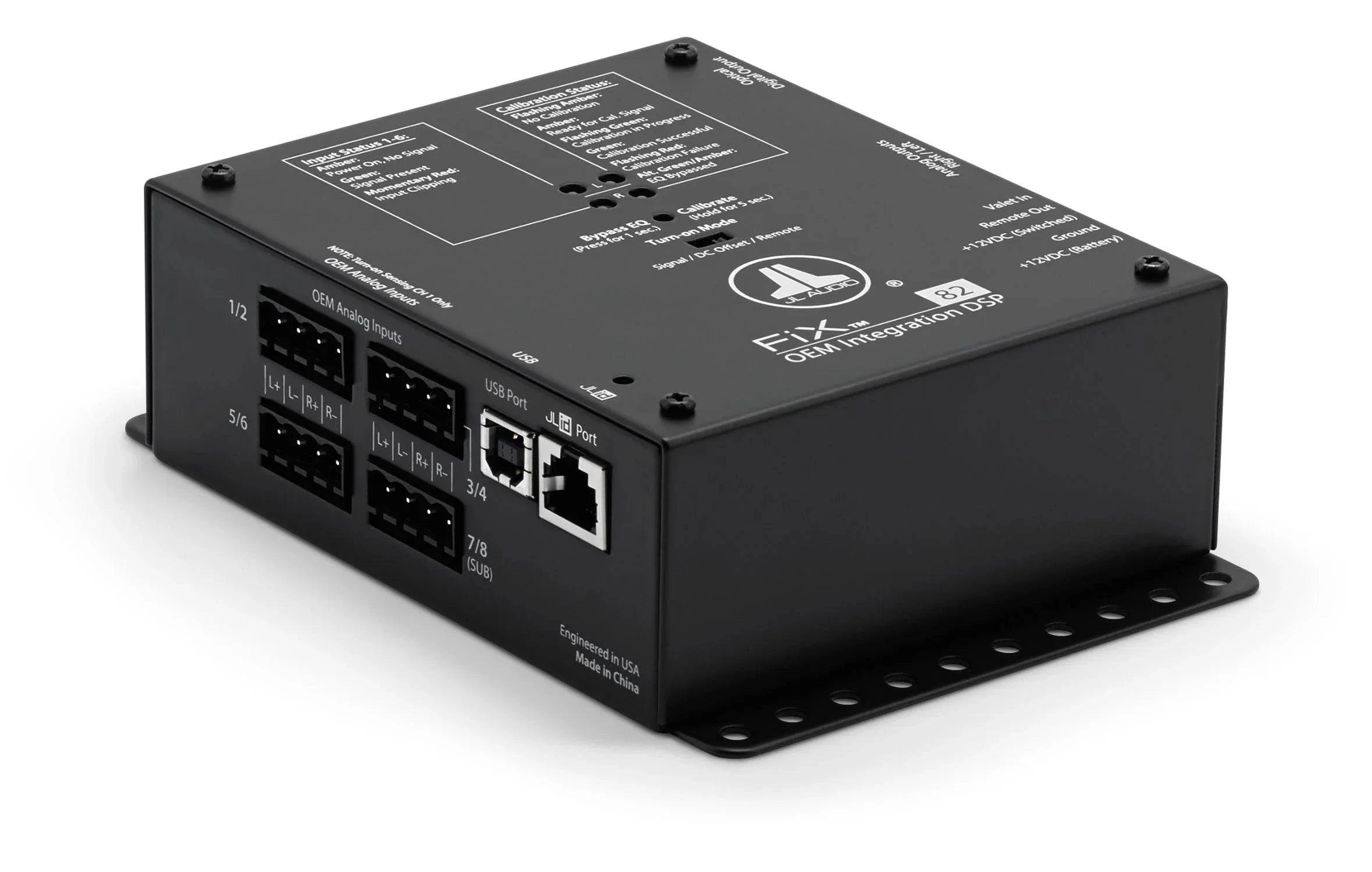

يعد FiX® 82 معالج إشارات رقمية متطور تم تصميمه لتقديم صوت عالمي المستوى من أنظمة الصوت في المصنع، دون استبدال وحدة مصدر OEM. يعد FiX® 82 أول معالج إشارة رقمي (DSP) يقوم تلقائيًا بتصحيح مخرجات المصنع المتأخرة قبل جمع الإشارة وتصحيح المعادل.
بفضل معالج DSP قوي 24 بت ومعادلات 1/3 أوكتاف مزدوجة مدمجة، يتم دمج مخرجات الصوت المعقدة ثنائية الاتجاه وثلاثية الاتجاه ورباعية الاتجاه ومطابقة المستوى تلقائيًا في إشارة استريو مسطحة كاملة النطاق. تقبل المدخلات التفاضلية المتوازنة تقريبًا أي إشارة صوتية تناظرية من OEM، بدءًا من الجهد المنخفض ومستوى الخط وحتى الطاقة العالية والمخرجات المضخمة على مستوى مكبر الصوت (حتى 30 فولت RMS).
تبدأ المعايرة بضغطة زر واحدة فقط وتستغرق حوالي 30 ثانية فقط لإكمالها، دون الحاجة إلى معدات خاصة!
من خلال توصيل جهاز كمبيوتر يعمل بنظام TüN® عبر USB، يمكنك أيضًا الوصول إلى مجموعة كاملة من لوحات التشخيص التي تعرض استجابة التردد لإشارات الإدخال، بالإضافة إلى المخرجات المصححة. يمكن إجراء تعديلات على قطبية الإدخال، وكتم الصوت، والتصفية، ويمكن بدء معايرة جديدة من جهاز الكمبيوتر أيضًا. من خلال النقر على علامة التبويب "TUNE" في واجهة TüN®، يمكنك أيضًا الوصول إلى زوج من المعادلات الرسومية ذات 10 نطاقات والقابلة للتعديل من قبل المستخدم لضبط إشارات الإخراج بشكل دقيق.
تتضمن خيارات الإخراج مقابس RCA مزدوجة (4V RMS) أو مخرج بصري رقمي (Toslink)، يدعم صوت PCM (S/PDIF) بدقة 24 بت/48 كيلو هرتز.
تشتمل طرق التنشيط على 12 فولت أو تلقائي (استشعار الإشارة/إزاحة التيار المستمر)، بالإضافة إلى مخرج تشغيل عن بعد مخصص لتنشيط معدات ما بعد البيع الخاصة بك.
قم بتوصيل وحدة التحكم عن بعد الرقمية DRC-100 الاختيارية (تُباع بشكل منفصل) لإضافة إمكانيات التحكم الرئيسي في مستوى الصوت من مقعد السائق. يتم أيضًا الإبلاغ عن إشارات الإدخال المقطوعة والحالة العامة عبر مؤشر LED للحالة متعدد الألوان الخاص بـ DRC-100.أصبح الحصول على صوت رائع من استريو المصنع الخاص بك أسهل أو أفضل من أي وقت مضى.
المواصفات العامة
| المواصفات العامة | |
|---|---|
| نوع مصدر الطاقة | ينظم DC-DC SMPS |
| مدخلات جهد التشغيل | 10 - 16 فولت تيار مستمر |
| الاستعداد السحب الحالي | <1.5 مللي أمبير |
| التشغيل الرسم الحالي | 0.7 أ |
| قيمة الصمامات الموصى بها | 1 أ |
| قنوات الإدخال | ثمانية |
| نوع الإدخال | التفاضلية المتوازنة |
| مدى جهد المدخلات | 250 مللي فولت - 30 فولت جذر متوسط المربع |
| الحد الأدنى من جهد الإدخال | 10 مللي فولت RMS |
| إعداد مستوى الإدخال | اوتوماتيك كليا |
| قنوات الإخراج | اثنين |
| خرج تشابهي | مقابس RCA استريو غير متوازنة |
| الإخراج الرقمي | الإخراج البصري (Toslink) (S/PDIF) |
| مقاومة الإخراج | 450 أوم |
| S / N نسبة | 96 ديسيبل (A-مرجح، يُشار إليه بـ 4V RMS Output) |
| THD + N @ الإخراج المقدر | 0.02% (20 هرتز - 20 كيلو هرتز) |
| معالجة الإشارات | |
| دقة الصوت | 24 بت / 48 كيلو هرتز |
| عدد نطاقات EQ | 30 × 2 قناة |
| قرار المعادل | 1/3 اوكتاف (25 هرتز - 20 كيلو هرتز) |
| التحكم في المستوى عن بعد | اختياري (DRC-100) |
| وظائف المستوى البعيد | التحكم الرئيسي في مستوى الصوت، وتحسين استخدام اليدين، وتقارير حالة LED |
| المواصفات المادية | |
| الارتفاع (ح) | 1.85 بوصة / 47 ملم |
| العرض (ث) | 4.29 بوصة / 109 ملم |
| العمق (د) | 6.14 بوصة / 156 ملم |
| الوزن الصافي | 2.58 رطل / 1.17 كجم |
