Pioneer GM-A3702
2-Channel 500W Bridgeable Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
2 قناة - الفئة أ/ب، قوة قصوى 500 وات - مضخم صوت قابل للتوصيل
GM-A3702
من التميز الدرامي إلى التصميم الدرامي، تعد مكبرات الصوت GM-Series الجديدة من بايونير مثيرة بكل معنى الكلمة، مما يدفع حدود المرونة والوظيفة.
ماذا في الصندوق؟
| ⬥ 2- مضخم القناة |
| ⬦ مصهر 25A ATO (مثبت) |
| ⬥ مجموعة أسلاك لمدخل السماعة مزودة بأربعة أسلاك مقاس 4 بوصات |
| ⬦ 4 براغي ذاتية اللولبة (طول 3/4 بوصة) |
| ⬥ دليل المالك (الانجليزي/الفرنسية) |
سمات
⬥ القوة القصوى 500 واط
⬥ الاستشعار التلقائي للإشارة وتشغيلها
⬥ التحكم في مستوى الإدخال عالي الفولت
⬥ دائرة إدخال عازلة متوازنة
المواصفات العامة
| المعايير | |
|---|---|
| CEA-2006 | نعم |
| أداء | |
| مقاومة الحمل المسموح بها | 2 أوم إلى 8 أوم المسموح به |
| متوسط الاستهلاك الحالي (أمبير × #ch) | 4 أوم - 6.5 أمبير (1 قناة) / 4 أوم - 4 أمبير (2 قناة) |
| قناة شبكة كروس | LPF - الفصل 80 هرتز |
| منحدر قناة الشبكة المتقاطعة | -12 ديسيبل/أكتوبر (A Ch) |
| قناة الاستجابة للتردد | 10 هرتز إلى 70 كيلو هرتز (+0 ديسيبل، -3 ديسيبل) |
| تصنيف الصمامات | 25 أ |
| مستوى الإدخال @Gain Max | 0.3 فولت إلى 6.5 فولت - RCA / 3.0 فولت إلى 26 فولت - مكبر الصوت |
| انتاج الطاقة الاسمي | 2 أوم - 95 وات × 2/4 أوم - 50 وات × 2/4 أوم - 190 وات × 1 |
| مدخلات رسيا | 2-القناة |
| إشارة إلى الضوضاء | 78 ديسيبل (المرجع: 1 وات إلى 4 أوم) |
| ميزات مكبر للصوت | |
| قابل للتوصيل | نعم |
| فصل | أ/ب |
| نظام التأريض | سلبي |
| مصدر الطاقة | 14.4 فولت (10.8 فولت إلى 15.1 فولت مسموح به) |
| نظام مراقبة الحماية | نعم |
| نوع المحطة | أفسد |
| وحدة الوزن | 3.1 رطل |

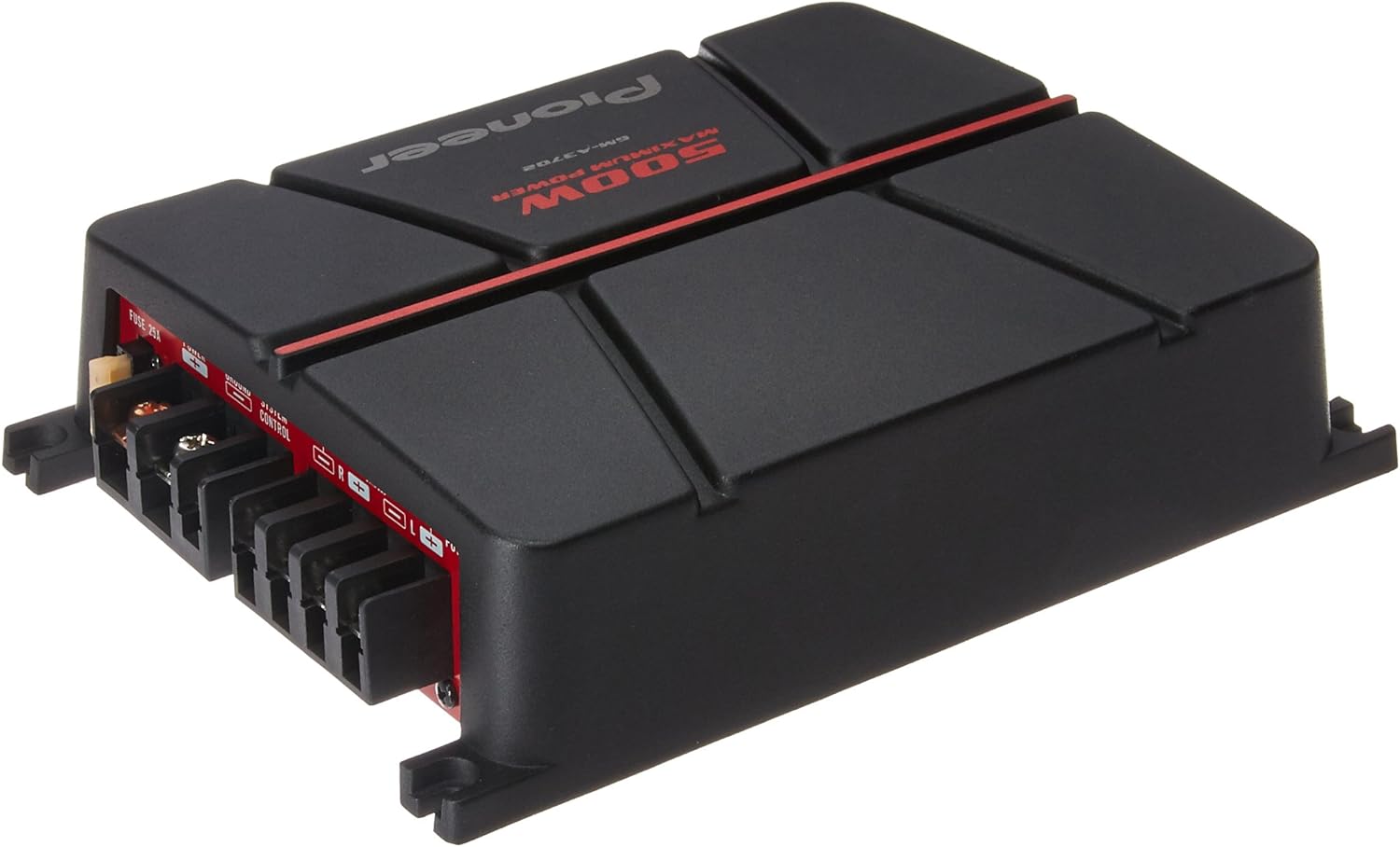

Pioneer GM-A3702 95W RMS x 2 @2Ohms, 500W Max Power Class A/B 2-channels Bridgeable Amplifier
Enhance your car audio system with the Pioneer GM-A3702 amplifier, a compact powerhouse designed to deliver rich, dynamic sound with precision and clarity. This two-channel bridgeable amplifier provides a continuous power output of 95 watts per channel at 2 ohms, giving your speakers the boost they need for a fully immersive listening experience. Combining the efficiency of Class D technology with the superior sound quality of Class A/B amplifiers, the GM-A3702 ensures every note is reproduced with crisp detail and controlled depth. Its sleek and compact design makes installation effortless in a variety of vehicles, while smart engineering keeps performance consistent even under heavy use. Automatic signal sensing and turn-on functionality make integration into your system simple, delivering convenience without compromising on power.
Durability and reliability are at the core of the GM Series, with advanced protection features including thermal and overload protection circuits to safeguard the amplifier and connected components. Whether upgrading an existing setup or building a new system, the Pioneer GM-A3702 offers an ideal balance of power, clarity, and longevity for any car audio enthusiast.
Key Features
– 2-Channel Bridgeable Amplifier with 95W RMS per Channel at 2 Ohms
– Class A/B Amplifier Design for Superior Sound Quality and Efficiency
– Automatic Signal Sensing and Turn-On for Seamless Integration
– Compact and Sleek Chassis for Easy Installation in Various Vehicles
– Advanced Thermal and Overload Protection for Long-Term Reliability
– Speaker Input Harness with Four 4" Wires Included
– 25A ATO Fuse (Installed) for System Safety
– 4 Self-Tapping Screws (3/4" Length) for Secure Mounting
– Installation Manual and 1-Year Warranty Sheet Included
What's Inside?
- 2-Channel amplifier
- 25A ATO fuse (installed)
- Speaker input harness with four 4" wires
- 4 Self-tapping screws (3/4" length)
