آر دي500/1

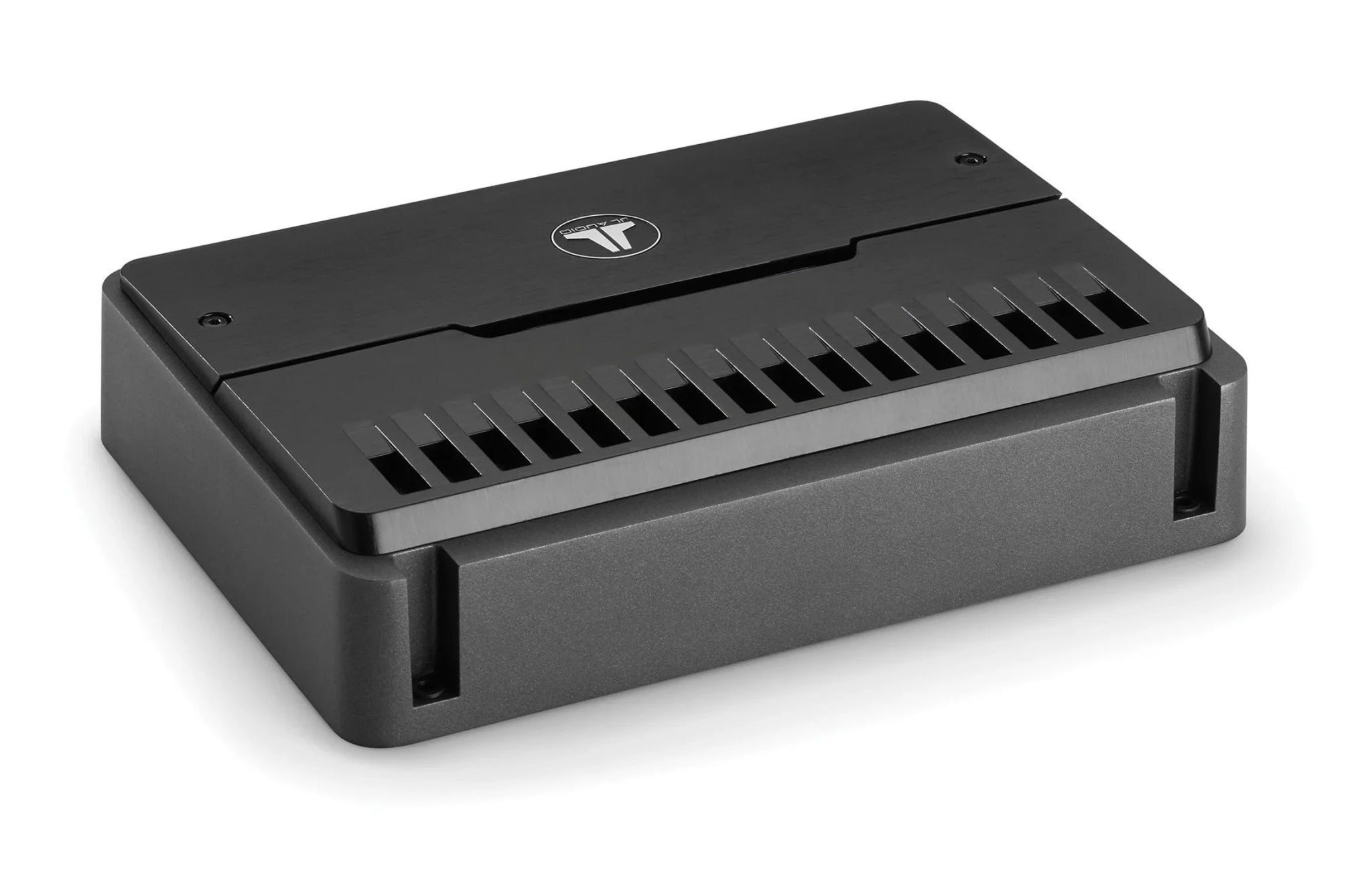

RD Series 500 Watt Monoblock Subwoofer Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
مضخم صوت أحادي الكتلة فئة D، 500 واط
آر دي500/1
مضخم صوت أحادي الكتلة فئة D، 500 واط × 1 عند 2 أوم / 250 واط × 1 عند 4 أوم - 14.4 فولت
تم إنشاء مكبر الصوت RD500/1 لإنتاج قوة هائلة تبلغ 500 واط إلى 2 أوم (14.4 فولت، 1% THD)، لتوليد أطنان من متعة مضخم الصوت النقي من هيكل أنيق وصغير الحجم للغاية. السر وراء كفاءتها في استخدام الطاقة هو تقنية التبديل NexD™ الخاصة بنا، والتي توفر كميات كبيرة من خرج الطاقة بكفاءة دقيقة وتشويه منخفض للغاية.
من أجل راحتك، توجد أدوات التحكم في RD500/1 أعلى مكبر الصوت، أسفل الغطاء الواقي، مع وجود جميع التوصيلات على جانب واحد من هيكله. تتضمن ميزات معالجة الإشارة مرشح تمرير منخفض 12 ديسيبل / أوكتاف، مع اختيار تردد متغير باستمرار من 50-500 هرتز، ومعادل صوت جهير متغير. تتوفر أيضًا مدخلات ثنائية النطاق ومتوازنة تفاضلية، وقادرة على قبول معظم مستويات جهد الإدخال. تعد إمكانية التشغيل التلقائي (عبر استشعار الإشارة أو استشعار إزاحة التيار المستمر) أمرًا قياسيًا، إلى جانب مجموعة من مخرجات preamp حتى تتمكن من تمرير الإشارات بسهولة إلى مضخم صوت آخر.
تم تجهيز RD500/1 أيضًا بمؤشر قطع LED مدمج. تتيح لك هذه الميزة الجديدة والمبتكرة ضبط إعدادات حساسية إدخال مكبر الصوت بسهولة، بسرعة ودقة، دون الحاجة إلى معدات خاصة. يتميز RD500/1 بطبقة نهائية متينة مطلية بمسحوق أسود وشريط إضاءة LED مزدوج اللون مثبت في الأعلى يُبلغ عن الحالة والحالة العامة. مع إضافة جهاز التحكم عن بعد RBC-1 (يباع بشكل منفصل)، يمكنك التحكم في مخرج مضخم الصوت مباشرة من مقعد السائق.
المواصفات العامة
| الطاقة المستمرة المقدرة (RMS) عند 14.4 فولت | |
|---|---|
| @ 4 أوم | 250 واط RMS × 1 |
| @ 3 أوم | 350 واط RMS × 1 |
| @ 2 أوم | 500 واط RMS × 1 |
| @ 1.5 أوم | لا يوجد |
| الطاقة المستمرة المقدرة (RMS) عند 12.5 فولت | |
| @ 4 أوم | 225 وات جذر متوسط المربع × 1 |
| @ 3 أوم | 300 واط RMS × 1 |
| @ 2 أوم | 400 واط RMS × 1 |
| @ 1.5 أوم | لا يوجد |
| المواصفات العامة | |
| استجابة التردد | 7 هرتز - 500 هرتز (+0، -1 ديسيبل) |
| نسبة S/N، تشير إلى أعلى تصنيف للطاقة | > 80 ديسيبل أقل من الطاقة المقدرة (وزن A، عرض النطاق الترددي للضوضاء 20 هرتز - 20 كيلو هرتز) |
| نسبة الإشارة إلى الضوضاء (S/N)، المشار إليها بـ 1 وات | >60 ديسيبل (وزن A، عرض النطاق الترددي للضوضاء 20 هرتز - 20 كيلو هرتز) |
| عامل التخميد @ 4 أوم | > 1000/50 هرتز |
| عامل التخميد @ 2 أوم | >500/50 هرتز |
| THD + N @ الطاقة المقدرة | <1% @ 2 أوم لكل قناة. |
| نطاق جهد الإدخال عند مدخلات RCA | قابلة للتحويل من 200 مللي فولت - 2 فولت RMS (منخفض) إلى 800 مللي فولت - 8 فولت RMS (عالي) |
| الحد الأدنى لقياس الطاقة النحاسية / السلك الأرضي | 4 سلك AWG |
| تصنيف الصمامات | 50 أمبير (AFS أو AGU أو MaxiFuse™) |
| معالجة الإشارات | |
| وضع (أوضاع) التصفية | تمرير منخفض فقط |
| ميل (منحدرات) التصفية | 12 ديسيبل/أوكتاف |
| نطاق تردد التصفية | 50 هرتز - 500 هرتز |
| تردد مرشح منعزل ومعاير. مقاييس الجهد | لا |
| وظيفة تصفية الهزيمة | لا |
| مرشح الأشعة فوق الصوتية | لا |
| معادل تعزيز الجهير | نعم |
| تبديل قطبية الإخراج | لا |
| التحكم في مستوى مضخم الصوت عن بعد | اختياري (RBC-1) |
| التحكم عن بعد في تعزيز معادل الصوت الجهير | لا |
| تمرير من خلال إخراج Preamp | مخزنة |
| المواصفات المادية |
|
| الارتفاع (ح) | 2.13 بوصة / 54 ملم |
| العرض (ث) | 9.78 بوصة / 248 ملم |
| العمق (د) | 6.96 بوصة / 177 ملم |
| الوزن الصافي | |

JL Audio RD500/1 RD Series 500W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Car Amplifier
Unleash deep, distortion-free bass with the JL Audio Class-D Mono Subwoofer Amplifier featuring cutting-edge NexD™ Switching Technology. Delivering up to 500W at 2Ω and 250W at 4Ω, it combines power and precision in a sleek, ultra-compact design. Its rugged black powder-coated chassis houses advanced audio controls for complete sound customization — including a variable bass boost EQ and a fully adjustable 12 dB/octave low-pass filter (50–500 Hz). Designed for seamless integration, it features dual-range, differential-balanced inputs, automatic turn-on capability, and convenient preamp outputs for system expansion. With LED clipping indicators for quick setup and optional remote control support, this amplifier delivers pure, powerful performance built to last.
Key Features
- Class-D Mono Subwoofer Amplifier with NexD™ Switching Technology
- Power Output: 500W at 2Ω / 250W at 4Ω
- Compact, Durable Chassis with Black Powder-Coated Finish
- Advanced 12 dB/Octave Low-Pass Filter (50–500 Hz) for Precise Bass Tuning
- Variable Bass Boost EQ for Customizable Low-End Performance
- Dual-Range Differential-Balanced Inputs for Flexible System Integration
- Automatic Turn-On via Signal or DC-Offset Sensing
- Preamp Outputs for Easy System Expansion
- LED Clipping Indicator for Accurate Sensitivity Adjustment
- Dual-Color LED Light Strip for Real-Time Status Monitoring
- Compatible with Optional RBC-1 Remote Level Control (Sold Separately)
- Includes 2.5mm Allen Wrench, JL Audio Badge & Owner’s Manual
What's Inside?
- Class-D Mono Subwoofer Car Amplifier
- 2.5mm Allen Wrench
- Self-Adhesive JL Audio Badge
- Owner's Manual
