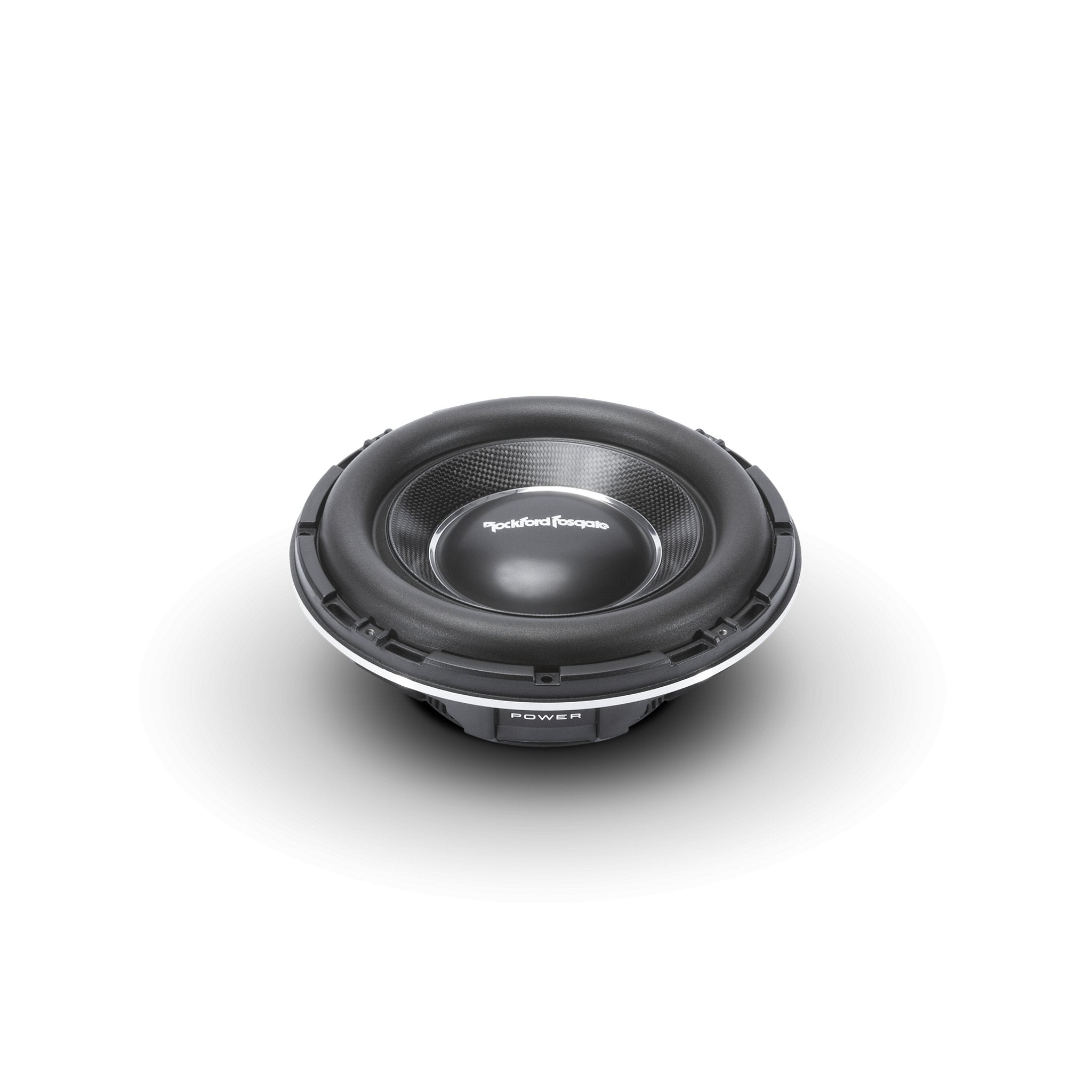

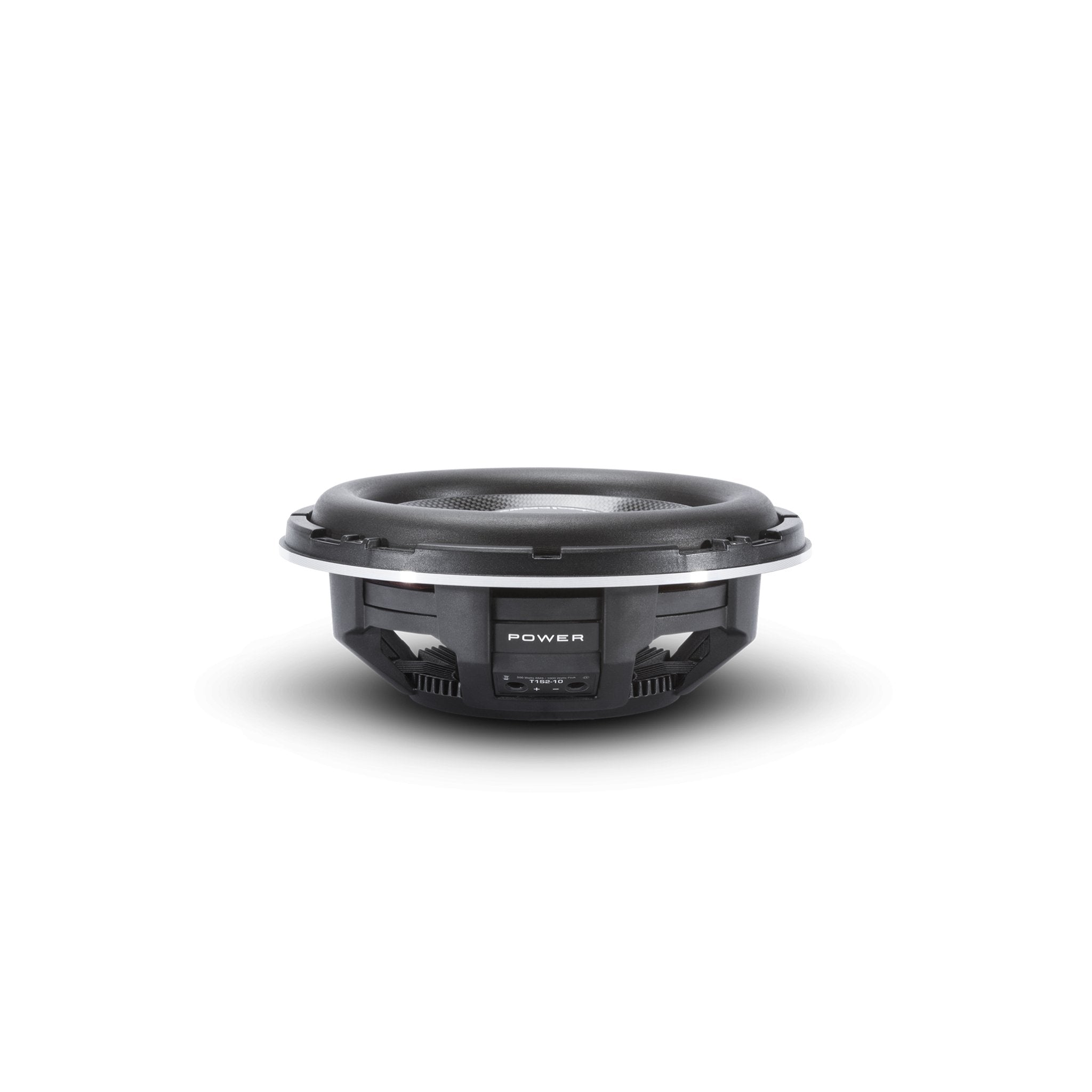

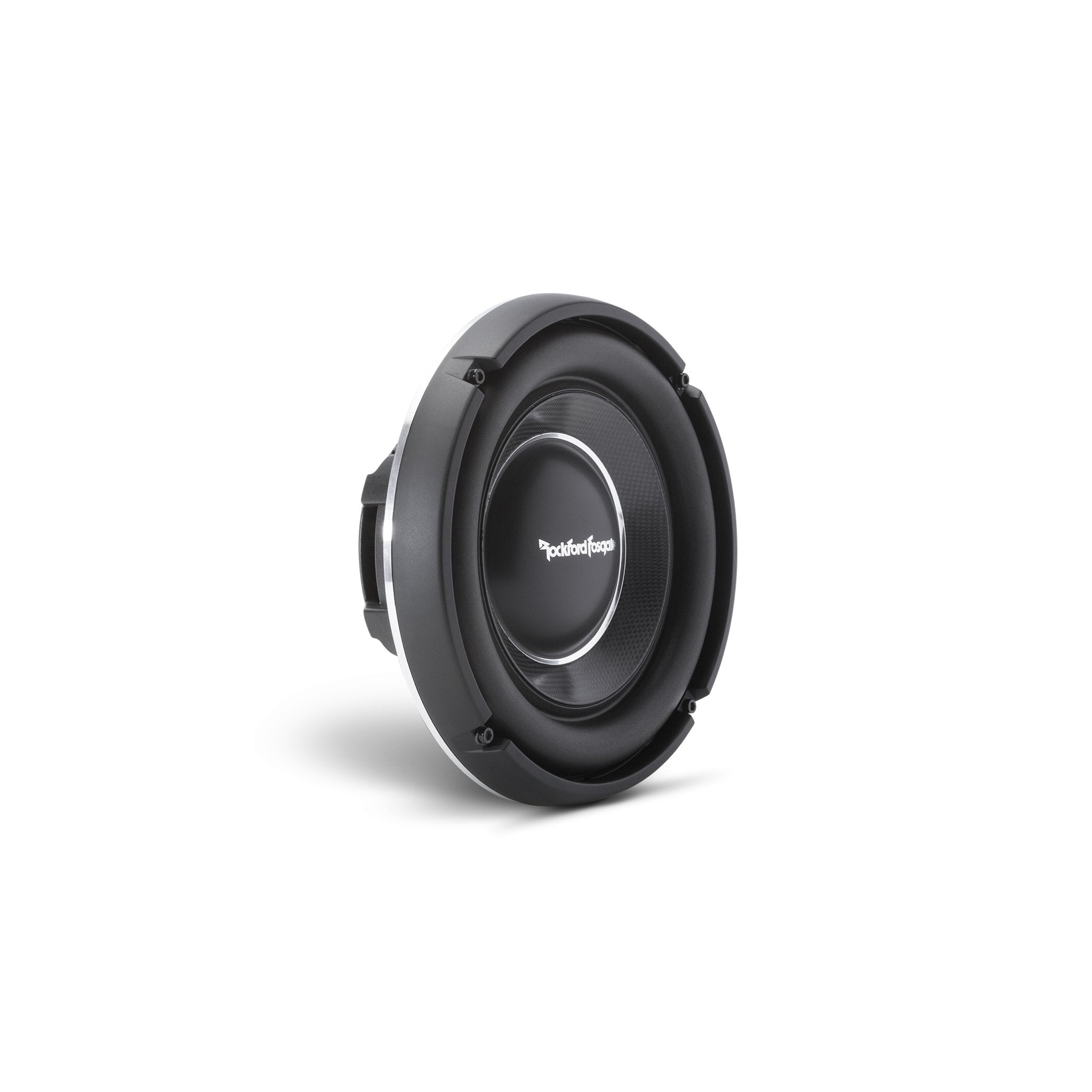

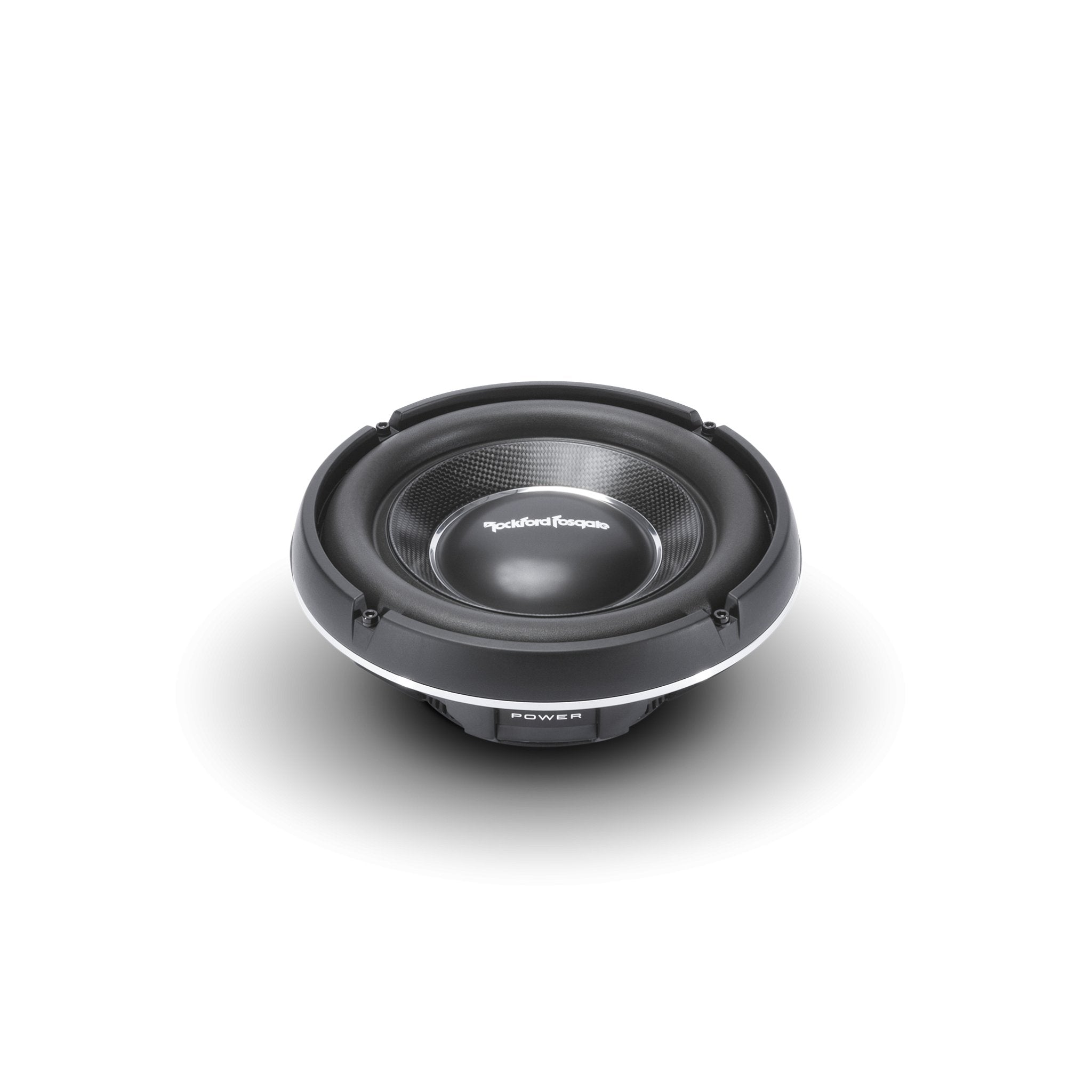

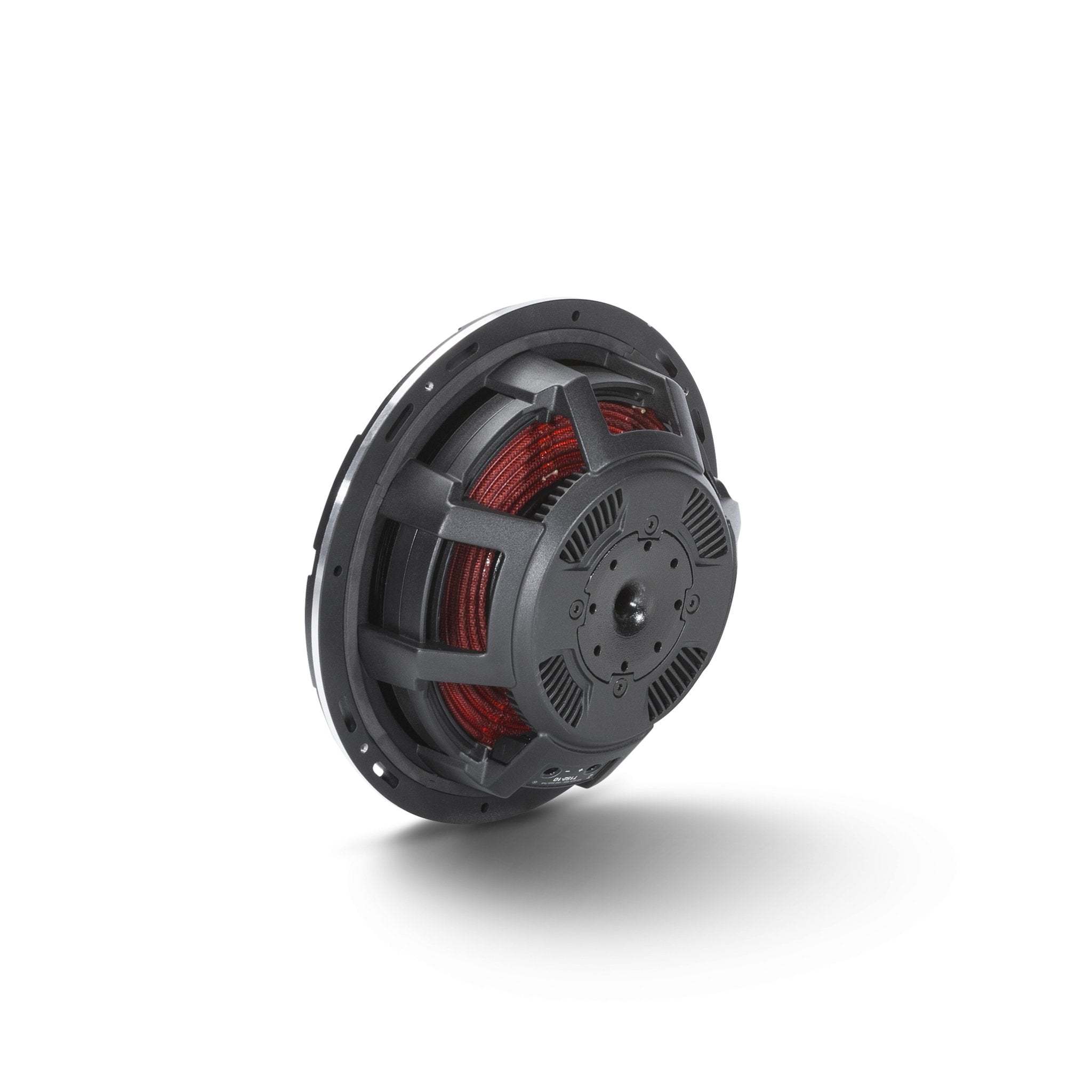

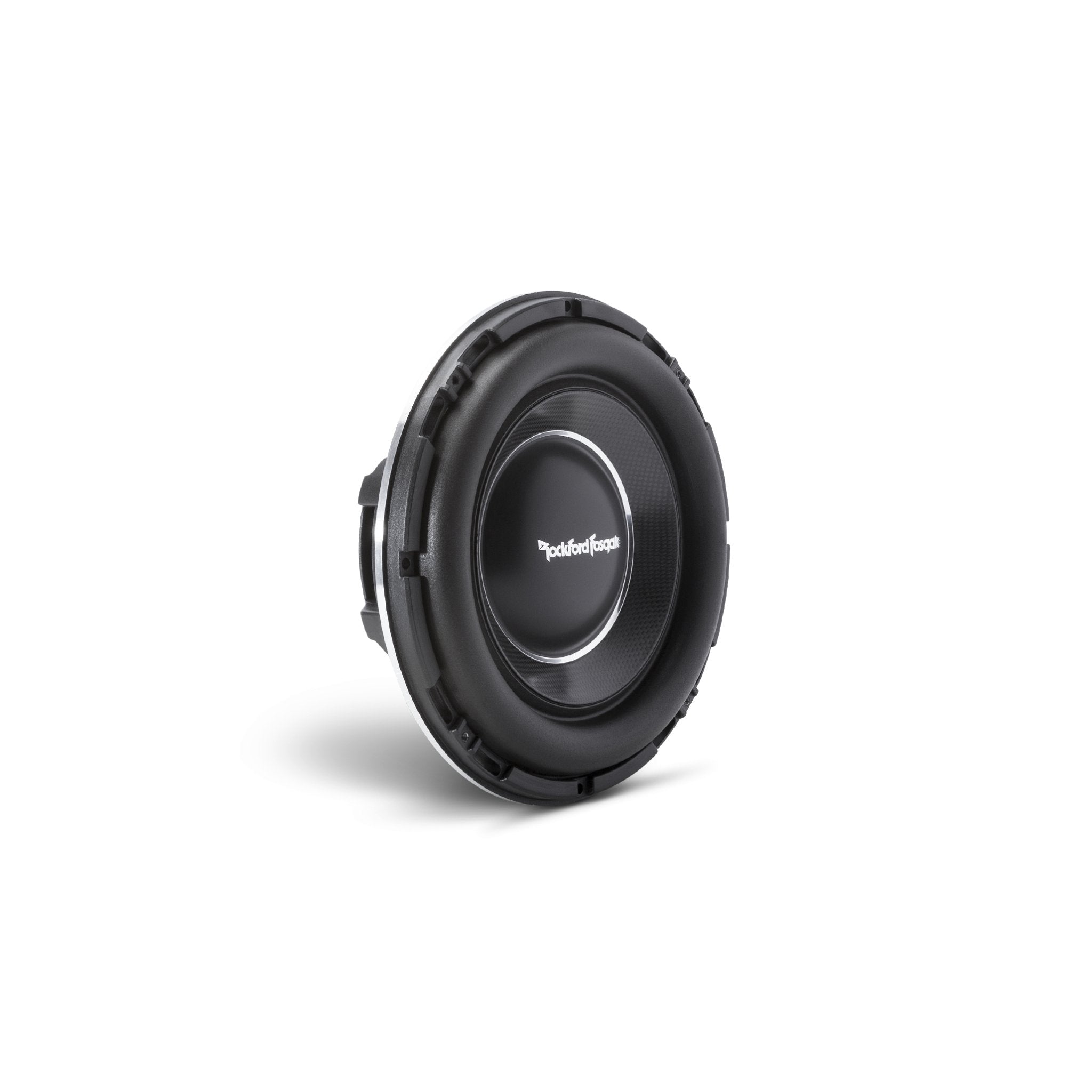

Rockford Fosgate T1S2-10
Power Series Shallow-Mount 10" 2-ohm Component Subwoofer
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
مضخم صوت فردي T1 رفيع مقاس 10 بوصات 2 أوم
T1S2-10
Power T1S2-10 عبارة عن مضخم صوت رفيع مقاس 10 بوصات مصمم للمساحات التي لا تناسب مكبرات الصوت ذات الحجم التقليدي. يتميز بملف صوتي واحد 2 أوم لتكوينات الأسلاك المبسطة.
ماذا في الصندوق؟
| ⬥ مضخم صوت T1 مع حلقة تريم |
| ⬥ (12) براغي تثبيت |
| ⬥ (4) براغي حلقية |
| ⬥ (1) لقمة تشغيل رأس المقبس |
| ⬥ دليل التثبيت والتشغيل |
سمات
⬥ ألياف الكربون/PMI/مخروط من الألياف الزجاجية مع غطاء غبار من الألومنيوم
⬥ رغوة مصبوبة بالحقن تحيط بـ VAST™
⬥ عناكب Nomex التقدمية المزدوجة مع أسلاك الرصاص المدمجة
⬥ إطار من الألومنيوم المصبوب مع زعانف مشتت حراري مدمجة
⬥ زنبرك دفع معزول مخصص 10 أطراف AWG
⬥ ملف صوتي مزدوج الجرح مقاس 2.5 بوصة مع ملفات داخلية/خارجية
⬥ ملف صوتي مغلف بتقنية الاقتران السابقة (في انتظار الحصول على براءة اختراع)
⬥ حلقة تزيين من الألومنيوم المصبوب قابلة للفصل
⬥ قطعة عمود مهواة
⬥ هيكل محرك نيوديميوم عالي الطاقة ودرجة حرارة عالية
⬥ تمريرة مقسومة خاصة من خلال تقنية المحرك (في انتظار الحصول على براءة اختراع)
⬥ حلقة تقصير مدمجة للحرارة ذات غطاء نحاسي (IDHS)
⬥ يتوفر ملحق شبكي اختياري
⬥ الأمثل للمرفقات المغلقة
المواصفات العامة
| مقاس | 10" |
| نوع مضخم الصوت | أجوف |
| المعاوقة الاسمية (أوم) | 2-أوم |
| التعامل مع الطاقة (واط RMS) | 500 واط آر إم إس 1000 واط كحد أقصى |
| قطر الملف الصوتي | 3.0 بوصة (75.5 ملم) |
| نوع الملف الصوتي | ملف صوتي واحد |
| وزن المغناطيس (أونصة) | 15.10 أوقية. (0.43 كجم) |
| خ م (هرتز) | 43.5 |
| إعادة (أوم) | 1.6 |
| لو (ملي هرتز) | 0.42 |
| SD (سم 2) | 356 |
| إدارة الجودة | 9.21 |
| سؤال | 1.17 |
| كيو تي اس | 1.04 |
| فاس | 13.1 |
| مستوى ضغط الصوت (ديسيبل عند 1 وات/1 م) | 83 |
| مستوى ضغط الصوت (ديسيبل عند 2.8 فولت/1 متر) | 86 |
| ماكس (مم) | 15 |
| إزاحة مكبر الصوت | 0.028 متر مكعب. قدم (0.82 لتر) |
| موصل مكبر الصوت | تم تحميل فتحة 10 AWG |
| قطر القطع | 9.13 بوصة (232 ملم) |
| تصاعد العمق | 3.01 بوصة (76.5 ملم) |
| حجم الصندوق المختوم (Vb) | 0.8 متر مكعب. قدم (22.6 لتر) |
| حجم الصندوق المهووس (Vb) | 1.5 متر مكعب. قدم (42.4 لتر) |
| وزن المشتريات | 9.6 رطل. (4.3 كجم) |

Rockford Fosgate T1S2-10 Power T1 Slim Series 10" 500W RMS (1000W Peak Power Handling) Single 2 Ohms Voice Coil Car Subwoofer
The Rockford Fosgate T1 Slim Series 10" subwoofer is engineered for powerful, high-performance bass in installations where space is limited. Its shallow-mount design allows seamless fitment in tight locations, while the 10" diameter and dual 1-ohm voice coil deliver impressive output, accuracy, and low-frequency punch. Optimized for both sealed and vented enclosures, this subwoofer handles up to 1000 watts peak power, ensuring clean, impactful bass even at elevated volumes. The composite cone and Santoprene surround provide excellent stiffness, control, and durability for distortion-free performance.
Injection-Molded Foam Surround
The injection-molded foam surround is created using a two-part foam compound injected into a precision mold for superior durability and lightweight performance. This design delivers excellent sound isolation and reduced distortion, helping achieve cleaner, tighter bass with improved accuracy and minimized vibration.
Custom Insulated Push-Spring Terminals
Equipped with high-temperature nylon-insulated push-spring terminals, this system ensures secure, corrosion-resistant connections for long-term reliability. The push-spring mechanism simplifies installation while providing a firmer hold than standard screw-type terminals, making it ideal for power, ground, and speaker connections in demanding car audio setups.
Aluminum Die-Cast Frame
Built for strength and precision, the subwoofer features an aluminum die-cast frame, an anodized aluminum cone, and a high-temperature dual 2-ohm voice coil (T1S1-10 variant). Its integrated thermal protection circuit prevents heat-related damage during intense bass output. Engineered to deliver deep, tight, and controlled low frequencies, this subwoofer is perfect for adding serious impact to your car audio system.
Key Features
– Shallow-mount design ideal for tight installations
– 10" diameter with dual 1-ohm voice coil for powerful bass output
– Handles up to 1000W peak power
– Composite cone with Santoprene surround for distortion-free bass
– Injection-molded foam surround for durability and reduced vibration
– High-temperature, insulated push-spring terminals for secure wiring
– Aluminum die-cast frame and anodized cone for strength and accuracy
– Integrated thermal protection circuit for reliability under heavy load
– Compatible with sealed and vented enclosures
What's Inside?
- (1) shallow-mount 10" Subwoofer
- (1) Trim ring (installed) /li>
- (12) 1-5/8" Allen head self-tapping screws
- (1) 4mm Allen head bit
