تي كيه 88
System Tuning 8 Ch. Digital Signal Processor
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
ضبط نظام DSP يتم التحكم فيه بواسطة برنامج TüN، 8 قنوات. المدخلات التناظرية والرقمية / 8 قنوات. المخرجات التناظرية
توك-88
ضبط النظام DSP مع 8 قنوات. مدخلات RCA ستيريو / 2 مدخلات رقمية (بصرية ومحورية) / 8 قنوات. مخرجات RCA ستيريو / 1 مخرج بصري رقمي

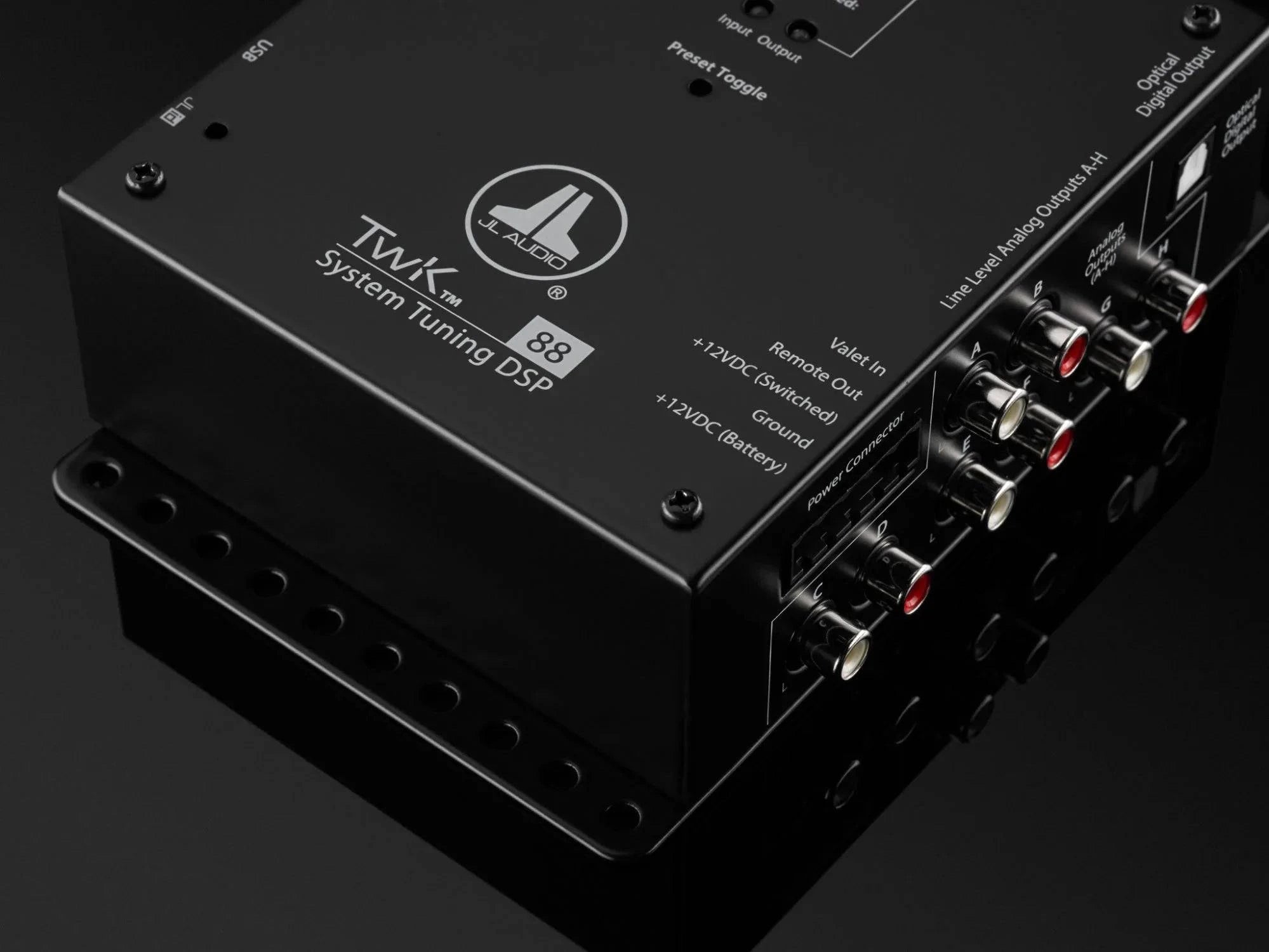

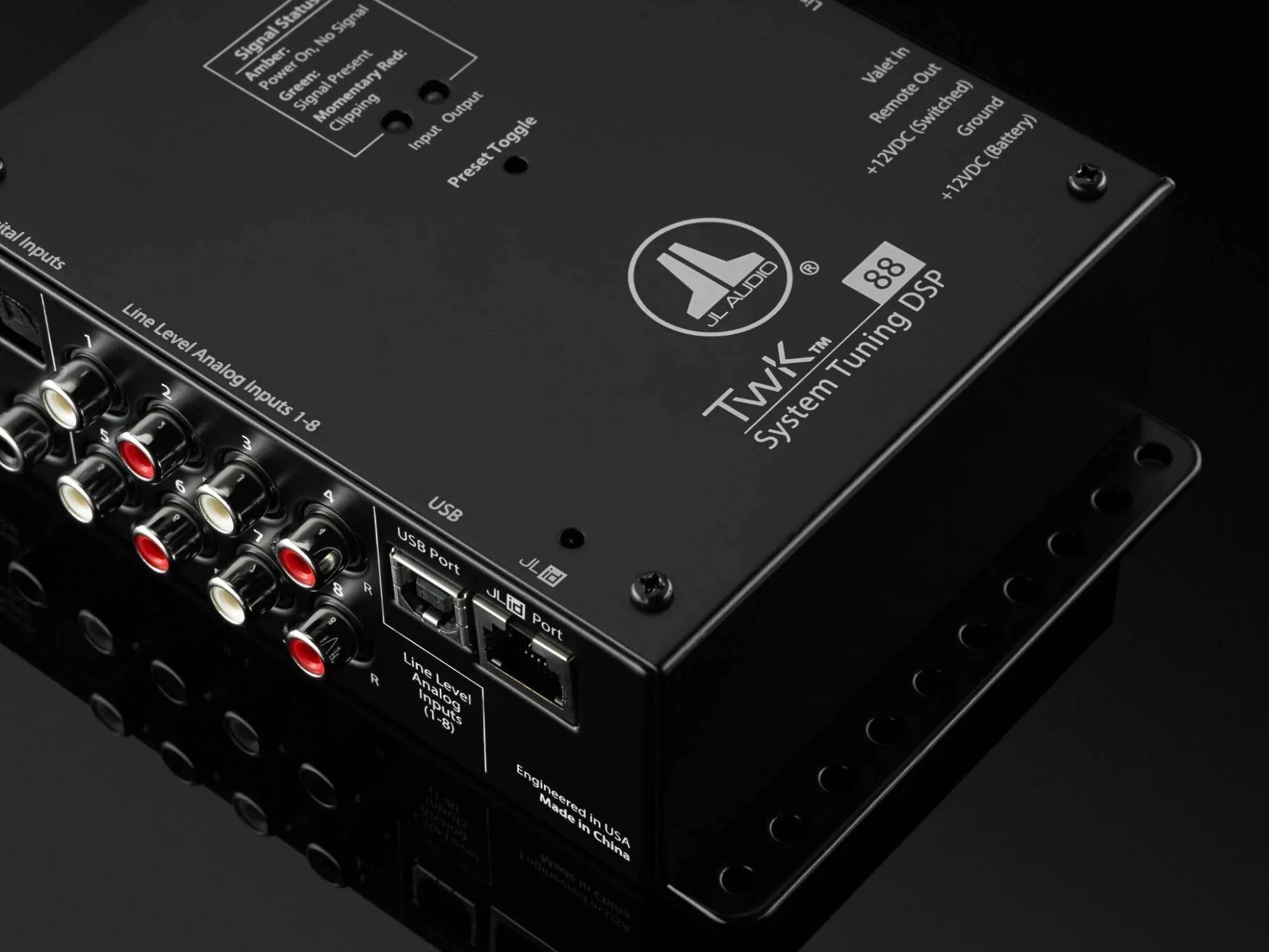

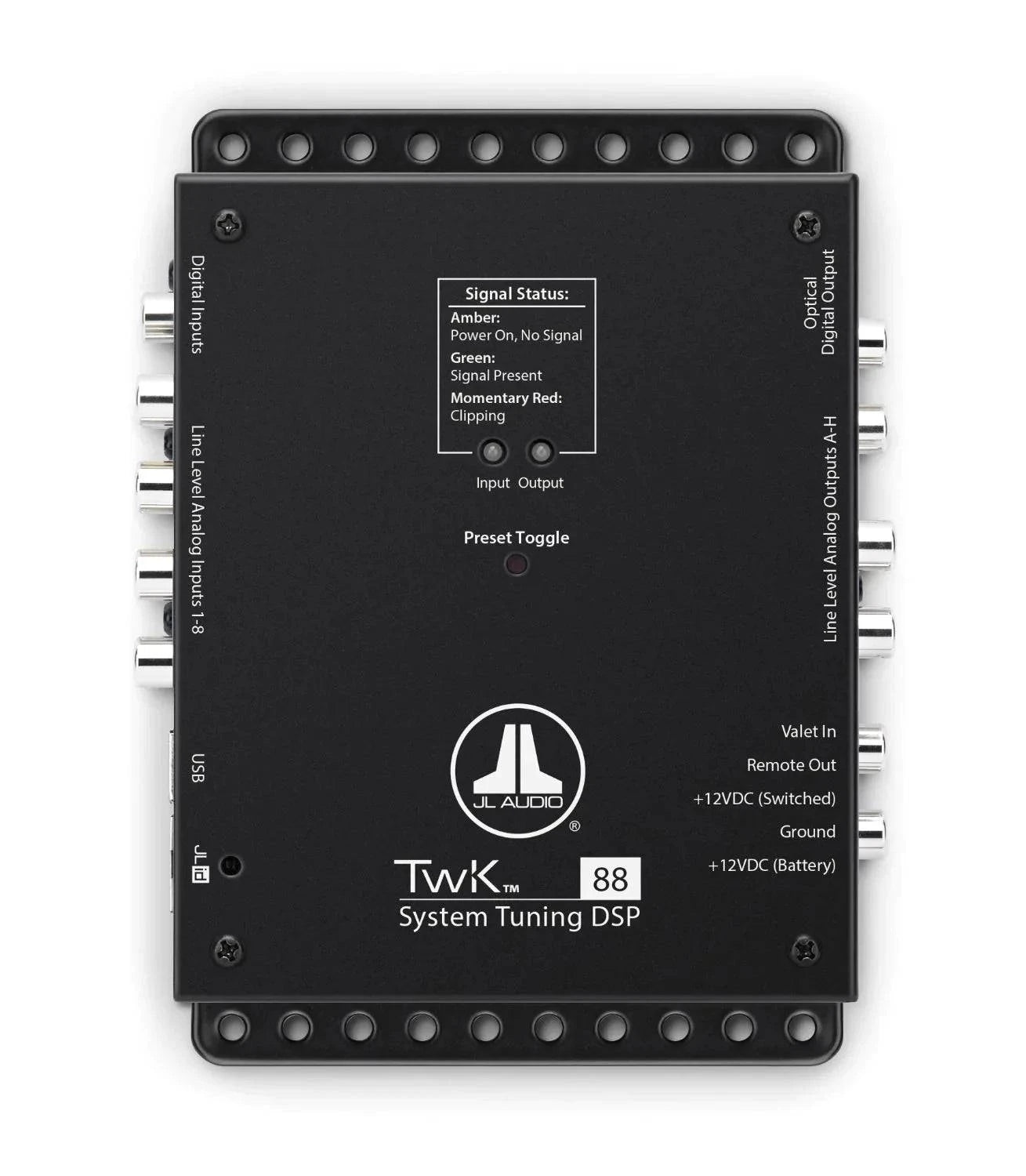

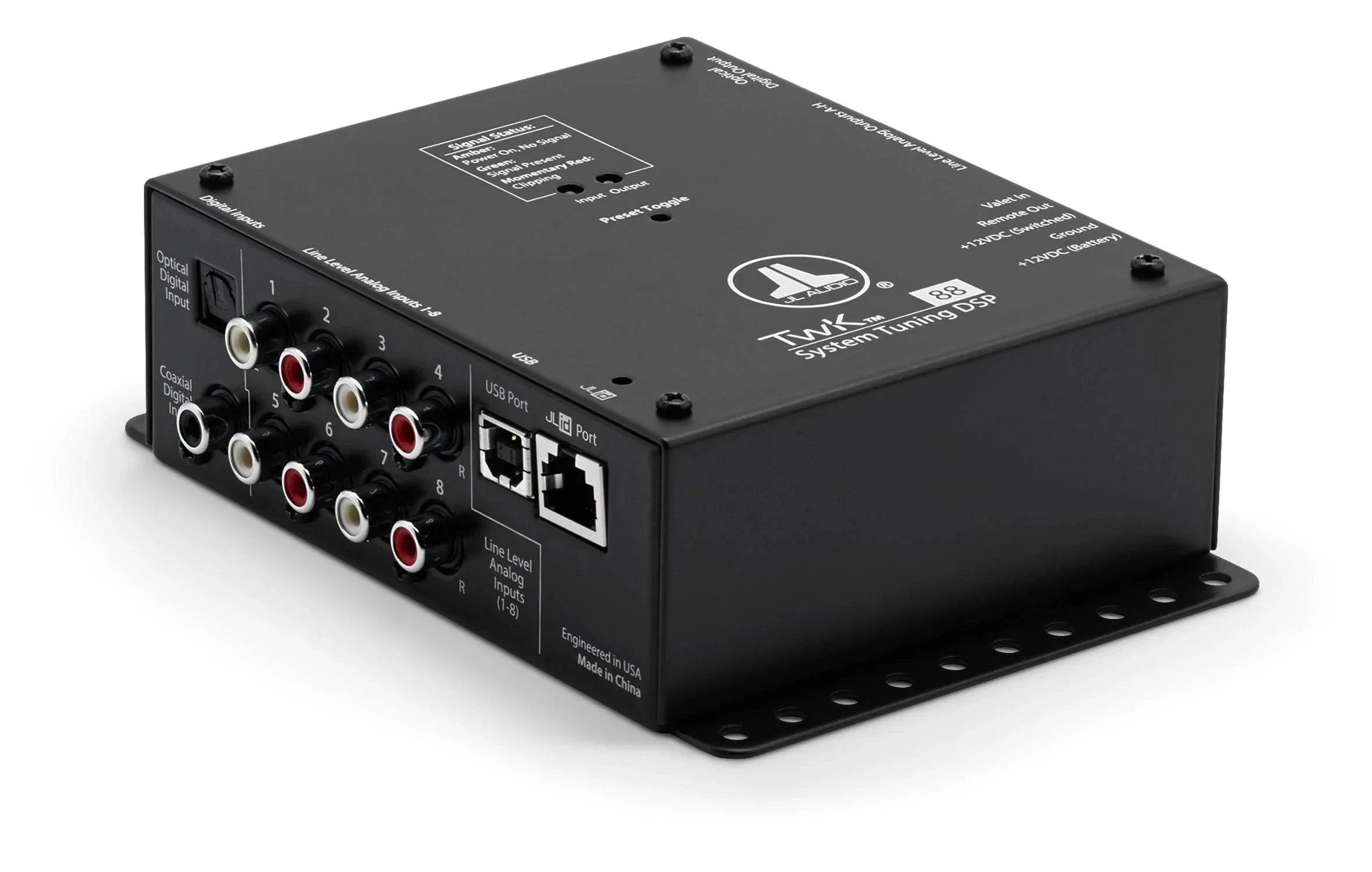

TwK® 88 هو معالج إشارات رقمية متطور تم تصميمه لتوفير إمكانات ضبط النظام ذات المستوى العالمي بتنسيق سهل الاستخدام. مزودًا بمعالج DSP متقدم 24 بت، يتضمن TwK® 88 خيارات إدخال/إخراج مرنة و80 نطاقًا إجماليًا للمعادلة وأدوات خلط قوية. توفر وحدة التحكم عن بعد الرقمية DRC-200 المضمنة عناصر تحكم مزدوجة المستوى، وتبديل ما يصل إلى ستة إعدادات مسبقة، وتحتوي على مؤشر LED.

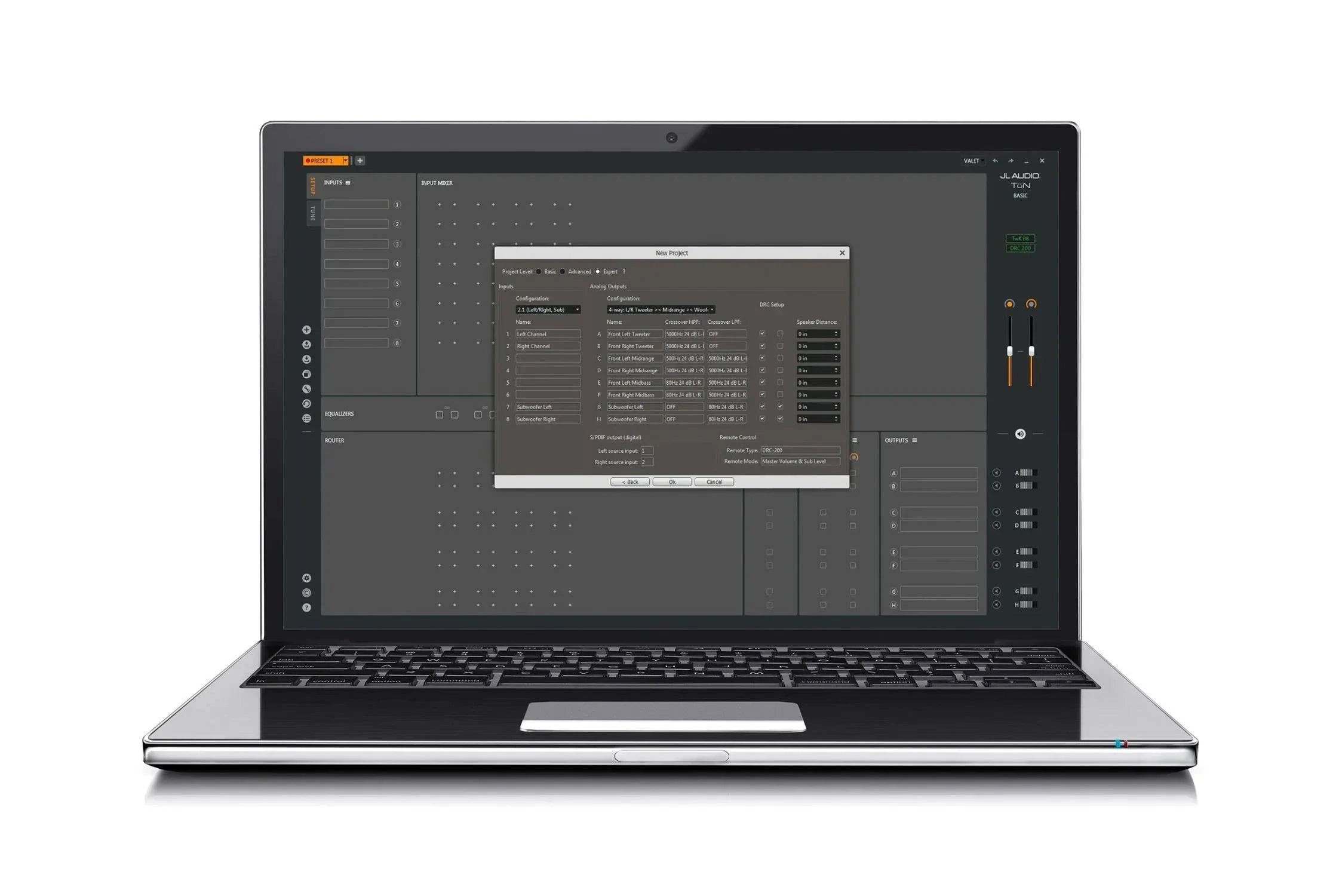

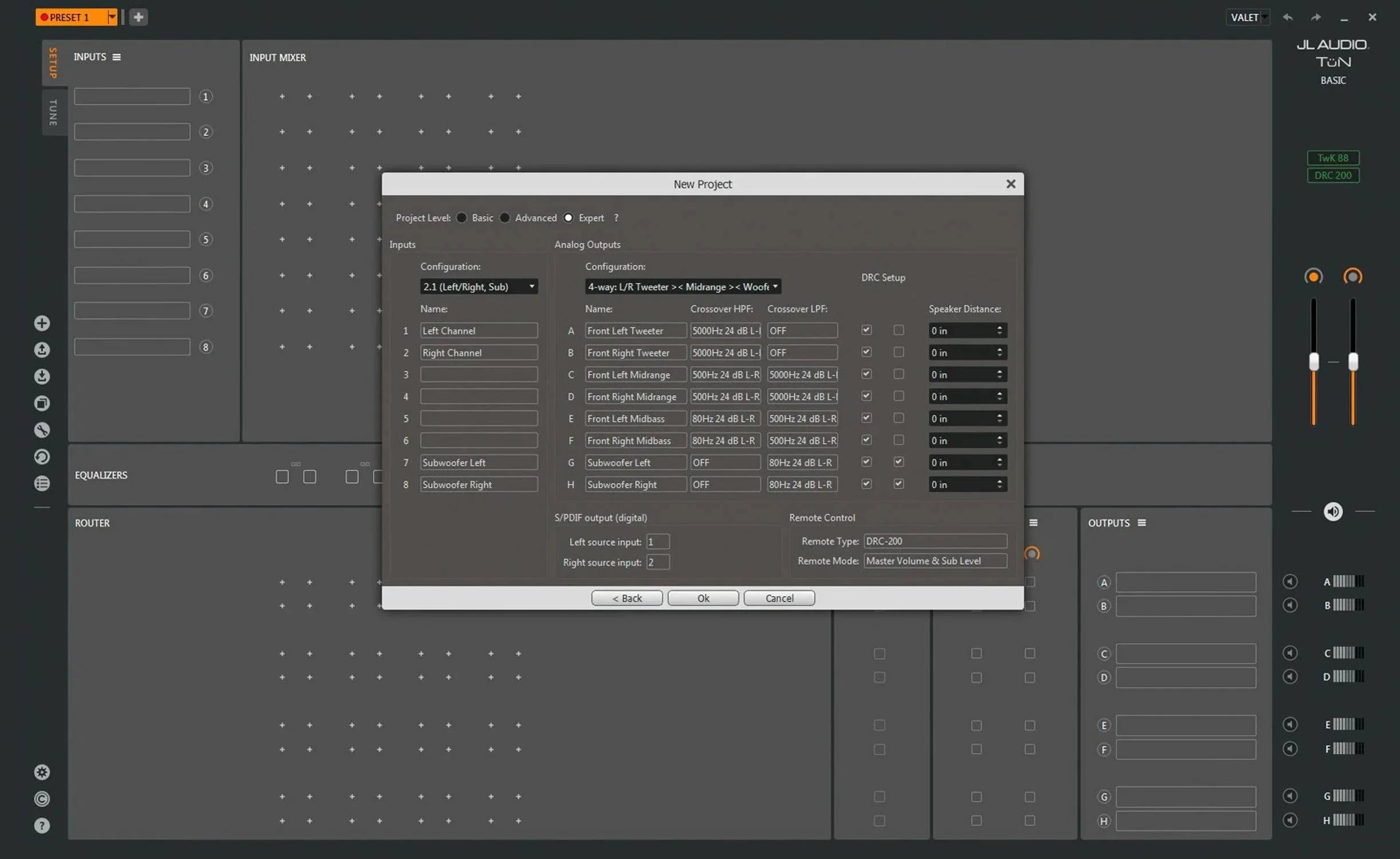

يمكنك التحكم في مجموعة ميزات TwK® 88 بالكامل عن طريق توصيله بجهاز الكمبيوتر الخاص بك عبر USB، باستخدام واجهة برنامج TüN® المصاحبة.
- تصميم إدخال مرن مع 8 مدخلات تناظرية متوازنة تفاضلية على مستوى الخط (RCA)، تقبل إشارات مستوى الخط حتى 7.1 فولت (RMS)
- مدخلات رقمية بصرية ومحورية منفصلة (Toslink) للاتصال بمصادر S/PDIF الرقمية.
- يسمح خلاط الإدخال المرن بدمج قنوات الإدخال مع التحكم الكامل في مستوى كل مدخل وقطبية.
- 8 بنوك من معادلات رسومية أو حدودية ذات 10 نطاقات مع تخصيص EQ قابل للتكوين

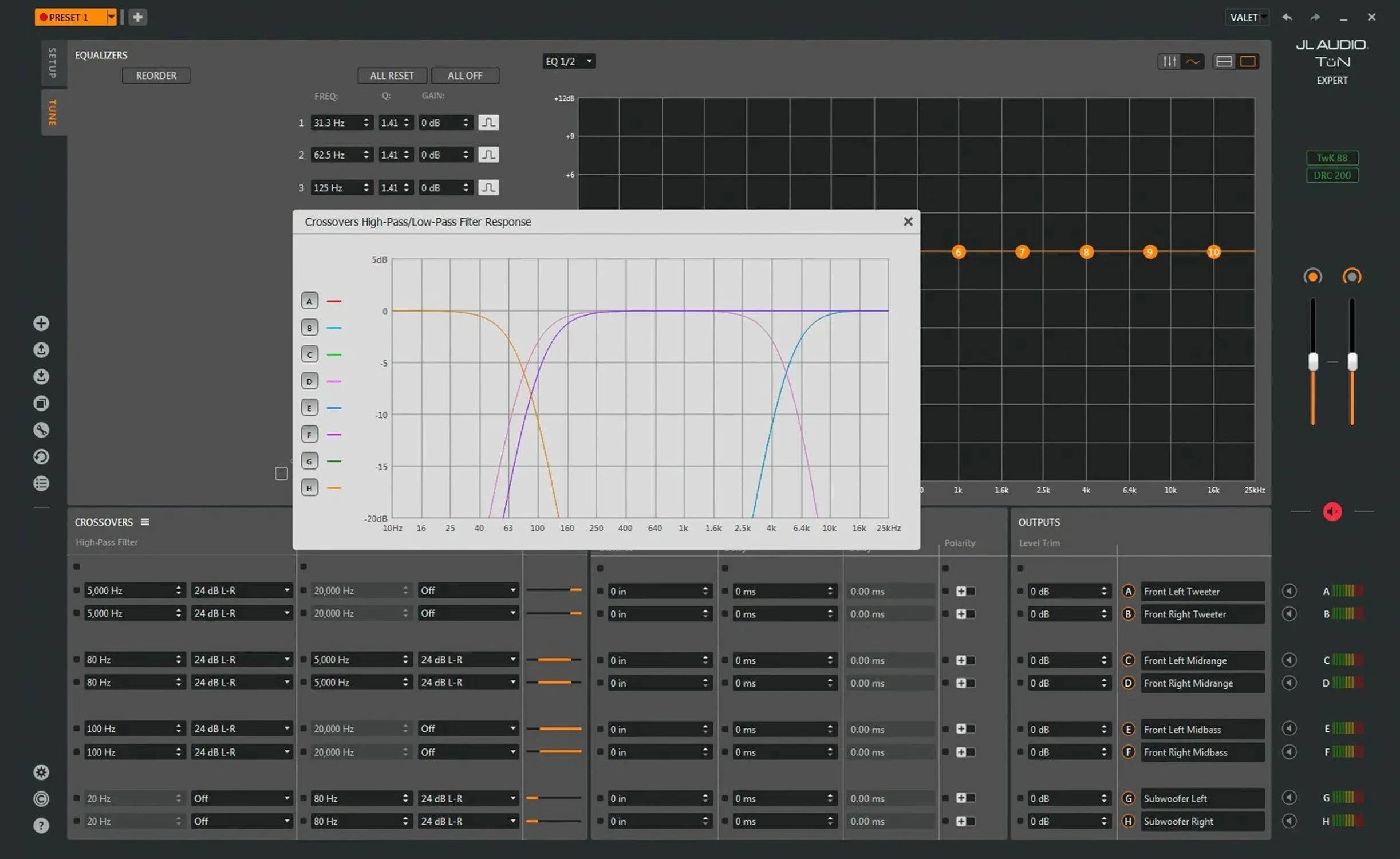

- قسم كروس قوي مع مرشحات تمرير عالية ومنخفضة ومتغيرة بالكامل، يمكن اختيار منحدرات التقاطع من 6 ديسيبل/أوكتاف إلى 48 ديسيبل/أوكتاف (بزيادات 6 ديسيبل/أوكتاف)
- إعدادات قطبية وتأخير قابلة للتكوين، مع مداخل منفصلة لمسافة مكبر الصوت بالإضافة إلى التحكم في الإزاحة؛ قابلة للربط بشكل كامل مع القنوات الأخرى، بأي مجموعة، للتعديل
- ضوابط دقيقة لمستوى الإخراج، قابلة للتعديل بزيادات قدرها 0.5 أو 0.1 ديسيبل، قابلة للربط بالكامل مع القنوات الأخرى، في أي مجموعة
- 8 مقابس إخراج RCA تناظرية على مستوى الخط (4V RMS)
- يوفر مقبس الإخراج البصري (Toslink) إشارة صوتية رقمية (S/PDIF) من أي زوج من قنوات الإدخال، دون تطبيق أي معالجة للإشارة.
- مخرج تشغيل عن بعد (+12VDC) لتنشيط معدات الصوت بعد البيع.
- يسمح منفذ JLid™ بالاتصال بوحدة التحكم عن بعد الرقمية DRC-200 المضمنة لإضافة عناصر تحكم مزدوجة في المستوى قابلة للتكوين واختيار مسبق وتقارير حالة LED من مقعد السائق.
المواصفات العامة
| المواصفات العامة | |
|---|---|
| نوع مصدر الطاقة | ينظم DC-DC SMPS |
| مدخلات جهد التشغيل | 10 - 16 فولت تيار مستمر |
| الاستعداد السحب الحالي | <1.5 مللي أمبير |
| التشغيل الرسم الحالي | 0.7 أ |
| قيمة الصمامات الموصى بها | 1 أ |
| قنوات الإدخال | ثمانية |
| نوع الإدخال | مستوى الخط، التفاضلية المتوازنة |
| مدى جهد المدخلات | 250 مللي فولت - 7.1 فولت RMS |
| الحد الأدنى من جهد الإدخال | 10 مللي فولت RMS |
| إعداد مستوى الإدخال | أحد عشر اختيارًا منفصلاً من 250 مللي فولت إلى 7.1 فولت RMS |
| قنوات الإخراج | ثمانية |
| خرج تشابهي | مقابس RCA استريو غير متوازنة |
| الإخراج الرقمي | الإخراج البصري (Toslink) (S/PDIF) |
| مقاومة الإخراج | 450 أوم |
| وقت الإستجابة | تناظري - تناظري: 5.425 مللي ثانية تناظري - بصري: 5.470 مللي ثانية بصري - بصري: 4.860 مللي ثانية بصري - تناظري: 4.805 مللي ثانية |
| S / N نسبة | 98 ديسيبل (A-مرجح، يُشار إليه بـ 4V RMS Output) |
| THD + N @ الإخراج المقدر | 0.02% (20 هرتز - 20 كيلو هرتز) |
| معالجة الإشارات | |
| دقة الصوت | 24 بت / 48 كيلو هرتز |
| عدد نطاقات EQ | 10 × 8 قنوات |
| التحكم في المستوى عن بعد | متضمن (DRC-200) |
| وظائف المستوى البعيد | التحكم الرئيسي في مستوى الصوت + القطع؛ التحكم الرئيسي في مستوى الصوت + الخافت؛ التحكم في المنطقة، تقارير حالة LED |
| المواصفات المادية | |
| الارتفاع (ح) | 1.85 بوصة / 47 ملم |
| العرض (ث) | 4.29 بوصة / 109 ملم |
| العمق (د) | 6.14 بوصة / 156 ملم |
| الوزن الصافي | 2.58 رطل / 1.17 كجم |
