10W3v3-2 | Altavoz de subgraves de 10 pulgadas
W3v3 Series 1000W 10" 2-ohm Subwoofer
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Controlador de subwoofer de 10 pulgadas (250 mm), 2 Ω
Audio JL 10W3v3-2
Altavoz de subgraves W3v3 de 10 pulgadas (500 W, 2 Ω)
Este aclamado subwoofer logra un excelente equilibrio en el manejo de potencia, los requisitos de la carcasa y la excursión para ofrecer excelentes resultados en aplicaciones de potencia media. Se aplican varias tecnologías exclusivas de JL Audio y técnicas de ensamblaje patentadas al 10W3v3 para mejorar la linealidad y la confiabilidad.
El 10W3v3-2 se utiliza mejor con una potencia de amplificador en el rango de 150 W - 500 W y está optimizado para funcionar en un compacto de 0,625 pies cúbicos. gabinete sellado de 17,7 l (pies cúbicos), o un gabinete sellado de 1,25 pies cúbicos. Gabinete con puerto de 35,4 l (pies).
Especificaciones generales
Especificaciones de generación
|
|
|---|---|
| Manejo continuo de energía (RMS) | 500 vatios |
| Potencia recomendada del amplificador (RMS) | 150 - 500W |
| Impedancia nominal (Znom) | 4 Ω |
Especificaciones físicas
|
|
| Diámetro nominal | 10,0 pulg./250 mm |
| Diámetro total (A) | 10,5 pulgadas/267 mm |
| Diámetro del orificio de montaje (B) | 9,0625 pulg./230 mm |
| Diámetro del círculo del orificio del perno (C) | 9,7 pulgadas/246,5 mm |
| Diámetro exterior del motor (D) | 5,25 pulgadas/133 mm |
| Profundidad de montaje (E) | 5,93 pulgadas/151 mm |
| Desplazamiento del conductor | 0,049 pies cúbicos/1,39 L |
| Peso neto | 12,25 libras/5,56 kg |
| Parámetros | |
| Resonancia de aire libre (Fs) | 32,97Hz |
| “Q” Eléctrica (Qes) | 0.533 |
| “Q” mecánica (Qms) | 7.027 |
| Total de altavoces “Q” (Qts) | 0,495 |
| Cumplimiento equivalente (Vas) | 1,136 pies cúbicos / 32,17 litros |
| Excursión lineal unidireccional (Xmax)* | 0,550 pulg./14,0 mm |
| Eficiencia de referencia (no) | 0,21% |
| Eficiencia (1 W / 1 m)** | 85,37 dB SPL |
| Área efectiva del pistón (Sd) | 53,475 pulgadas cuadradas / 0,0345 metros cuadrados |
| Resistencia CC (Re) | 1,70 Ω |
| * Las especificaciones Xmax se obtienen mediante el método de voladizo de bobina móvil unidireccional sin aplicar factores de corrección. ** La eficiencia (1 W / 1 m) no es un indicador preciso de la capacidad de salida de un subwoofer y no debe usarse como comparación con otros subwoofers para determinar cuál es "más ruidoso". |
|
Especificaciones del gabinete sellado
|
|
| Espesor de pared | 0,75 pulgadas/19 mm |
| Grosor del deflector frontal | 0,75 pulgadas/19 mm |
| Volumen (int. neto) | 0,625 pies cúbicos/17,7 L |
| Ancho externo (W) | 17,875 pulg./454 mm |
| Altura externa (H) | 11 pulgadas/279 mm |
| Profundidad externa (D) | 9 pulgadas/229 mm |
| F3 | 48,3Hz |
| fc | 55,3Hz |
| qtc | 0.831 |
Especificaciones del gabinete portado
|
|
| Espesor de pared | 0,75 pulgadas/19 mm |
| Grosor del deflector frontal | 0,75 pulgadas/19 mm |
| Volumen (int. neto) | 1,25 pies cúbicos / 35,4 L |
| Ancho externo (W) | 25 pulgadas/635 mm |
| Altura externa (H) | 12 pulg./305 mm |
| Profundidad externa (D) | 12,5 pulgadas/318 mm |
| Ancho del puerto de ranura interna (SW) | 1,25 pulgadas/32 mm |
| Altura del puerto de ranura interna (SH) | 10,5 pulgadas/267 mm |
| Longitud del puerto de ranura interna (SL) | 24,75 pulgadas/629 mm |
| Longitud de extensión del puerto (EL) | 11,625 pulg./295 mm |
| Frecuencia de sintonización (Fb) | 32,0 Hz |
| F3 | 31,4Hz |
Notas adjuntas
* Las recomendaciones de gabinete enumeradas anteriormente son dimensiones externas que suponen el uso de material de 0,75 pulgadas (19 mm) de espesor. Si está utilizando material de 16 mm (0,625 pulgadas) de espesor, reste 6,5 mm (0,25 pulgadas) de cada dimensión. No utilice ningún material con un espesor inferior a 0,625 pulgadas (16 mm), ya que esto puede comprometer la rigidez del gabinete.
* ¡Todos los volúmenes de gabinete enumerados anteriormente son volúmenes internos netos! Se debe sumar el desplazamiento del conductor, el desplazamiento del puerto y el desplazamiento de la riostra para obtener el volumen interno bruto final. Todas las dimensiones de armario anteriores ya han tenido esto en cuenta.
* Cuando utilice varios subwoofers en un gabinete común, deberá volver a calcular las dimensiones del gabinete y del puerto. Para obtener ayuda, comuníquese con su distribuidor autorizado de JL Audio o con el soporte técnico de JL Audio.
* Recomendamos el uso de este altavoz en un sistema biamplificado utilizando altavoces satélite de alta calidad y un amplificador de alta calidad. No recomendamos el uso de este subwoofer con un crossover pasivo (bobina), ya que este tipo de dispositivo afectará negativamente el rendimiento.
* Todas las especificaciones están sujetas a cambios sin previo aviso.
Aviso de seguridad
La exposición prolongada a niveles de presión sonora superiores a 100 dB puede provocar una pérdida auditiva permanente. Este altavoz de alto rendimiento puede superar este nivel. Por favor, ejerza moderación en su funcionamiento para preservar su capacidad de disfrutar de su fidelidad.
Al instalar un subwoofer en su vehículo, es extremadamente importante asegurar la caja firmemente. Recomendamos atornillar el recinto a través del metal del piso o del bastidor del vehículo con arandelas de gran diámetro como refuerzo. Si un recinto no está firmemente sujeto, puede convertirse en un proyectil en caso de colisión. Esto es particularmente importante en un hatchback, una camioneta, un vehículo deportivo utilitario o una camioneta.

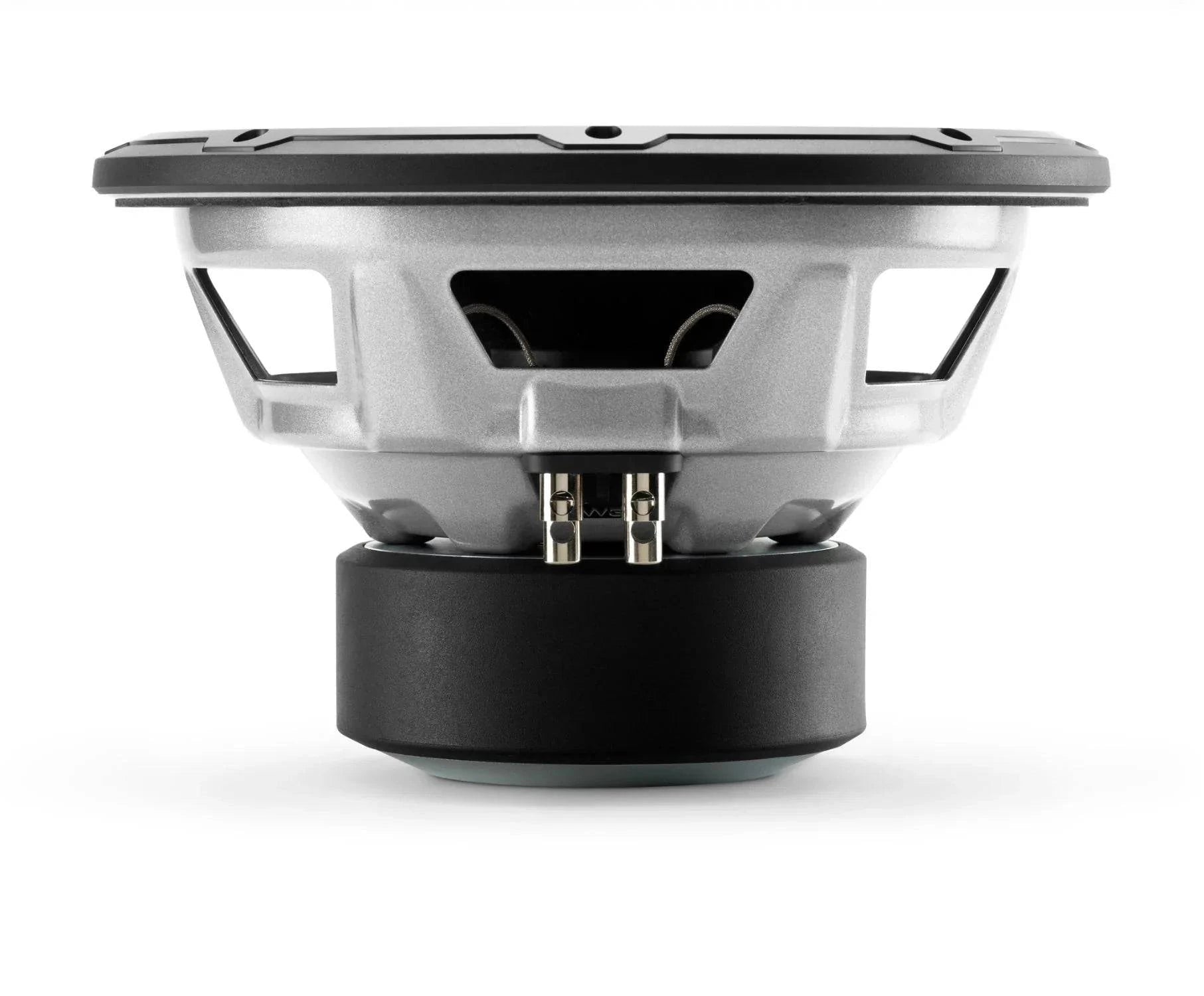

JL Audio 10W3v3-2 W3v3 Series 10" 1000W Peak Power Handling 2 Ohm, Single Voice Coil Component Car Subwoofer
The JL Audio 10W3v3-2 10" subwoofer is designed for serious bass enthusiasts seeking power, precision, and durability. Perfectly paired with an amplifier delivering 150–500 Watts, this subwoofer delivers deep, accurate audio performance. Its stamped steel basket with an elevated cooling frame ensures efficient thermal management, quickly dissipating heat during extended high-volume use and protecting the motor. The DMA-optimized motor design provides clean, distortion-free bass, while the patented floating cone attachment method and Vented Reinforcement Collar enhance excursion performance, stability, and thermal efficiency. With a continuous power rating of 500 Watts and peak power of 1000 Watts at 2 ohms, frequency response of 25–250 Hz, and sensitivity of 85.37 dB, the 10W3v3-2 produces heart-pounding bass that lasts. Made in the USA using global components, this subwoofer is built to provide long-lasting, reliable performance in any car audio system.
Key Features:
-Efficient thermal management with stamped steel basket and elevated cooling frame
-Patented floating cone attachment and Vented Reinforcement Collar for better excursion and stability
What's Inside?
- 10" Subwoofer
- Black plastic trim ring
- Owner's manual
