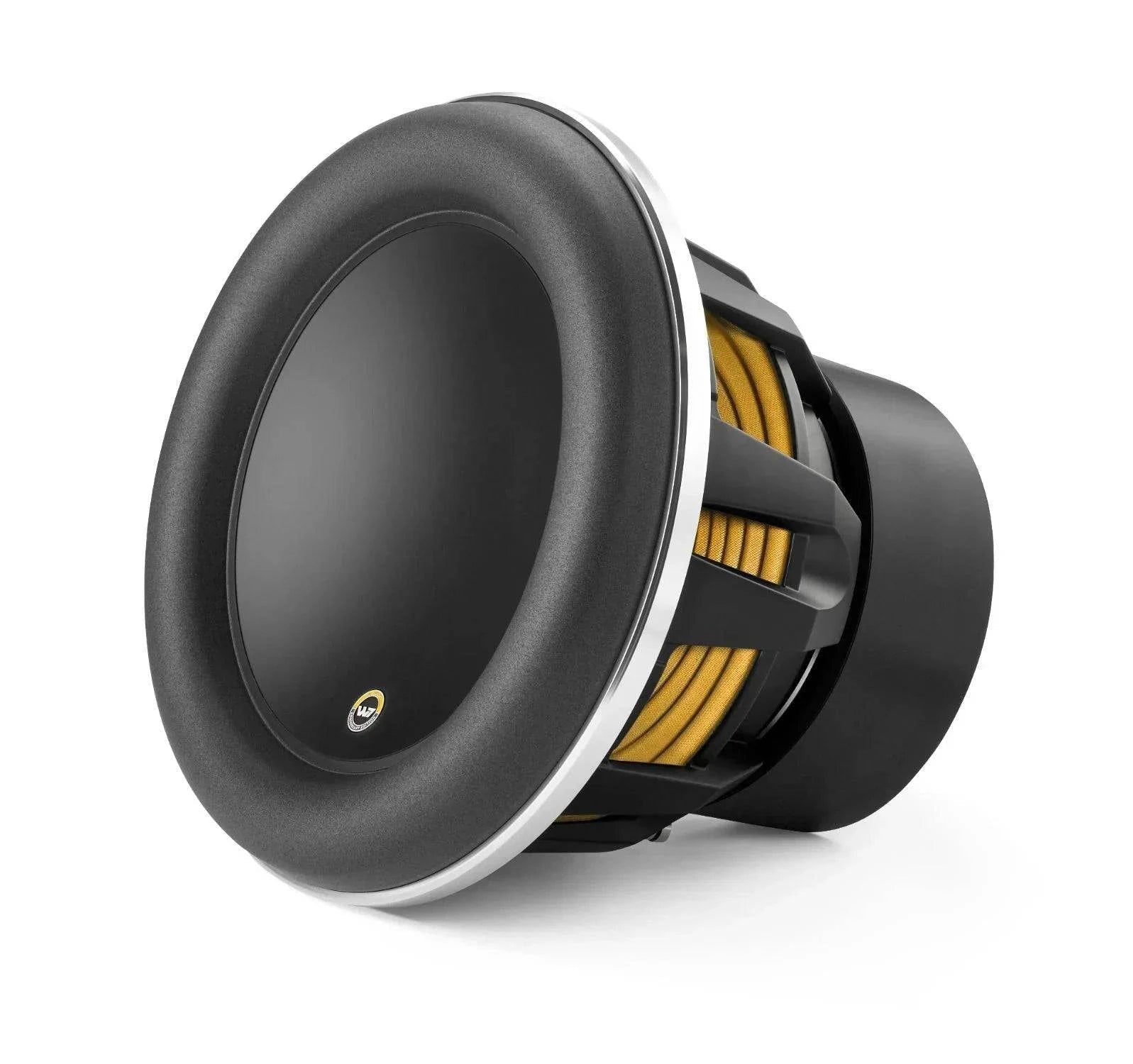

13W7AE-D1.5 | Altavoz de subgraves de 13,5 pulgadas
Anniversary Edition W7 Series 3000W 13.5" Subwoofer with Dual 1.5-ohm Voice Coils
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Controlador de subwoofer de 13,5 pulgadas (345 mm), doble 1,5 Ω
13W7AE-D1.5
Edición del décimo aniversario: subwoofer W7 de 13,5 pulgadas (1500 W, bobinas móviles duales de 1,5 Ω)
Palabras como "extremo", "referencia" y "definitivo" se utilizan bastante en el mundo de los subwoofers, pero es raro el producto que honestamente pueda reclamarlas. El 13W7AE lo hace.
Llevando la fórmula de diseño del W7 a su nivel más alto, el 13W7AE ofrece una asombrosa envolvente de excursión lineal que supera las 1,25 pulgadas (32 mm) en un sentido, junto con una suspensión capaz de realizar más de 4 pulgadas de excursión de pico a pico. Combine eso con un diámetro de pistón que es un 28% mayor que el del 12W7AE y tendrá un controlador de alto rendimiento para las aplicaciones más exigentes. Con un 13W7AE, los límites simplemente desaparecen y aparecen subgraves sorprendentes... en todos los frentes, en cualquier nivel.
Nuestro subwoofer más potente se utiliza mejor con una potencia de amplificador en el rango de 500 W - 1500 W y está optimizado para funcionar en 1,875 pies cúbicos. gabinete sellado de 53,1 l (pies cúbicos), o un gabinete sellado de 2,375 pies cúbicos. Gabinete con puerto de 67,3 l (pies).
Los subwoofers W7AE (Edición Aniversario) celebran el décimo aniversario del lanzamiento de los subwoofers W7. Funcionalmente son idénticos a los W7 originales, pero se distinguen por las siguientes diferencias estéticas:
- Cestas con recubrimiento en polvo negro satinado
- Anillo de sujeción envolvente anodizado brillante
- Insignia de cono de edición de aniversario
- Etiqueta de terminal de edición de aniversario
Especificaciones generales
Especificaciones de generación
|
|
|---|---|
| Manejo continuo de energía (RMS) | 1500 vatios |
| Potencia recomendada del amplificador (RMS) | 500 - 1500W |
| Impedancia nominal (Znom) | Doble 1,5 Ω |
Especificaciones físicas
|
|
| Diámetro nominal | 13,5 pulgadas/345 mm |
| Diámetro total (A) | 14 pulgadas/356 mm |
| Diámetro del orificio de montaje (B) | 11,9 pulgadas/302 mm |
| Diámetro del círculo del orificio del perno (C) | 12,7 pulgadas/323 mm |
| Diámetro exterior del motor (D) | 8,38 pulgadas/213 mm |
| Profundidad de montaje (E) | 10,5 pulgadas/267 mm |
| Desplazamiento del conductor | 0,21 pies cúbicos / 5,9 L |
| Peso neto | 52 libras/23,6 kg |
| Parámetros | |
| Resonancia de aire libre (Fs) | 23,5Hz |
| “Q” Eléctrica (Qes) | 0,476 |
| “Q” mecánica (Qms) | 7.517 |
| Total de altavoces “Q” (Qts) | 0,448 |
| Cumplimiento equivalente (Vas) | 3,68 pies cúbicos/104,3 litros |
| Excursión lineal unidireccional (Xmax)* | 1,25 pulgadas/32 mm |
| Eficiencia de referencia (no) | 0,27% |
| Eficiencia (1 W / 1 m)** | 86,3 dB SPL |
| Área efectiva del pistón (Sd) | 107,35 pulgadas cuadradas / 0,0693 m2 |
| Resistencia CC (Re)*** | 2,41 Ω |
| * Las especificaciones Xmax se obtienen mediante el método de voladizo de bobina móvil unidireccional sin aplicar factores de corrección. ** Para bobinas móviles con cables paralelos, divida "Re" entre 4. Todas las demás especificaciones siguen siendo las mismas. *** Re (resistencia de CC) se mide con las bobinas móviles en serie; para la especificación de cableado paralelo, divida Re entre 4. Todas las demás especificaciones siguen siendo las mismas. |
|
Especificaciones del gabinete sellado
|
|
| Espesor de pared | 0,75 pulgadas/19 mm |
| Grosor del deflector frontal | 1,0 pulg./25 mm |
| Volumen (int. neto) | 1,875 pies cúbicos / 53,1 litros |
| Ancho externo (W) | 16 pulg./407 mm |
| Altura externa (H) | 16 pulg./407 mm |
| Profundidad externa (D) | 18,875 pulg./479 mm |
| F3 | 37,4Hz |
| fc | 40,5Hz |
| qtc | 0,77 |
Especificaciones del gabinete portado
|
|
| Espesor de pared | 0,75 pulgadas/19 mm |
| Grosor del deflector frontal | 1,0 pulg./25 mm |
| Volumen (int. neto) | 2,375 pies cúbicos / 67,3 litros |
| Ancho externo (W) | 25,875 pulg./657 mm |
| Altura externa (H) | 16 pulgadas/406 mm |
| Profundidad externa (D) | 17,25 pulgadas/438 mm |
| Ancho del puerto de ranura interna (SW) | 2,25 pulgadas/57 mm |
| Altura del puerto de ranura interna (SH) | 14,5 pulgadas/368 mm |
| Longitud del puerto de ranura interna (SL) | 26,25 pulgadas/667 mm |
| Longitud de extensión del puerto (EL) | 7,875 pulg./200 mm |
| Frecuencia de sintonización (Fb) | 34,6Hz |
| F3 | 30,3Hz |
