Alpine HDA-M80
Status Series 800W mono subwoofer amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
The Alpine HDA-M80 is a high-resolution, mono subwoofer amplifier from Alpine's Status Series, designed to deliver powerful and precise bass performance. Utilizing advanced Class-D amplification and Alpine's proprietary technologies, the HDA-M80 ensures ultra-low distortion and exceptional sound quality, making it an ideal choice for audiophiles seeking studio-quality sound in their vehicles.
Key Features
| Feature | Details |
|---|---|
| Power Output |
|
| Amplifier Class | Class D with Dual Negative Feedback Control Circuit |
| High-Resolution Audio | Supports 192kHz/24Bit playback; frequency response: 8Hz – 400Hz (-3dB) |
| Signal-to-Noise Ratio | 83dB (ref. 1W into 4Ω) |
| Total Harmonic Distortion | ≤0.02% (10W into 4Ω) |
| Damping Factor | >1500 |
| Input Options | Selectable High (0.5–10V) / Low (0.2–4V) level inputs |
| Crossovers |
|
| Bass Boost | Variable 0–12dB @ 50Hz |
| Remote Control | Compatible with Alpine RUX-KNOB.2 or RUX-H01 (sold separately) |

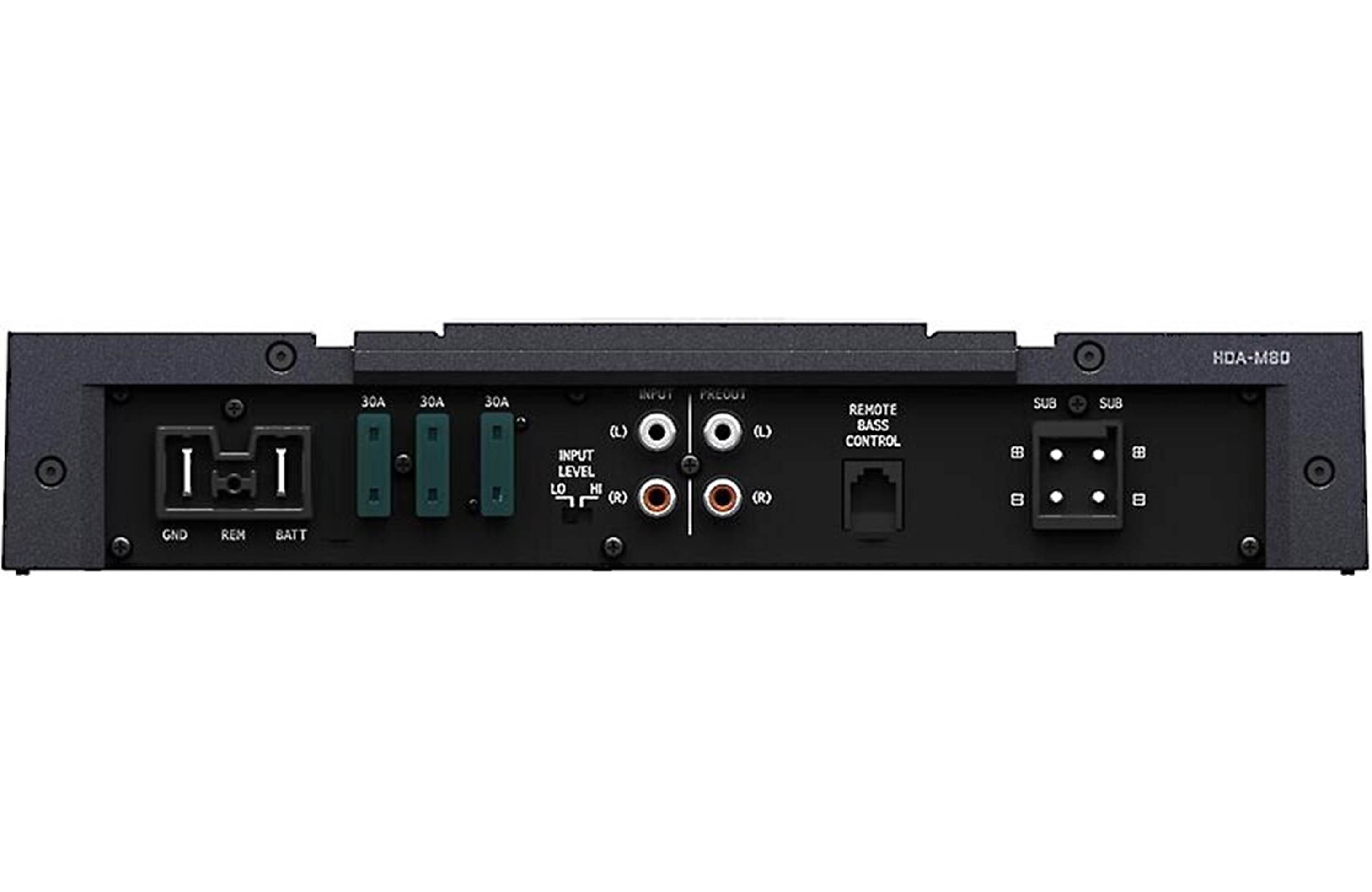

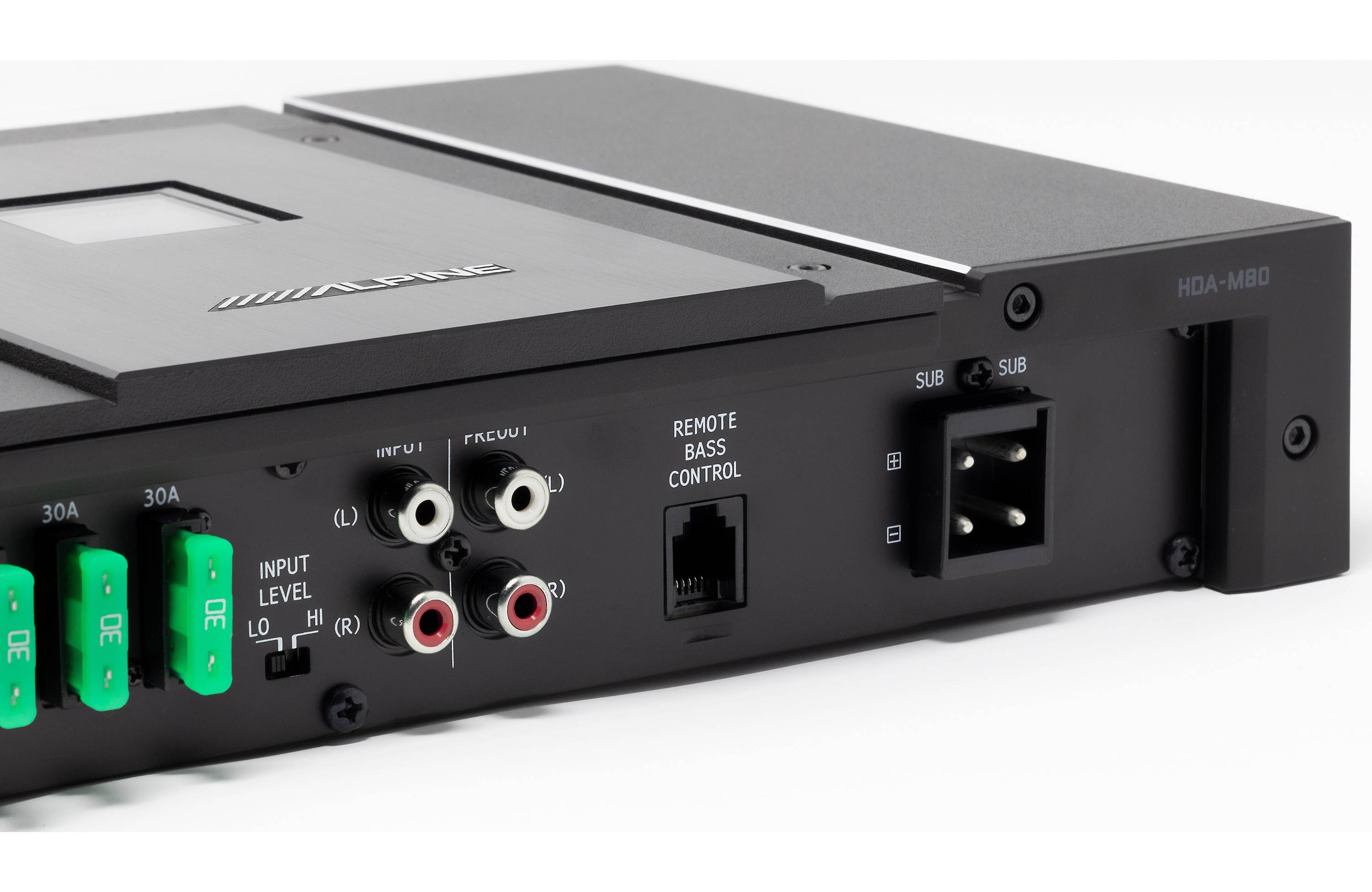

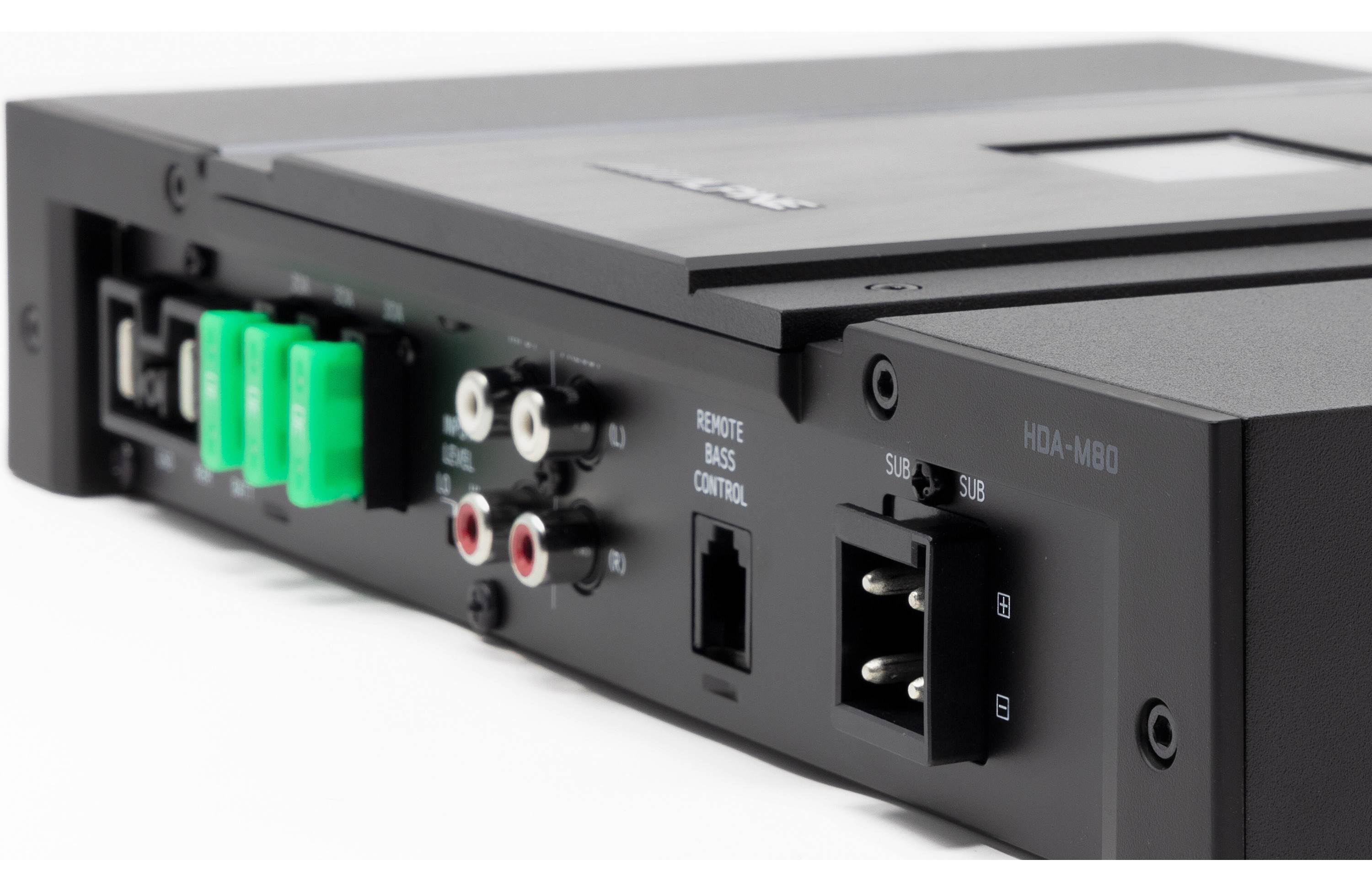

| Design | Compact chassis with copper-plated design and black circuit board; one-sided terminal layout for easy installation |
What’s in the Box
| Alpine HDA-M80 Mono Amplifier |
| Top cover (installed) |

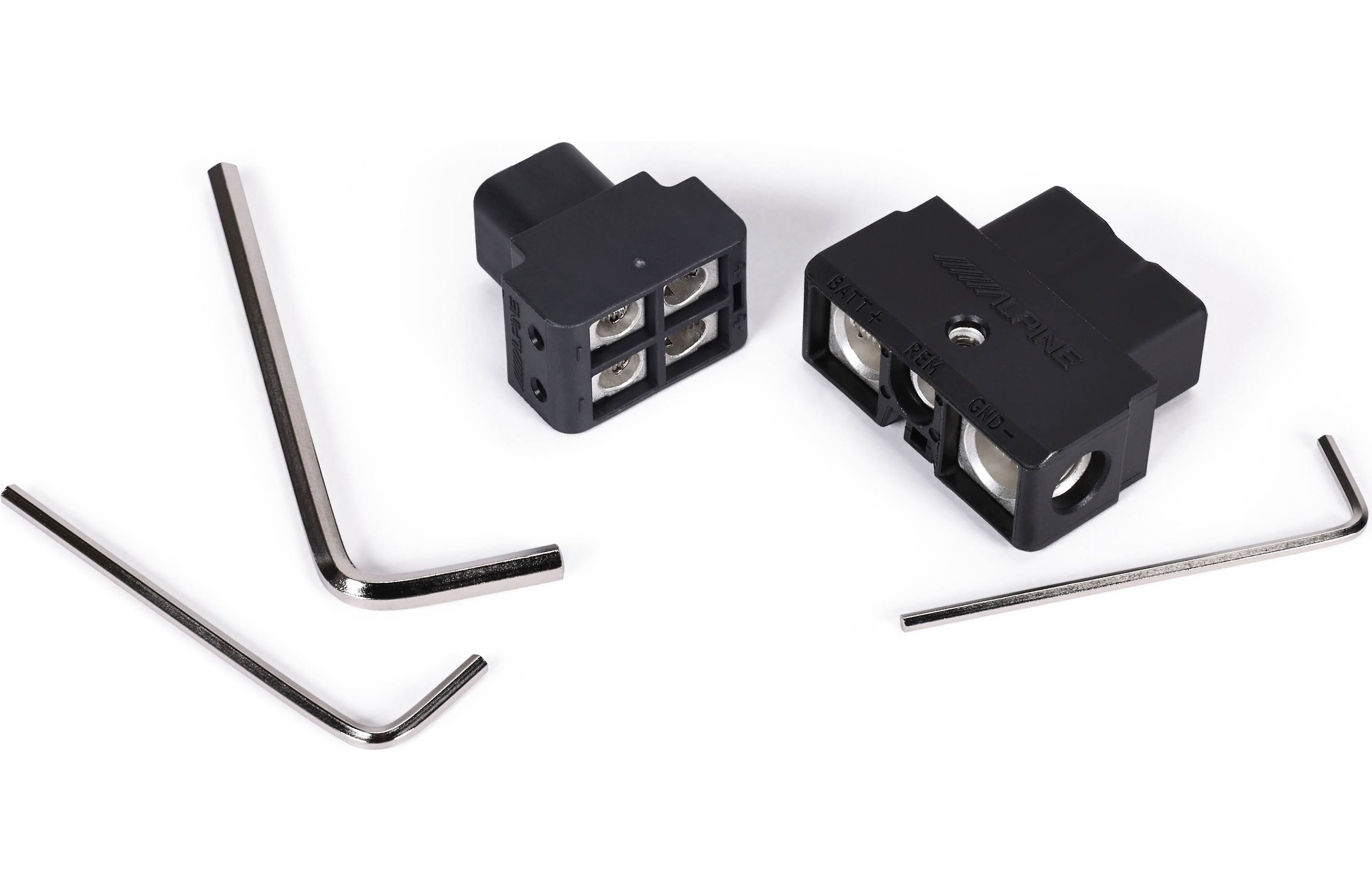

| Power connector plug |
| Speaker connector plug |
| 2 Mounting legs |
| Three 30-amp ATO fuses (installed) |
| 2mm, 2.5mm, and 4mm Allen wrenches |
| Four 3/4" Screws |
| Eight 3/8" Screws |
| Owner's Manual |
| Alpine Verification Certificate |
| Warranty Information |
| Product Registration Information |
| Power Wiring Note |
