Alpine iLX-W670 with KTA-200M
Multimedia Receiver Bundle with KTA-200M Mono Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Alpine iLX-W670 with KTA-200M PowerStack Bundle
The Alpine iLX-W670 with KTA-200M PowerStack Bundle combines a sleek 7-inch multimedia receiver with a compact mono amplifier, delivering seamless smartphone integration and powerful bass performance in a space-saving design. Ideal for vehicles with limited dash space, this bundle offers advanced features and dynamic sound quality.
Key Features
| Feature | Details |
|---|---|
| Power Output |
|
| Amplifier Class | Class D with Dynamic Peak Power (DPP) technology |
| High-Resolution Audio | Supports 192kHz/24Bit playback; frequency response: 20Hz – 400Hz (-3dB) |
| Signal-to-Noise Ratio | >80dB (ref. 1W into 4Ω) |
| Total Harmonic Distortion | ≤0.1% (ref. 10W into 4Ω) |
| Input Options | Selectable High (0.5–10V) / Low (0.2–4V) level inputs |
| Crossovers |
|
| Bass Boost | Variable 0–12dB @ 50Hz |
| Remote Control | Compatible with Alpine RUX-KNOB.2 or RUX-H01 (sold separately) |

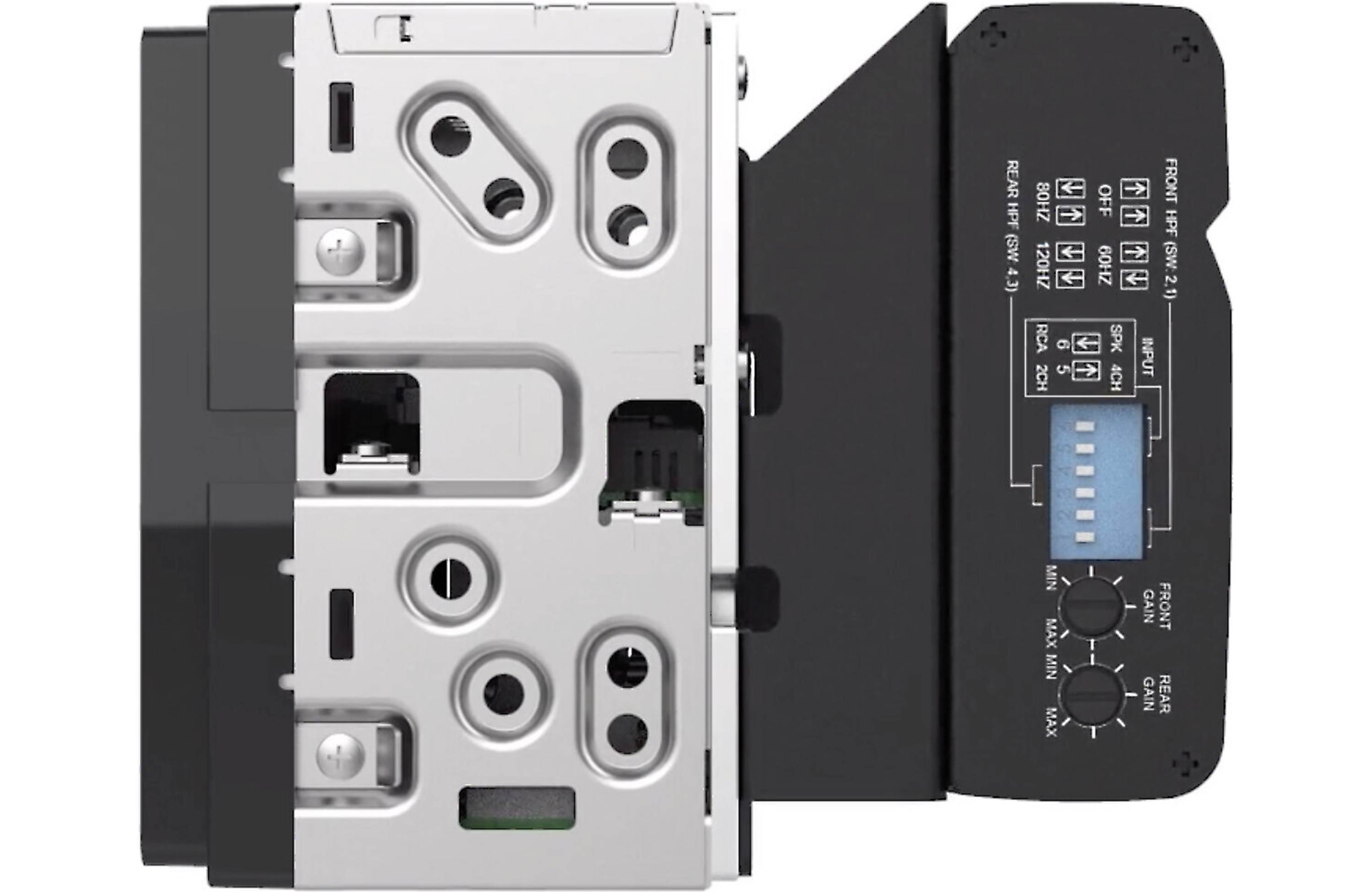

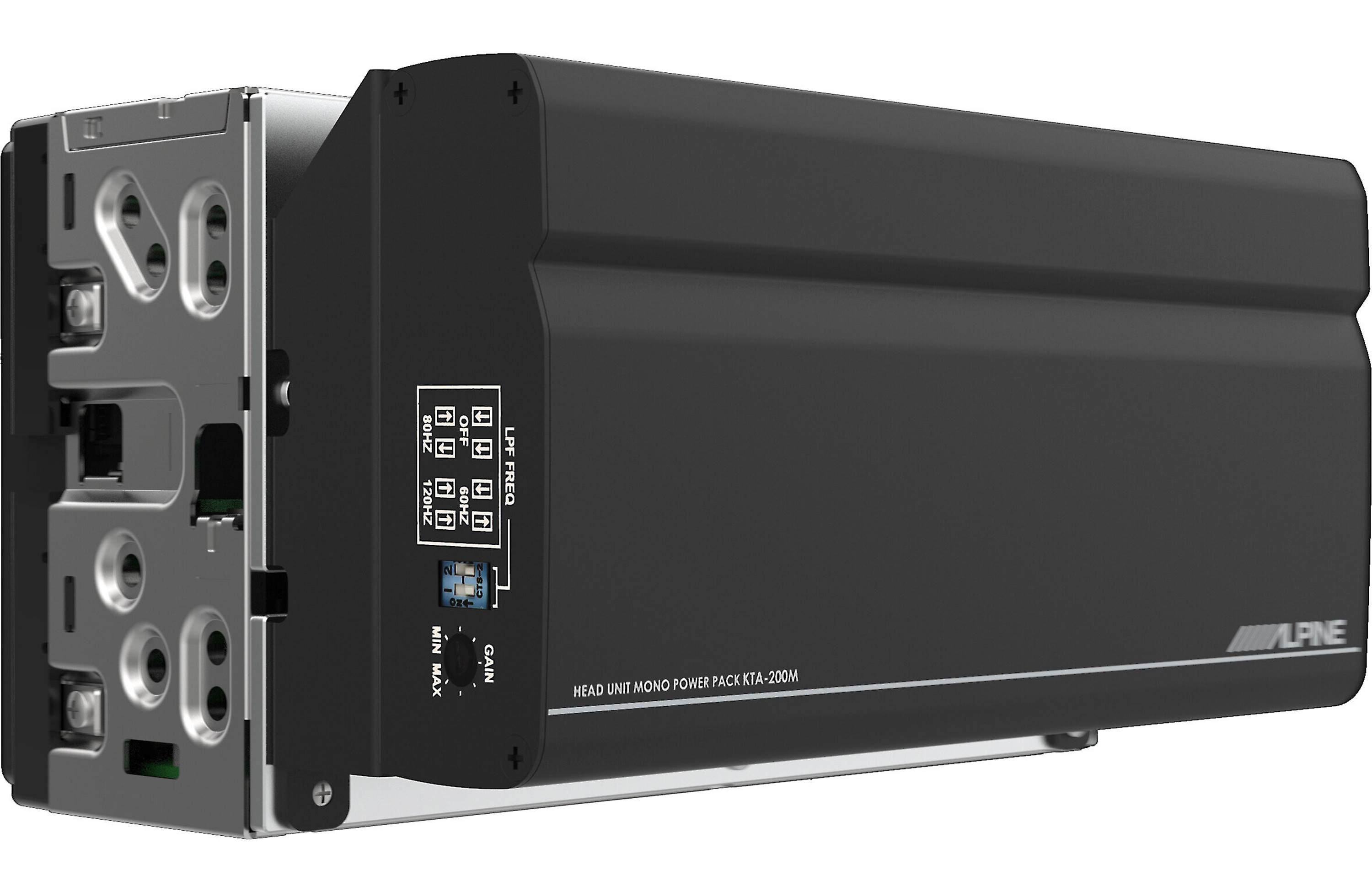

| Design | Compact chassis with PowerStack™ design; combined mounting depth of 5.91 inches |

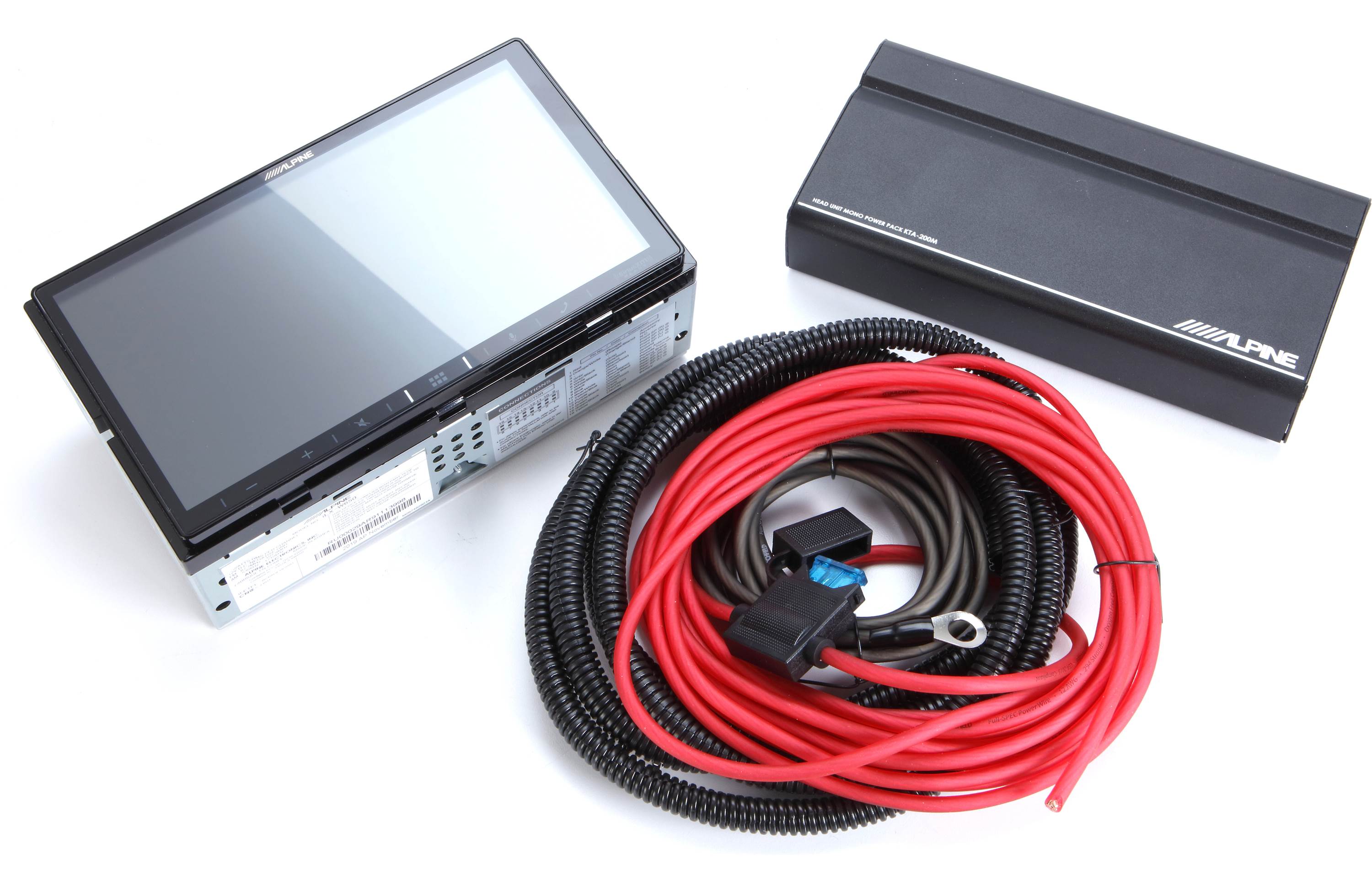

What’s in the Box
| Alpine iLX-W670 7-inch multimedia receiver |
| Alpine KTA-200M Power Pack Mono Amplifier |
| PowerStack™ mounting bracket and hardware |
| Plug-and-play wiring harness |
| User manual and installation guide |
Technical Specifications
| Spec | Value |
|---|---|
| RMS Power Output | 200W x 1 @ 4Ω or 2Ω |
| Frequency Response | 20Hz – 400Hz (-3dB) |
| Signal-to-Noise Ratio | >80dB (ref. 1W into 4Ω) |
| Total Harmonic Distortion | ≤0.1% (ref. 10W into 4Ω) |
| Input Sensitivity | High: 0.5–10V; Low: 0.2–4V |
| Minimum Impedance | 2Ω |
| Fuse Rating | 20A (external fuse required) |
| Dimensions (W×H×D) | 7.75" × 1.38" × 3.56" |
| Weight | Approximately 2.5 lbs |
| Warranty | 1 Year |
