Alpine PSS-TSLA-223
11-speaker sound system upgrade for 2022-23 Tesla Model 3 with Factory Base Audio
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Alpine PSS-TSLA-223 11-Speaker Sound System Upgrade for 2022-Up Tesla Model 3
The Alpine PSS-TSLA-223 is a premium 11-speaker sound system upgrade designed specifically for 2022 and newer Tesla Model 3 vehicles equipped with the factory base audio system. This comprehensive, plug-and-play solution includes Hi-Res Audio certified speakers, a 10" sealed subwoofer, and a 12-channel digital sound processor with a built-in amplifier. Engineered for seamless integration, it delivers high-fidelity sound while preserving the vehicle's interior aesthetics and efficiency.
Key Features
| Feature | Details |
|---|---|
| Application | Designed for 2022-Up Tesla Model 3 with Factory Base Audio |
| Speaker Configuration | 11-speaker system including front door, rear door, and center dash speakers |
| Subwoofer | 10" sealed subwoofer enclosure (200W RMS) |
| Amplifier/DSP | 12-channel digital sound processor with built-in amplifier (50W x 6, 25W x 4, 100W x 2 or 200W x 1 bridged) |
| Speaker Material | Hybrid blue carbon fiber cones with Alpine's HAMR surround technology |
| Installation | Direct-fit, plug-and-play installation with vehicle-specific harness; no cutting or modification required |
| Efficiency | Ultra-efficient amplifier optimized for EV low voltage battery range (12V–16V); uses approximately 1 mile of range per hour at full volume |
What’s in the Box

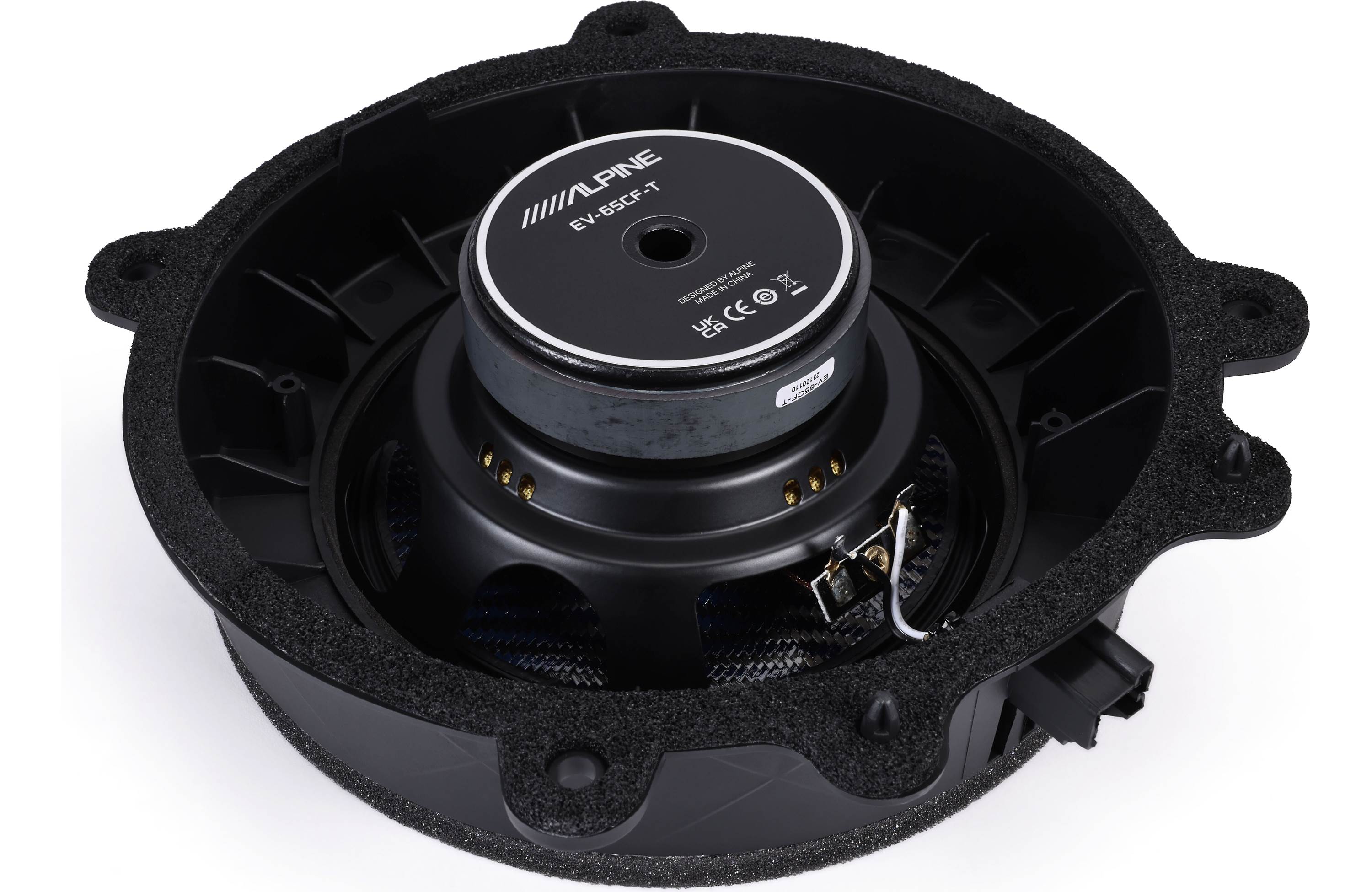

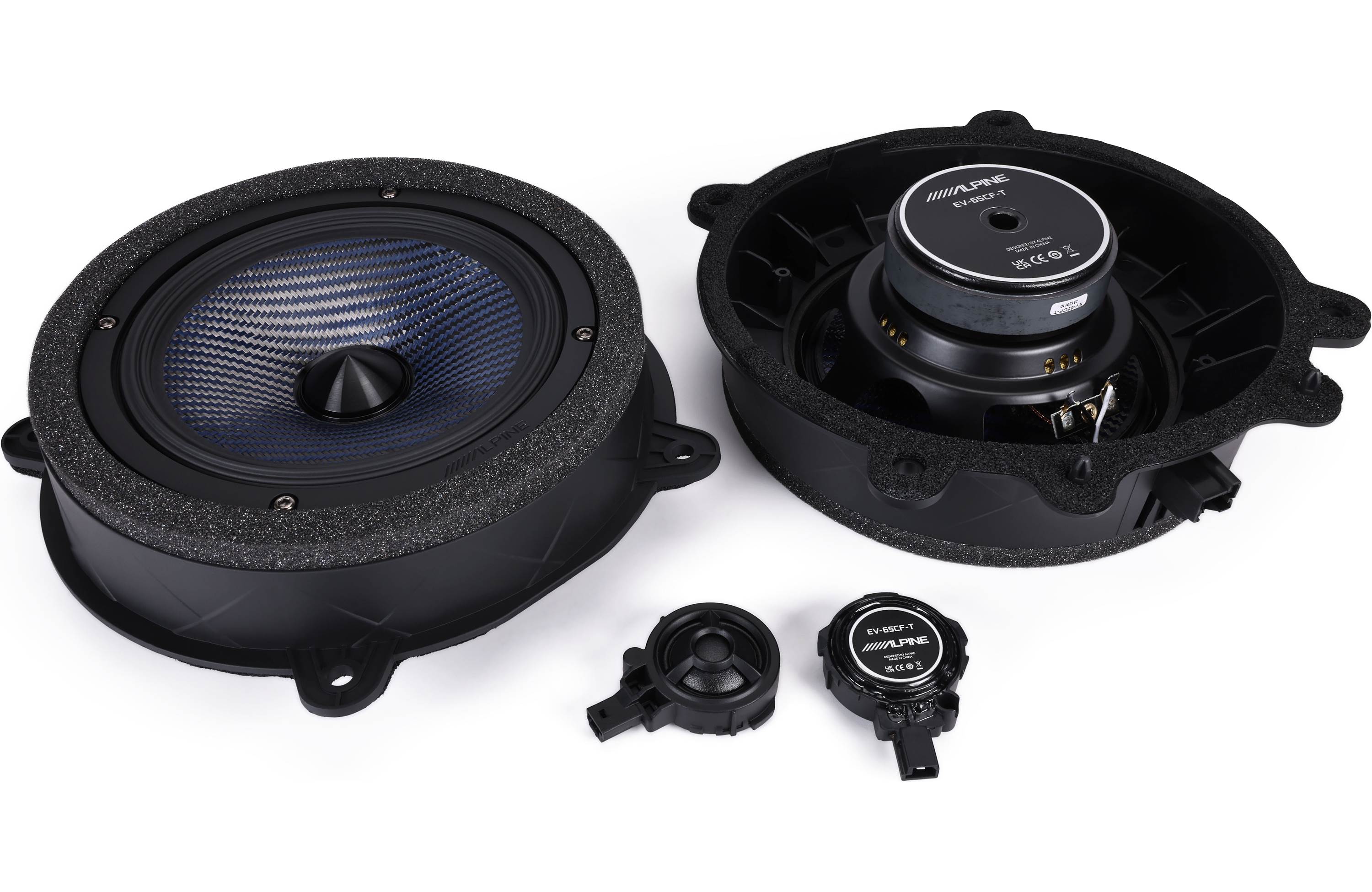

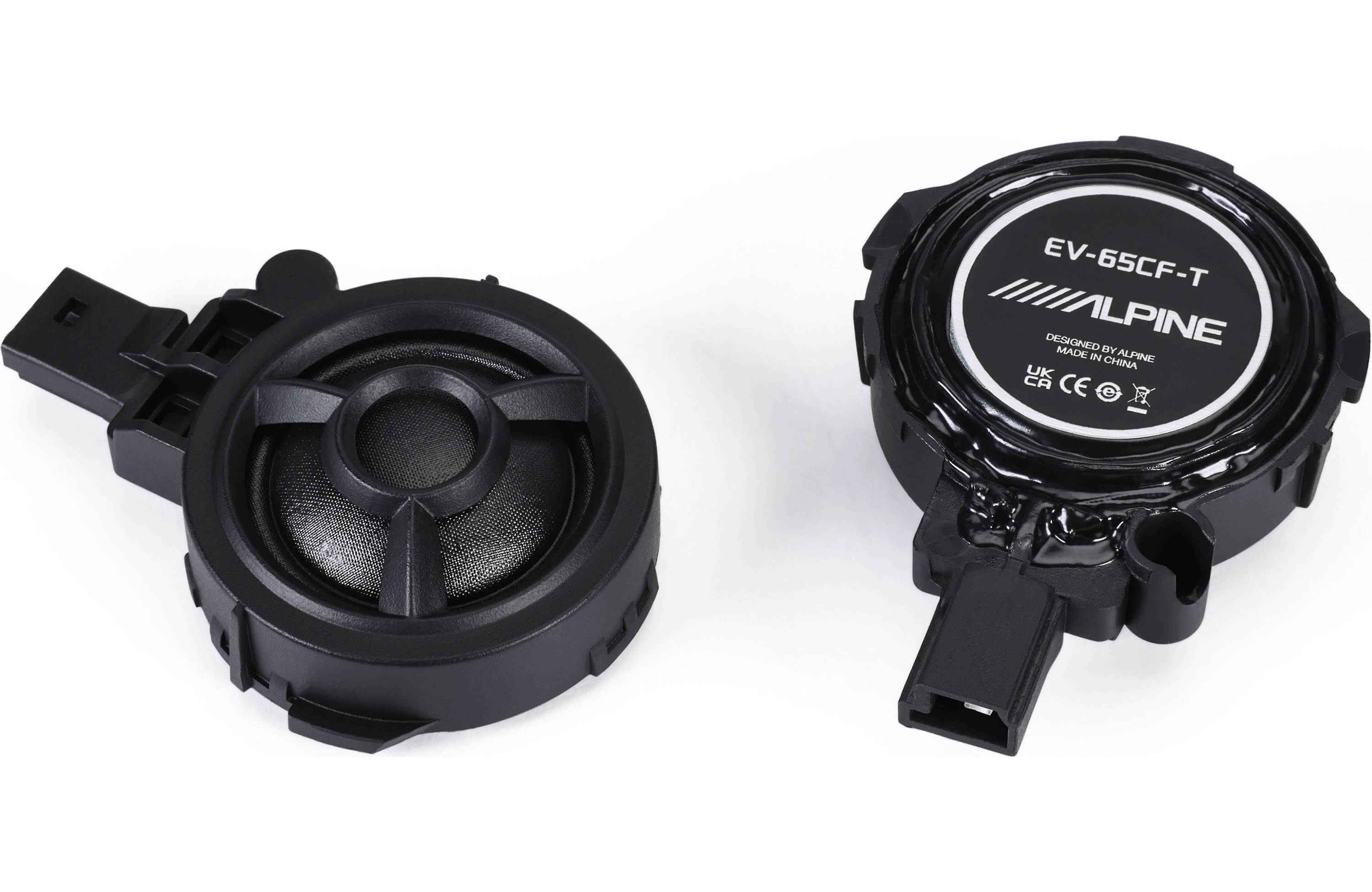

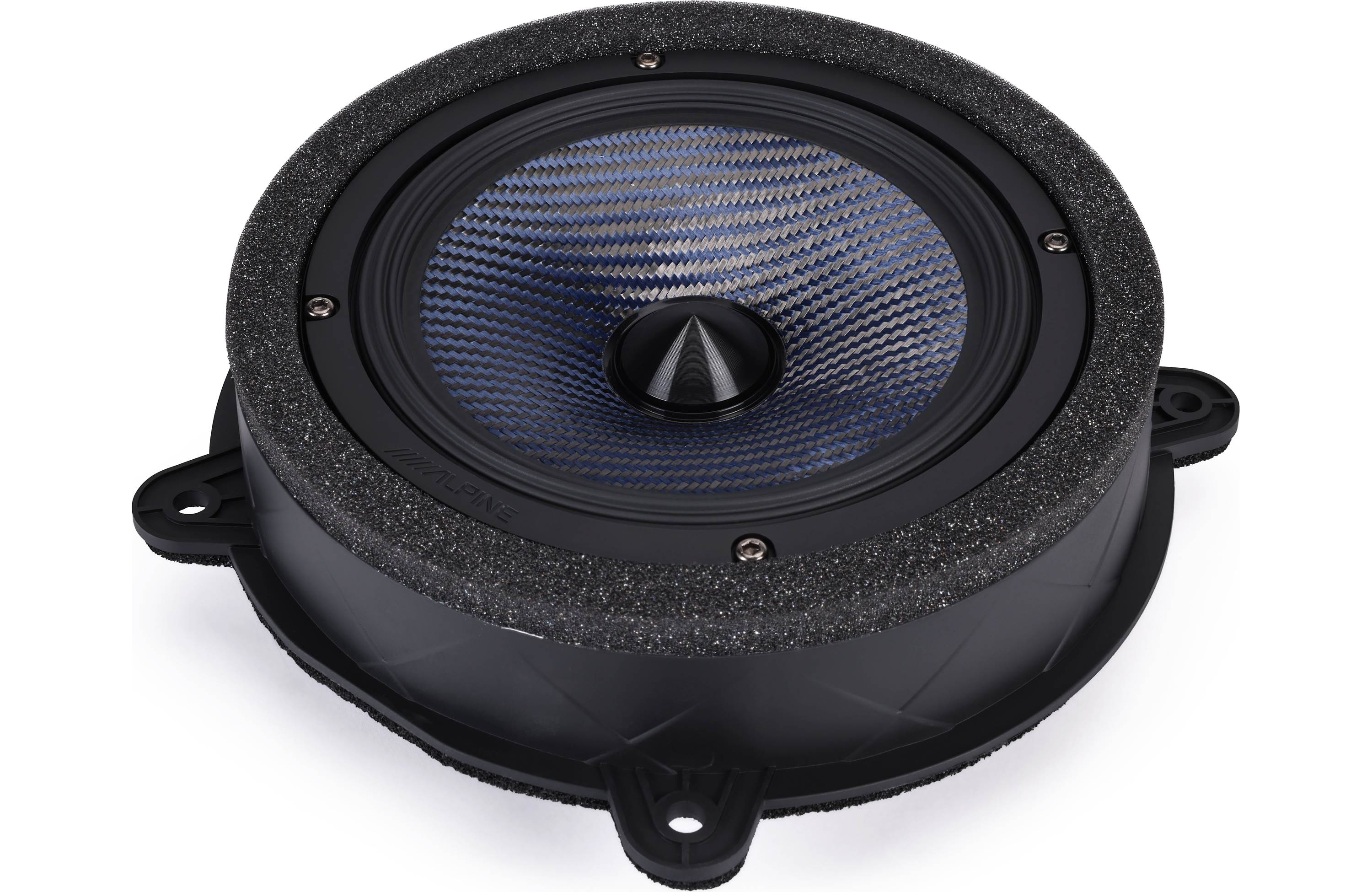

| (2) 6.5” Midrange Component Front Door Speakers with 1” Tweeters |

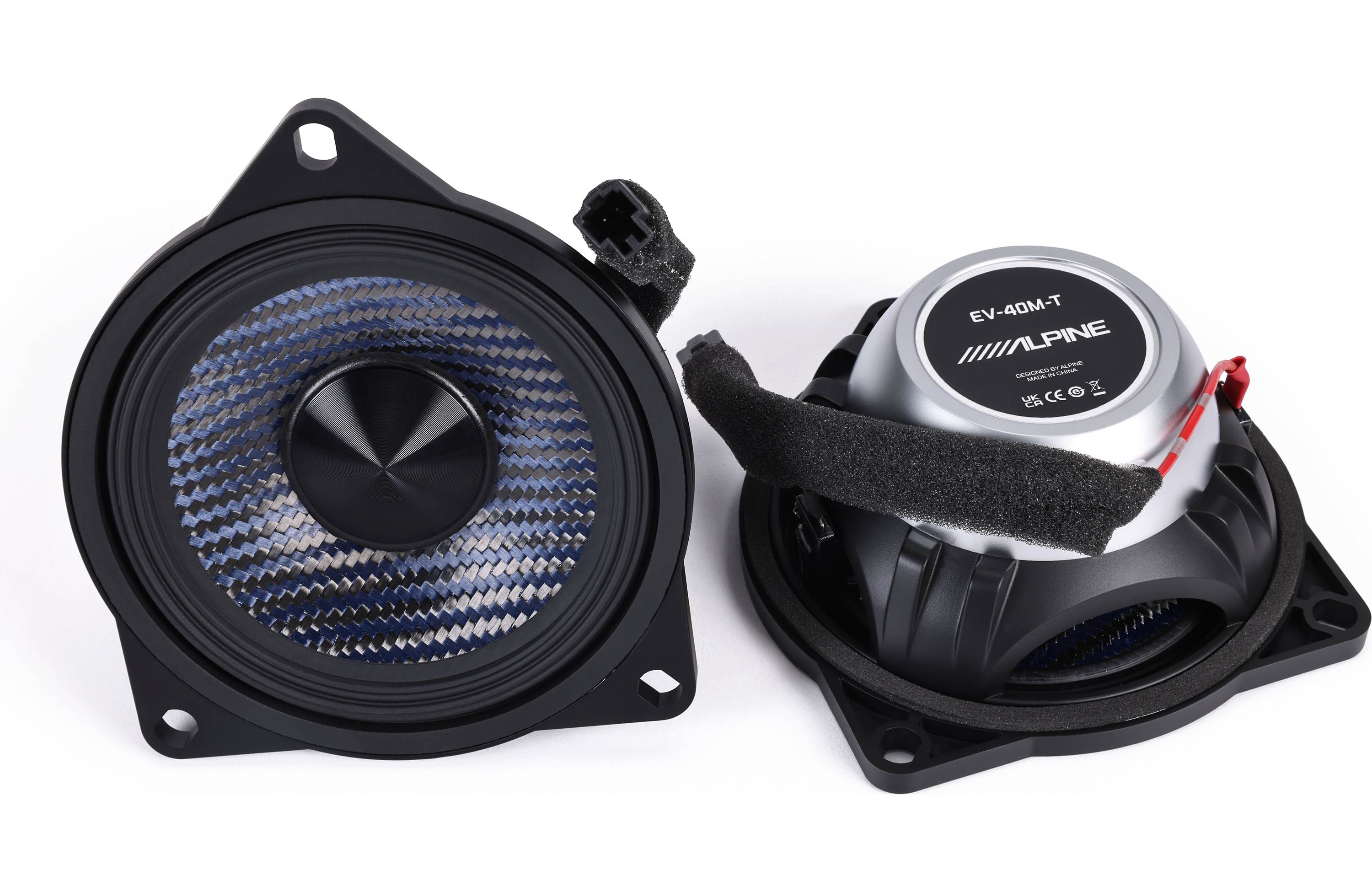

| (2) 4” Midrange Rear Door Speakers |

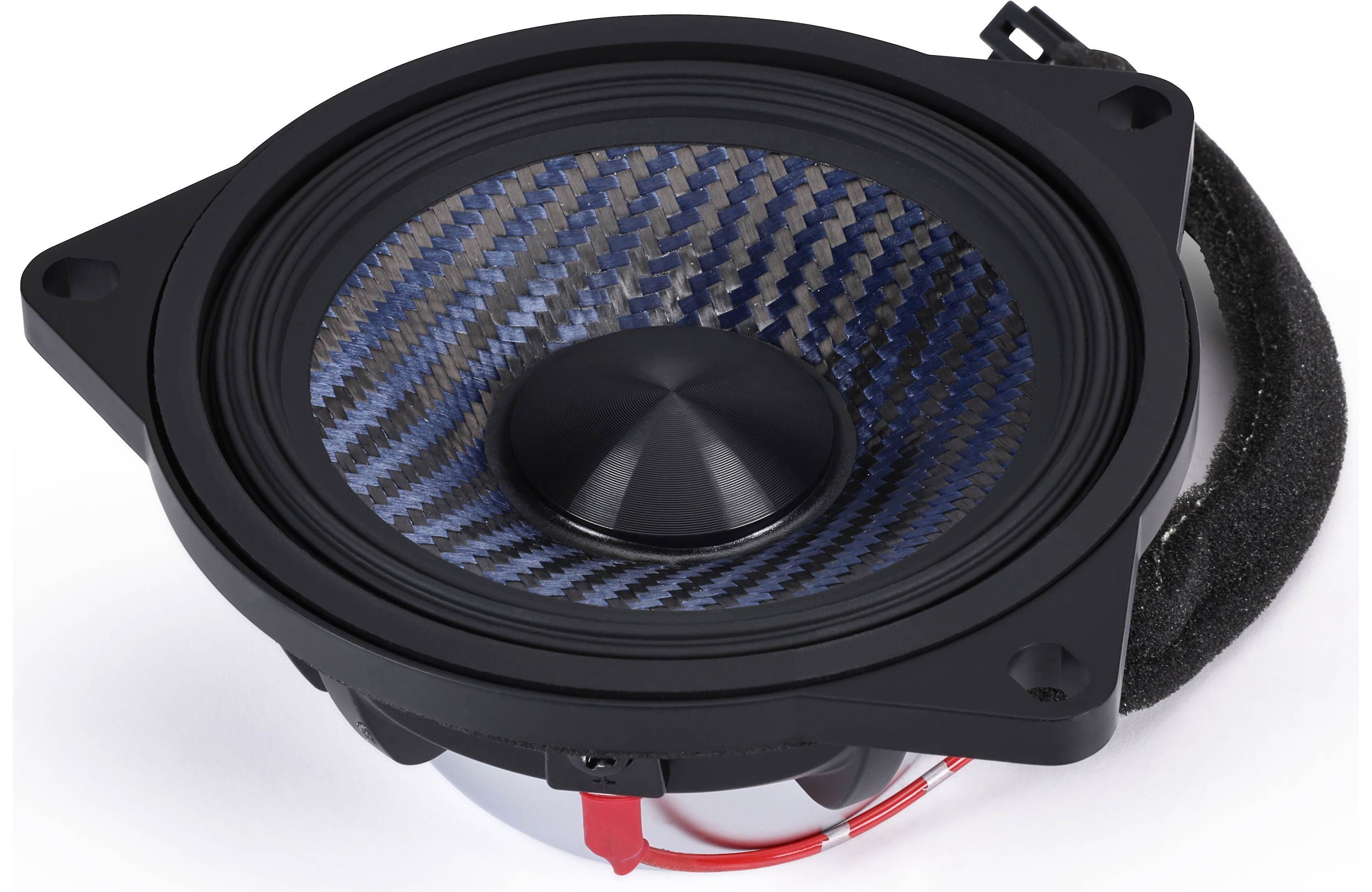

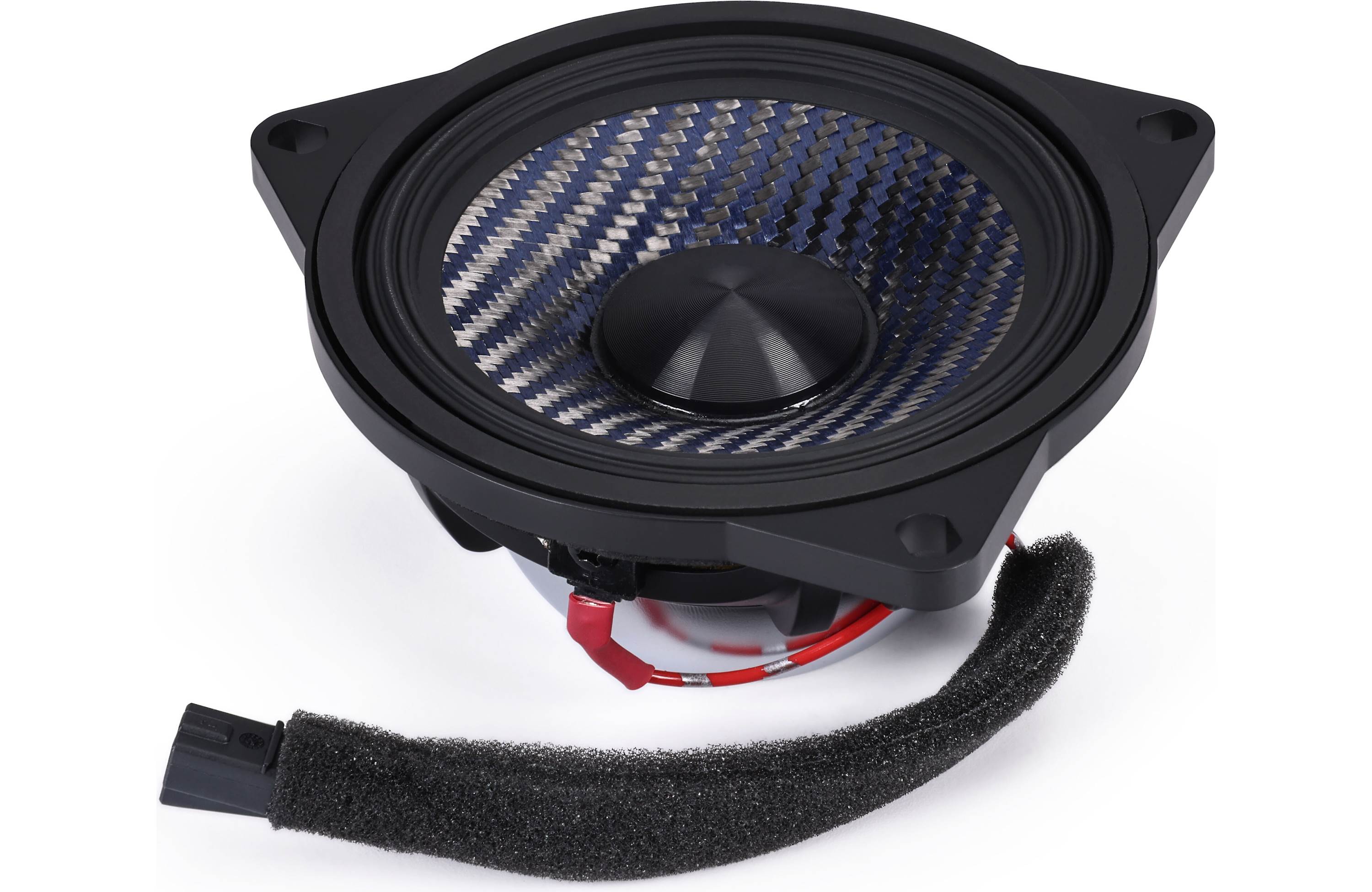

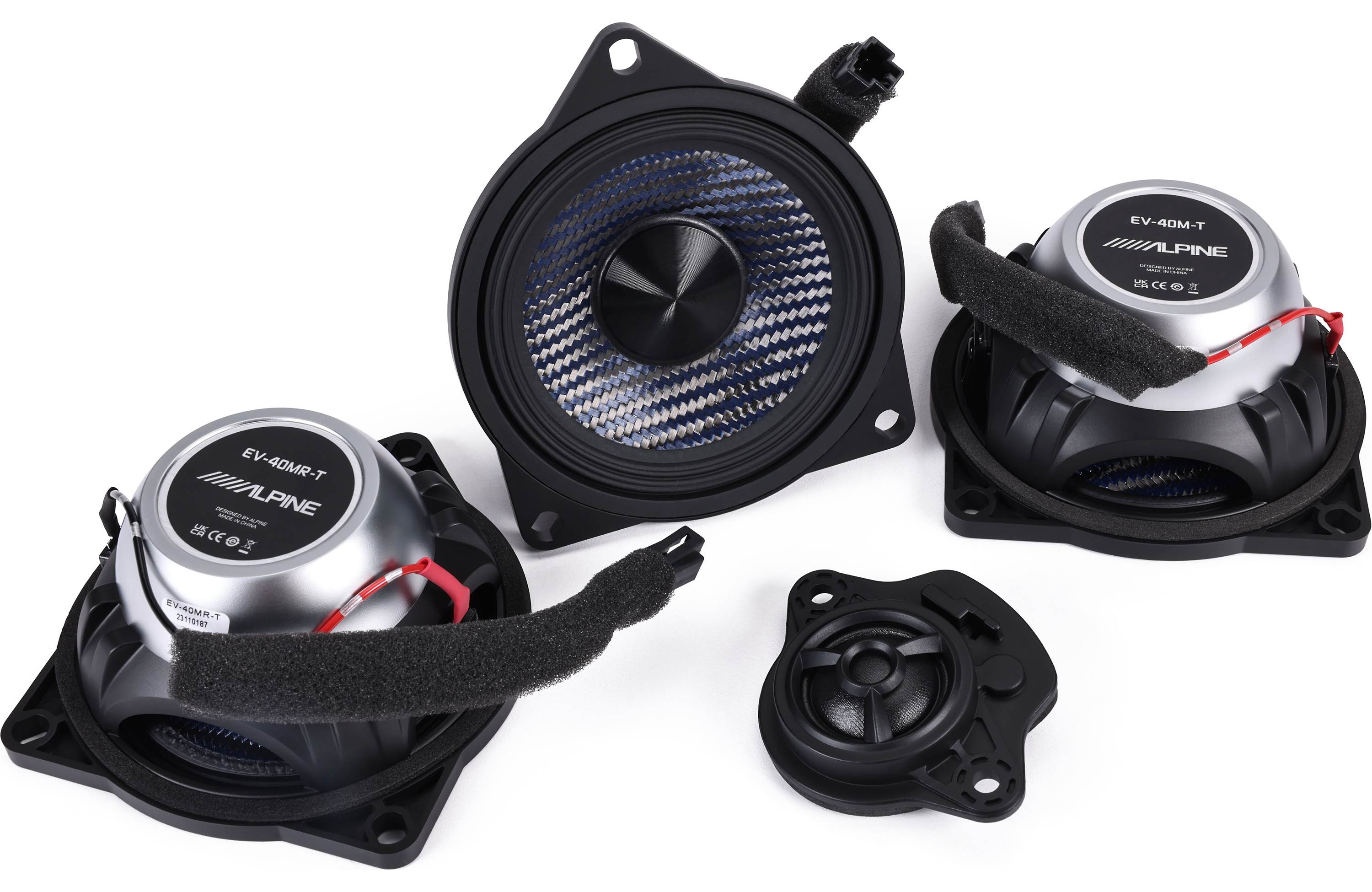

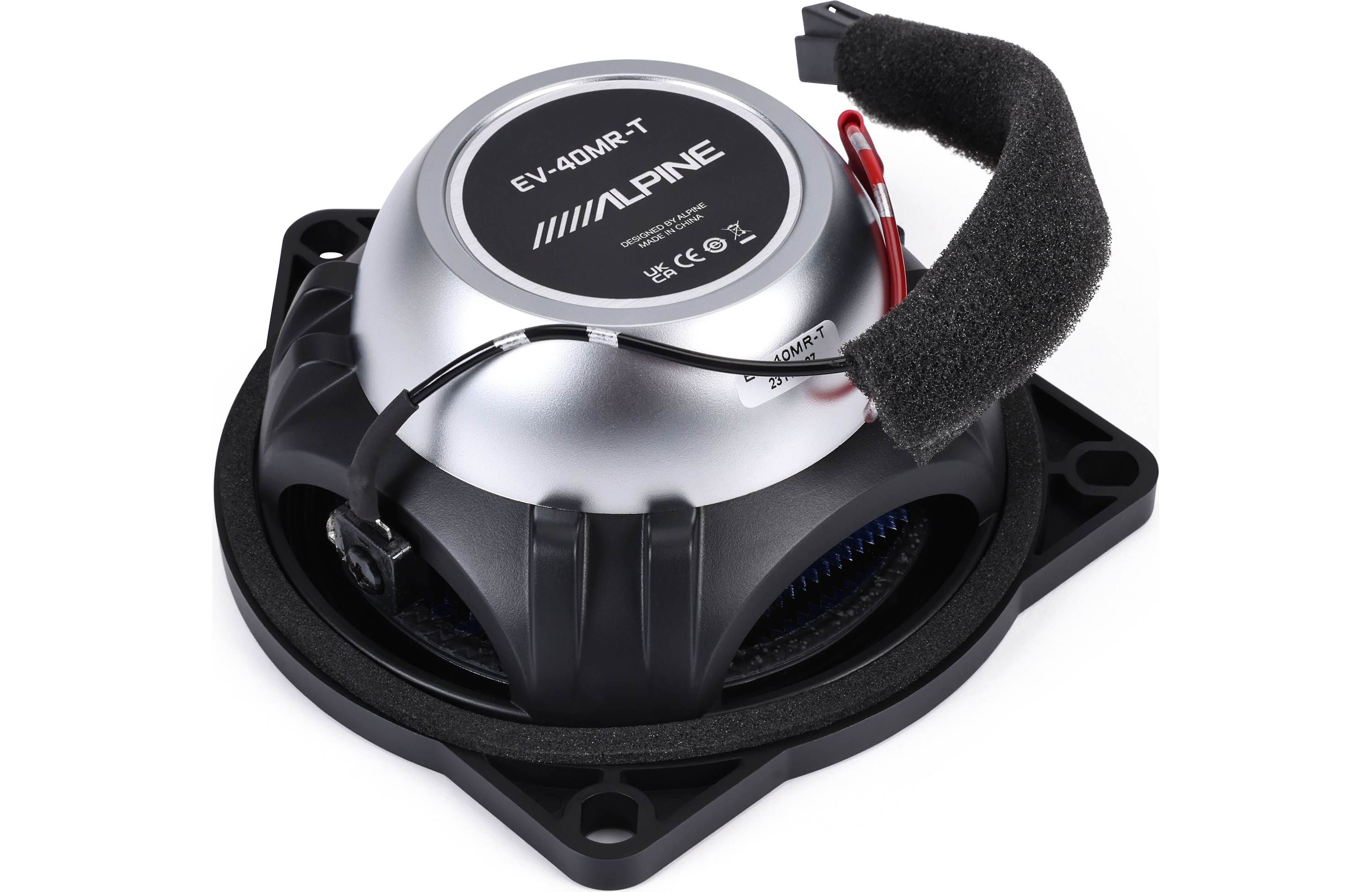

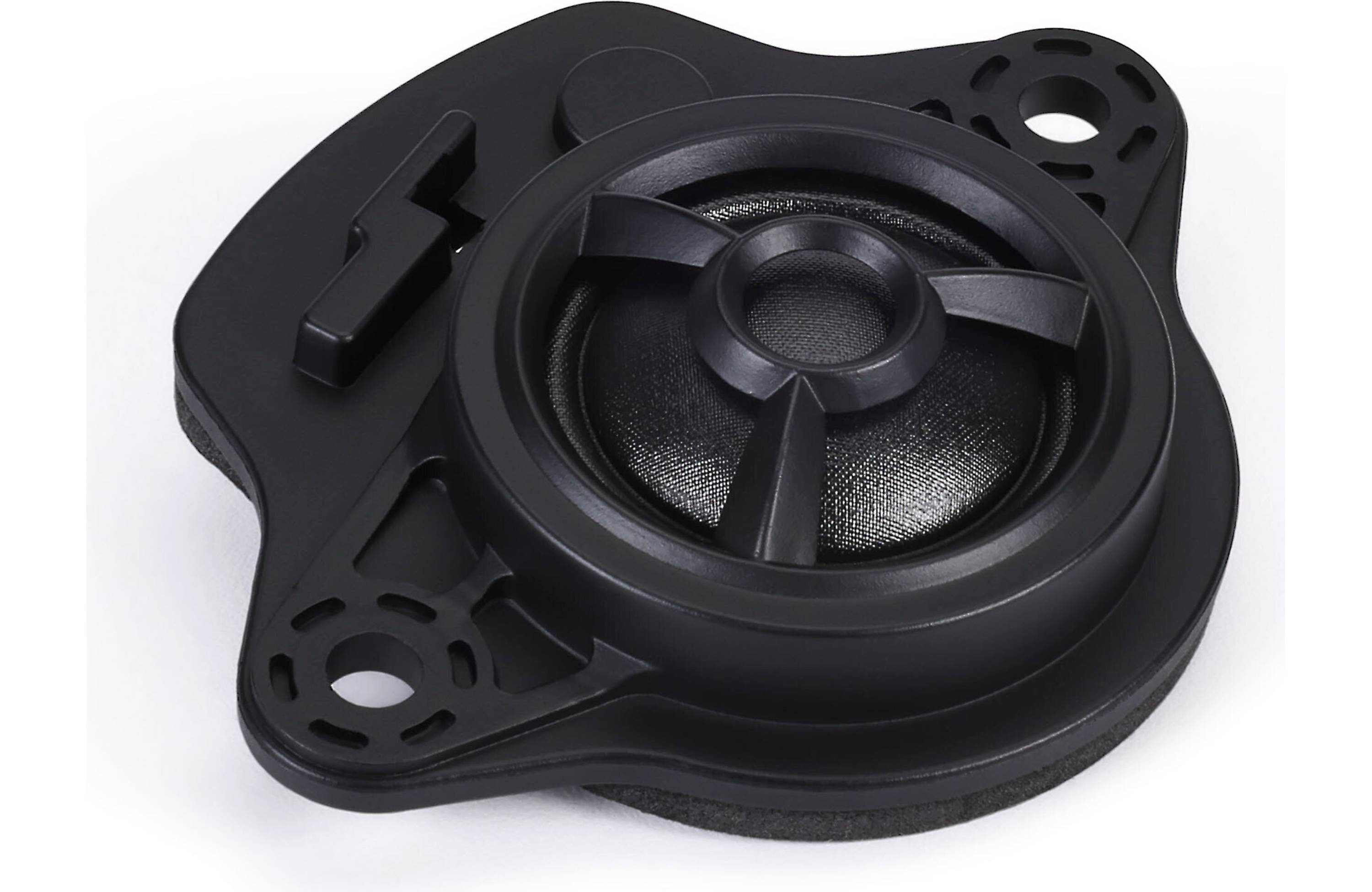

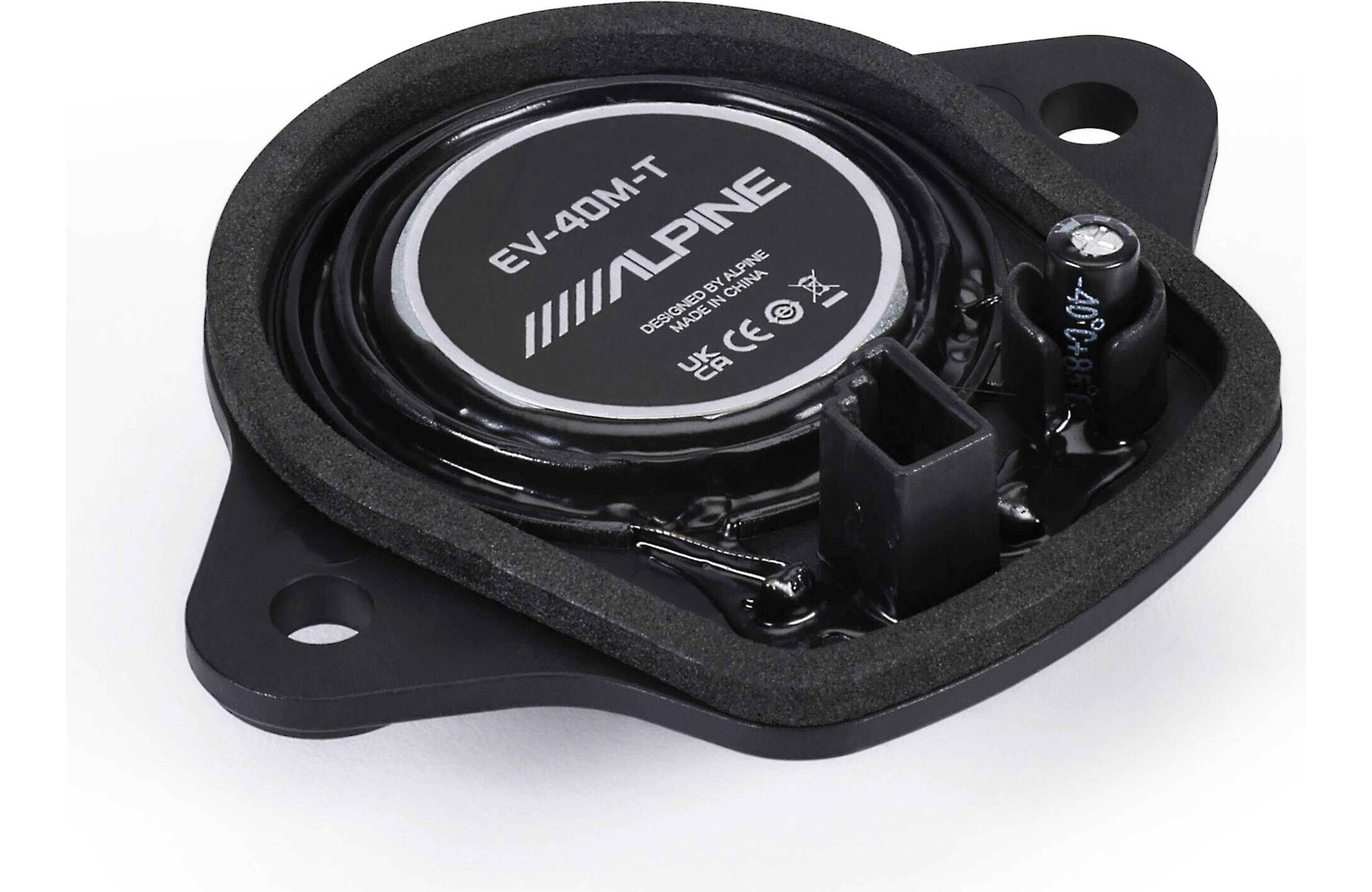

| (3) 4” Midrange Center Dash Speakers with 1” Center Dash Tweeter |

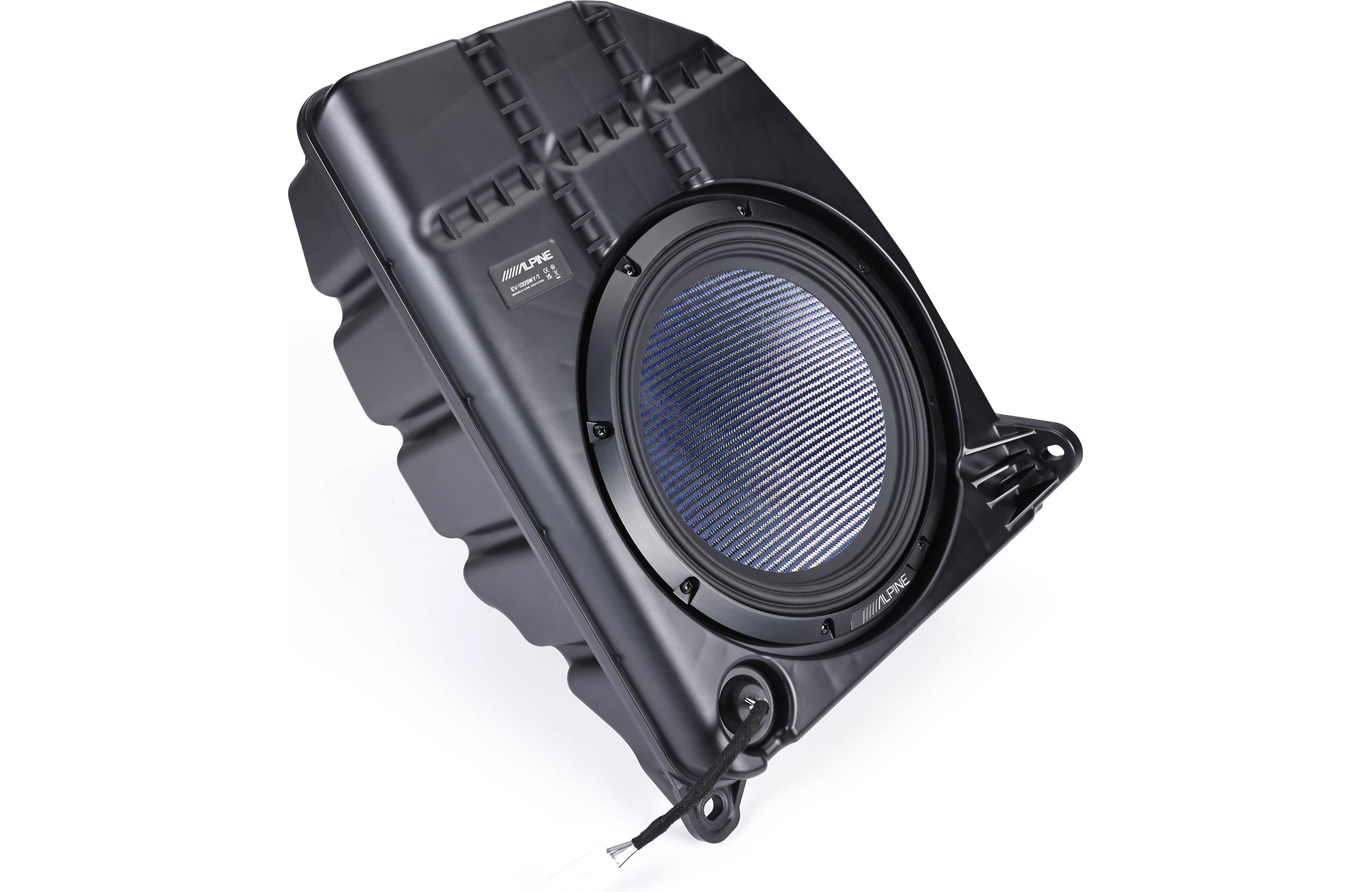

| (1) 10” Sealed Subwoofer |

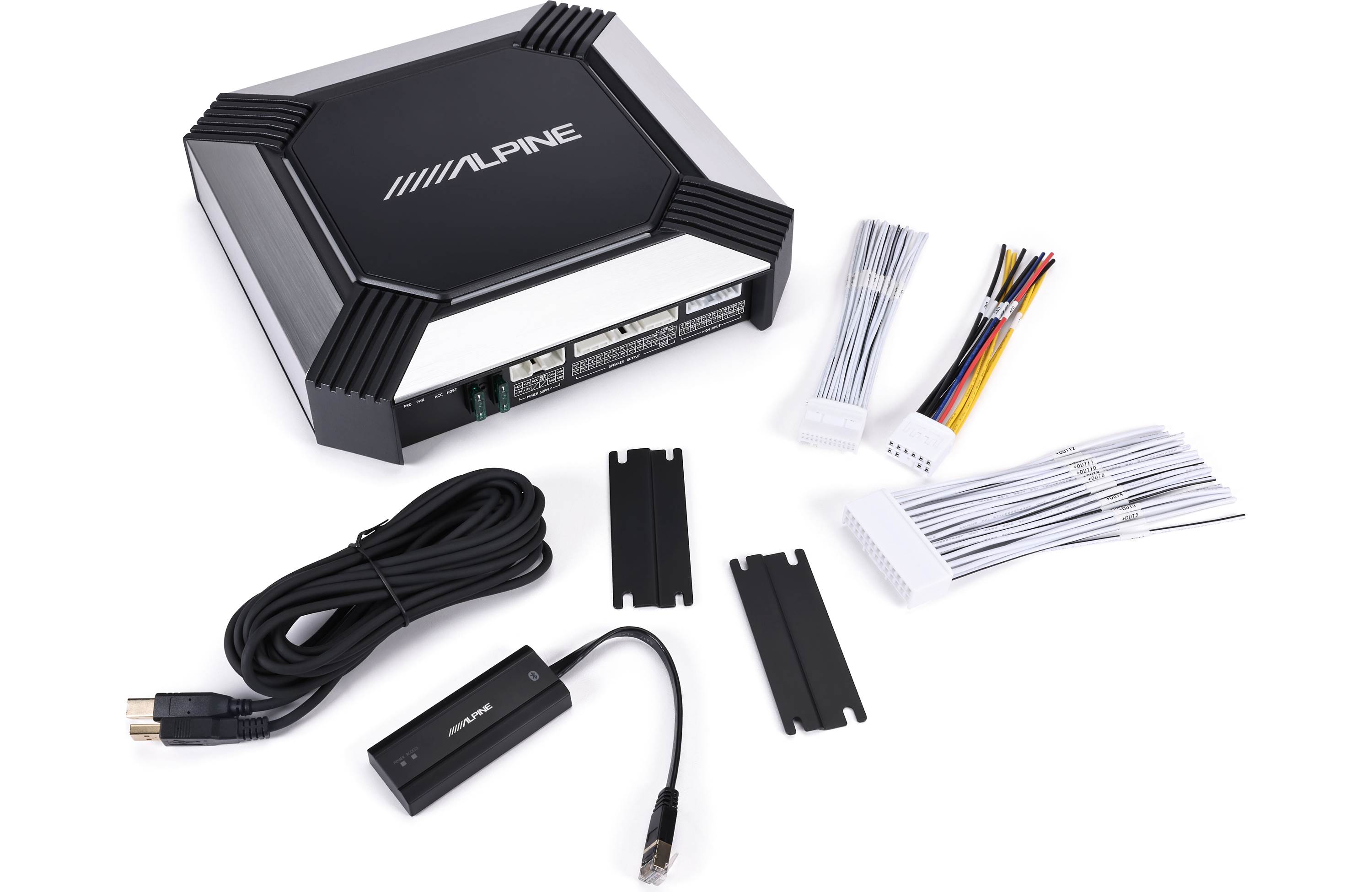

| (1) 12-Channel Digital Sound Processor with Built-in 12-Channel Amplifier |
| (1) Vehicle-Specific Harness for 2022-Up Tesla Model 3 |
| Owner’s Manual and Installation Guide |
Technical Specifications
| Spec | Value |
|---|---|
| Front Door Speakers | 6.5" Midrange Component Speakers with 1" Tweeters (50W RMS / 200W Peak) |
| Rear Door Speakers | 4" Midrange Speakers (40W RMS / 160W Peak) |
| Center Dash Speakers | 4" Midrange Speakers with 1" Tweeter (40W RMS / 160W Peak) |
| Subwoofer | 10" Sealed Subwoofer (200W RMS) |
| Amplifier/DSP Output | 50W x 6, 25W x 4, 100W x 2 or 200W x 1 Bridged |
| Frequency Response | 25 Hz – 20 kHz |
| Sensitivity | 89 dB |
| Impedance | 4 Ohms |
| Warranty | 1 Year |
