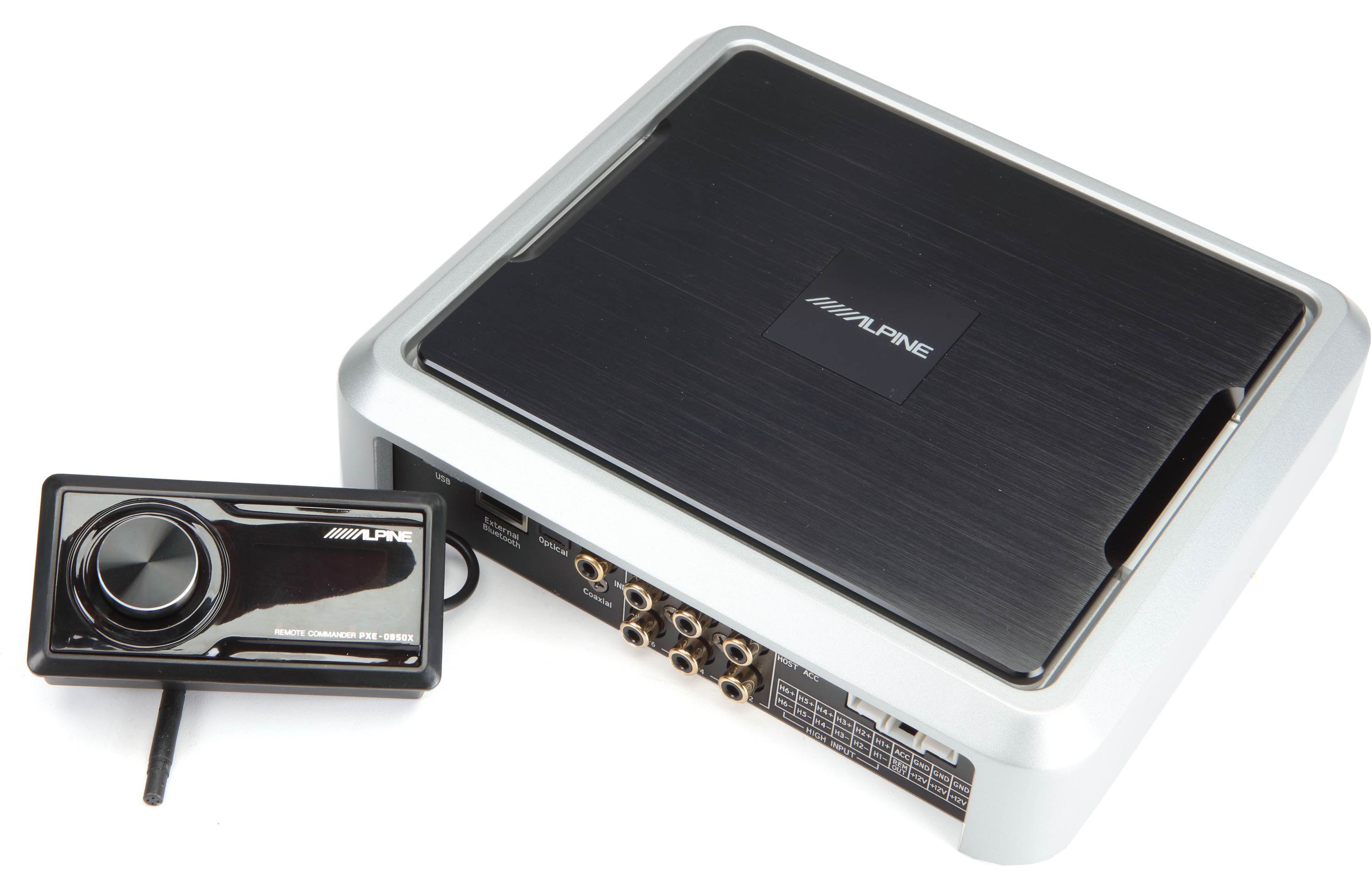

Alpine PXE-0850X
200 Watt 8-channel car amplifier with digital signal processing
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
The Alpine PXE-0850X is a high-performance digital sound processor designed to seamlessly integrate with both factory and aftermarket audio systems. Featuring advanced tuning capabilities, wireless control options, and versatile input/output configurations, it offers audiophiles precise sound customization and premium performance.
Key Features
| Feature | Details |
|---|---|
| Inputs | 6 assignable preamp and speaker-level inputs; optical and coaxial digital inputs; USB; Bluetooth audio streaming with included external module |
| Outputs | 12 processed RCA outputs; 8 powered speaker outputs (25W RMS x 8 at 4Ω) |
| Control Interface | Wireless tuning via smartphone (iOS/Android) and PC; includes wired LCD remote controller for volume, preset storage/recall, subwoofer level, and source selection |
| Equalization | 31-band parametric or graphic EQ per channel; Q: 0.404 ~ 28.85; Gain: -12.0dB ~ +12.0 dB |
| Crossovers | High-pass, low-pass, and band-pass filters per channel; crossover points: 20Hz – 20KHz; slopes: 12dB to 48dB/octave; filter types: Butterworth, Linkwitz-Riley, Bessel |
| Time Correction | Up to 20ms delay per channel; delay units: milliseconds, centimeters, or inches; phase adjustment: 0° or 180° per channel |
| Processing | TI 32-bit DSP with 300MHz floating point processing; TI 24-bit premium audio ADC/DAC |
| Software | New and improved user interface matching Alpine's PXE-X09; real-time tuning with before/after comparison; save and share tuning files via smartphone or PC |
What’s in the Box
| Alpine PXE-0850X Digital Sound Processor |
| Wired LCD Remote Controller with attached 16" 4-pin cable |
| 16.5' USB 3.0 Extension Cable |
| External Bluetooth Module with 6" cable |
| 6" Power/Ground/Input Harness |
| Two 6" Speaker Output Harnesses |
| Mounting Brackets and Hardware |
| Owner's Manual and Installation Guide |
Alpine PXE-0850X 8-Channel Class D Amplifier 25Wx8 RMS @4Ohms with High-Performance Digital Sound Processor, 8 Power Outputs and 12 RCA Outputs
The Alpine PXE-0850X is a high-performance digital sound processor designed to seamlessly integrate with both factory and aftermarket audio systems. Featuring advanced tuning capabilities, wireless control options, and versatile input/output configurations, it offers audiophiles precise sound customization and premium performance.
Key Features
- Inputs: 6 assignable preamp and speaker-level inputs; optical and coaxial digital inputs; USB; Bluetooth audio streaming with included external module
- Outputs: 12 processed RCA outputs; 8 powered speaker outputs (25W RMS x 8 at 4Ω)
- Control Interface: Wireless tuning via smartphone (iOS/Android) and PC; includes wired LCD remote controller for volume, preset storage/recall, subwoofer level, and source selectionEqualization31-band parametric or graphic EQ per channel; Q: 0.404 ~ 28.85; Gain: -12.0dB ~ +12.0 dBCrossoversHigh-pass, low-pass, and band-pass filters per channel; crossover points: 20Hz – 20KHz; slopes: 12dB to 48dB/octave; filter types: Butterworth, Linkwitz-Riley, BesselTime CorrectionUp to 20ms delay per channel; delay units: milliseconds, centimeters, or inches; phase adjustment: 0° or 180° per channelProcessingTI 32-bit DSP with 300MHz floating point processing; TI 24-bit premium audio ADC/DACSoftwareNew and improved user interface matching Alpine's PXE-X09; real-time tuning with before/after comparison; save and share tuning files via smartphone or PC
What’s in the Box
- Alpine PXE-0850X Digital Sound Processor
- Wired LCD Remote Controller with attached 16" 4-pin cable
- 16.5' USB 3.0 Extension CableExternal Bluetooth Module with 6" cable6" Power/Ground/Input HarnessTwo 6" Speaker Output HarnessesMounting Brackets and HardwareOwner's Manual and Installation Guide
