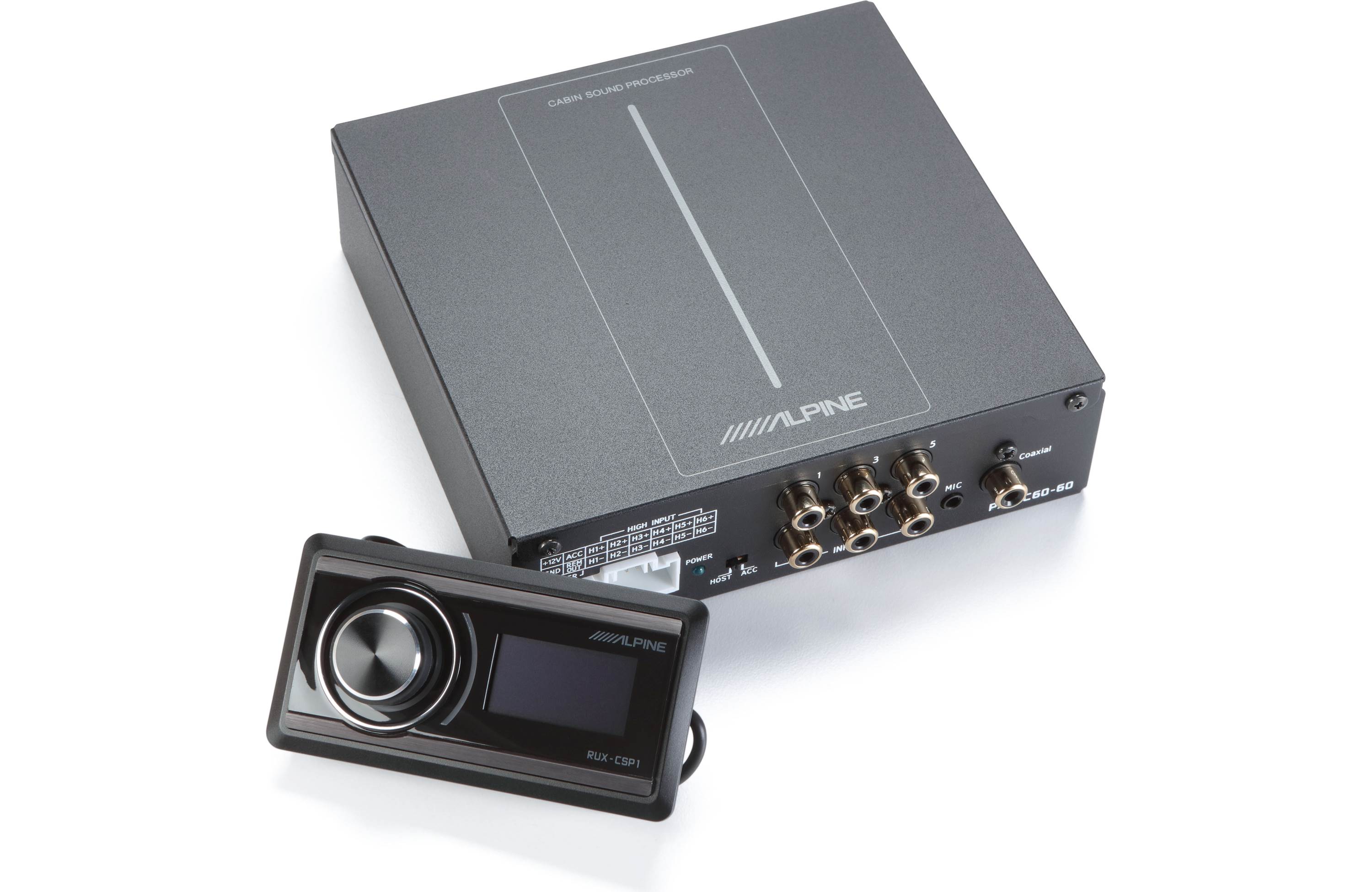

Alpine PXE-C60-60
Digital Signal Processor OPTIM™6 six-channel DSP with automatic sound tuning
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
The Alpine PXE-C60-60 is a compact, high-resolution 6-channel digital signal processor designed to seamlessly integrate with both factory and aftermarket audio systems. Featuring advanced tuning capabilities, wireless control options, and versatile input/output configurations, it offers audiophiles precise sound customization and premium performance. With automatic sound tuning via the Alpine OPTIM app and Hi-Res Audio playback, the PXE-C60-60 delivers exceptional fidelity and clarity.
Key Features
| Feature | Details |
|---|---|
| Audio Processing | 96 kHz / 24-bit Hi-Res Audio playback; 192 kHz / 32-bit system sampling rate |
| Equalization | 31-band parametric and graphic EQ per channel; Q: 0.404 ~ 28.85; Gain: -12.0dB ~ +12.0 dB |
| Crossovers | High-pass, low-pass, and band-pass filters per channel; crossover points: 20Hz – 20KHz; slopes: 12dB to 48dB/octave; filter types: Butterworth, Linkwitz-Riley, Bessel |
| Time Correction | Up to 20ms delay per channel; delay units: milliseconds, centimeters, or inches; phase adjustment: 0° or 180° per channel |
| Control Interface | Wireless tuning via smartphone (iOS/Android) and PC; includes wired LCD remote controller for volume, preset storage/recall, subwoofer level, and source selection |

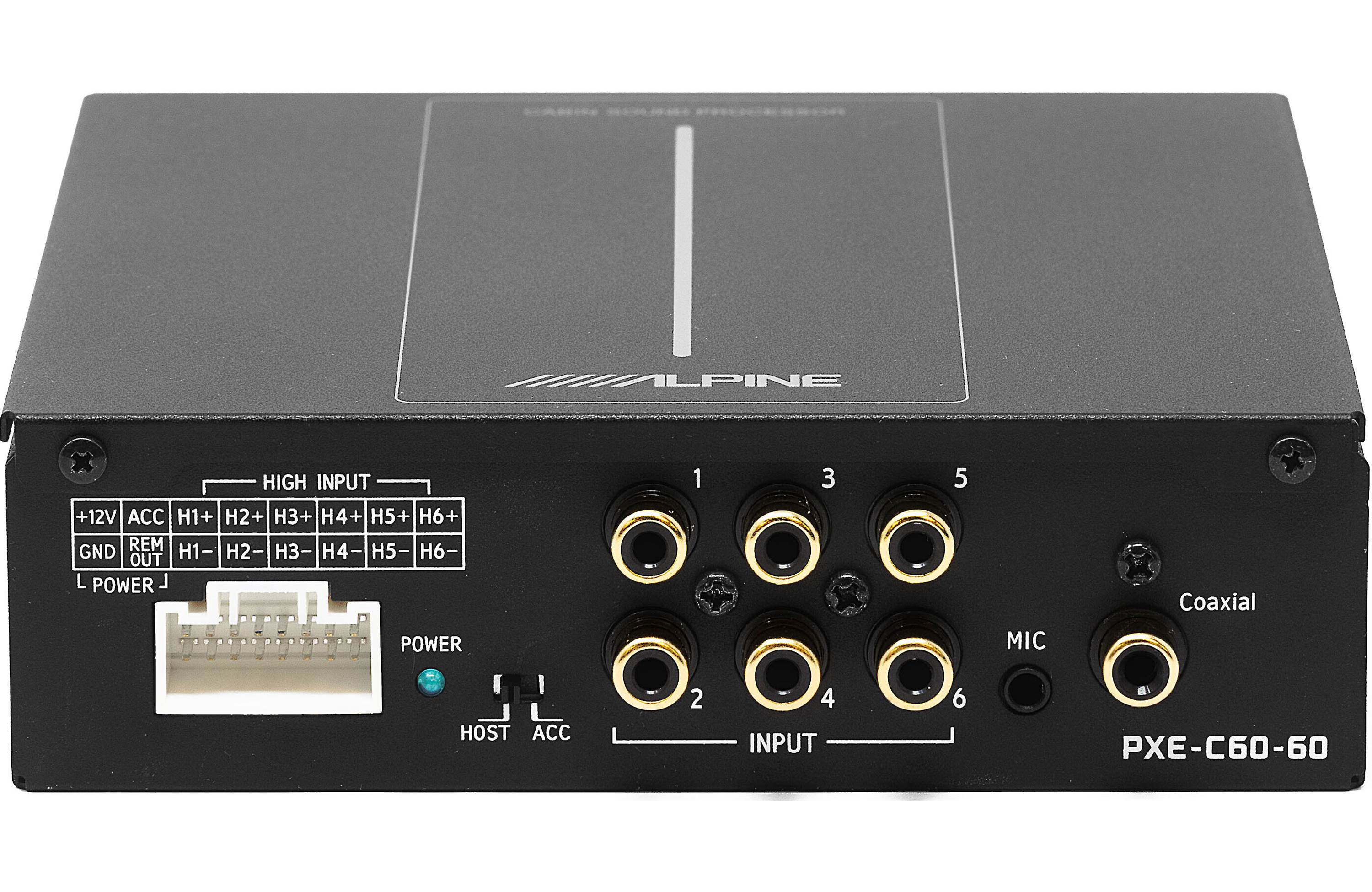

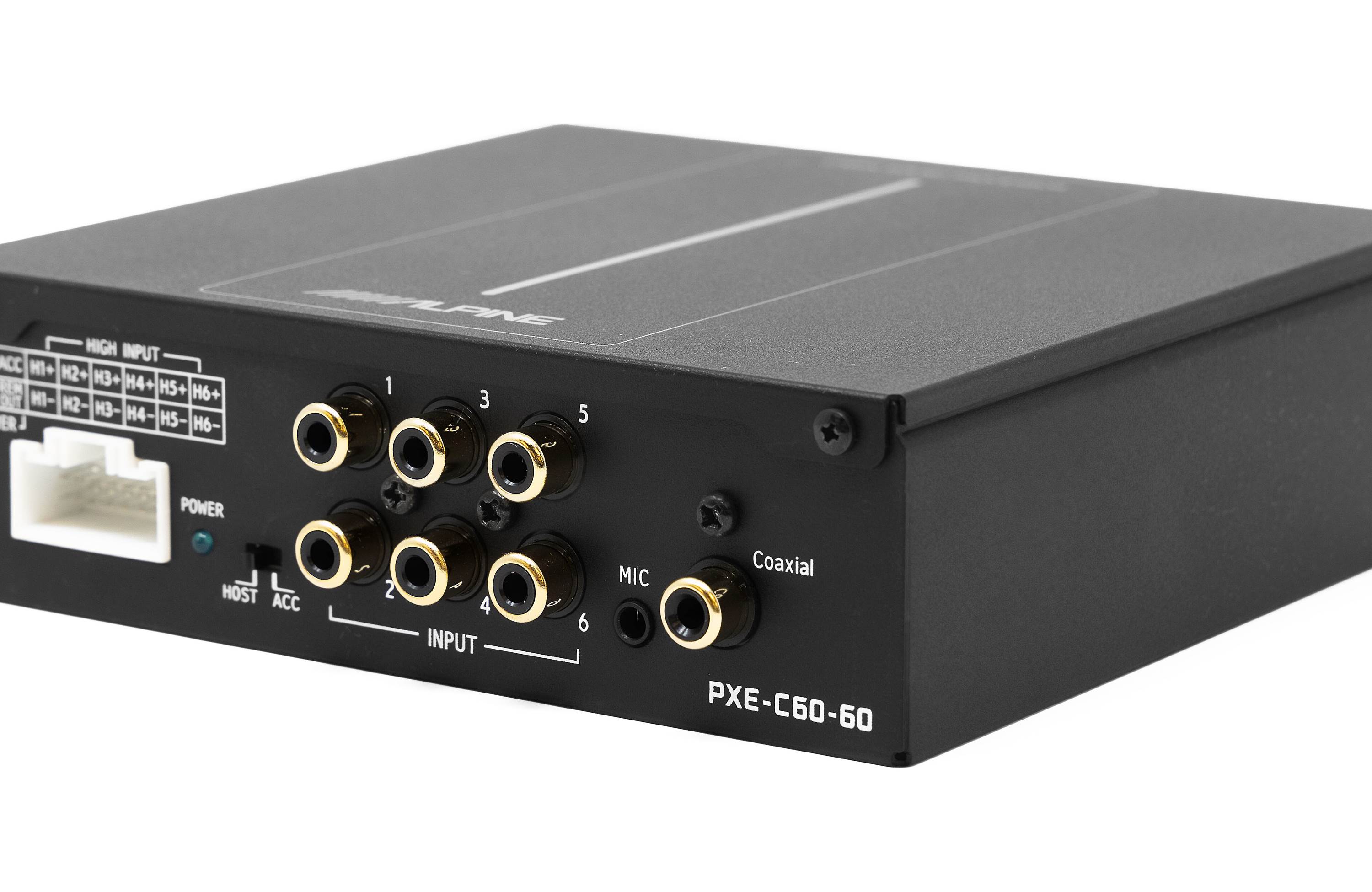

| Inputs | 6 assignable preamp and speaker-level inputs; optical and coaxial digital inputs; USB; Bluetooth audio streaming with included external module |

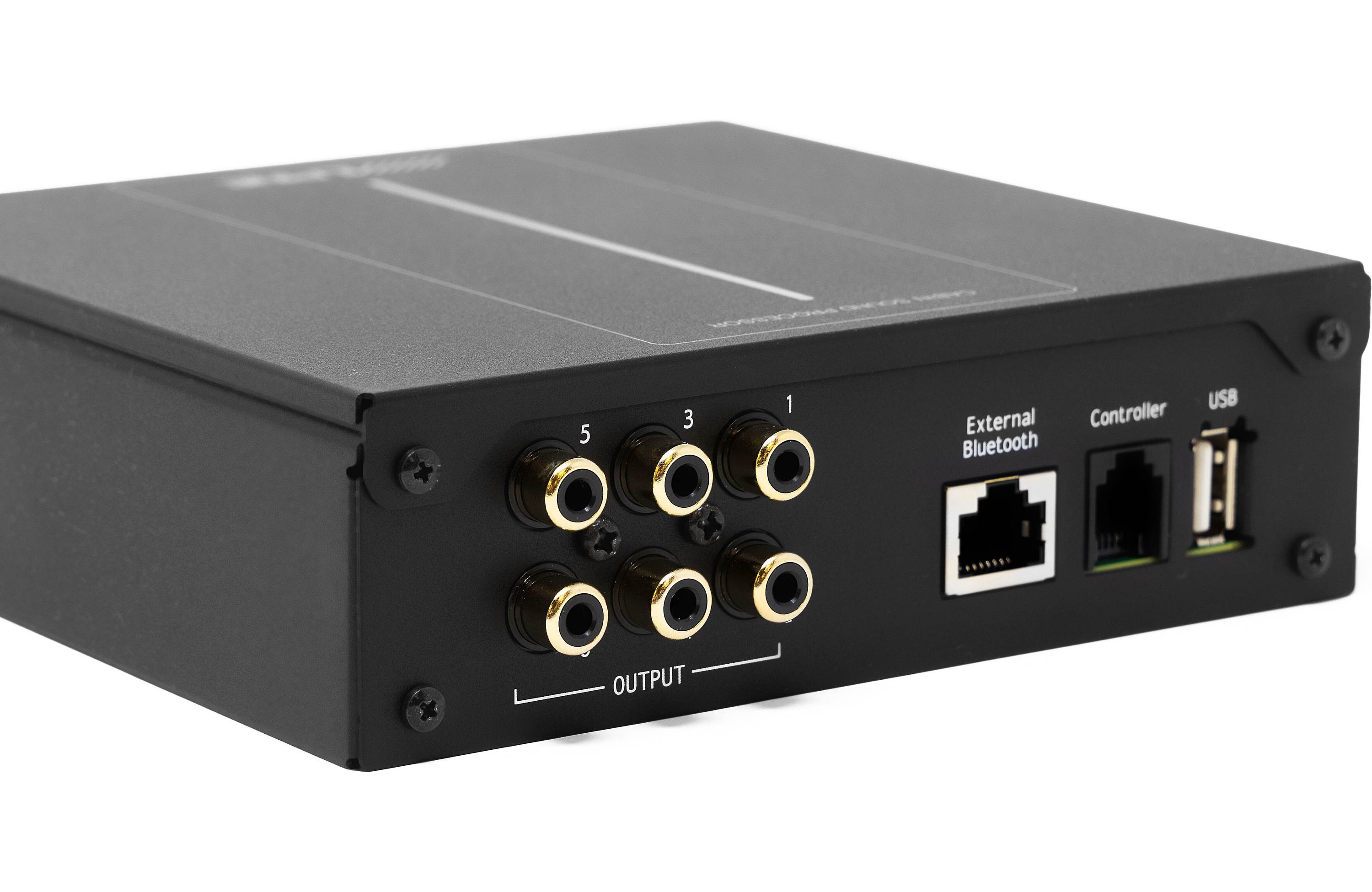

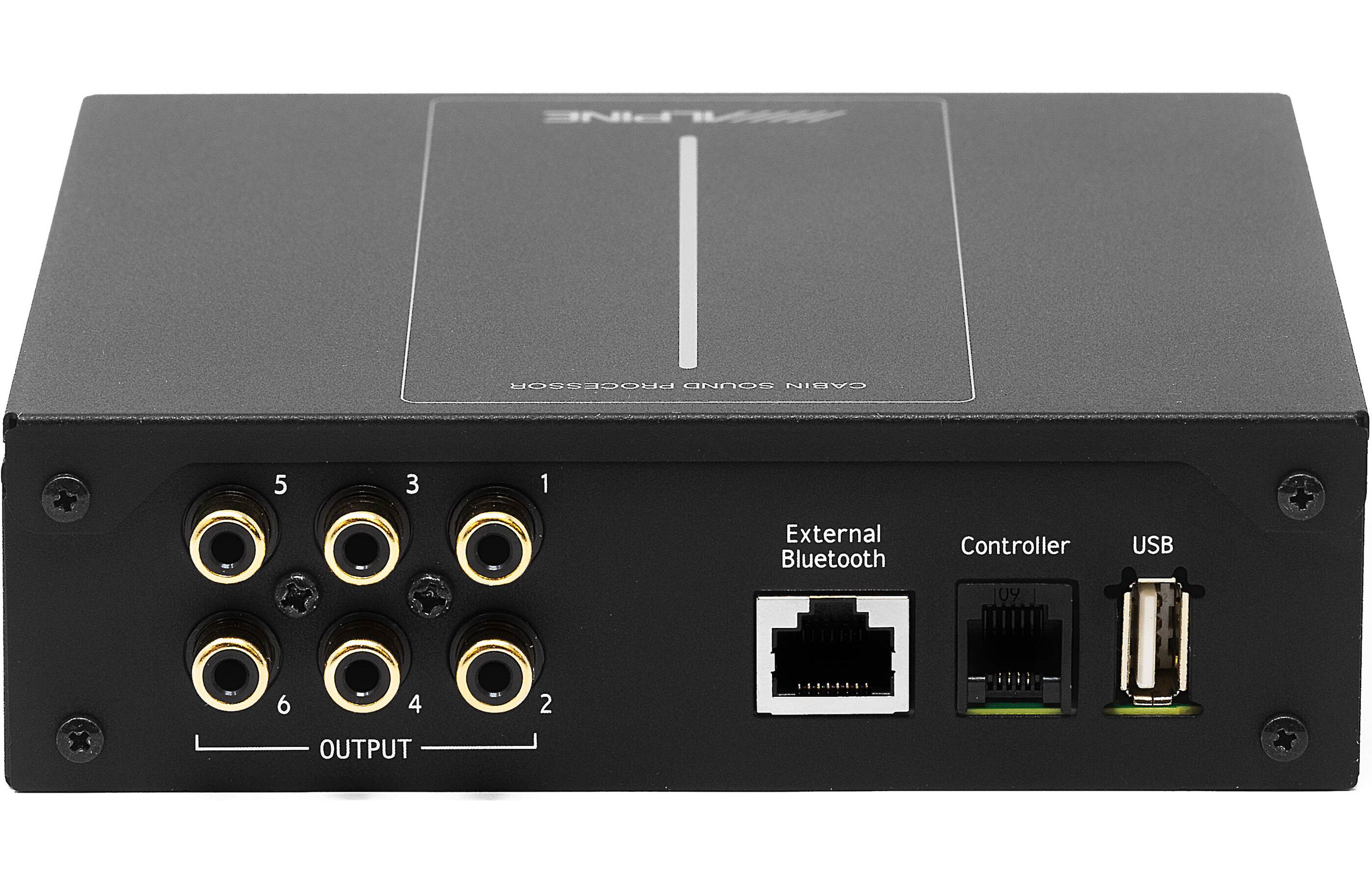

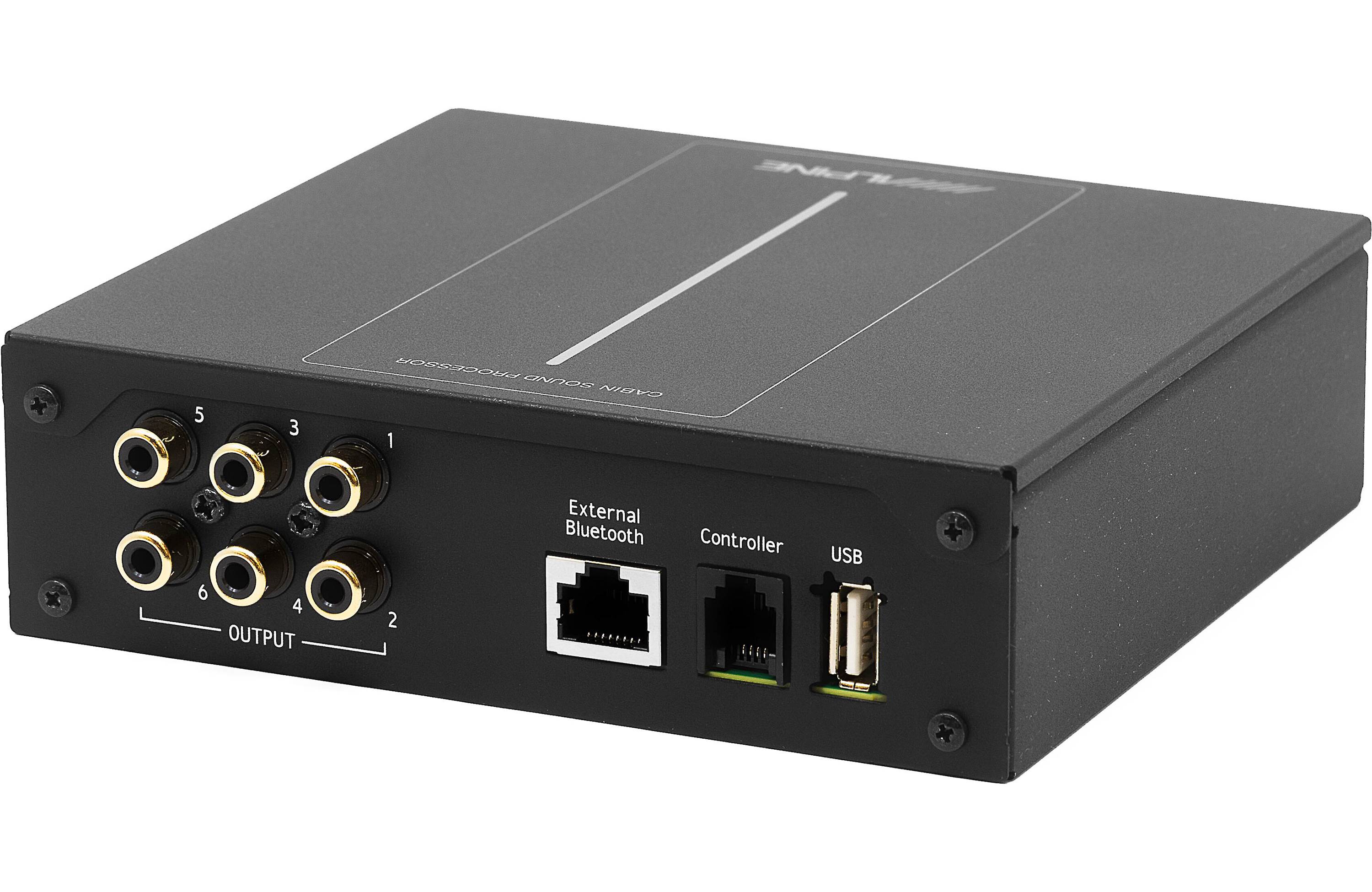

| Outputs | 6-channel 4V RCA outputs |
| Installation | Compact design with included installation bracket; suitable for dashboard or center console mounting |
| Factory Integration | Anti-EQ for OEM systems; eliminates factory EQ curve for clean sound |

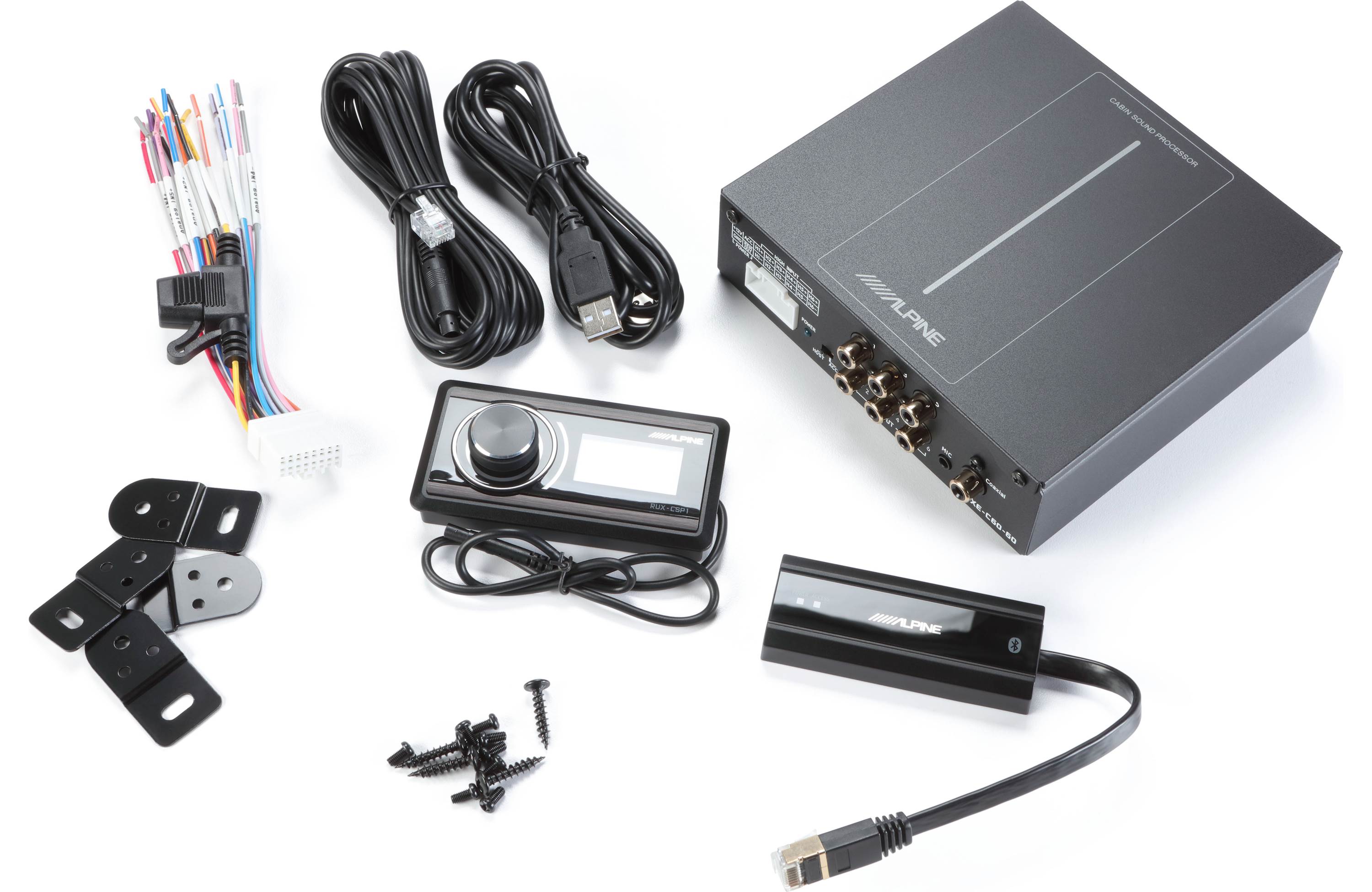

What’s in the Box
| Alpine PXE-C60-60 Digital Sound Processor |
| Wired LCD Remote Controller with attached 16" 4-pin cable |
| 16.5' Extension Cable (4-pin to RJ-12 connectors) |
| External Bluetooth Module with 6" cable |
| 6" Power/Ground/Input Harness |
| Two 6" Speaker Output Harnesses |
| Mounting Brackets and Hardware |
| USB-to-USB Connector for PC |
| Owner's Manual and Installation Guide |
