JL Audio C1-100ct
C1 Series 1" Aluminum Dome Tweeters
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Tweeters de componentes de 1 pulgada (25 mm), par

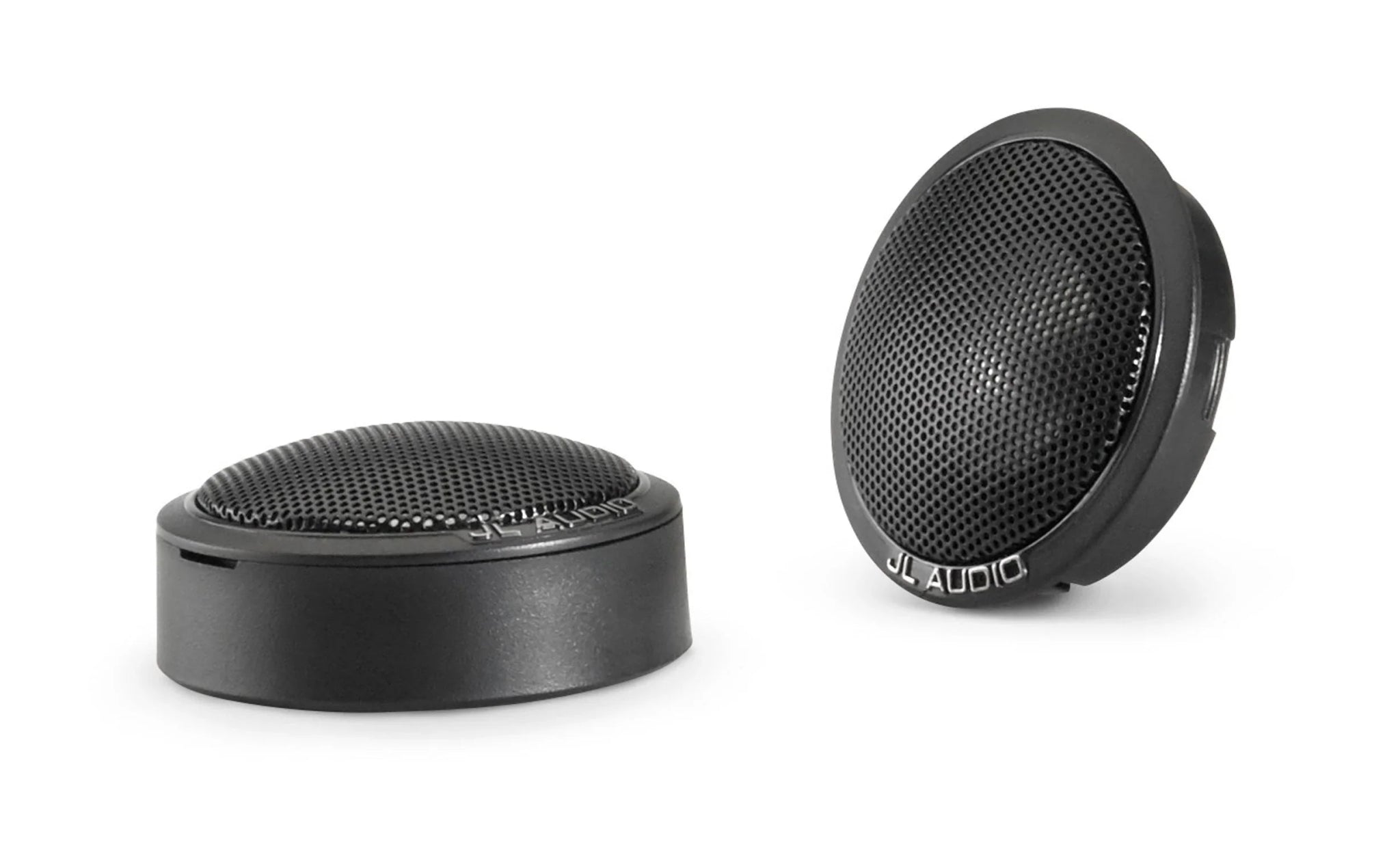

JL Audio C1-100ct
Tweeters de cúpula de aluminio de 1,0 pulgadas (25 mm)
Los tweeters del componente C1 están diseñados para ofrecer un rendimiento refinado, con una excelente respuesta fuera del eje y extensión de alta frecuencia. Utilizando verdaderas cúpulas de aluminio de 1,0 pulgadas con suspensiones de seda, los tweeters de componentes C1-100ct brindan una reproducción suave y detallada de frecuencias agudas de 3,6 a 22 kHz.
Los tweeters se pueden montar empotrados o en superficie con los accesorios suministrados para adaptarse a una amplia variedad de necesidades de instalación. Se incluyen filtros de paso alto en línea, externos, de 12 dB/octava para garantizar una respuesta suave y confiabilidad. Estos filtros también están equipados con circuitos avanzados de protección del tweeter para mejorar el manejo de potencia y la confiabilidad.
Cuando se trata de valor, ¡C1 es el verdadero negocio!
Vendido como un par. Se incluyen accesorios y rejillas para montaje en superficie y empotrado.
¿Qué hay en la caja?
| ⬥ (2) tweeters C1-100ct de 1,0 pulgadas (25 mm) |
| ⬥ (2) accesorios de tweeter de montaje en superficie |
| ⬥ (2) filtros de paso alto en línea C1-100cthp en 4 pies. (1,2 m) mazo de cables |
| ⬥ (2) clips de resorte metálicos (para montaje empotrado del tweeter) |
| ⬥ (4) tornillos para chapa de metal n.º 6 x 0,625 pulgadas (22 mm) |
| ⬥ (2) pernos prisioneros de 10 mm con tuerca fija M4 |
| ⬥ (2) pernos prisioneros de 25 mm con tuerca fija M4 |
| ⬥ (2) tuercas M5 |
Especificaciones
| Especificaciones generales | |
|---|---|
| Manejo continuo de energía (RMS) | 60W |
| Potencia recomendada del amplificador (RMS) | 20 - 60 W / canal. |
| Eficiencia del sistema | 91,5 dB a 1 W / 1 m |
| Impedancia nominal del sistema | 4 Ω |
| Respuesta de frecuencia del sistema | 3,6 kHz - 22 kHz ± 3 dB |
| *Con cruce de suministros | |
| Especificaciones físicas del tweeter | |
 |
|
| Diámetro del accesorio de montaje empotrado (A1) | 1,97 pulgadas/50 mm |
| Diámetro del accesorio de montaje en superficie (A2) | 2,01 pulgadas/51 mm |
| Diámetro del orificio de montaje empotrado (B) | 1,75 pulgadas/45 mm |
| Profundidad de montaje de montaje empotrado (C) | 0,40 pulgadas/10 mm |
| Protrusión frontal del tweeter de montaje empotrado (D1) | 0,32 pulgadas/8 mm |
| Protrusión frontal del tweeter de montaje en superficie (D2) | 0,87 pulgadas/22 mm |
| Especificaciones físicas cruzadas | |
| Ancho (ancho) | 1,96 pulgadas/50 mm |
| Profundidad (D) | 1,34 pulgadas/34 mm |
| Altura (Al) | 0,90 pulgadas/23 mm |
JL Audio C1-100ct C1 Series 1" 150W Peak Power Handling at 4 Ohm, 1-Way Aluminum Dome Car Tweeters (Pair)
We are a JL Audio authorized dealer. All products are fully warrantied and include free shipping within the lower 48 states. Upgrade Your Car Audio with JL Audio C1-100ct – Premium Component Tweeters. Enhance your car audio system with the JL Audio C1-100ct Component Tweeters. Engineered to deliver exceptional high-frequency response and robust performance, these high-quality tweeters bring your favorite music to life. Whether you're a daily commuter or an audiophile on a road trip, the JL Audio C1-100ct ensures you enjoy every moment with immersive audio.
Key Features
- High-Performance Tweeters: Designed to provide clear, accurate high frequencies with minimal distortion.
- 1" Aluminum Dome Tweeter: Offers superior sound quality and performance for detailed highs.
- Optimized Motor Design: Ensures high output and low distortion for precise sound.
- High-Quality Construction: Durable and built to last, perfect for daily use.
- External Crossover Network: Ensures seamless integration with your existing audio system, optimizing performance.
What's Inside?
- JL Audio C1-100ct Tweeters
- External Crossover Network
- Wiring Harness
- Mounting Hardware + User Manual
