Kenwood eXcelon DMX709S
6.95" Capacitive Touch Screen Stereo with Bluetooth, Wired Apple Carplay & Android Auto
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Monitor de 6,8" con receptor multimedia digital
KenwoodDMX709S
Receptor multimedia con pantalla capacitiva de 6,8", Car Play Ready, Android Auto Ready, HD Radio, Mirroring para teléfonos Android

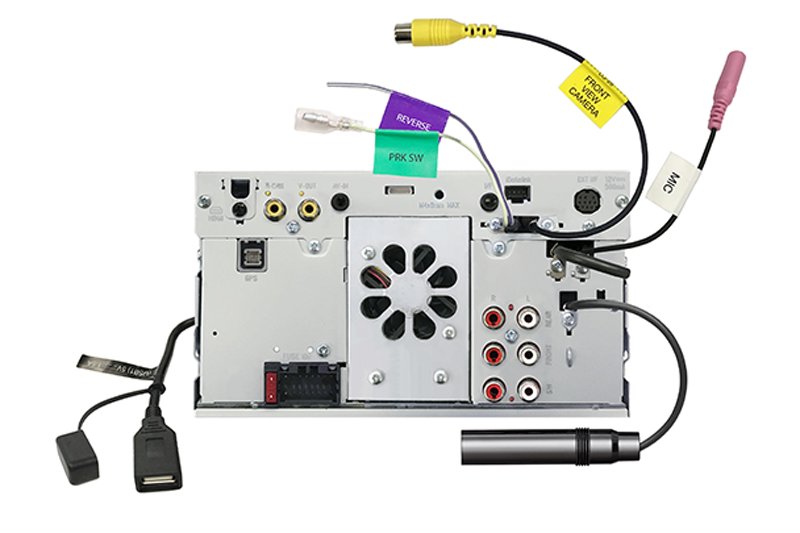

(USB), entrada HDMI, USB trasero, entradas para cámara frontal y trasera, 3 salidas previas (5 V)
Características
⬥ Monitor WVGA de 6,8" con panel táctil capacitivo
⬥ Listo para Apple CarPlay® y Android Auto™ (con cable)
⬥ Duplicación USB para Android
⬥ EQ de 13 bandas y alineación de tiempo digital
⬥ 3 entradas de cámara
⬥ Sintonizador de radio HD incorporado
⬥ Chasis corto
⬥ 3 salidas previas de 5,0 V
Especificaciones generales
| sección de monitor | |
|---|---|
| Tamaño de imagen (ancho x alto) | 6,75 pulgadas (diagonal) de ancho 151,8 mm x 79,7 mm (6" x 3-1/7") |
| Sistema de visualización | Panel LCD TN |
| Sistema de manejo | Sistema de matriz activa TFT |
| Número de píxeles | 1.152.000 (800H x 480V x RGB) |
| Píxeles efectivos | 0.9999 |
| Disposición de píxeles | Disposición de rayas RGB |
| Iluminación trasera | CONDUJO |
| Sección de interfaz USB | |
| tipo de conector | Escribe un |
| Estándar USB | USB 2.0 de velocidad completa/alta velocidad |
| Sistema de archivos | GRASA 16/32, exGRASA |
| Corriente máxima de alimentación | CC 5 V ⎓ 1,5 A x 2 |
| Convertidor D/A | 24 bits |
| Decodificador de audio | MP3/WMA/AAC/WAV/FLAC |
| Decodificador de vídeo | MPEG-1/MPEG-2/MPEG-4/WMV/H.264/MKV |
| Respuesta frecuente | 192 kHz: 20 - 20 000 Hz 96 kHz: 20 - 20 000 Hz 48kHz: 20 - 20.000Hz 44,1 kHz: 20 - 20.000 Hz |
| Distorsión armónica total | 0,010% (1kHz) |
| Relación señal-ruido | 98,5dB |
| Gama dinámica | 89dB |
| sección bluetooth | |
| Tecnología | Bluetooth V4.2 |
| Frecuencia | 2.402 - 2.480 GHz |
| Rango máximo de comunicación | Línea de visión aprox. 10 m (32,8 pies) |
| Códec de audio | SBC/AAC |
| Perfil (soporte para múltiples perfiles) | Perfil múltiple |
| Perfil | HFP (perfil manos libres) V1.8/ SPP (perfil de puerto serie) A2DP (Perfil de distribución de audio avanzado) V1.3.2 AVRCP (perfil de control remoto de vídeo/avanzado) V1.6.2 PBAP (perfil de acceso a la agenda telefónica) |
| Sección HDMI I/F | |
| tipo de conector | Tipo D |
| Resolución de entrada | VGA (640 x 480p a 59,94 Hz/60 Hz) 480p (720 x 480p a 59,94 Hz/60 Hz) |
| Tipo de audio de entrada | 32 kHz/44,1 kHz/48 kHz/88,2 kHz/96 kHz/176,2 kHz/192 kHz PCM lineal de 16 bits/20 bits/24 bits |
| sección DSP | |
| Banda del ecualizador | 13 banda
Frecuencia (Hz): Ganancia (dB): |
| tweeter | Ganancia (dB): -8/-7/-6/-5/-4/-3/-2/-1/0 |
| HPF | Frecuencia (Hz): Hasta/30/40/50/60/70/80/90/100/120/150/180/220/250 Pendiente (dB/Oct.): Ganancia (dB): |
| LPF | Frecuencia (Hz): 30/40/50/60/70/80/90/100/120/150/180/220/250/A través Pendiente (dB/Oct.): Ganancia (dB): Fase: Normal/Inversa |
| Tweeter HPF | Frecuencia (Hz): 1k/1,6k/2,5k/4k/5k/6,3k/8k/10k/12,5k Pendiente (dB/Oct.): Ganancia (dB): Fase: Normal/Inversa |
| HPF de rango medio | Frecuencia (Hz): Hasta/30/40/50/60/70/80/90/100/120/150/180/220/250 Pendiente (dB/Oct.): |
| LPF de rango medio | Frecuencia (Hz): 1k/1,6k/2,5k/4k/5k/6,3k/8k/10k/12,5k/a través de Pendiente (dB/Oct.): Ganancia (dB): Fase: Normal/Inversa |
| subwoofer lpf | Frecuencia (Hz): 30/40/50/60/70/80/90/100/120/150/180/220/250/A través Pendiente (dB/Oct.): Ganancia (dB): Fase: Normal/Inversa |
| Sección del sintonizador FM digital | |
| Rango de frecuencia (paso) | 87,9 MHz - 107,9 MHz (200 kHz) |
| Respuesta frecuente (±3,0 dB) |
20 Hz - 20 kHz |
| Relación S/N | 75 dB (ESTÉREO) |
| Sección del sintonizador AM digital | |
| Rango de frecuencia (paso) | 530 kHz a 1700 kHz (10 kHz) |
| Respuesta frecuente (±3,0 dB) |
40 Hz a 15 kHz |
| Relación señal/ruido (dB) | 70 dB (ESTÉREO) |
| Sección del sintonizador de FM | |
| Rango de frecuencia (paso) | 87,9 MHz - 107,9 MHz (200 kHz) |
| Sensibilidad utilizable (S/N: 30dB) |
7,2 dBf (0,63 µV/75 Ω) |
| Sensibilidad calmante (DIN S/N: 46dB) |
15,2 dBf (1,58 µV/75 Ω) |
| Respuesta frecuente | 30 Hz - 15 kHz |
| Relación señal-ruido | 68 dB (MONO) |
| Selectividad | > 80dB |
| Separación estéreo | 40 dB (1 kHz) |
| Sección del sintonizador AM | |
| Rango de frecuencia (paso) | 530 kHz - 1700 kHz (10 kHz) |
| Sensibilidad utilizable | 29 dBμ (28,2 μV) |
| Sección de vídeos | |
| Sistema de color de entrada de vídeo externo | NTSC/PAL |
| Nivel de entrada de vídeo externo (conector RCA)/(miniconector) |
1 Vp-p /75Ω 1 Vp-p /75Ω |
| Nivel máximo de entrada de audio externo (miniconector) | 2 V/25 kΩ |
| Nivel de entrada de vídeo (tomas RCA) | 1 Vp-p /75Ω |
| Nivel de salida de vídeo (conector RCA) | 1 Vp-p /75Ω |
| Sección de audio | |
| Salida de potencia máxima (Delantero trasero) |
50 ancho x 4 |
| Salida de potencia típica (Delantero trasero) |
Potencia de ancho de banda total (a menos del 1% THD) 22 ancho x 4 |
| Banda de frecuencia de salida | 20 - 88.000 Hz |
| Nivel de salida previa | 5V/ 10kΩ |
| Impedancia de salida previa | ≤600 Ω |
| Impedancia del altavoz | 4Ω a 8Ω |
| General | |
| Tensión de funcionamiento | Batería de coche de 12 V CC |
| Dimensiones de instalación (Ancho x Alto x Fondo) |
Unidad principal: 180 mm x 100 mm x 75 mm (7-1/16" x 3-15/16" x 2-15/16") Con manga: |
| Peso (Unidad principal) |
1,2 kg (2,7 lbs) (incluida la placa embellecedora y la funda) |
Kenwood Excelon DMX907S 6.95" WVGA Capacitive Screen Digital Media Receiver
We are a Kenwood authorized dealer, so you’ll receive only genuine, fully warrantied products. All orders include free shipping within the lower 48 states. Upgrade your vehicle with the Kenwood Excelon DMX709S Digital Multimedia Receiver, a premium in-car entertainment system designed for seamless connectivity, outstanding sound, and advanced control. Whether you're navigating, streaming, or taking calls hands-free, the DMX709S delivers crystal-clear performance and modern convenience in every drive.
Key Features
- 6.95" Capacitive Touchscreen Display for sharp visuals and intuitive control
- Apple CarPlay® & Android Auto™ for hands-free access to navigation, messages, and music
- Bluetooth® Connectivity for wireless streaming and calling
- Built-in Amplifier with 22W RMS per channel and 6-channel preamp outputs for superior sound
- 13-Band EQ, Time Alignment, and DSP for professional-grade audio tuning
- iDatalink® Maestro Compatibility retains vehicle factory features and displays performance data
- SiriusXM-Ready® & AM/FM Tuner for access to a wide range of stations and shows

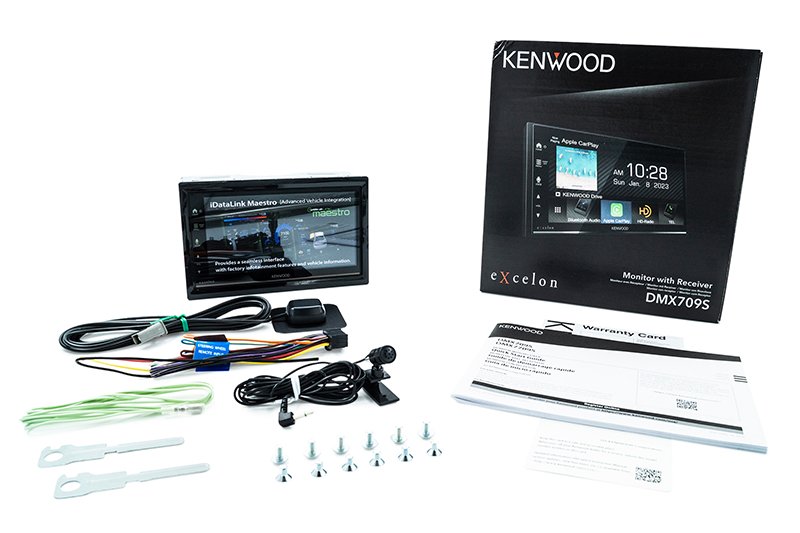

What's Inside?
- Digital multimedia receiver w/ fixed 6.95" touchscreen monitor (10A fuse)
- Sleeve (attached)
- Trim ring
- Wiring harness
