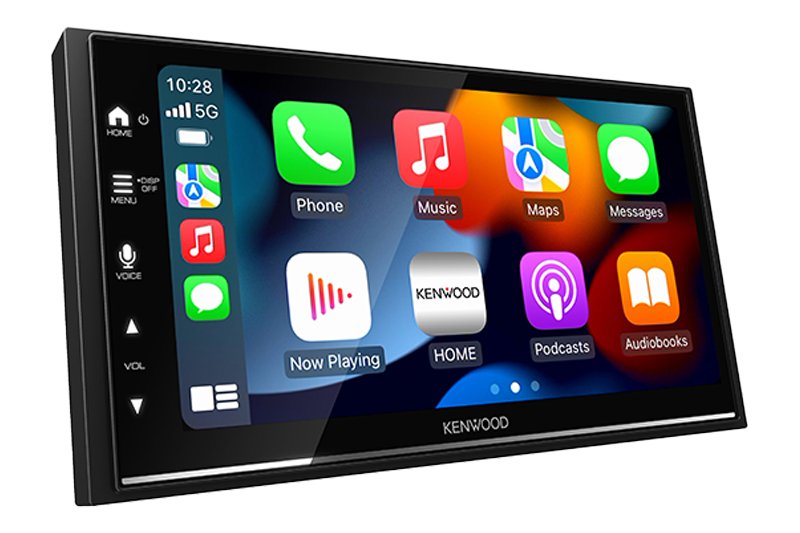

Kenwood DMX7709S
6.8-Inch Capacitive Touch Screen with Bluetooth, Wired Apple Carplay & Android Auto
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Monitor de 6,8" con receptor de medios digitales
Kenwood DMX7707S
Receptor multimedia con pantalla capacitiva de 6,8", Car Play Ready (con cable), Android Auto Ready (con cable), Mirroring para teléfonos Android (USB), HDMI
Entrada, USB trasero, entradas para cámara frontal y trasera, 3 salidas previas (4 V)
¿Qué hay en la caja?
| ⬥ (1) Receptor multimedia digital con monitor de pantalla táctil fijo de 6,75" (fusible de 10 A) |
| ⬥ (1) arnés de alimentación/vídeo de 11,5' |
| ⬥ (1) Soporte de montaje autoadhesivo |
| ⬥ (1) Portacables |
| ⬥ (1) tarjeta microSD de 8GB |
| ⬥ (1) adaptador de tarjeta microSD a SD |
| ⬥ (1) Nota de corrección |
| ⬥ (1) Conector magnético |
| ⬥ (1) Receptor multimedia digital con monitor de pantalla táctil fijo de 6,75" (fusible de 10 A) |
| ⬥ (1) Filtro polarizado |
| ⬥ (1) Adaptador de corriente/encendedor de cigarrillos de 12 voltios (cable de 12,5' adjunto) |
Características
⬥ Monitor WVGA de 6,8" con panel táctil capacitivo
⬥ Listo para Apple CarPlay® y Android Auto™
⬥ Duplicación USB para Android
⬥ EQ de 13 bandas y alineación de tiempo digital
⬥ 3 entradas de cámara
⬥ Bluetooth® incorporado
⬥ Chasis corto
⬥ 3 salidas previas 4.0V
Especificaciones generales
| sección de monitor | |
|---|---|
| Tamaño de imagen (ancho x alto) | 6,75 pulgadas (diagonal) de ancho 151,8 mm x 79,7 mm (6" x 3-1/7") |
| Sistema de visualización | Panel LCD TN |
| Sistema de manejo | Sistema de matriz activa TFT |
| Número de píxeles | 1.152.000 (800H x 480V x RGB) |
| Píxeles efectivos | 0.9999 |
| Disposición de píxeles | Disposición de rayas RGB |
| Iluminación trasera | CONDUJO |
| Sección de interfaz USB | |
| tipo de conector | Escribe un |
| Estándar USB | USB 2.0 de velocidad completa/alta velocidad |
| Sistema de archivos | GRASA 16/32, exGRASA |
| Corriente máxima de alimentación | CC 5 V ⎓ 1,5 A x 2 |
| Convertidor D/A | 24 bits |
| Decodificador de audio | MP3/WMA/AAC/WAV/FLAC |
| Decodificador de vídeo | MPEG-1/MPEG-2/MPEG-4/WMV/H.264/MKV |
| Respuesta frecuente | 192 kHz: 20 - 20 000 Hz 96 kHz: 20 - 20 000 Hz 48kHz: 20 - 20.000Hz 44,1 kHz: 20 - 20.000 Hz |
| Distorsión armónica total | 0,010% (1kHz) |
| Relación señal-ruido | 98,5dB |
| Gama dinámica | 89dB |
| sección Bluetooth | |
| Tecnología | Bluetooth V4.2 |
| Frecuencia | 2.402 - 2.480 GHz |
| Rango máximo de comunicación | Línea de visión aprox. 10 m (32,8 pies) |
| Códec de audio | SBC/AAC |
| Perfil (soporte para múltiples perfiles) | Perfil múltiple |
| Perfil | HFP (perfil manos libres) V1.8 SPP (perfil de puerto serie) A2DP (Perfil de distribución de audio avanzado) V1.3.2 AVRCP (perfil de control remoto avanzado/vídeo) V1.6.2 PBAP (perfil de acceso a la agenda telefónica) |
| Sección HDMI I/F | |
| tipo de conector | Tipo D |
| Resolución de entrada | VGA (640 x 480p a 59,94 Hz/60 Hz) 480p (720 x 480p a 59,94 Hz/60 Hz) |
| Tipo de audio de entrada | 32 kHz/44,1 kHz/48 kHz/88,2 kHz/96 kHz/176,2 kHz/192 kHz PCM lineal de 16 bits/20 bits/24 bits |
| sección DSP | |
| Banda del ecualizador | 13 banda
Frecuencia (Hz): Ganancia (dB): |
| tweeter | Ganancia (dB): -8/-7/-6/-5/-4/-3/-2/-1/0 |
| HPF | Frecuencia (Hz): Hasta/30/40/50/60/70/80/90/100/120/150/180/220/250 Pendiente (dB/Oct.): Ganancia (dB): |
| LPF | Frecuencia (Hz): 30/40/50/60/70/80/90/100/120/150/180/220/250/A través Pendiente (dB/Oct.): Ganancia (dB): Fase: Normal/Inversa |
| Tweeter HPF | Frecuencia (Hz): 1k/1,6k/2,5k/4k/5k/6,3k/8k/10k/12,5k Pendiente (dB/Oct.): Ganancia (dB): Fase: Normal/Inversa |
| HPF de rango medio | Frecuencia (Hz): Hasta/30/40/50/60/70/80/90/100/120/150/180/220/250 Pendiente (dB/Oct.): |
| LPF de rango medio | Frecuencia (Hz): 1k/1,6k/2,5k/4k/5k/6,3k/8k/10k/12,5k/a través de Pendiente (dB/Oct.): Ganancia (dB): Fase: Normal/Inversa |
| subwoofer lpf | Frecuencia (Hz): 30/40/50/60/70/80/90/100/120/150/180/220/250/A través Pendiente (dB/Oct.): Ganancia (dB): Fase: Normal/Inversa |
| Sección del sintonizador de FM | |
| Rango de frecuencia (paso) | 87,9 MHz - 107,9 MHz (200 kHz) |
| Sensibilidad utilizable (S/N: 30dB) |
7,2 dBf (0,63 µV/75 Ω) |
| Sensibilidad calmante (DIN S/N: 46dB) |
15,2 dBf (1,58 µV/75 Ω) |
| Respuesta frecuente | 30 Hz - 15 kHz |
| Relación señal-ruido | 68 dB (MONO) |
| Selectividad | > 80dB |
| Separación estéreo | 40 dB (1 kHz) |
| Sección del sintonizador AM | |
| Rango de frecuencia (paso) | 530 kHz - 1700 kHz (10 kHz) |
| Sensibilidad utilizable | 29 dBμ (28,2 μV) |
| Sección de vídeos | |
| Sistema de color de entrada de vídeo externo | NTSC/PAL |
| Nivel de entrada de vídeo externo (conector RCA)/(miniconector) |
1 Vp-p /75Ω 1 Vp-p /75Ω |
| Nivel máximo de entrada de audio externo (miniconector) | 2 V/25 kΩ |
| Nivel de entrada de vídeo (tomas RCA) | 1 Vp-p /75Ω |
| Nivel de salida de vídeo (conector RCA) | 1 Vp-p /75Ω |
| Sección de audio | |
| Salida de potencia máxima (Delantero trasero) |
50 ancho x 4 |
| Salida de potencia típica (Delantero trasero) |
Potencia de ancho de banda total (a menos del 1% THD) 22 ancho x 4 |
| Banda de frecuencia de salida | 20 - 88.000 Hz |
| Nivel de salida previa | 4V/ 10kΩ |
| Impedancia de salida previa | ≤600 Ω |
| Impedancia del altavoz | 4Ω a 8Ω |
| General | |
| Tensión de funcionamiento | Batería de coche de 12 V CC |
| Dimensiones de instalación (Ancho x Alto x Fondo) |
Unidad principal: 180 mm x 100 mm x 75 mm (7-1/16" x 3-15/16" x 2-15/16") Con manga: |
| Peso (Unidad principal) |
1,2 kg (2,7 lbs) (incluida la placa embellecedora y la funda) |

Kenwood DMX7709S 2-DIN 6.8" MultiMedia Receiver, Car Play Ready, Android Auto Ready, Mirroring for Android Phones (USB), HDMI Input, Rear USB, Front & Rear Camera Inputs
We are a Kenwood authorized dealer, offering only genuine, fully warrantied products. Enjoy free shipping within the lower 48 states with every order.
The Kenwood DMX7709S Digital Multimedia Receiver delivers advanced connectivity, powerful audio performance, and intuitive control—all in one sleek package. Perfect for drivers who want a safer, smarter, and more enjoyable ride, this receiver combines top-tier smartphone integration with rich, immersive sound quality.
Key Features
- 6.95" Touchscreen Display with an intuitive interface for effortless operation
- Apple CarPlay® & Android Auto™ compatibility with voice control via Siri® and Google Assistant™
- Bluetooth® Connectivity for hands-free calls and wireless audio streaming
- SiriusXM-Ready® for endless entertainment on the go (tuner sold separately)
- Android Mirroring for viewing and controlling apps directly on the display
- Built-in Amplifier (22W RMS per channel, 50W peak) for crisp, dynamic sound
- 13-Band Graphic EQ & Digital Time Alignment for detailed tuning and perfect speaker synchronization
- 5-Channel Preamp Outputs supporting front, rear, and subwoofer configurations
What's Inside?
- Digital multimedia receiver w/ fixed 6.95" touchscreen monitor (10A fuse)
- Sleeve (attached)
- Trim ring
- Wiring harness
