JL Audio JD1000/1
JD Series 1000W Monoblock Subwoofer Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Amplificador subwoofer monobloque clase D, 1000 W
JD1000/1
Amplificador subwoofer monobloque clase D, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω - 14,4 V
Diseñado para producir 1000 vatios en 2 ohmios (14,4 V, 1 % THD), el amplificador JD1000/1 es una gran solución para alimentar subwoofers en un sistema económico. Nuestra tecnología de conmutación patentada NexD™ ofrece grandes cantidades de potencia de salida real con excelente eficiencia y distorsión ultrabaja.

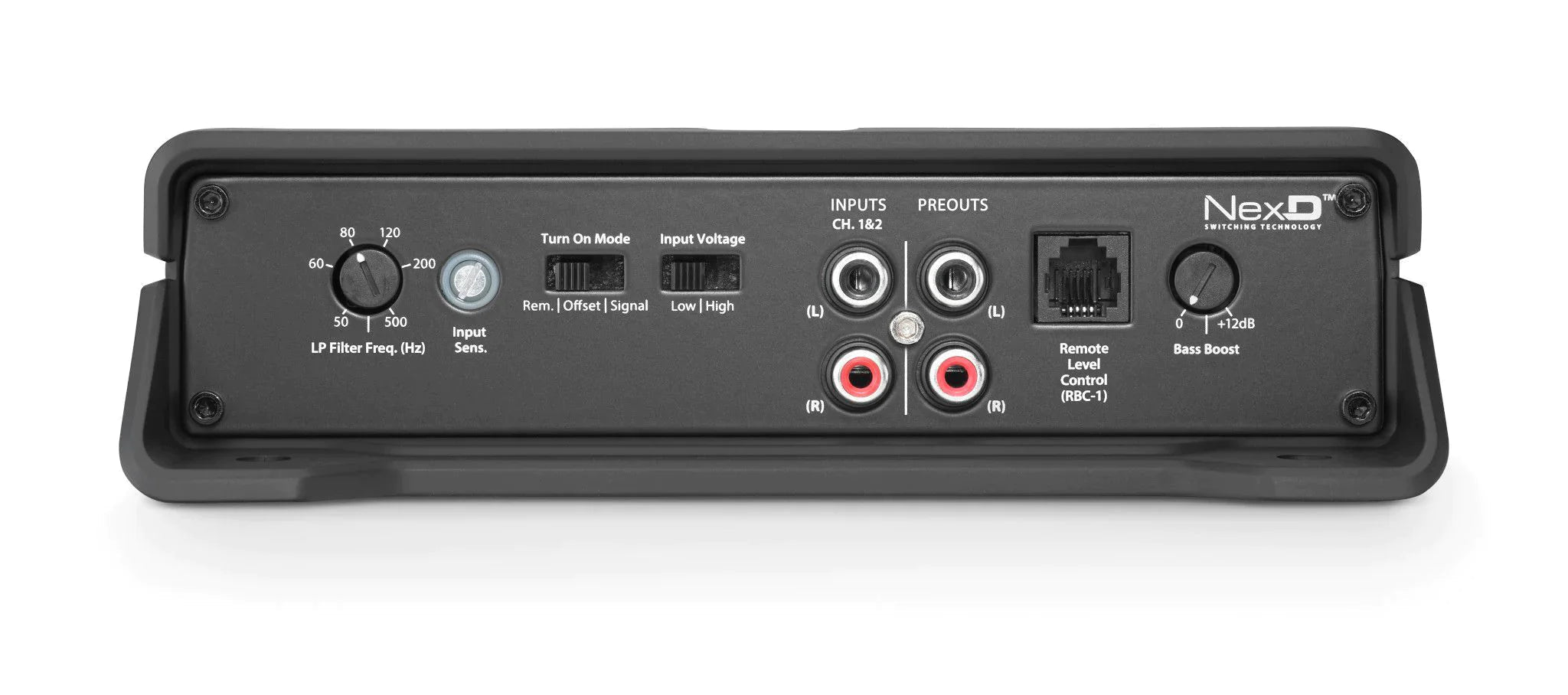

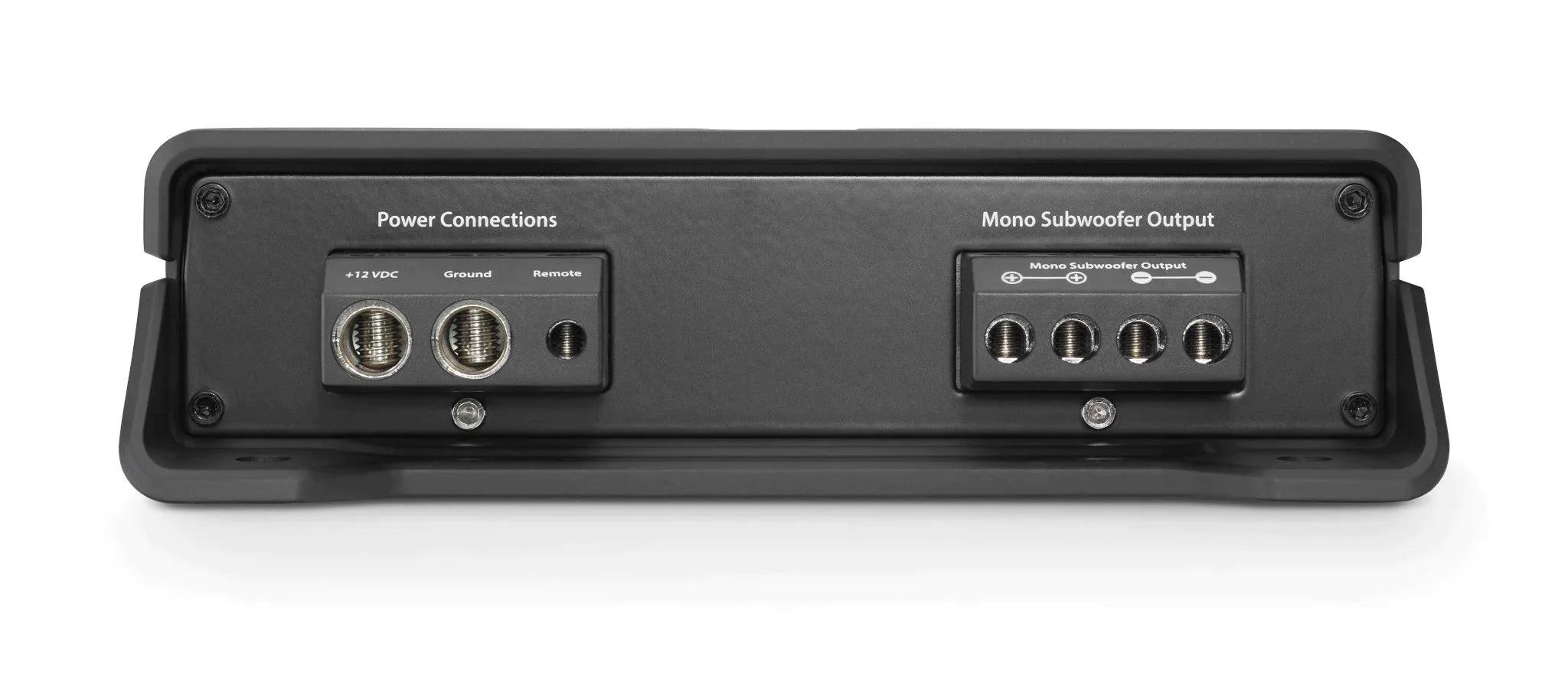

Los controles del JD1000/1 están ubicados en el panel de entrada. mientras que las conexiones de alimentación y altavoces se pueden encontrar en el extremo opuesto de su chasis de aluminio extruido. Las características de procesamiento de señal incluyen un filtro de paso bajo de 12 dB/octava, con selección de frecuencia continuamente variable de 50 a 500 Hz y un ecualizador de refuerzo de graves variable. También hay disponibles entradas balanceadas diferencialmente de rango dual, capaces de aceptar señales de nivel de línea y de altavoz. La capacidad de encendido automático (mediante detección de señal o detección de compensación de CC) es estándar, junto con un conjunto de salidas de preamplificador para que pueda pasar señales fácilmente a otro amplificador.
El JD1000/1 también está equipado con un anillo indicador de recorte LED integrado que rodea el control de sensibilidad de entrada. Esta útil función le permite configurar la sensibilidad de entrada de su amplificador, de forma rápida y precisa, sin equipo especial. Con la adición de un control de nivel remoto RBC-1 (se vende por separado), puede controlar el nivel del subwoofer desde el asiento del conductor.
Especificaciones
| Potencia nominal continua (RMS) a 14,4 V | |
|---|---|
| @ 4 Ω | 600 W RMS x 1 |
| @ 3 Ω | 800 W RMS x 1 |
| @ 2 Ω | 1000 W RMS x 1 |
| @ 1,5 Ω | N / A |
| Potencia nominal continua (RMS) a 12,5 V | |
| @ 4 Ω | 500 W RMS x 1 |
| @ 3 Ω | 650 W RMS x 1 |
| @ 2 Ω | 800 W RMS x 1 |
| @ 1,5 Ω | N / A |
| Especificaciones generales | |
| Respuesta frecuente | 7Hz - 500Hz (+0,-1dB) |
| Relación S/N, referida a la potencia nominal más alta | >80 dB por debajo de la potencia nominal (ponderación A, ancho de banda de ruido de 20 Hz - 20 kHz) |
| Relación S/N, referida a 1 W | >50 dB (ponderación A, ancho de banda de ruido de 20 Hz - 20 kHz) |
| Factor de amortiguación @ 4 Ω | >1000/50Hz |
| Factor de amortiguación @ 2 Ω | >500/50Hz |
| THD+N a potencia nominal | <1% a 2 Ω por canal. |
| Rango de voltaje de entrada en entradas RCA | Conmutable de 200 mV - 2 V RMS (Bajo) a 800 mV - 8 V RMS (Alto) |
| Mín. Calibre del cable de alimentación/tierra de cobre | Cable de 4 AWG |
| Evaluacion del fusible | 80 A (AFS, AGU o MaxiFuse™) |
| Procesamiento de la señal | |
| Modo(s) de filtro | Sólo paso bajo |
| Filtrar pendientes | 12 dB/octava |
| Rango de frecuencia del filtro | 50Hz - 500Hz |
| Frec. de filtro calibrada y retenida. Potenciómetro | No |
| Función de desactivación del filtro | No |
| Filtro infrasónico | No |
| Ecualizador de refuerzo de graves | Sí |
| Interruptor de polaridad de salida | No |
| Control remoto de nivel del subwoofer | Opcional (RBC-1) |
| Control remoto de refuerzo del ecualizador de graves | No |
| Salida de preamplificador de paso | almacenado en búfer |
| Especificaciones físicas | |
| Altura (Al) | 2,10 pulgadas/53 mm |
| Ancho (ancho) | 11,40 pulgadas/290 mm |
| Profundidad (D) | 7,50 pulgadas/190 mm |
JL Audio JD1000/1 JD Series 1000W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Car Amplifier
Experience deep, distortion-free bass power with the Class-D Mono Subwoofer Car Amplifier featuring NexD™ technology. Designed for peak performance and efficiency, it delivers up to 1000W at 2Ω and 600W at 4Ω for thunderous sound while staying cool under pressure. With precision tuning options like a 12 dB/octave low-pass filter and variable bass boost EQ, you get total control over your bass output. Built for flexibility, it integrates seamlessly with any system through dual-range differential-balanced inputs and offers automatic turn-on for a hassle-free experience. Rugged and reliable, its extruded aluminum chassis ensures long-lasting durability, while the optional RBC-1 remote control (sold separately) gives you on-the-go adjustment for the perfect low-end sound every time.
Key Features
- Class-D Mono Subwoofer Amplifier with NexD™ Technology
- Delivers 1000W at 2Ω and 600W at 4Ω Output Power
- High-Efficiency Design for Cooler Operation
- 12 dB/Octave Low-Pass Filter (50–500 Hz) for Precise Bass Control
- Variable Bass Boost EQ for Custom Low-End Tuning
- Dual-Range Differential-Balanced Inputs (Line & Speaker Level)
- Automatic Turn-On via Signal or DC-Offset Sensing
- Preamp Outputs for Easy System Expansion
- LED Clipping Indicator for Accurate Input Sensitivity Setup
- Rugged Extruded Aluminum Chassis for Long-Term Durability
- Compatible with Optional RBC-1 Remote Level Control (Sold Separately)
- Includes 2.5mm & 3mm Hex Keys and Owner’s Manual
What's Inside?
- Class-D Mono Subwoofer Car Amplifier
- 2.5mm Hex Key
- 3mm Hex Key
- Owner's Manual
