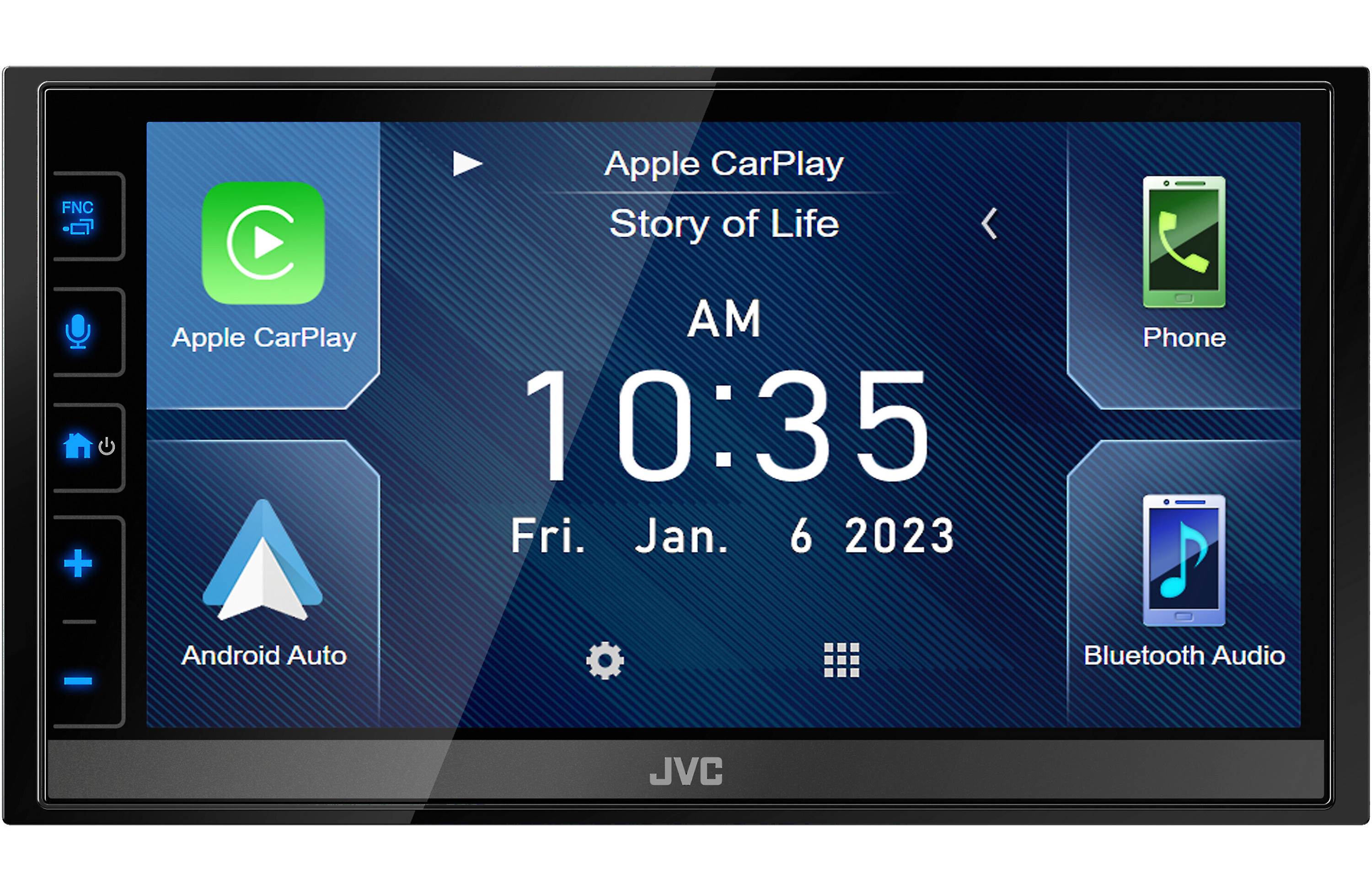

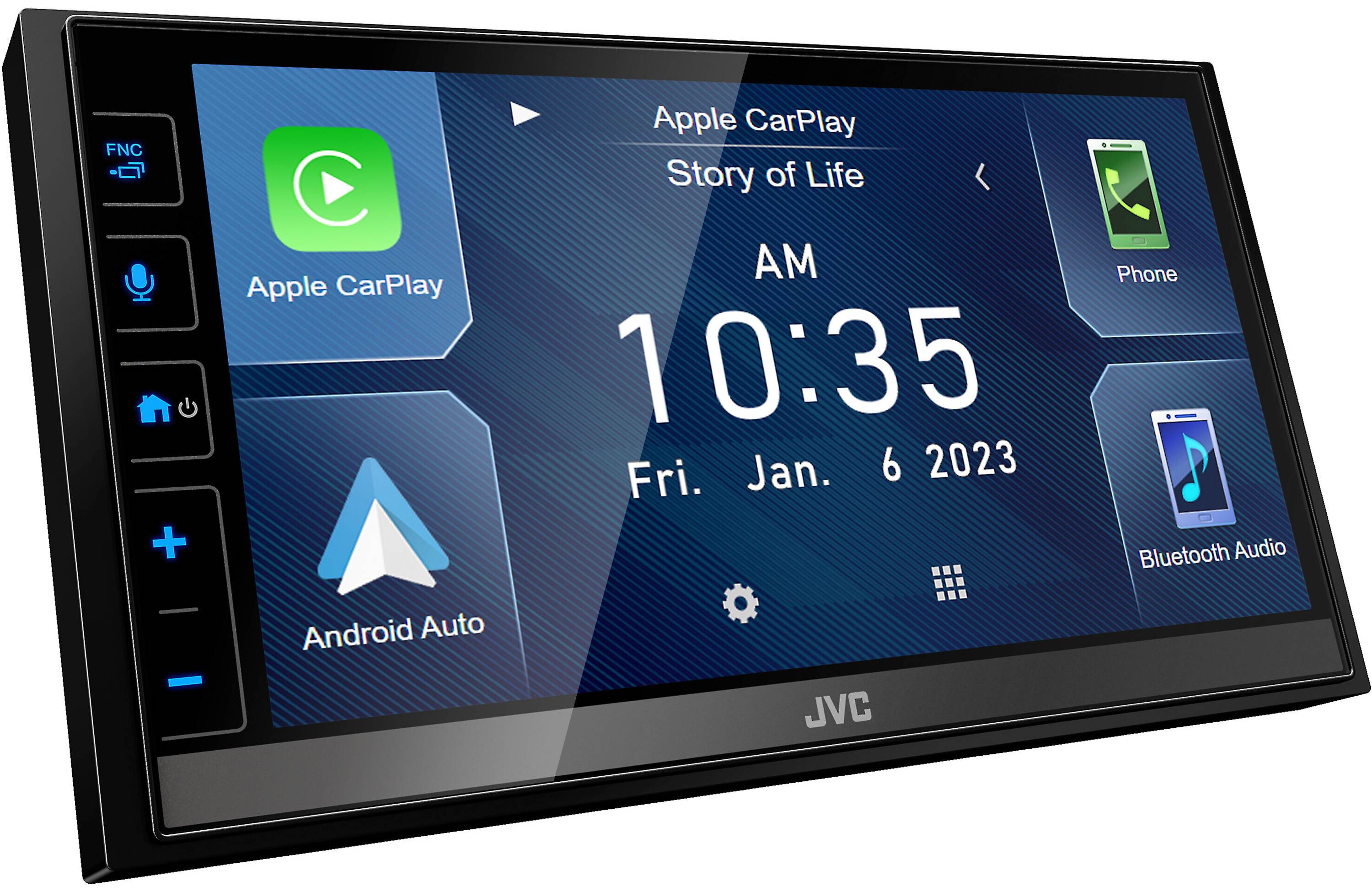

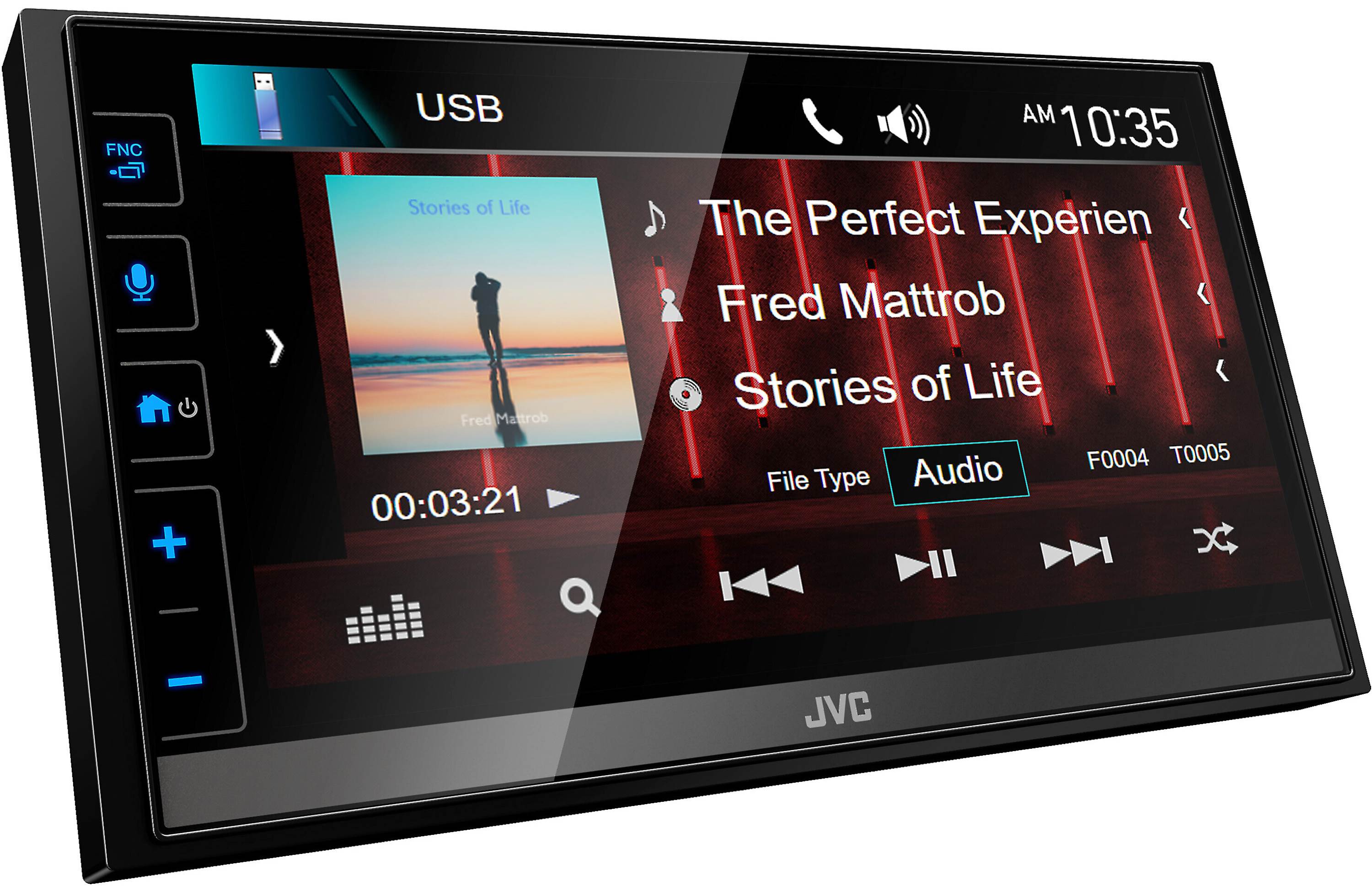

JVC KW-M780BT
6.75-Inch Digital multimedia receiver with Bluetooth, Wired Apple Carplay & Android Auto
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
JVC KW-M780BT: 6.8" Capacitive Touchscreen Digital Media Receiver – Seamless Smartphone Integration and Superior Sound Quality
The JVC KW-M780BT is a 6.8-inch capacitive touchscreen digital media receiver designed to enhance your in-car entertainment experience. With Apple CarPlay®, Android Auto™, and Android Phone Mirroring, this receiver ensures seamless smartphone integration. Its advanced sound optimization features and customizable interface make it a versatile choice for drivers looking for both convenience and high-quality performance.
Key Features
Category | Description |
---|---|
Smartphone Integration |
Apple CarPlay® & Android Auto™ (via USB) Android Phone Mirroring with Mirroring OA for JVC app HDMI™ Smartphone Screen Mirroring Support |
Display | 6.8-Inch WVGA Capacitive Touchscreen |
Safety Features | Supports Up to 3 Cameras (Rear, Front, Blind Spot), Gesture Touch Control |
Audio Optimization |
Time Alignment, Sound Response, Space Enhancement, Sound Lift, Volume Link EQ, 13-Band Graphic Equalizer |
Connectivity |
Bluetooth® 4.2 (Hands-Free Calling & Audio Streaming, Dual Phone Connection) SiriusXM Ready (Optional Tuner Required), iDatalink Maestro Compatible |
Power Output | 50W x 4 Max / 22W RMS x 4 |
Preamp Outputs | 6-Channel (4V Front, Rear, Subwoofer) |
USB & HDMI | Rear USB (1.5A Charging) & HDMI Input for Screen Mirroring |
Advanced Smartphone Features

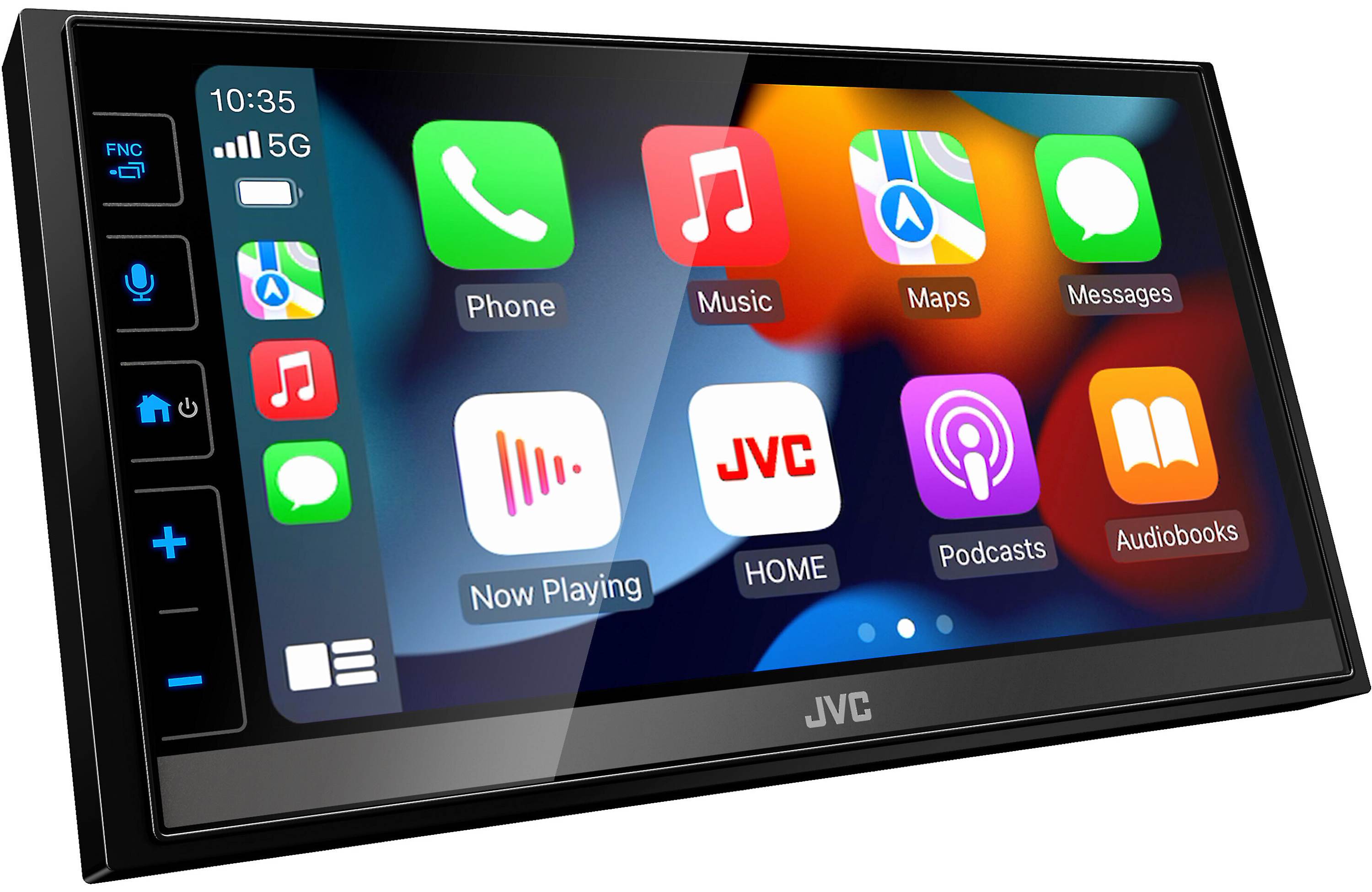

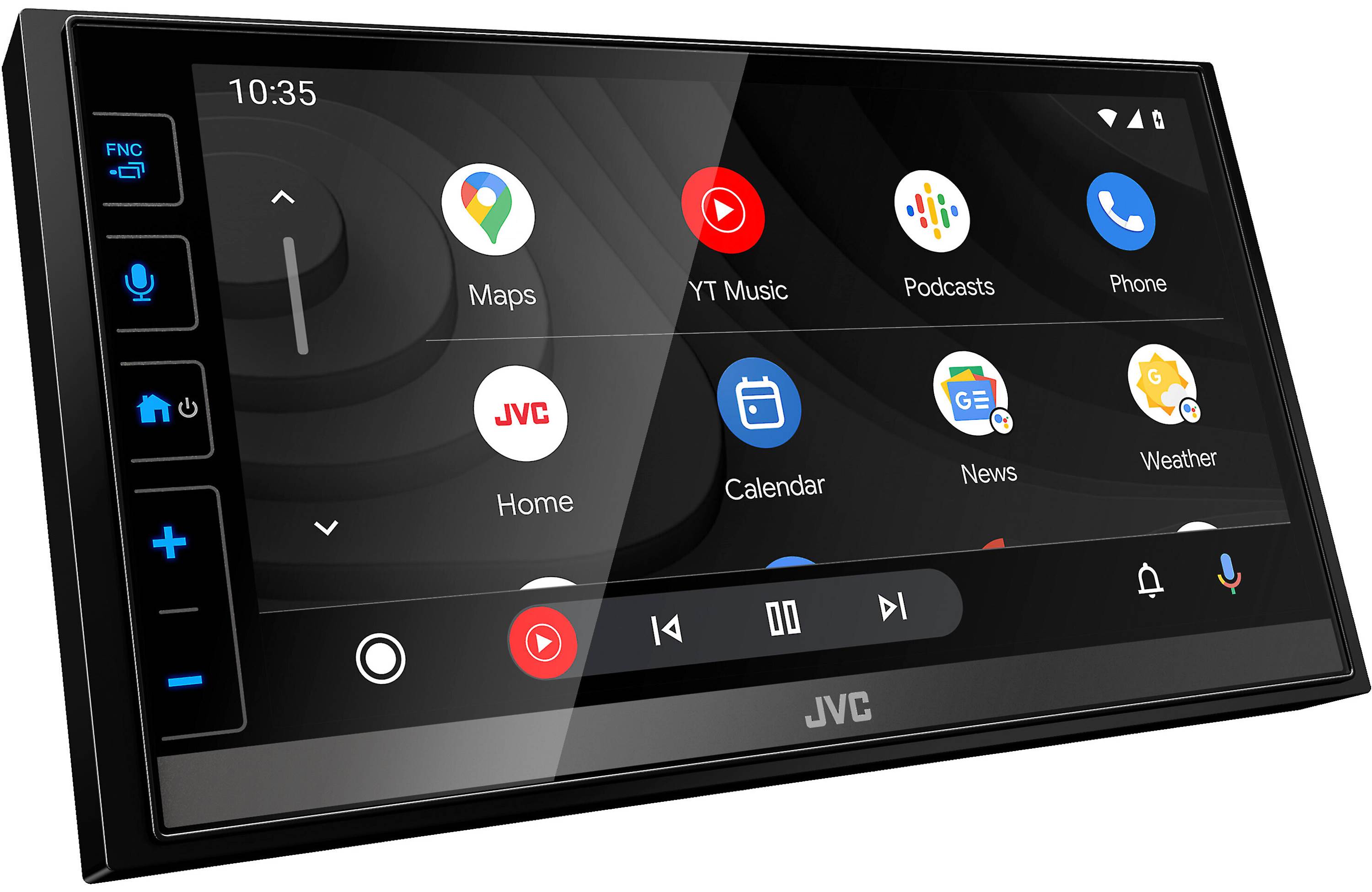

- ✔ Apple CarPlay® & Android Auto™: Navigate, call, message, and stream with voice or touchscreen control.
- ✔ Android Phone Mirroring: Control your phone directly from the receiver with the JVC app.
- ✔ HDMI™ Input: Mirror your device screen using a compatible HDMI cable and adapter.
Enhanced Safety
- ✔ 3-Camera Input Support: Add rear-view, front, and blind-spot cameras for maximum visibility.
- ✔ Gesture Touch Control: Swipe and tap for easier screen navigation while driving.
Premium Audio Tuning
- ✔ Time Alignment: Sync audio timing across all speakers for perfect sound staging.
- ✔ Sound Response & Space Enhancement: Improve clarity and create a wider soundstage.
- ✔ Sound Lift & Volume Link EQ: Elevate sound image and compensate for road noise.
- ✔ 13-Band EQ: Fully customizable frequency adjustment for audiophile-grade tuning.
Connectivity & Compatibility
- ✔ Bluetooth® 4.2: Hands-free calling, music streaming, and dual-device pairing.
- ✔ SiriusXM Ready: Add an optional tuner to unlock over 100 channels of premium content.
- ✔ iDatalink Maestro Compatible: Retain OEM vehicle functions and display performance data.

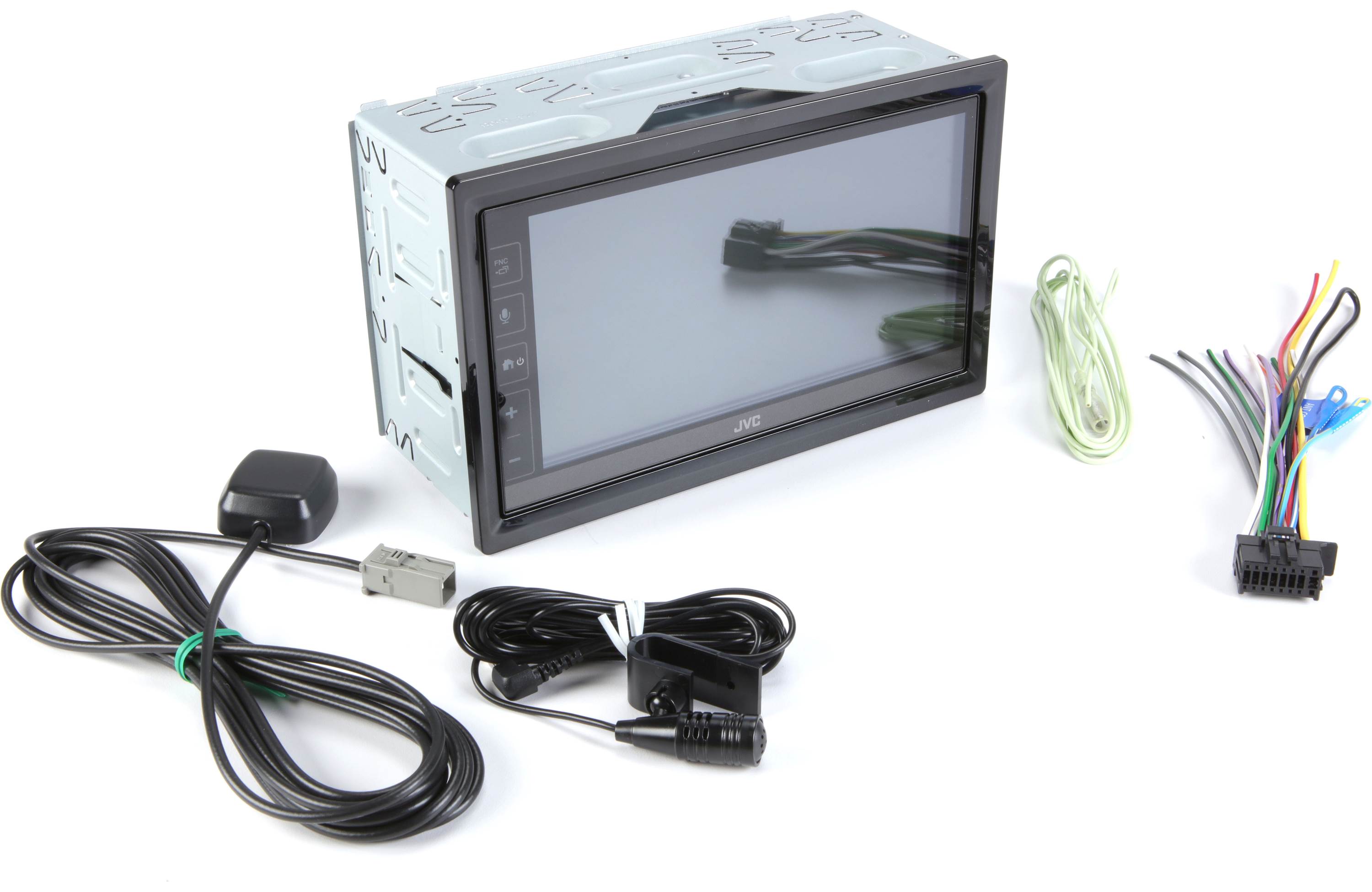

What’s in the Box
- 1 x JVC KW-M780BT Digital Media Receiver
- Wiring Harness
- USB Extension Cable
- Bluetooth Microphone
- Installation Hardware (Brackets, Screws)
- User Manual & Quick Start Guide
Frequently Asked Questions (FAQ)
Q: Does the JVC KW-M780BT support wireless Apple CarPlay or Android Auto? | A: No, both require a wired USB connection for operation. |
Q: Can I connect more than one smartphone via Bluetooth? | A: Yes, the receiver supports dual Bluetooth connections for calls and media streaming. |
Q: Is the KW-M780BT compatible with steering wheel controls? | A: Yes, with an appropriate adapter, you can retain your factory steering wheel controls. |
Q: Does this unit support CD or DVD playback? | A: No, this is a digital media receiver and does not include a disc drive. |
Q: What types of cameras can I use? | A: The receiver supports up to three camera inputs, including rear-view, front, and blind-spot cameras. |
