Kenwood Excelon X303-4
4-channel car amplifier — 50 watts RMS x 4
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

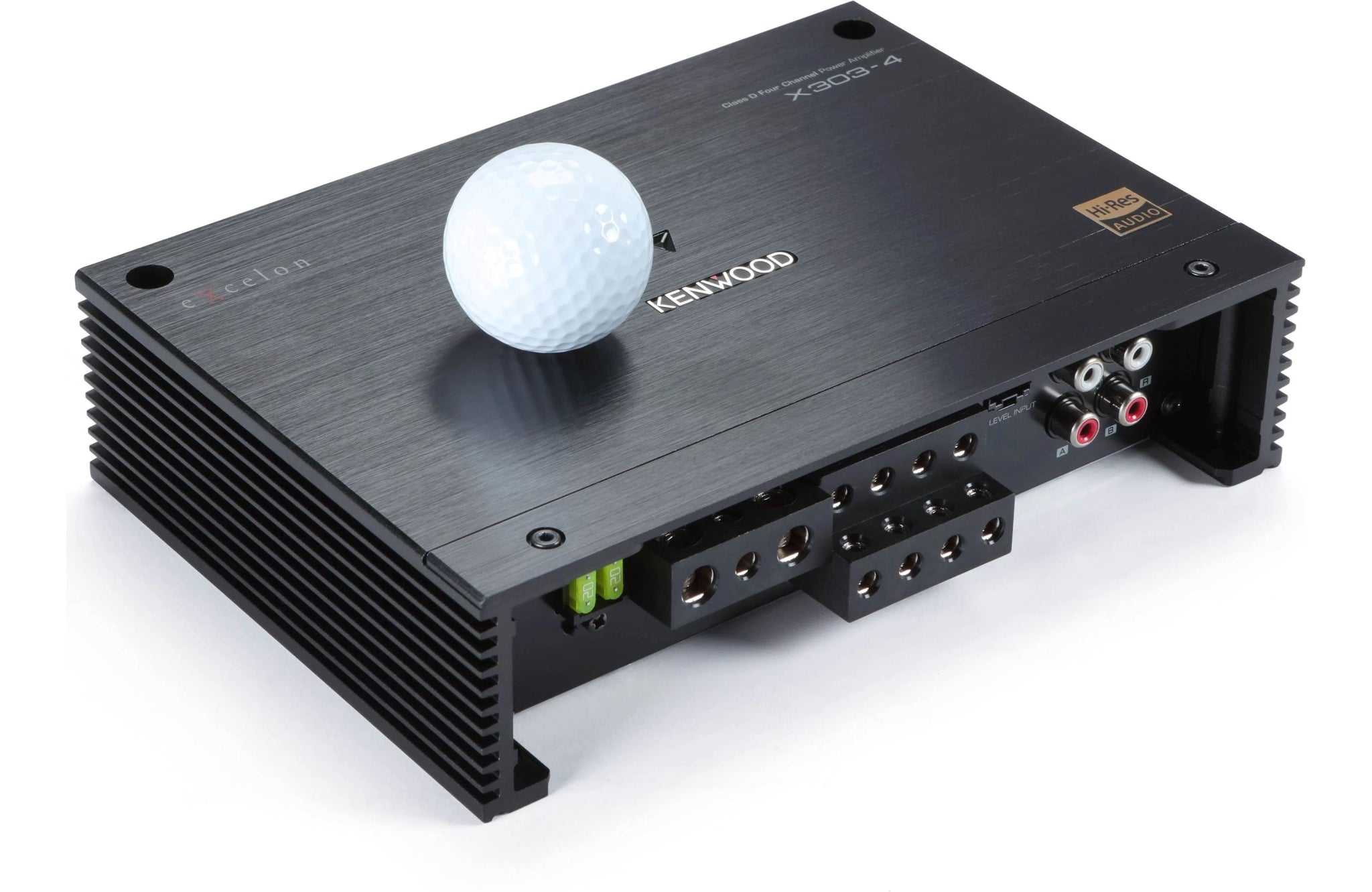

Kenwood Excelon X303-4 4-Channel Class-D Amplifier
The Kenwood Excelon X303-4 is a high-efficiency 4-channel Class-D amplifier delivering up to 600W max output. Designed for tight, clean amplification of full-range and subwoofer channels, it features compact form factor, shielded output coil, and high-quality components to minimize distortion and noise.
| Key Features | |
|---|---|
| Class | Class-D high-efficiency design |
| Power Output | 600W max total output |
| Shielded Output Coil | Reduces electromagnetic interference & noise |
| High-Quality Components | PMLCAP capacitors in LC filters for low distortion |
| Compact Design | Slim chassis ideal for tight mounting spaces |
| Terminals | Gauge-style screw terminals for secure wiring |
| Bridgeability | Can be bridged for higher power output modes |
| What’s in the Box |
|---|
| 1x Kenwood Excelon X303-4 amplifier |
| 4x Mounting screws |
| 1x Allen wrench (for terminal screws) |
| 1x Owner’s manual & installation guide |
| 1x Warranty card |
| Technical Specifications | |
|---|---|
| Continuous Power | Not specified (see user manual) |
| Max Power | 600W total |
| Signal-to-Noise Ratio | > 100 dB |
| Frequency Response | 10 Hz – 150 kHz |
| Total Harmonic Distortion | < 0.05% |
| Input Sensitivity | 200mV – 4V |
| Impedance | 4–8 Ω (per channel), 2–4 Ω (bridged) |
| Dimensions (W × H × D) | ≈ 5-3/4" × 2-1/8" × 11" (146 × 54 × 280 mm) |
| Mounting Hole Pitch | ≈ 256 mm × 120 mm |
| Cooling | Aluminum heat sink with natural convection |
| Warranty | 2 Years (parts & labor) |
Kenwood Excelon X303-4 X Series 4-Channel 75W RMS x 4 at 2-Ohms, Class-D Car Amplifier
The Kenwood X303-4 is a compact 4-channel amplifier designed to deliver powerful, high-quality sound while fitting seamlessly into your vehicle. With up to 600 watts of maximum output, it enhances your audio system with rich, dynamic bass and clear, distortion-free sound. Adjustable filters and bass controls allow you to customize your audio for a fully immersive listening experience, giving every track precise detail and depth.
Engineered for superior performance, the X303-4 features magnetic-shielded output coils and high-quality PMLCAP capacitors that minimize distortion and enhance low and high frequencies. This ensures crystal-clear, high-resolution sound that goes beyond standard CD quality, making it ideal for audiophiles who demand clarity and depth from their car audio system.
Installation is straightforward and convenient, with gauge-style terminals for secure connections, one-sided terminals for a clean setup, and a 7" speaker-level input harness for seamless integration with factory-installed receivers. Designed with both performance and ease-of-use in mind, the X303-4 provides powerful, reliable sound in a compact, easy-to-install package.
Key Features
– 4-Channel Amplifier with Compact, Space-Saving Design
– Maximum Output Power: 600 Watts
– Adjustable Filters and Bass Control for Customizable Audio
– Magnetic-Shielded Output Coils for Reduced Noise and Enhanced Clarity
– High-Quality PMLCAP Capacitors for Crystal-Clear Sound
– High-Resolution Audio Performance with Rich Low and High Frequencies
– Gauge-Style Terminals and One-Sided Connections for Easy Installation
– Includes 7" Speaker-Level Input Harness, Four 1/2" Screws, Two Allen Keys (4mm & 2.5mm), Warranty Information, and Owner’s Manual
What's Inside?
- 4-Channel amplifier (2 installed 20A mini-ATC fuses)
- 7" Speaker-level input harness
- (4) 1/2" screws
- (2) Allen keys (4mm & 2.5mm)
