JL Audio MX500/1
Compact Marine/Powersports 500 Watt Monoblock Amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Amplificador monobloque de amplio rango clase D, 500 W

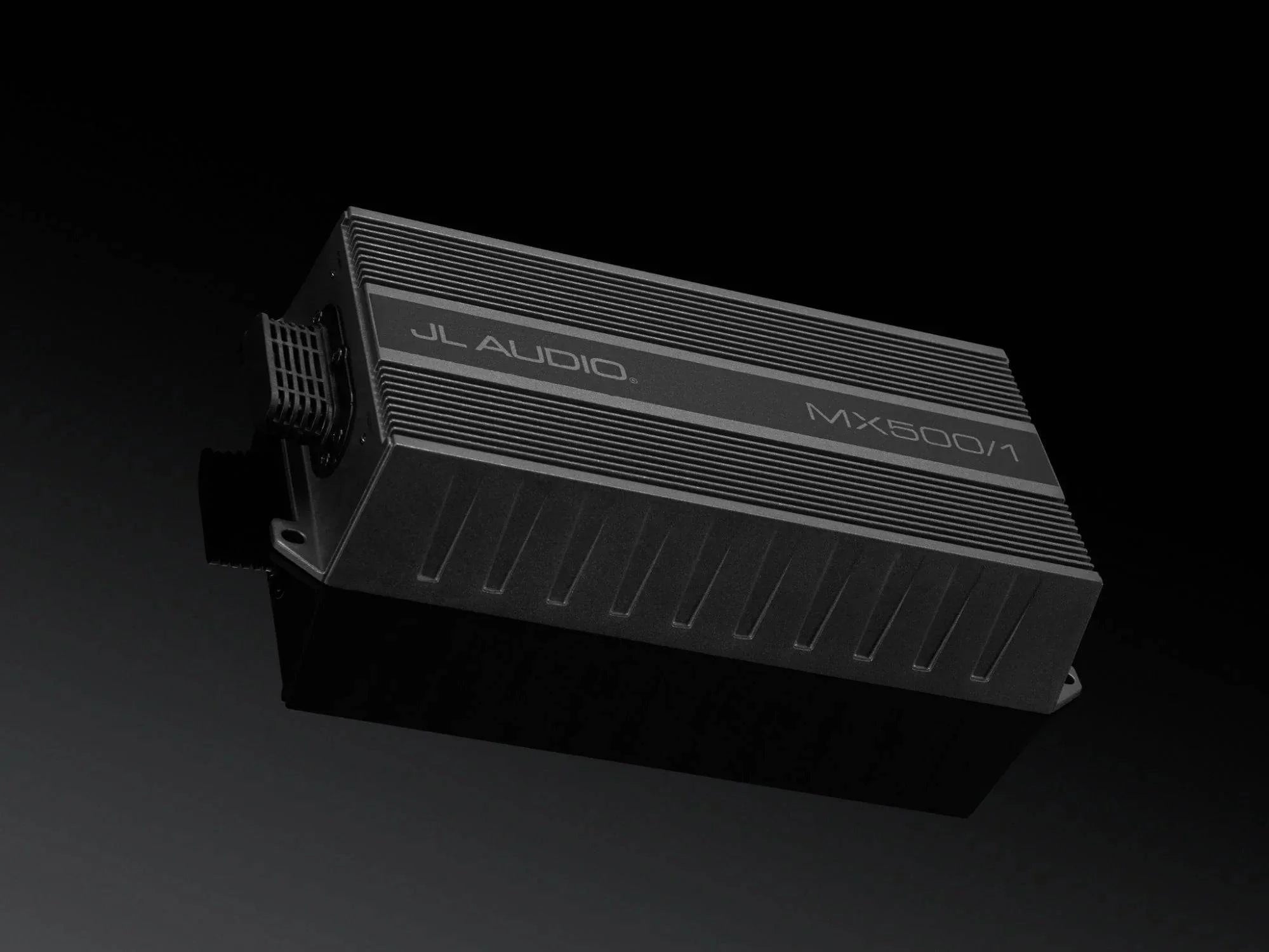

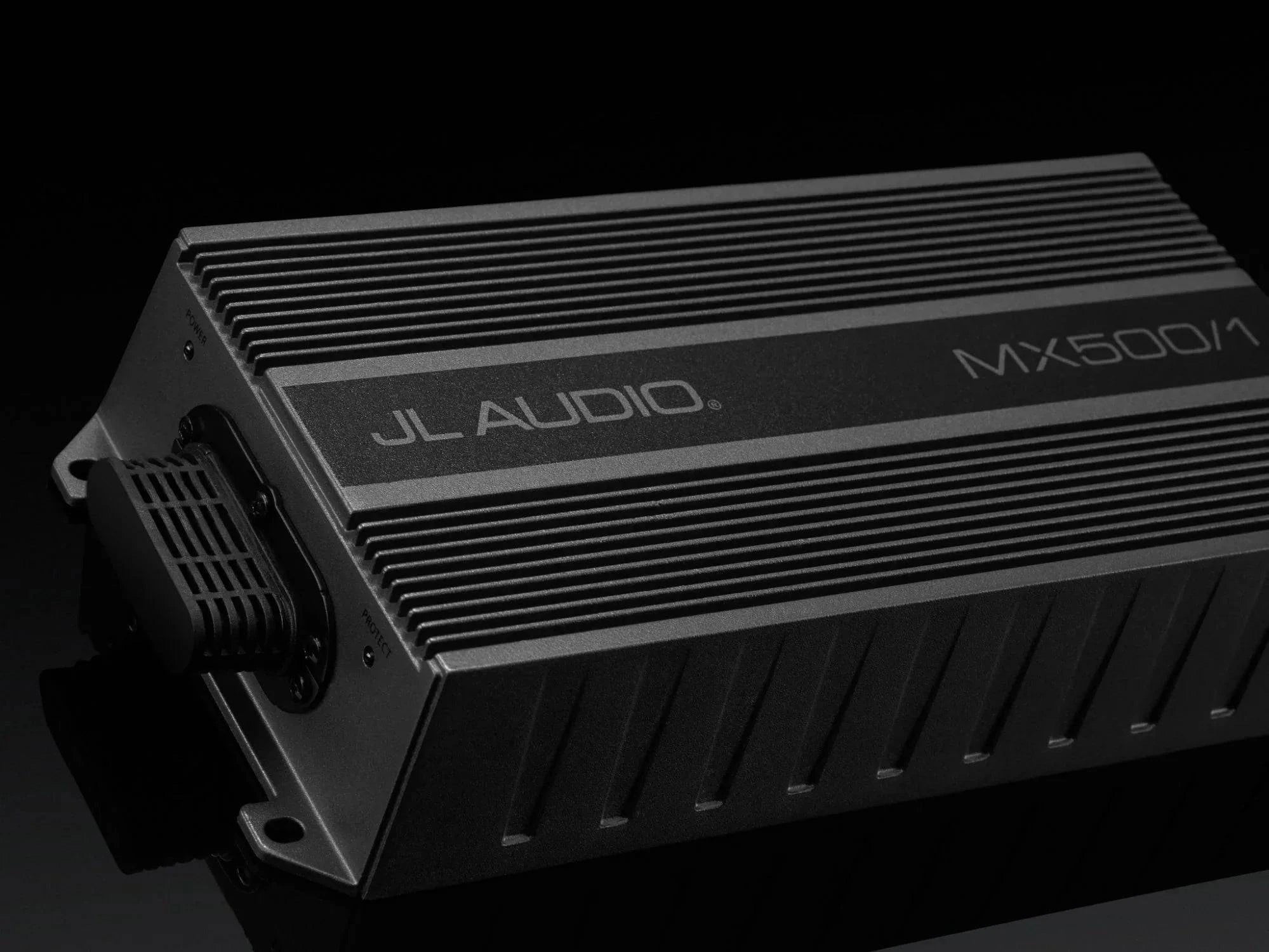

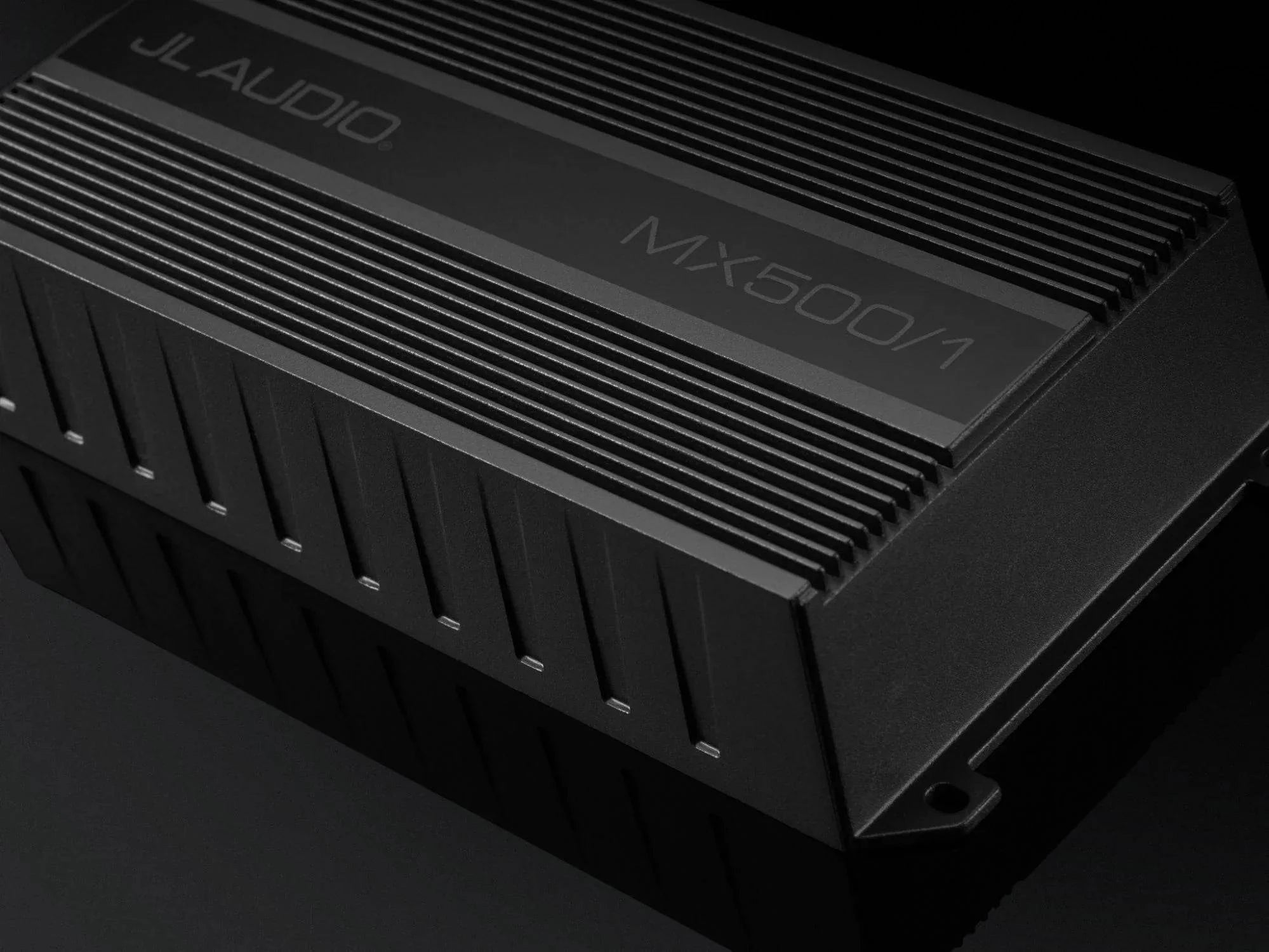

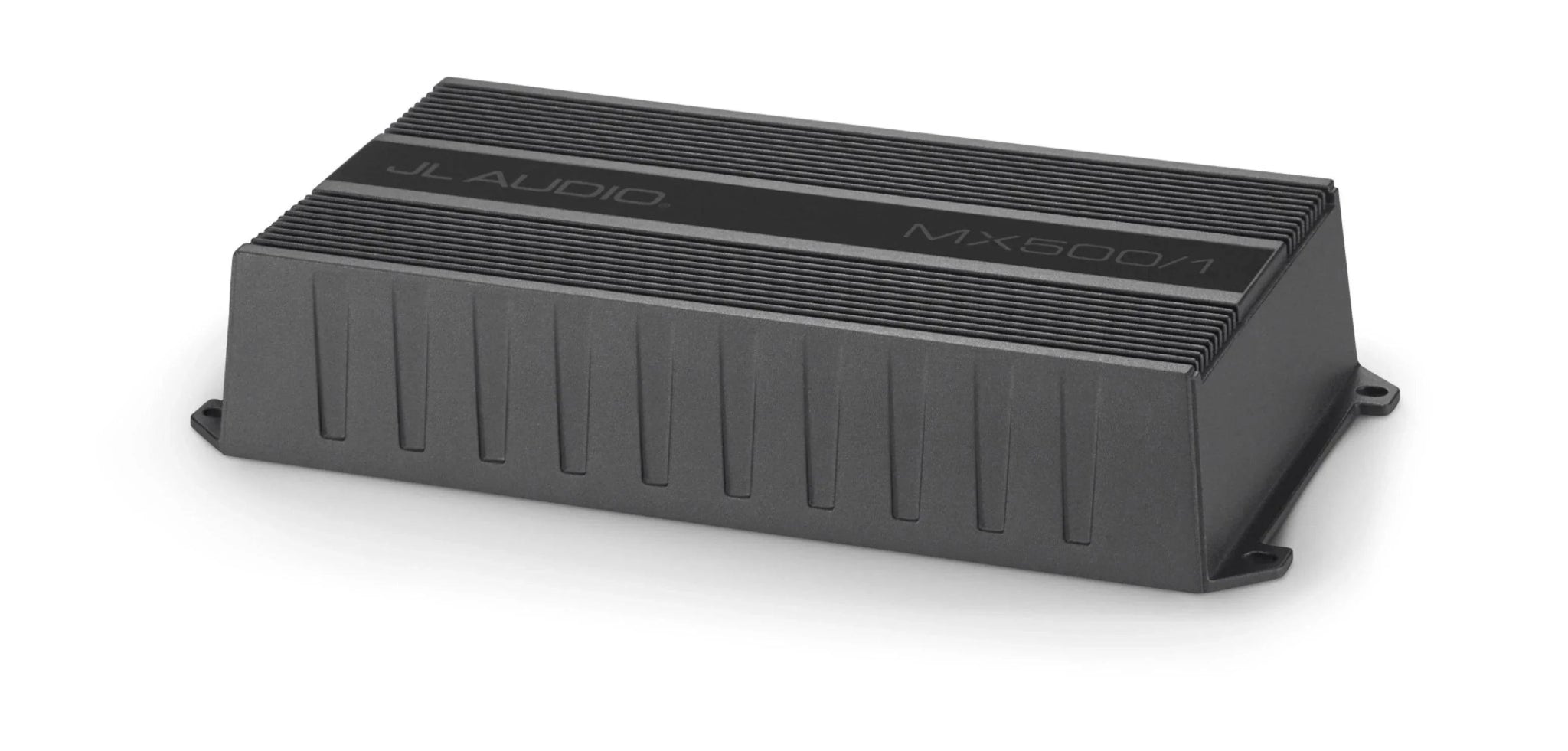

MX500/1
Amplificador monobloque de amplio rango Clase D, 500 W x 1 @ 2 Ω / 300 W x 1 @ 4 Ω - 14,4 V
Diseñado específicamente para aplicaciones de deportes motorizados, el amplificador monobloque MX500/1 emplea nuestro diseño de conmutación NexD™ de alta velocidad para brindar una gran potencia de audio, sin forzar los sistemas de carga. Su pequeño chasis de aluminio fundido es altamente resistente a la corrosión, con una clasificación de resistencia al agua IPX7, lo que lo hace perfecto para motocicletas, vehículos todo terreno u otros vehículos utilitarios.

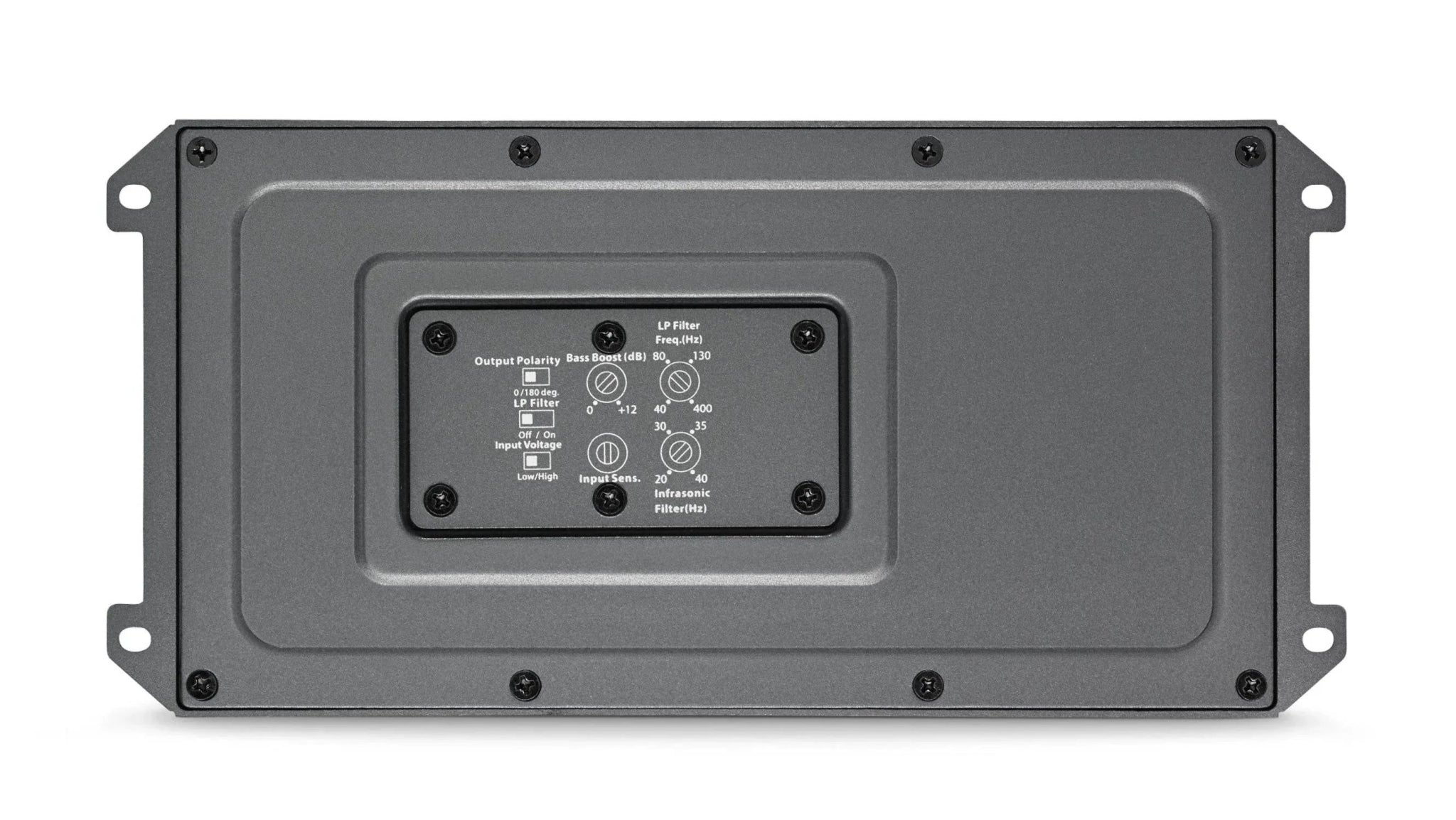

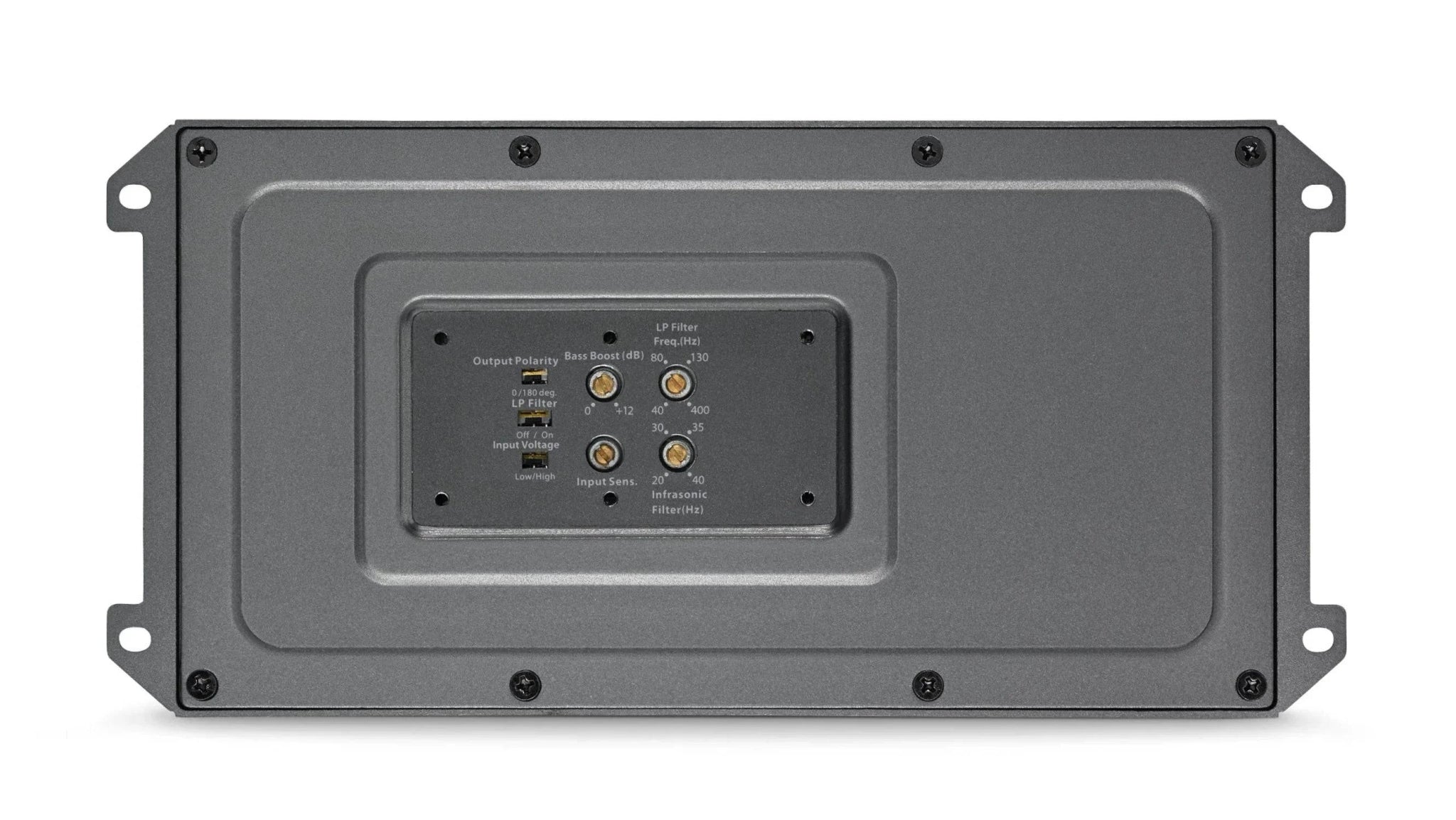

Con una robusta potencia limpia de 500 W en una carga de 2 ohmios (14,4 V, 1 % THD), use uno para controlar un subwoofer o tome un par para brindar una salida sorprendente a un sistema de subwoofer. El MX500/1 también cuenta con un crossover de paso bajo ajustable, un ecualizador de refuerzo de graves, un filtro infrasónico variable y un interruptor de polaridad de salida.
Su sección de entrada de rango dual acepta una amplia gama de niveles de voltaje de entrada, desde nivel de línea hasta señales de nivel de altavoz de alta potencia. Con la adición de un control de nivel remoto M-RBC-1 (se vende por separado), la salida del subwoofer se puede controlar directamente desde el asiento del conductor.
Este amplificador presenta un acabado resistente con recubrimiento en polvo, una cubierta con juntas para los controles y herrajes de acero inoxidable para mayor durabilidad.
Especificaciones generales
| Potencia nominal continua (RMS) a 14,4 V | |
|---|---|
| @ 4 Ω | 300 W RMS x 1 |
| @ 3 Ω | 400 W RMS x 1 |
| @ 2 Ω | 500 W RMS x 1 |
| @ 1,5 Ω | N / A |
| Potencia nominal continua (RMS) a 12,5 V | |
| @ 4 Ω | 250 W RMS x 1 |
| @ 3 Ω | 300 W RMS x 1 |
| @ 2 Ω | 400 W RMS x 1 |
| @ 1,5 Ω | N / A |
| Especificaciones de generación | |
| Respuesta frecuente | 20Hz - 12kHz (+0, -1dB) |
| Relación S/N, referida a la potencia nominal más alta | >97 dB por debajo de la potencia nominal (ponderación A, ancho de banda de ruido de 20 Hz - 20 kHz) |
| Relación S/N, referida a 1 W | >70 dB (ponderación A, ancho de banda de ruido de 20 Hz - 20 kHz) |
| Factor de amortiguación @ 4 Ω | >115 / 50Hz |
| Factor de amortiguación @ 2 Ω | >54 / 50Hz |
| THD+N a potencia nominal | <1% a 2 Ω |
| Rango de voltaje de entrada en entradas RCA | Conmutable de 250 mV - 4 V RMS (Bajo) a 750 mV - 15 V RMS (Alto) |
| Calibre mínimo del cable de alimentación/tierra de cobre | cable de 4 AWG |
| Evaluacion del fusible | 50 A (AFS, AGU o MaxiFuse™) |
| Procesamiento de la señal | |
| Modo(s) de filtro | Sólo paso bajo |
| Filtrar pendientes | 24 dB/octava |
| Rango de frecuencia del filtro | 40Hz - 400Hz |
| Frec. de filtro calibrada y retenida. Potenciómetros | Sí |
| Función de desactivación del filtro | Sí |
| Filtro infrasónico | 20 Hz - 40 Hz, variables |
| Ecualizador de refuerzo de graves | 0 a +12 dB a 43 Hz |
| Interruptor de polaridad de salida | Sí |
| Control remoto de nivel del subwoofer | Opcional (M-RBC-1) |
| Control remoto de refuerzo del ecualizador de graves | No |
| Salida de preamplificador de paso | Ninguno |
| Especificaciones físicas | |
| Altura (Al) | 1,77 pulgadas/45 mm |
| Ancho (ancho) | 9,33 pulgadas/237 mm |
| Profundidad (D) | 4,50 pulgadas/115 mm |
| Peso neto | |
