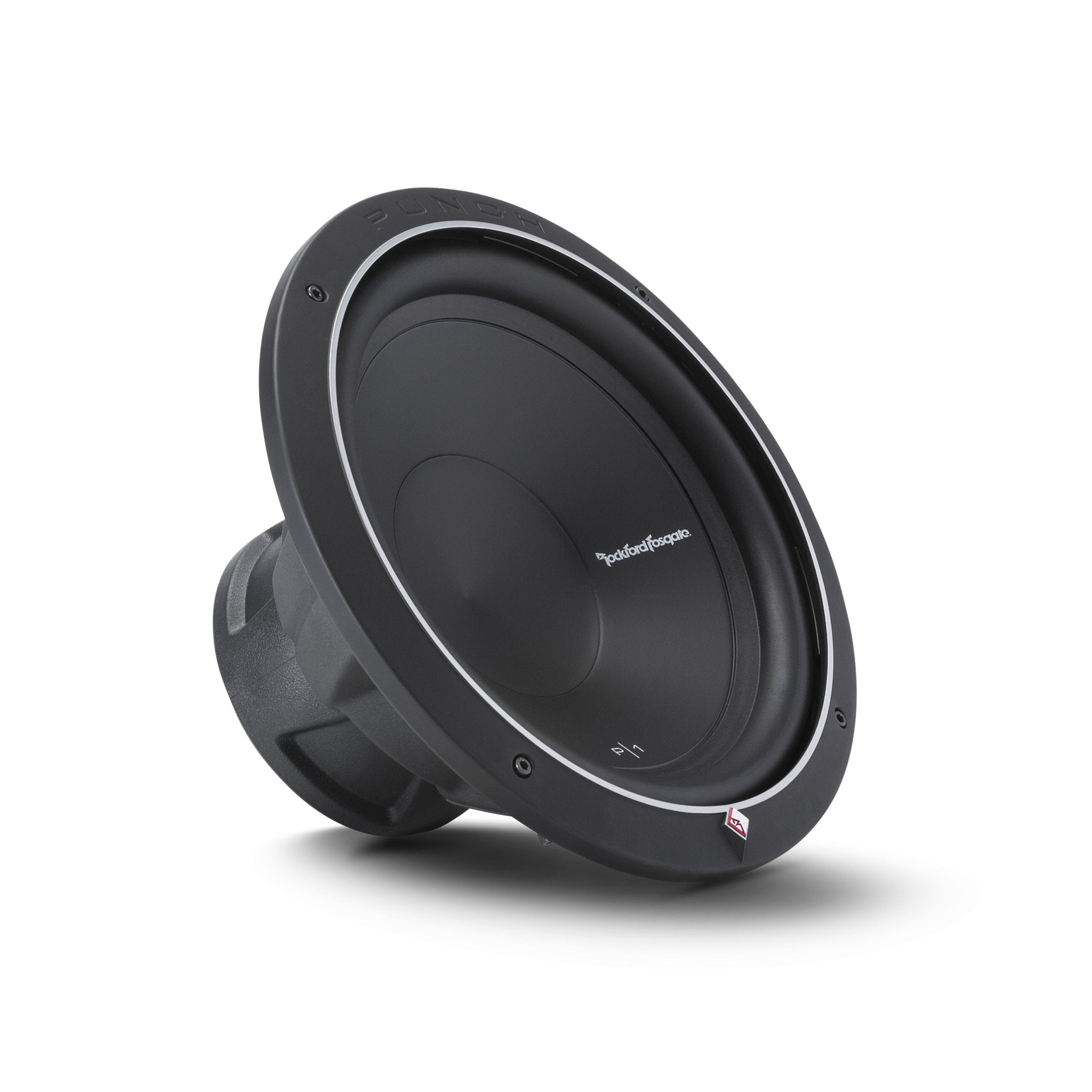

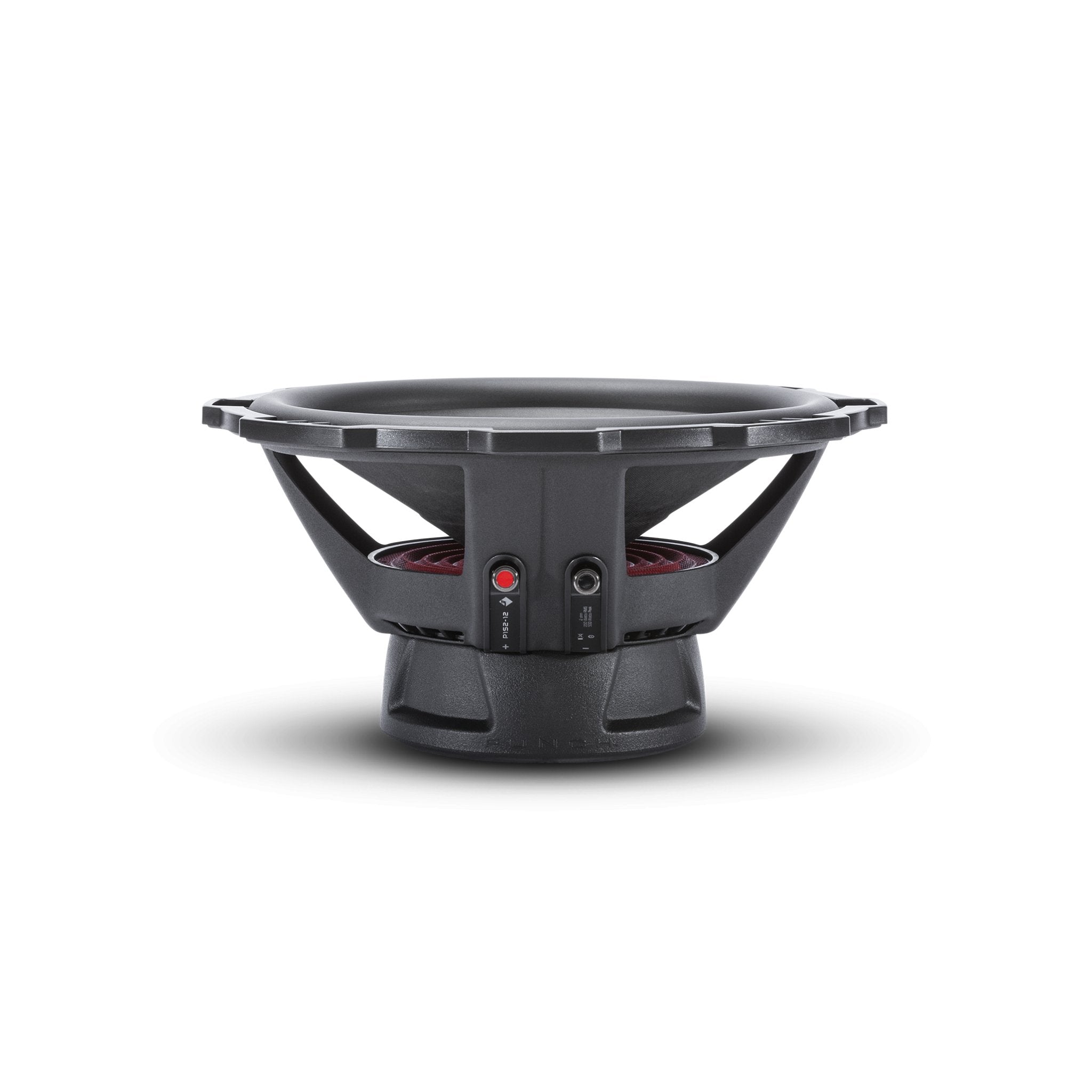

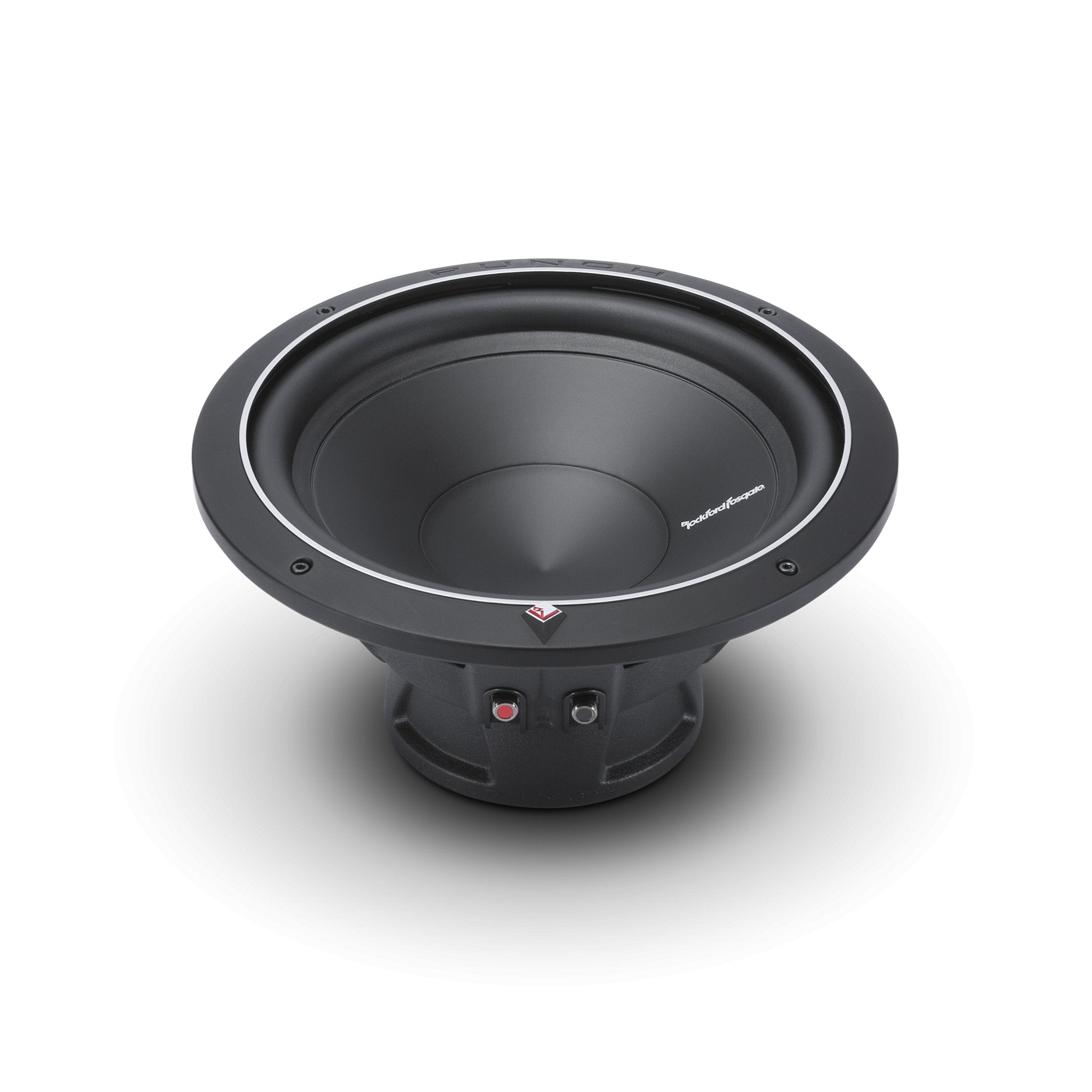

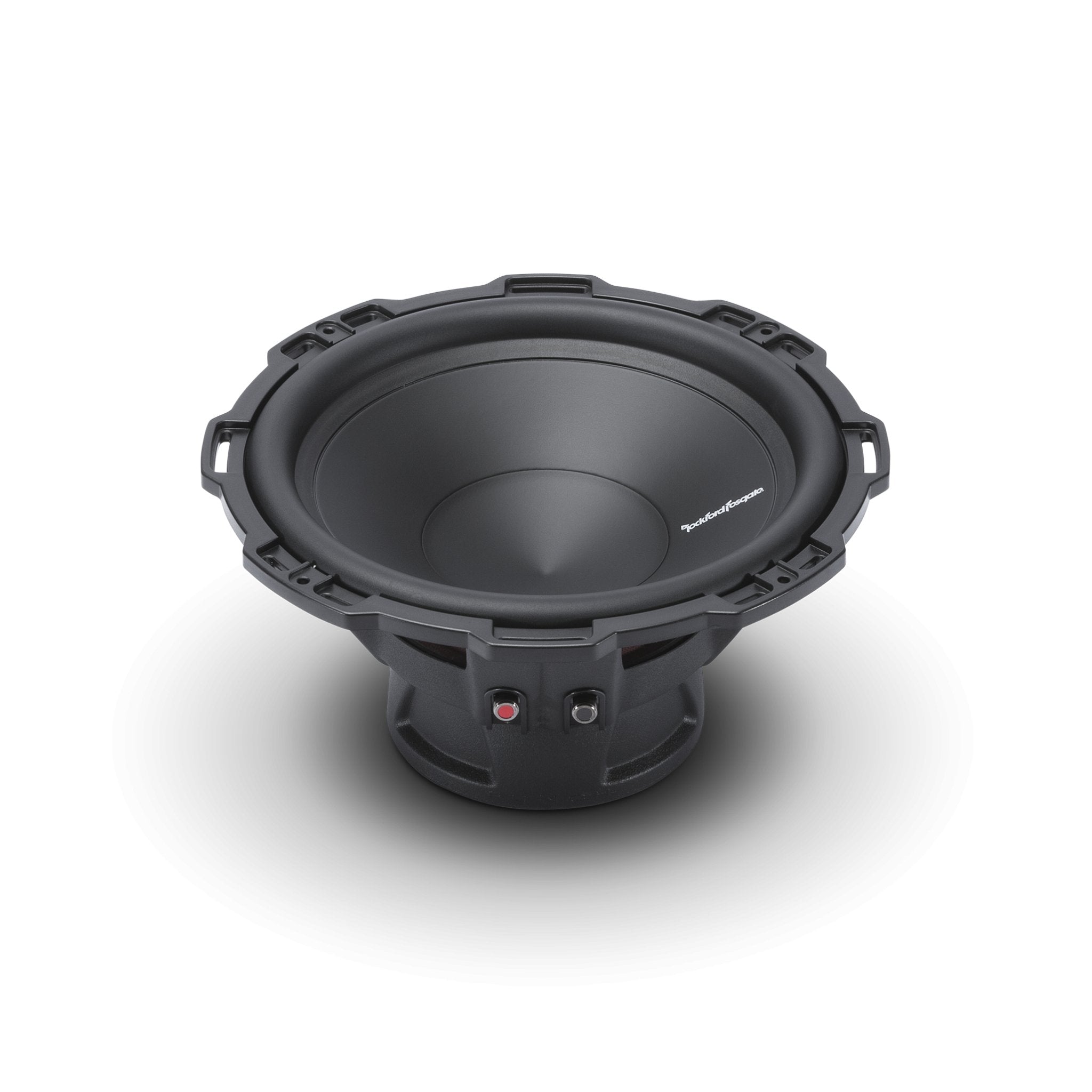

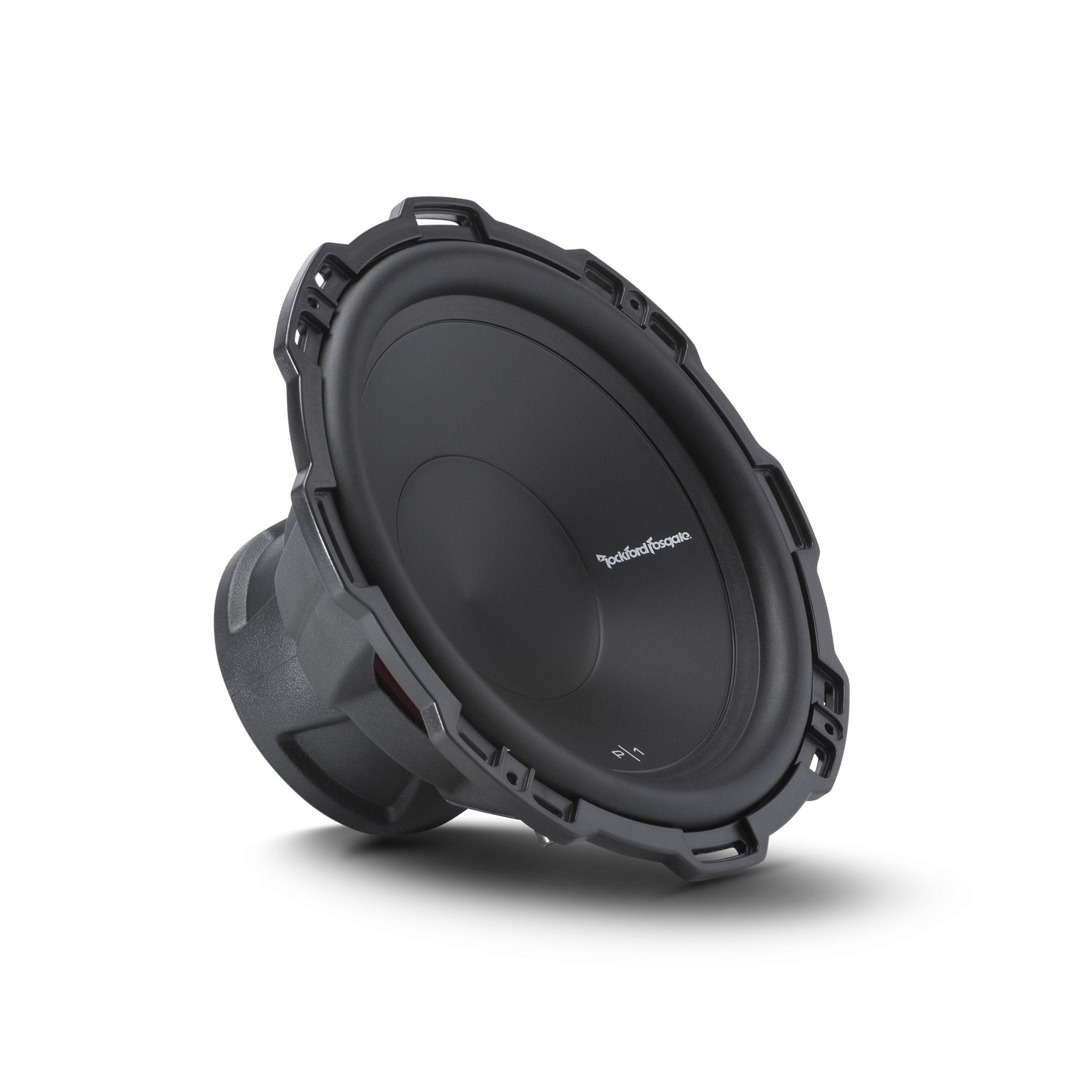

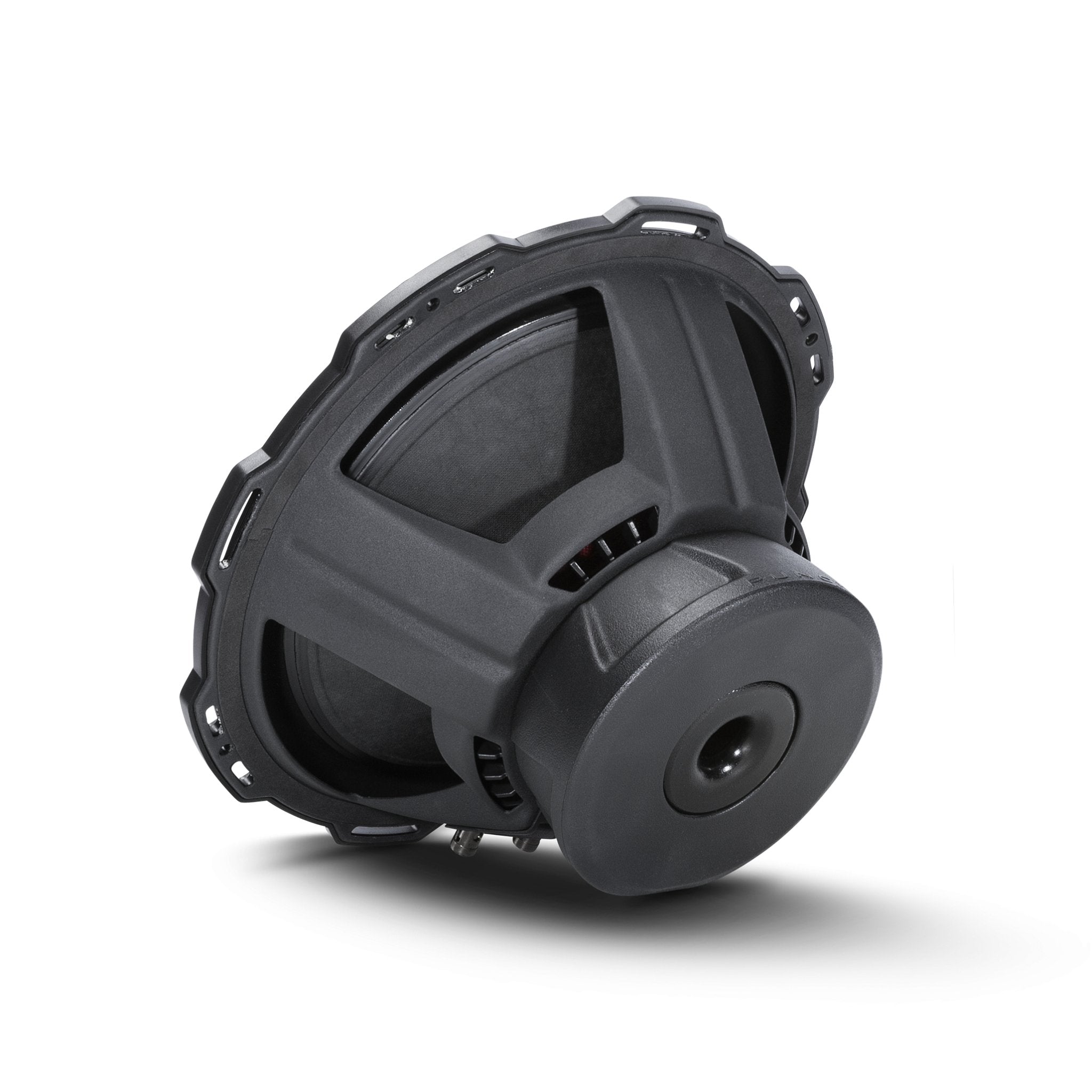

Rockford Fosgate Punch P1S2-12
Punch Series P1 12" 2-ohm Subwoofer
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Altavoz de subgraves SVC Punch de 12" P1 de 2 ohmios
P1S2-12
Rockford Fosgate P1 12” es el primero de una familia de famosos subwoofers “Punch”. El P1S2-12 cuenta con una bobina móvil de 2 ohmios, potencia de 250 vatios RMS y puede acomodar un inserto de rejilla utilizando el anillo embellecedor de ABS suave al tacto incluido.
¿Qué hay en la caja?
| ⬥ (1) subwoofer serie Punch P1 |
| ⬥ (1) Anillo decorativo de ABS pintado |
| ⬥ (8) tornillos para madera con cabeza hueca |
| ⬥ (1) Broca de destornillador duro |
Características
⬥ Araña lineal con cables de oropel de 16 AWG integrados
⬥ Bobina móvil de alta temperatura con collar de refuerzo Nomex® hilado
⬥ Cono de papel reforzado con fibra de Kevlar
⬥ Cesta StampCast con ventilación de araña integrada
⬥ Anillo embellecedor de ABS engomado con rejilla opcional
⬥ Terminales de empuje niquelados de 10 AWG personalizados
⬥ Pieza polar extendida y placa posterior ventilada
⬥ Cubierta protectora de imán texturizado de PVC
Especificaciones generales
| Tamaño | 12" |
| Impedancia nominal (Ohmios) | 2 ohmios |
| Manejo de energía (vatios RMS) | 250 vatios RMS 500 vatios máx. |
| Diámetro de la bobina móvil | 2,0" (51,6 mm) |
| Tipo de bobina móvil | Bobina de voz única |
| Peso del imán (oz) | 45 onzas (1,28 kilogramos) |
| Fs (Hz) | 25 |
| Re (ohmios) | 1.8 |
| Le (mH) | 1.17 |
| Sd (cm2) | 548 |
| qms | 3.39 |
| qes | 0,84 |
| cuartos | 0,55 |
| vas | 88.3 |
| SPL (dB a 1w/1m) | 86 |
| SPL (dB @ 2,8v/1m) | 89 |
| Xmáx (mm) | 9.0 |
| Volumen de caja sellada (Vb) | 1,02 pies cúbicos pies (28,8 litros) |
| Volumen de caja ventilada (Vb) | 1,79 pies cúbicos. pies (50,6 litros) |
| Desplazamiento del woofer | 0,081 pies cúbicos. pies (2,3 litros) |
| Conector de altavoz | Compresión doble de 10 AWG |
| Diámetro de corte | 11,22 pulgadas (285 mm) |
| Profundidad de montaje | 6,0 pulg. (152,4 mm) |
| Peso de envío | 12,5 libras. (5,66 kilogramos) |
Rockford Fosgate P1S2-12 12" Punch Series 12" 250W RMS (500W Peak Power Handling) 2 Ohms Single Voice Coil Component Car Subwoofer
The Rockford Fosgate P1S2-12 is a 12-inch subwoofer built to deliver powerful, accurate bass for in-car audio systems. As part of the Punch P1 series, it is designed for solid performance, reliability, and long-term durability. Its rugged build, responsive voice coil, and FlexFit basket help reduce distortion while maintaining efficiency, making it ideal for demanding audio installations.
Built to handle serious bass performance, the P1S2-12 delivers deep, impactful low frequencies thanks to its strong power ratings and broad frequency response. Rockford Fosgate’s VAST technology further increases the cone area for improved output, and its single 2-ohm voice coil provides flexible wiring options for various system setups.
Key Features
– 12-inch subwoofer designed for powerful, accurate in-car bass
– Rugged and durable construction for demanding installations
– 2-inch responsive voice coil for efficient power handling
– FlexFit basket reduces distortion and improves alignment
– 500W peak / 250W RMS power handling
– Frequency response: 20Hz – 250Hz for deep low-end performance
– VAST technology increases effective cone area for greater output
– Single 2-ohm voice coil for easy wiring and system flexibility
What's Inside?
- (1) 10" SVC 4-ohm subwoofer
- Trim ring
- (8) 1-1/8" Allen head screws
- 4mm Allen head bit
