Rockford Fosgate Punch P1S4-12
Punch Series P1 12" 4-ohm Subwoofer
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Altavoz de subgraves SVC Punch de 12" P1 de 4 ohmios
P1S4-12

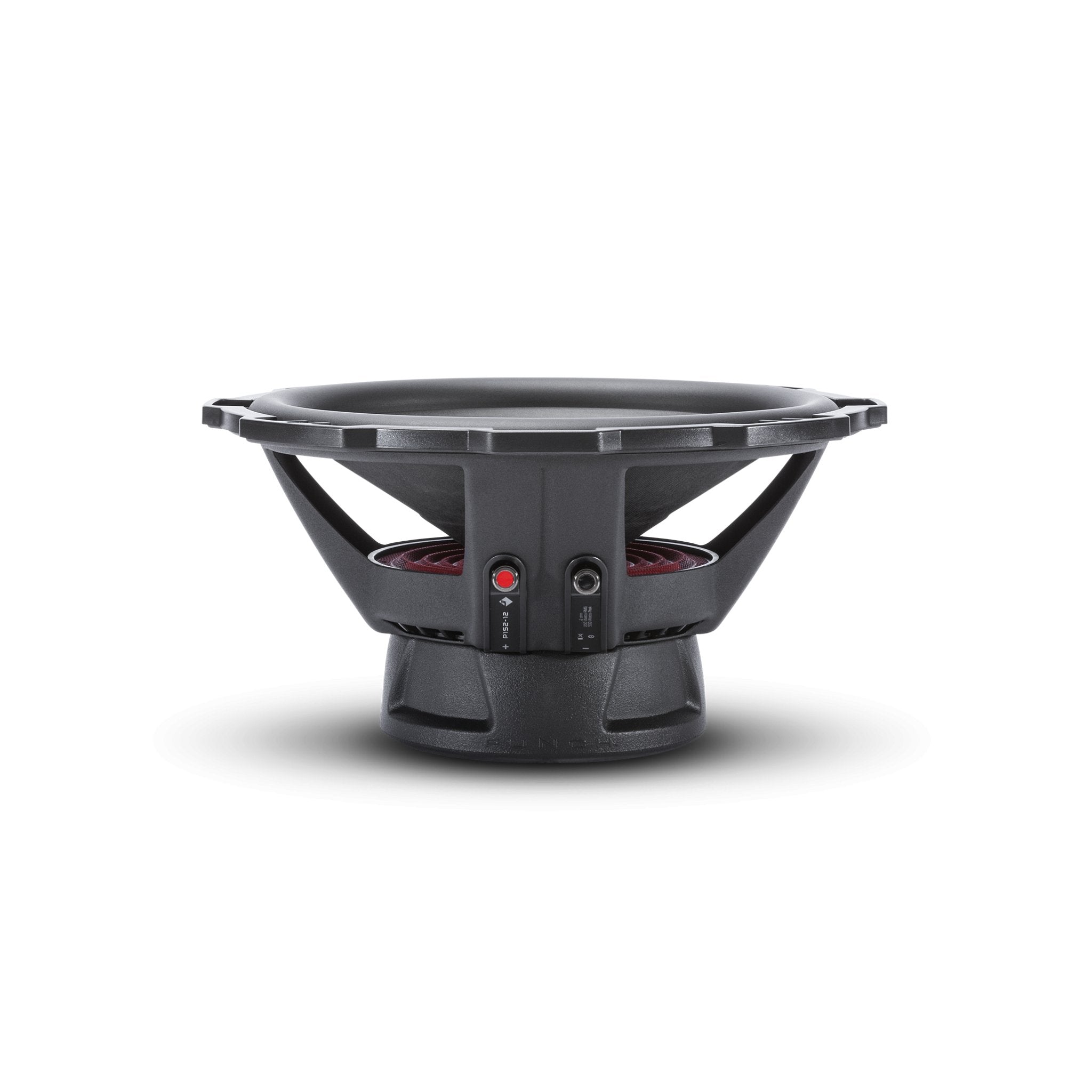

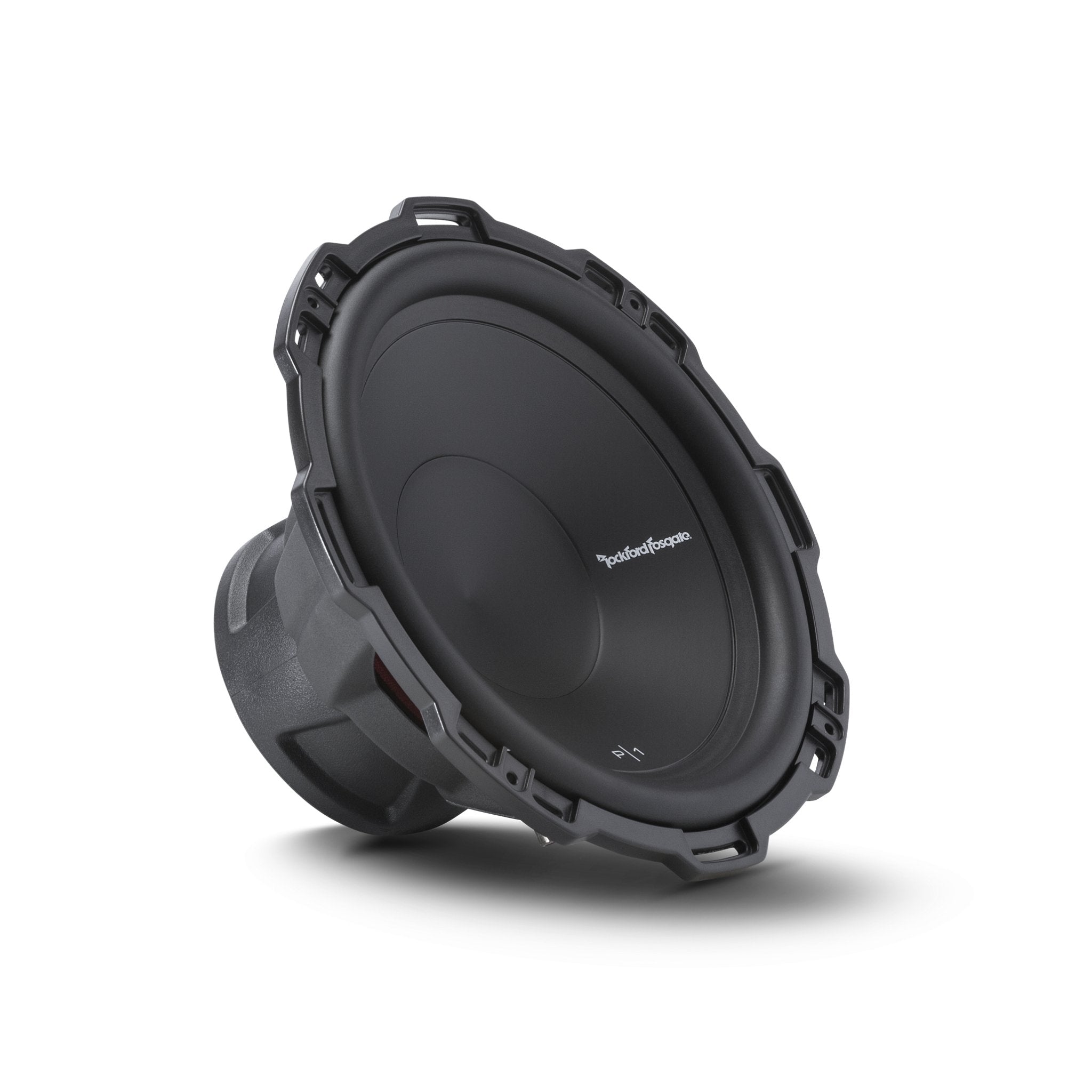

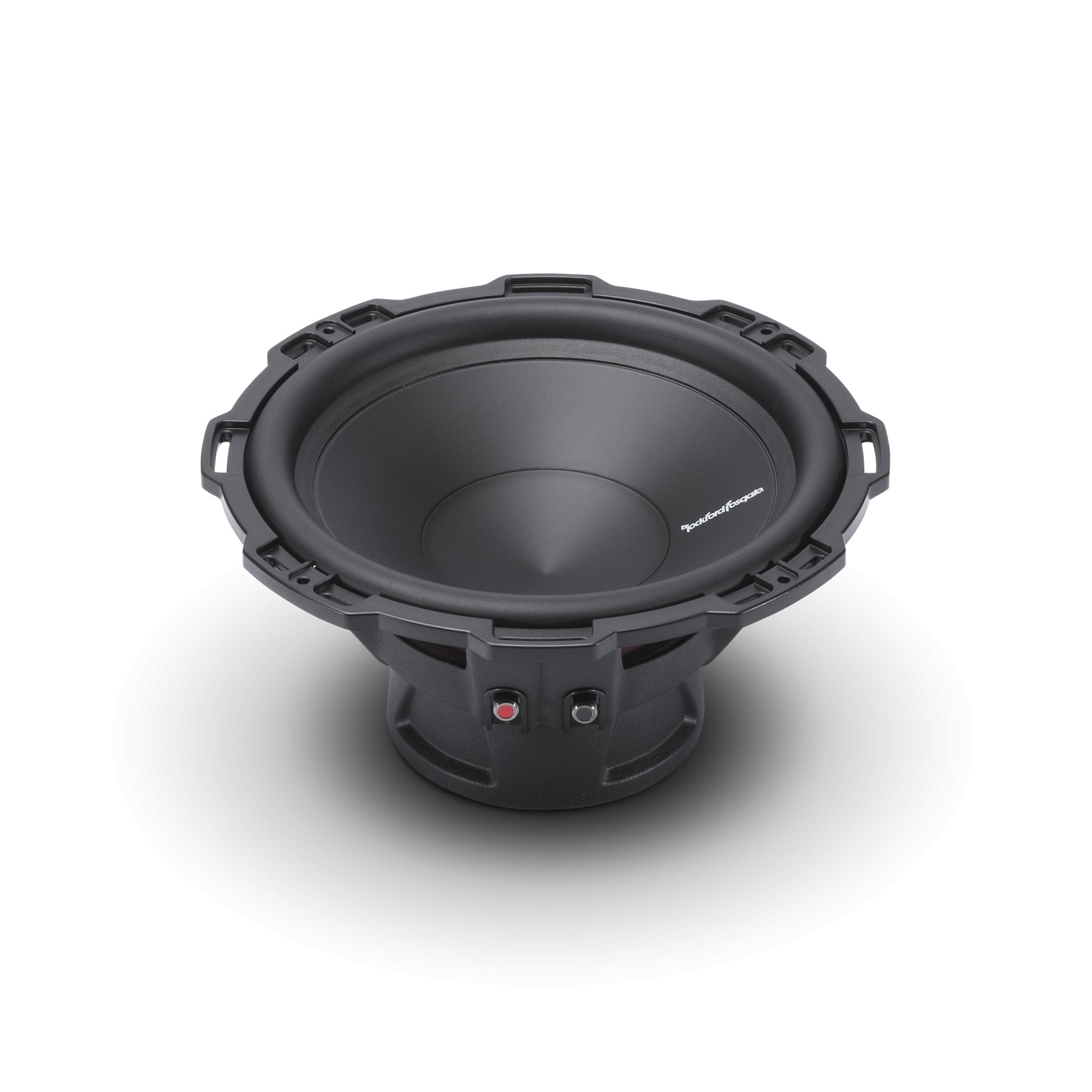

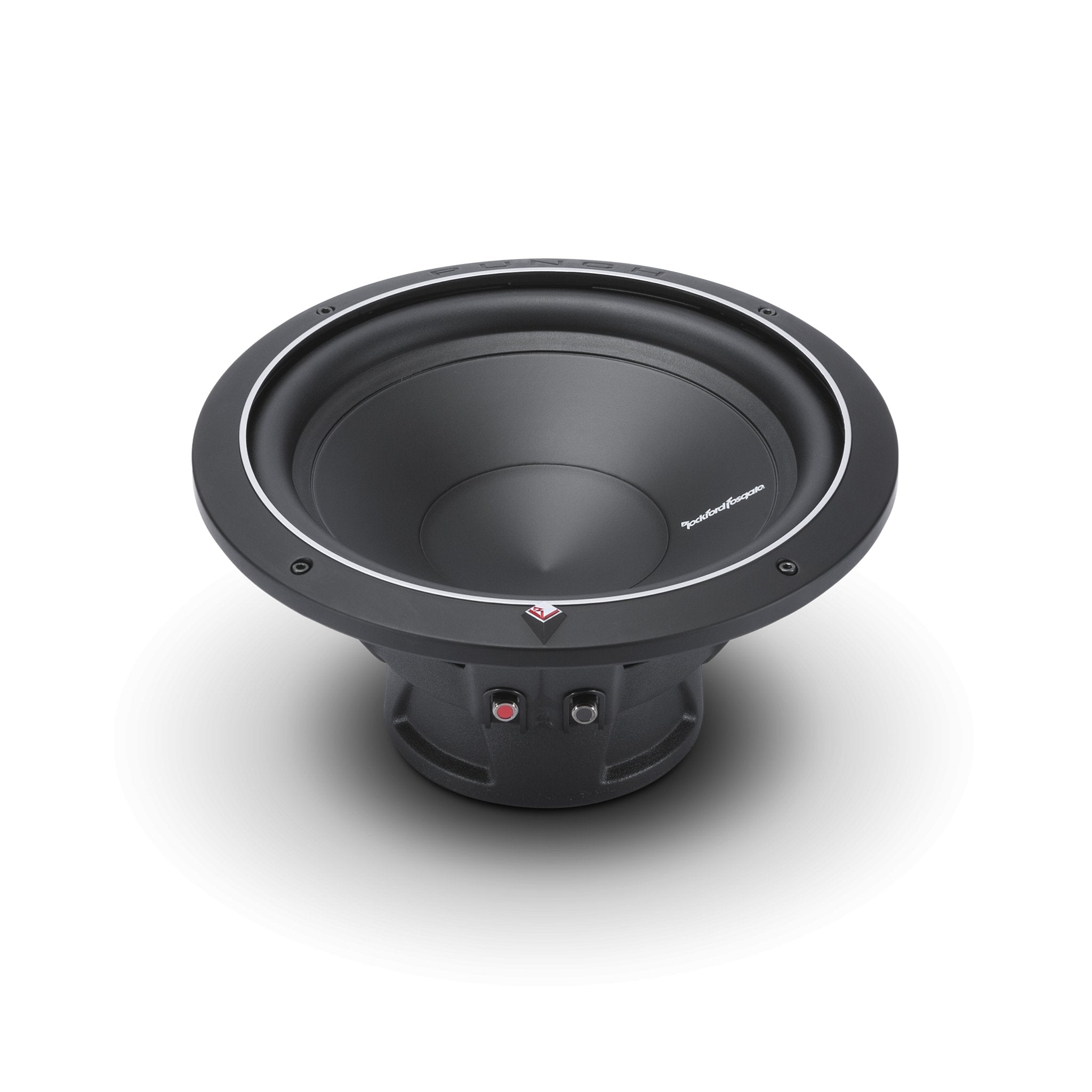

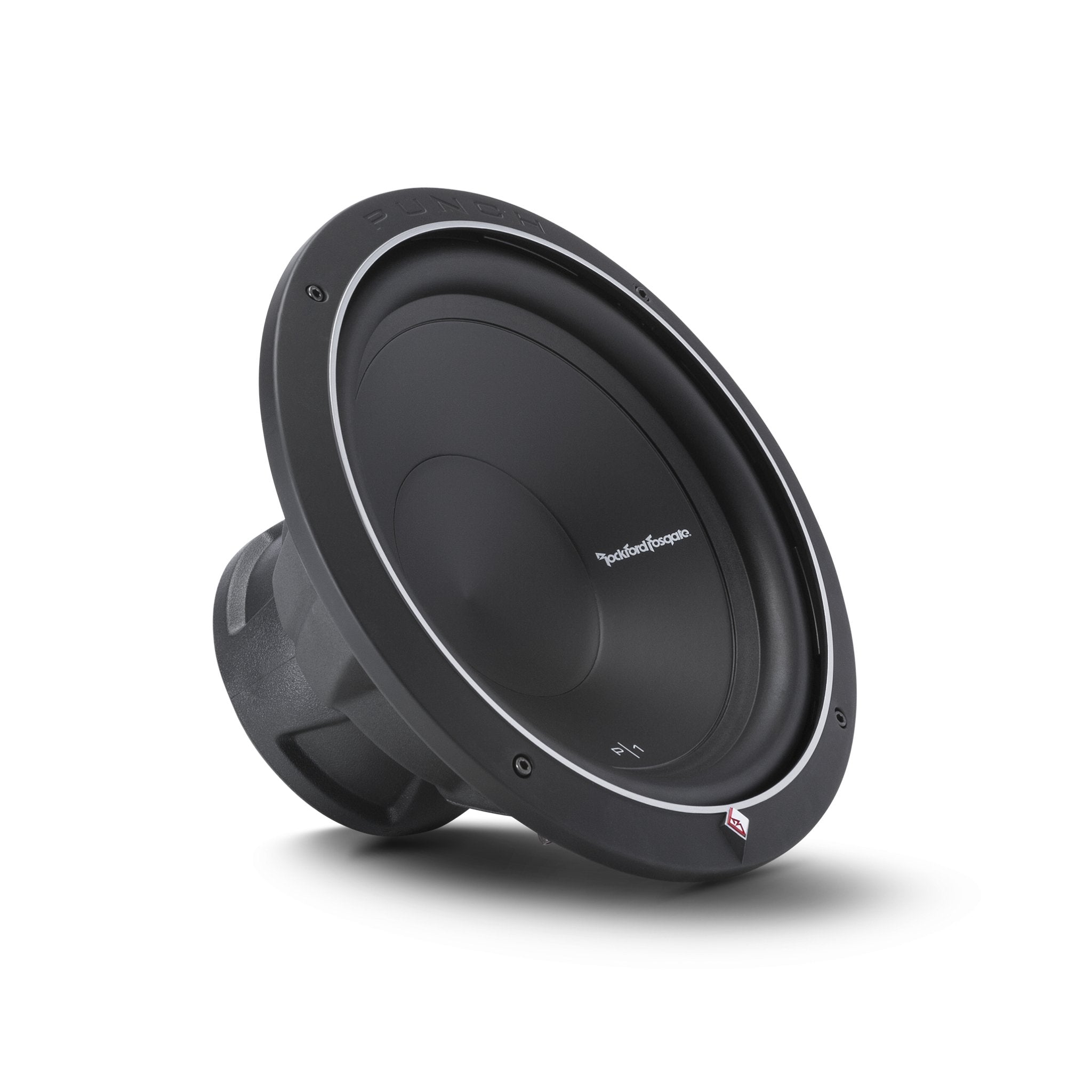

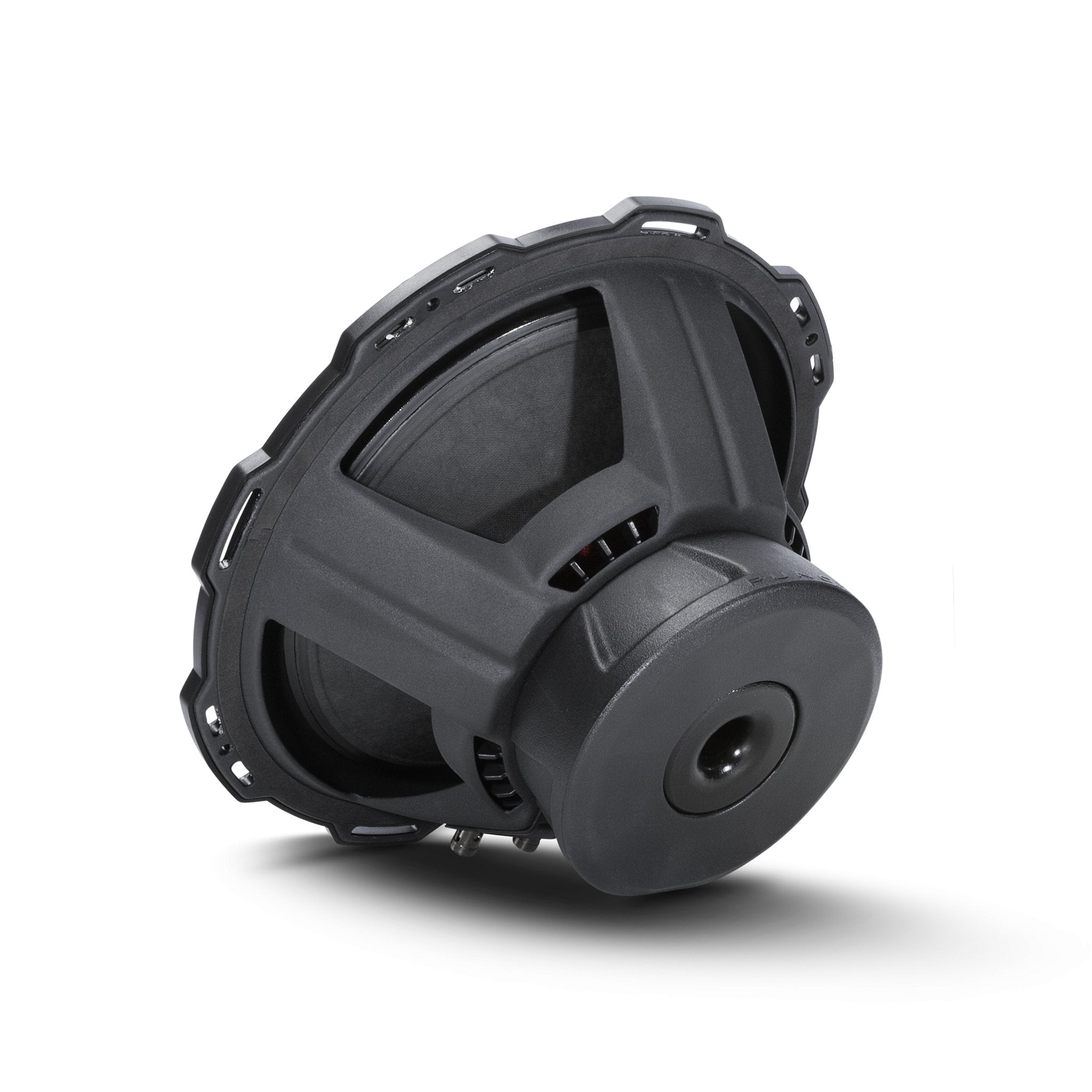

Rockford Fosgate P1 12” es el primero de una familia de famosos subwoofers “Punch” para automóviles y camiones. El P1S4-12 cuenta con una bobina móvil de 4 ohmios, potencia de 250 vatios RMS y puede acomodar un inserto de rejilla utilizando el anillo embellecedor de ABS suave al tacto incluido.
¿Qué hay en la caja?
| ⬥ (1) subwoofer serie Punch P1 |
| ⬥ (1) Anillo decorativo de ABS pintado |
| ⬥ (8) tornillos para madera con cabeza hueca |
| ⬥ (1) Broca de destornillador duro |
Características
⬥ Araña lineal con cables de oropel de 16 AWG integrados
⬥ Bobina móvil de alta temperatura con collar de refuerzo Nomex® hilado
⬥ Cono de papel reforzado con fibra de Kevlar
⬥ Cesta StampCast con ventilación de araña integrada
⬥ Anillo embellecedor de ABS engomado con rejilla opcional
⬥ Terminales de empuje niquelados de 10 AWG personalizados
⬥ Pieza polar extendida y placa posterior ventilada
⬥ Cubierta protectora de imán texturizado de PVC
Especificaciones generales
| Tamaño | 12" |
| Impedancia nominal (Ohmios) | 4 ohmios |
| Manejo de energía (vatios RMS) | 250 vatios RMS 500 vatios máx. |
| Diámetro de la bobina móvil | 2,0" (51,6 mm) |
| Tipo de bobina móvil | Bobina de voz única |
| Peso del imán (oz) | 45 onzas (1,28 kilogramos) |
| Fs (Hz) | 25 |
| Re (ohmios) | 3.6 |
| Le (mH) | 3.01 |
| Sd (cm2) | 548 |
| qms | 3.40 |
| qes | 0,56 |
| cuartos | 0,55 |
| vas | 88.3 |
| SPL (dB a 1w/1m) | 86 |
| SPL (dB @ 2,8v/1m) | 89 |
| Xmáx (mm) | 9.0 |
| Volumen de caja sellada (Vb) | 1,02 pies cúbicos pies (28,8 litros) |
| Volumen de caja ventilada (Vb) | 1,79 pies cúbicos. pies (50,6 litros) |
| Desplazamiento del woofer | 0,081 pies cúbicos. pies (2,3 litros) |
| Conector de altavoz | Compresión doble de 10 AWG |
| Diámetro de corte | 11,22 pulgadas (285 mm) |
| Profundidad de montaje | 6,0 pulg. (152,4 mm) |
| Peso de envío | 11,7 libras. (5,3 kilogramos) |
