Rockford Fosgate P300-12T
Punch Series Truck-Style Powered Subwoofer with 12" Sub and 300-Watt Amp
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Caja para camión eléctrica Punch de 12" y 300 vatios
P300-12T
El Punch P300-12T es una solución "todo en uno" para colocar bajos en cualquier sistema de fábrica o de posventa. Este modelo cuenta con un woofer de alto rendimiento de 12" con un amplificador interno de 300 vatios en una carcasa de diseño delgado que es ideal para aplicaciones universales en camiones. La carcasa cuenta con conectores de alimentación y entrada de liberación rápida para una fácil extracción cuando se requiere espacio adicional.

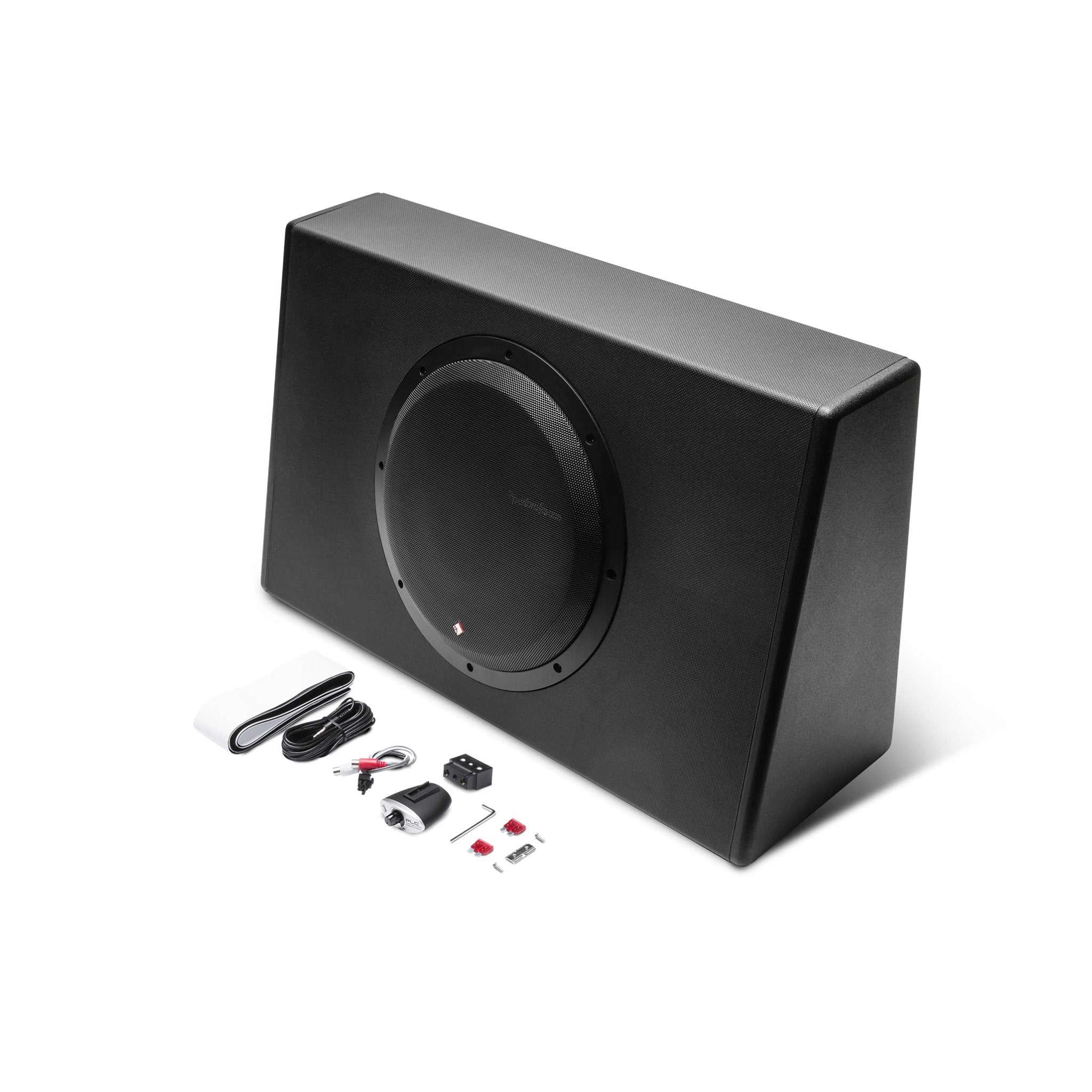

¿Qué hay en la caja?
| ⬥ Gabinete cargado con perforación |
| ⬥ Arnés RCA/altavoz |
| ⬥ Conector de alimentación |
| ⬥ Control remoto de nivel de perforación |
| ⬥ Manual de instalación y funcionamiento |
| ⬥ 2 fusibles de 10 A de repuesto/2 fusibles de 15 A de repuesto (solo P500-12P) |
Características
⬥ Woofer de baja impedancia optimizado de 12"
⬥ Cruce de paso bajo ajustable de 12 dB/octava
⬥ Interruptor de fase a bordo
⬥ Función inteligente de encendido/apagado automático
⬥ Amplificador Clase D de 300 vatios con diseño optimizado de "bucle cerrado"
⬥ Conexiones robustas de alimentación/tierra
⬥ Control remoto de nivel de graves incluido
⬥ Ecualizador de graves ajustable integrado
⬥ Conexiones de entrada rápida para una fácil extracción
⬥ Entradas separadas de nivel bajo y de nivel de altavoz
⬥ Protección térmica y sobre/bajo voltaje
⬥ Gabinete de MDF construido con precisión con acabado de vinilo activado por calor
⬥ Diseño delgado para aplicaciones de camiones
Especificaciones generales
| Cumple con CEA-2031 | |
| Cumple con CEA-2006 | |
| Cantidad de woofers | 1 |
| Tamaño del altavoz de graves | 12" |
| Serie de altavoces de graves | Propiedad |
| Respuesta frecuente | 20 Hz a 200 Hz |
| Impedancia nominal (ea) | — |
| Manejo de energía (vatios RMS) | 300 vatios RMS |
| Tipo de gabinete | Sellado |
| Material del recinto | MDF (tablero de fibra de densidad media) de 5/8" |
| Conector de altavoz | n / A |
| Amplificador integrado | 300 vatios RMS |
| Controles cruzados | Variables de 50 Hz a 200 Hz 12dB/Octava Butterworth |
| Controles de tono | Refuerzo de graves 0 dB a +12 dB; |
| Control de fase | 0° a 180° |
| Control remoto | Control de nivel de perforación (incluido) Pieza de repuesto: 1130-59232-01 |
| Selector de encendido automático | Disparador remoto Sentido de compensación de CC Sentido de audio |
| Interruptor de entrada | Alto nivel (línea de altavoz) Bajo nivel (RCA) |
| Entrada de señal | Nivel bajo/alto: 1 par RCA (L/R sumado) Pieza de repuesto: 1130-59232-01 |
| Sensibilidad de entrada | Nivel bajo: 150 mV a 6 V Alto nivel: 300 mV a 12 V |
| Impedancia de entrada | 20k ohmios |
| Conector de entrada de alimentación | Desconexión rápida Pieza de repuesto: 1130-59232-01 |
| Calibre del cable de alimentación | B+/TIERRA: 8 AWG REM: 18 AWG |
| Clase de topología de circuito | Clase D |
| Tipo de disipador de calor | Aluminio extruido |
| Enfriamiento | Convección |
| Indicadores visuales | LED de encendido/protección |
| Fusibles | 20 amperios (fusible ATO de 2 x 10 amperios) |
|
Dimensiones Caja (Al x An x Pr) Cuña (Al x An x Pr1 x Pr2) |
15" x 25,8" x 4,8" x 8,5" 380 mm x 656 mm x 122 mm x 215 mm |
| Peso de envío | 32 libras. (14,5 kilogramos) |
