Rockford Fosgate TMS57
Power Series 5"x7" full-range speakers for select Harley-Davidson® motorcycle bag Lids
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
Altavoces eléctricos con tapa de bolsa de repuesto Harley-Davidson® de 5"x7"
TMS57
El altavoz coaxial de rango completo TMS57 está diseñado para reemplazar los altavoces coaxiales de 2 vías de 5"x7" existentes en las tapas de bolsa Harley-Davidson® "Boom!™ Audio" y "Boom!™ Audio Stage-I" equipadas de fábrica. El TMS57 cuenta con una estructura de motor de neodimio que impulsa un cono de polipropileno reforzado con borde de Santoprene. Los agudos son producidos por un tweeter de cúpula ultraeficiente de 25 mm con enchufe de fase integrado y es resistente al agua y a la intemperie con la adición de una araña de aislamiento frontal de Santoprene que se conecta entre la carcasa del tweeter y el conjunto del cono. El altavoz cuenta con dos tipos de conectores, un conjunto estándar de terminales para motocicletas de 2013 y generaciones anteriores, y un nuevo conector estilo Deutsch para 2014 y posteriores.
NOTA: No es compatible con los sistemas "Boom!™ Audio Stage-II".

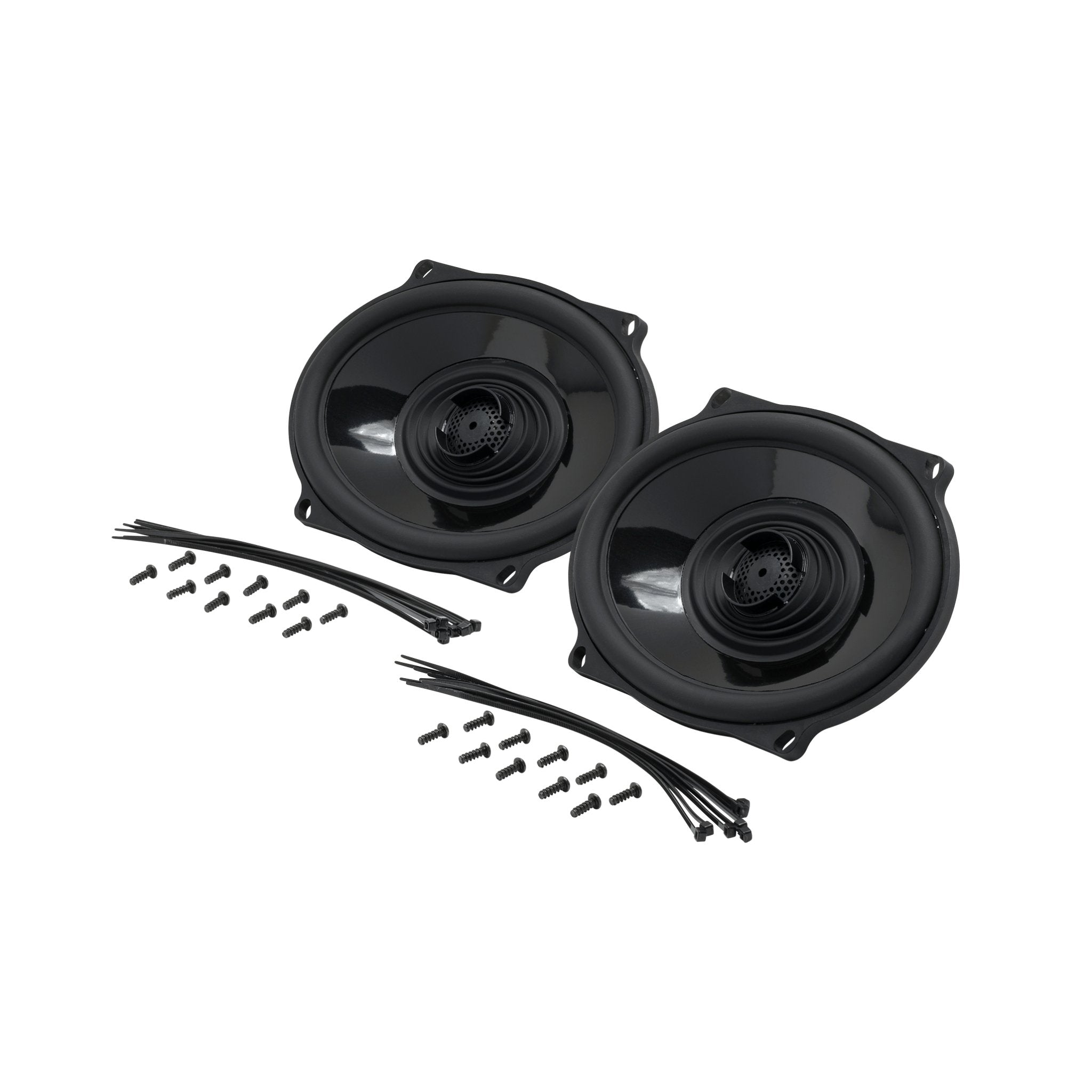

¿Qué hay en la caja?
| ⬥ (1) Emparejar altavoces TMS |
| ⬥ (8) Tornillos de cabeza hueca |
Características
⬥ Diseño Element Ready resistente a la intemperie y al agua
⬥ Araña de polialgodón
⬥ Cono de polipropileno reforzado con fibra de carbono
⬥ Santoprene VAST envolvente
⬥ Cono y envolvente co-moldeados
⬥ Araña de aislamiento frontal de Santoprene
⬥ Estructura de motor de imán dual de neodimio ultraeficiente
⬥ Marco de polímero reforzado con vidrio de temperatura ultraalta
⬥ Bobina móvil de alta potencia de 35 mm
⬥ Terminales de pala integradas
⬥ Crossover integrado de 6 dB con condensador de poliéster de alta potencia
⬥ Tweeter de cúpula de película patentado ultraeficiente de 25 mm
⬥ Tweeter de neodimio con enchufe de fase integrado y parrilla ASA
⬥ Diseño de tweeter coaxial de perfil bajo
⬥ Cable de tweeter discreto (oculto)

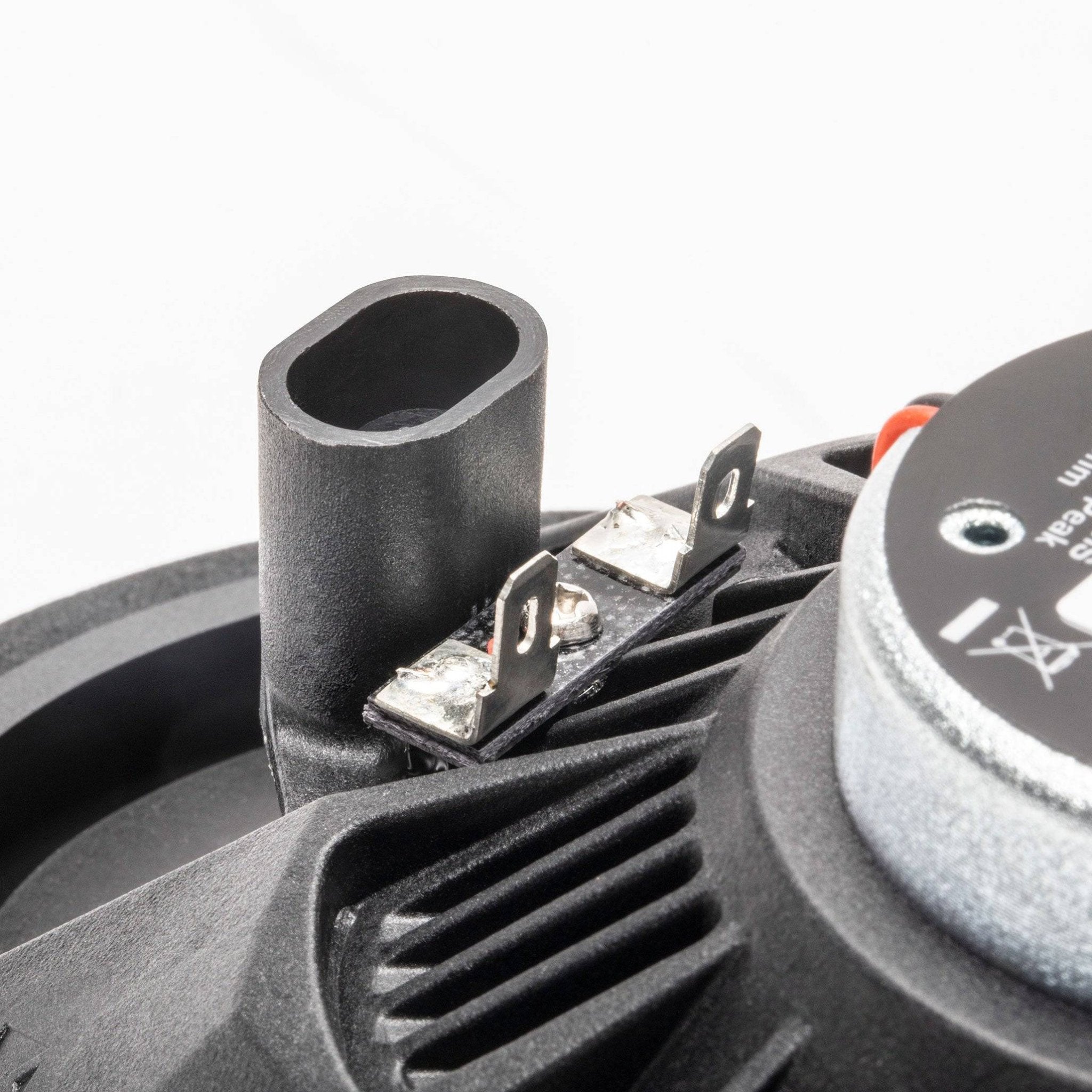

⬥ Conector Factory HD® para funcionamiento plug-n-play
⬥ Incluye insignias autoadhesivas de aluminio Diamond-R
Especificaciones generales
| Tipo de altavoz | 2 vías |
|
Tamaño de rango medio (Diámetro nominal) |
5" x 7" |
| Profundidad de montaje de rango medio | 2,2" (55 mm) |
| Manejo de energía (vatios RMS) | 100 vatios RMS |
| Impedancia nominal (Ohmios) | 4Ω |
| Sensibilidad (dB @ 1w/1m) | 89 |
| Sensibilidad (dB @ 2,83 V/1 M) | 92 |
| Respuesta frecuente | 61 Hz - 20 kHz |
| Accesorios de montaje | Sí |
| Rejilla/anillo embellecedor incluido. | No |
| Cumple con CEA-2031 |
Compatibilidad
| Año | Hacer | Modelo | Opción |
|---|---|---|---|
| 2014 - Actual | Harley-Davidson® | Electra Glide | Altavoz estilo alforja Boom!™ Audio Stage-I |
| 2014 - Actual | Harley-Davidson® | Ultralimitado | Altavoz estilo alforja Boom!™ Audio Stage-I |
| 2014 - Actual | Harley-Davidson® | Deslizamiento callejero | Altavoz estilo alforja Boom!™ Audio Stage-I |
| 2014 - Actual | Harley-Davidson® | Deslizamiento en carretera | Altavoz estilo alforja Boom!™ Audio Stage-I |
| 2006 - 2013 | Harley-Davidson® | Rey del camino | Altavoz estilo alforja Boom!™ Audio |
| 2006 - 2013 | Harley-Davidson® | Electra Glide | Altavoz estilo alforja Boom!™ Audio |
| 2006 - 2013 | Harley-Davidson® | Deslizamiento callejero | Altavoz estilo alforja Boom!™ Audio |
| 2006 - 2013 | Harley-Davidson® | Deslizamiento en carretera | Altavoz estilo alforja Boom!™ Audio |
