Pioneer TS-A301D4
Champion Series 12" 1600W Subwoofer Dual 4 Ohm Component Subwoofer
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
12" - Potencia máxima de 1600 W, bobina móvil doble de 4 ohmios, subwoofer componente serie Champion
TS-A301D4
Los subwoofers de la serie Champion han evolucionado a partir de la galardonada línea “SPL Champion Edition” de Pioneer, conocida por su producción de graves profunda y potente. El subwoofer componente de bobina móvil dual TS-A301D4 de 12” cuenta con un conjunto de motor grande y potente rediseñado para mejorar la eficiencia y la sensibilidad. Las cestas del subwoofer están optimizadas mediante un diseño de estructura reforzada para mayor resistencia y reducción de la vibración para brindar una excelente calidad de sonido. Este subwoofer tiene una potencia continua de 500 vatios con un pico máximo de 1.600 vatios. Cuenta con un cono avanzado de 2 piezas diseñado con una estructura de cono compuesto Honeycomb IMPP™ altamente rígida y duradera más un cono de transmisión rígido para ofrecer altos niveles de salida con distorsión reducida.

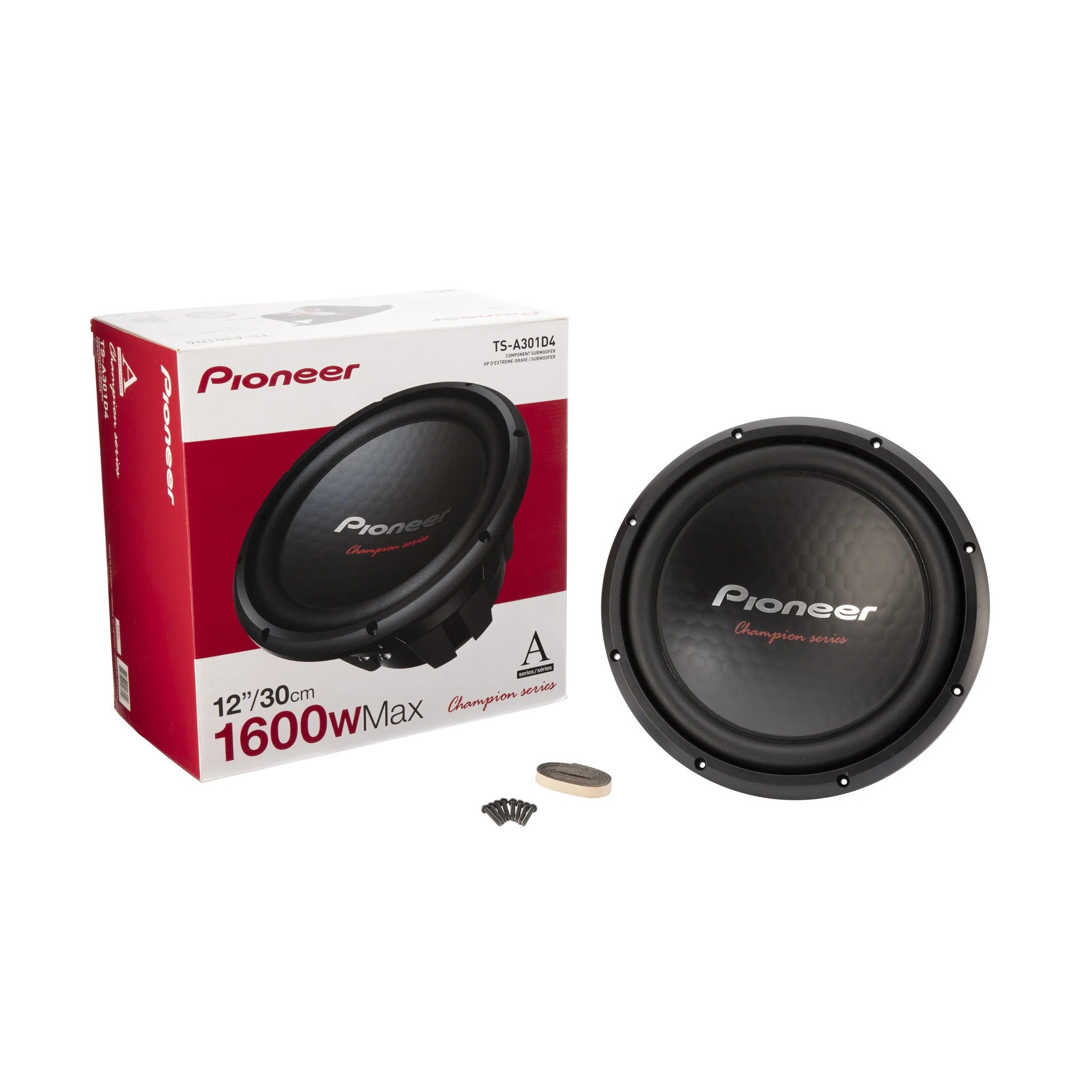

¿Qué hay en la caja?
| ⬥ (1) subwoofer componente de 12" |
| ⬦ (8) tornillos |
| ⬥ (1) Junta |
Características
⬥ Potencia máxima de 1600 W/Potencia nominal de 500 W
⬥ Bobina móvil dual
⬥ Estructura de cono compuesto IMPP™ en forma de panal
⬥ Entorno de polímero elástico reforzado con fibra de doble capa
Especificaciones generales
| Estándares y rendimiento | |
|---|---|
| Tipo de sistema | Componente |
| Sensibilidad (1W/1m) | 92dB |
| Rango de frecuencia | 20 Hz a 1,6 kHz |
| Manejo de potencia continua (RMS): vatios | 500 vatios |
| Manejo de potencia máxima máxima: vatios | 1600 vatios |
| Impedancia nominal - OHM | 4 ohmios |
| Construir | |
| Material de la tapa central | polipropileno |
| Material envolvente | Polímero elástico/fibra reforzada |
| Tipo envolvente | Arrollado |
| Material de la cesta | Acero |
| Material del imán | Ferrito |
| Peso del imán | 90 onzas |
| Tipo de bobina móvil | Doble |
| Bobina de bobina móvil | Aluminio |
| Cable de bobina móvil | Cobre |
| Apagador | algodon poli |
| Material del cono impulsor | Fibra de celulosa |
| Anillo de instalación | abdominales |
| Terminales de alambre | Tipo de empuje |
| Dimensiones de corte | 11.125"v |
| Cumplimiento equivalente (VAS)[L] | 37,7 |
| Resonancia de aire libre (Fs) [Hz] | 38 |
| Total de altavoces "Q" (Qts) | 0,73 |
| Excursión lineal (Xmax) [mm] | 11.3 |
| Volumen recomendado de caja sellada [L] | 1,5 pies cúbicos/42,5 litros |
| Volumen recomendado del gabinete sellado | 1,25 pies cúbicos/35,4 litros |
| Profundidad de montaje del subwoofer | 6.125" |
| Longitud del puerto | 6,5" |
| Diámetro del puerto | 3" |
