Alpine HDA-F60
Status Series 100W 4-channel car amplifier
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

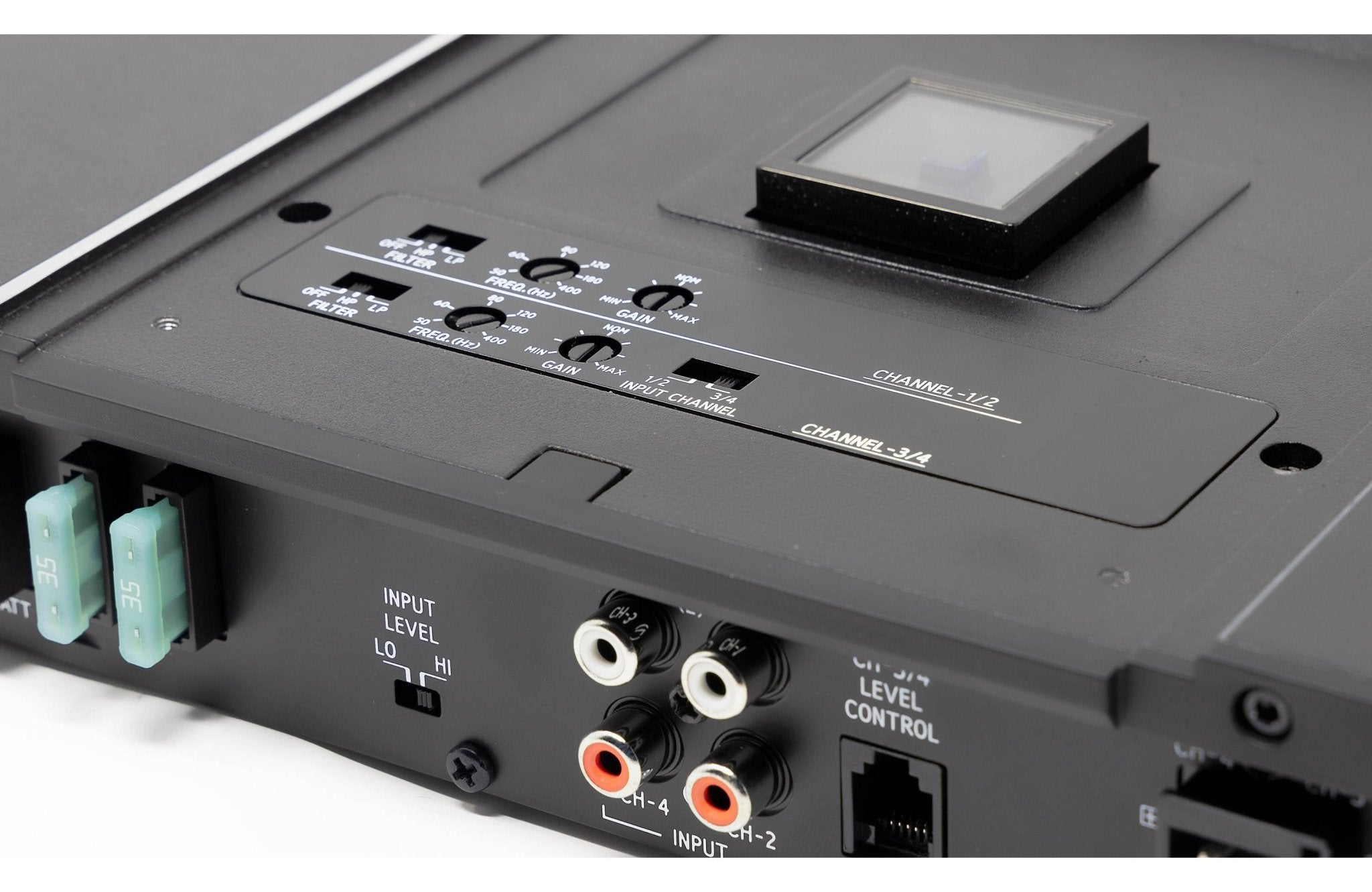

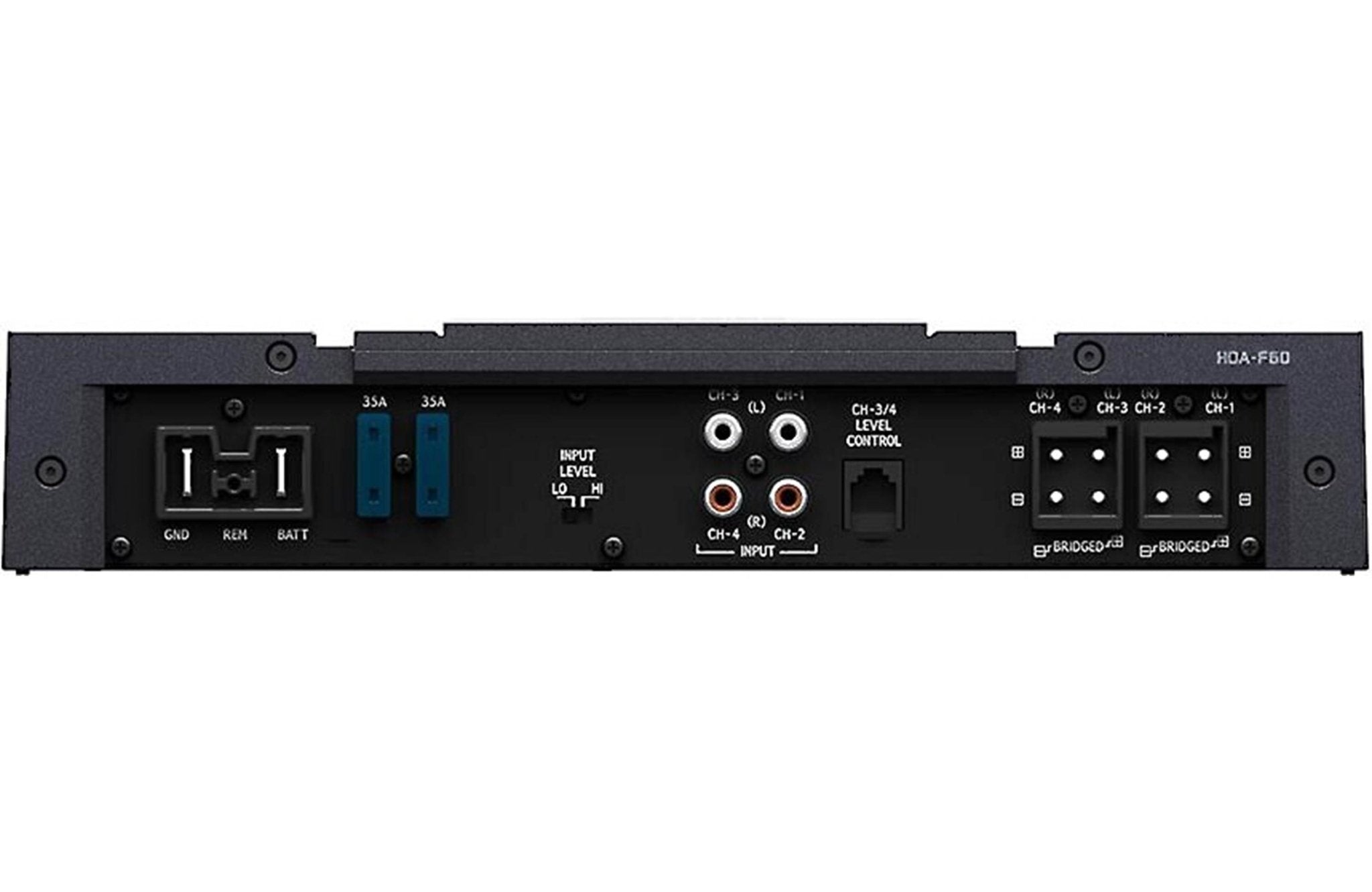

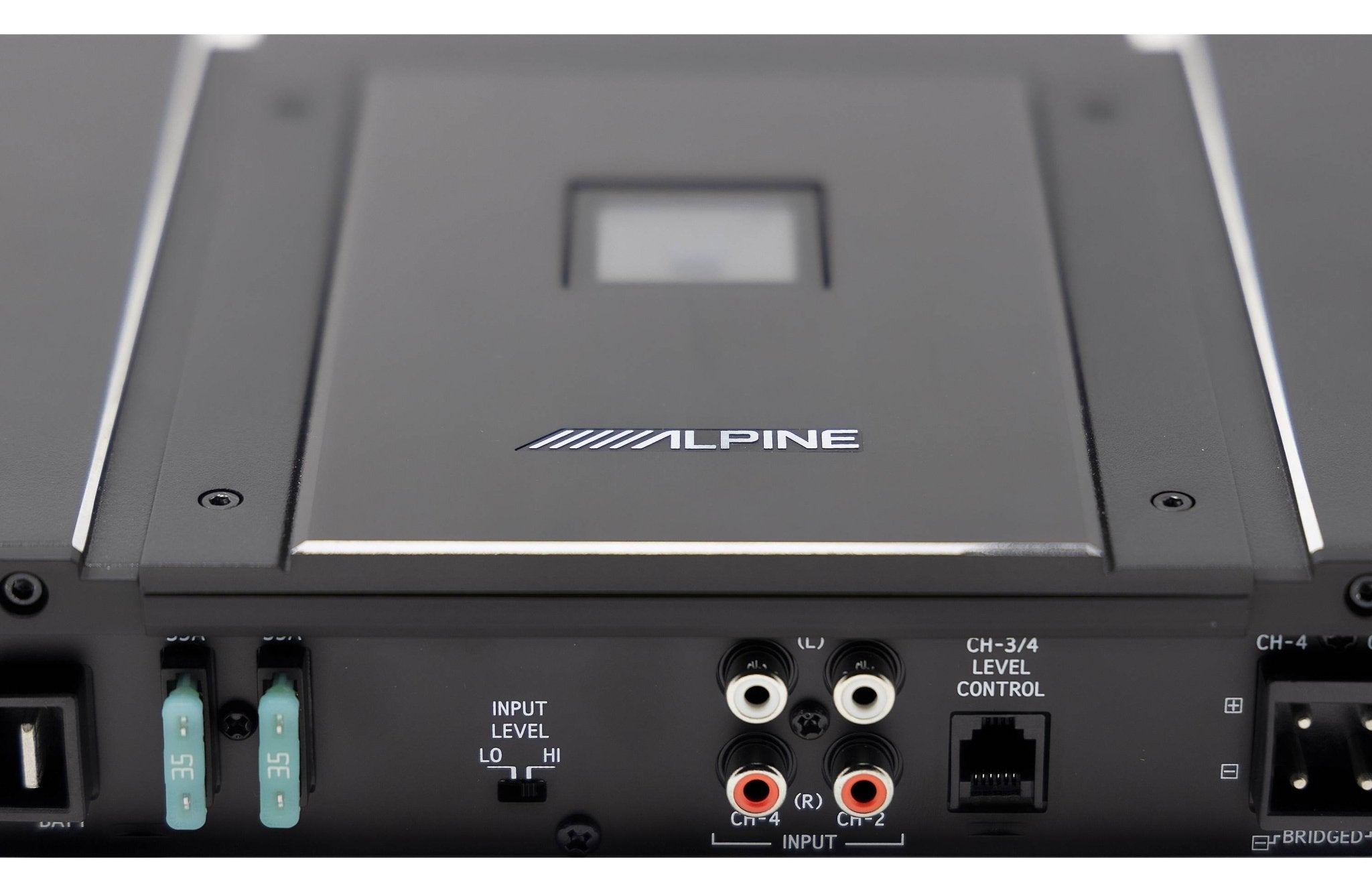

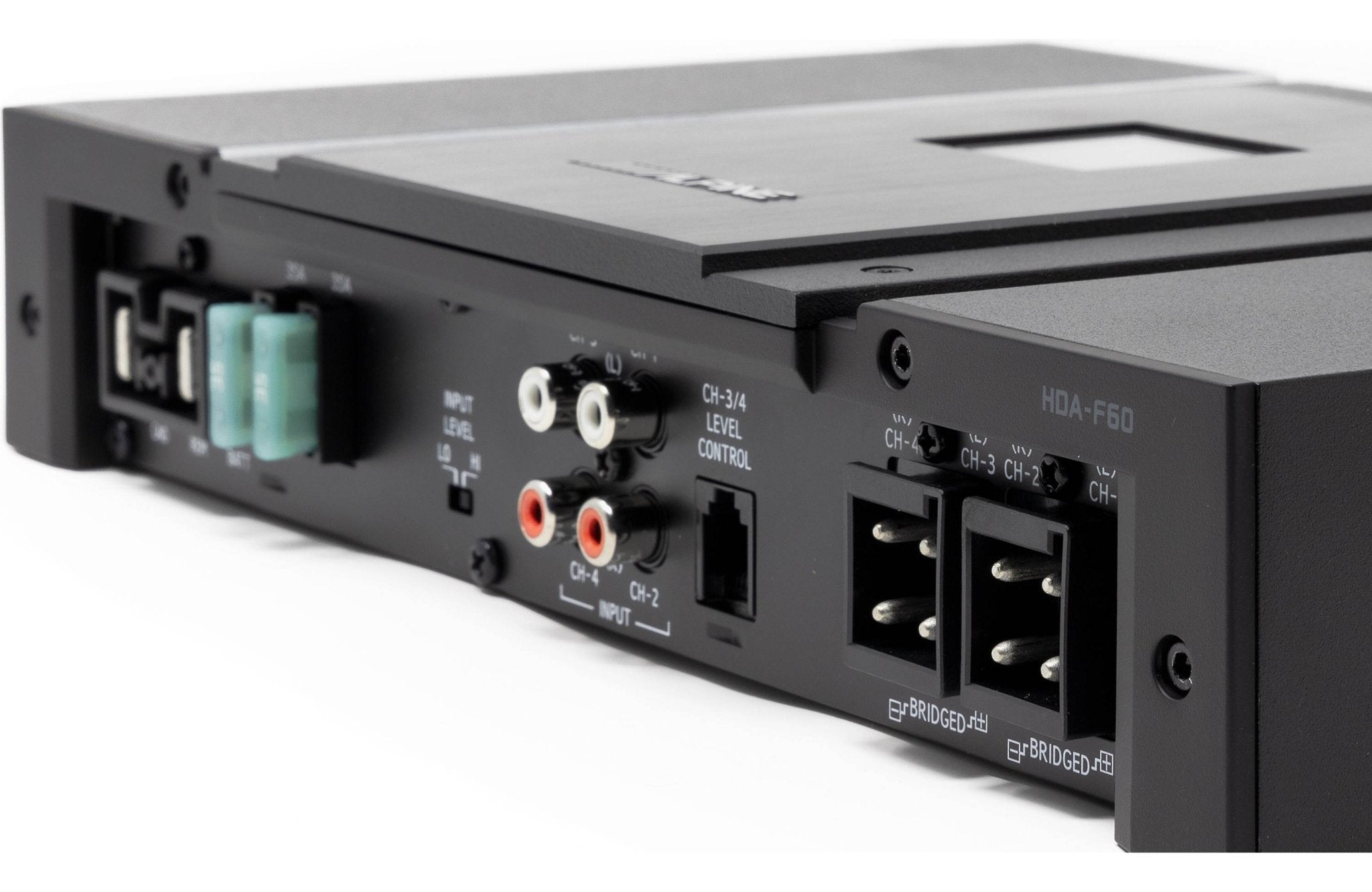

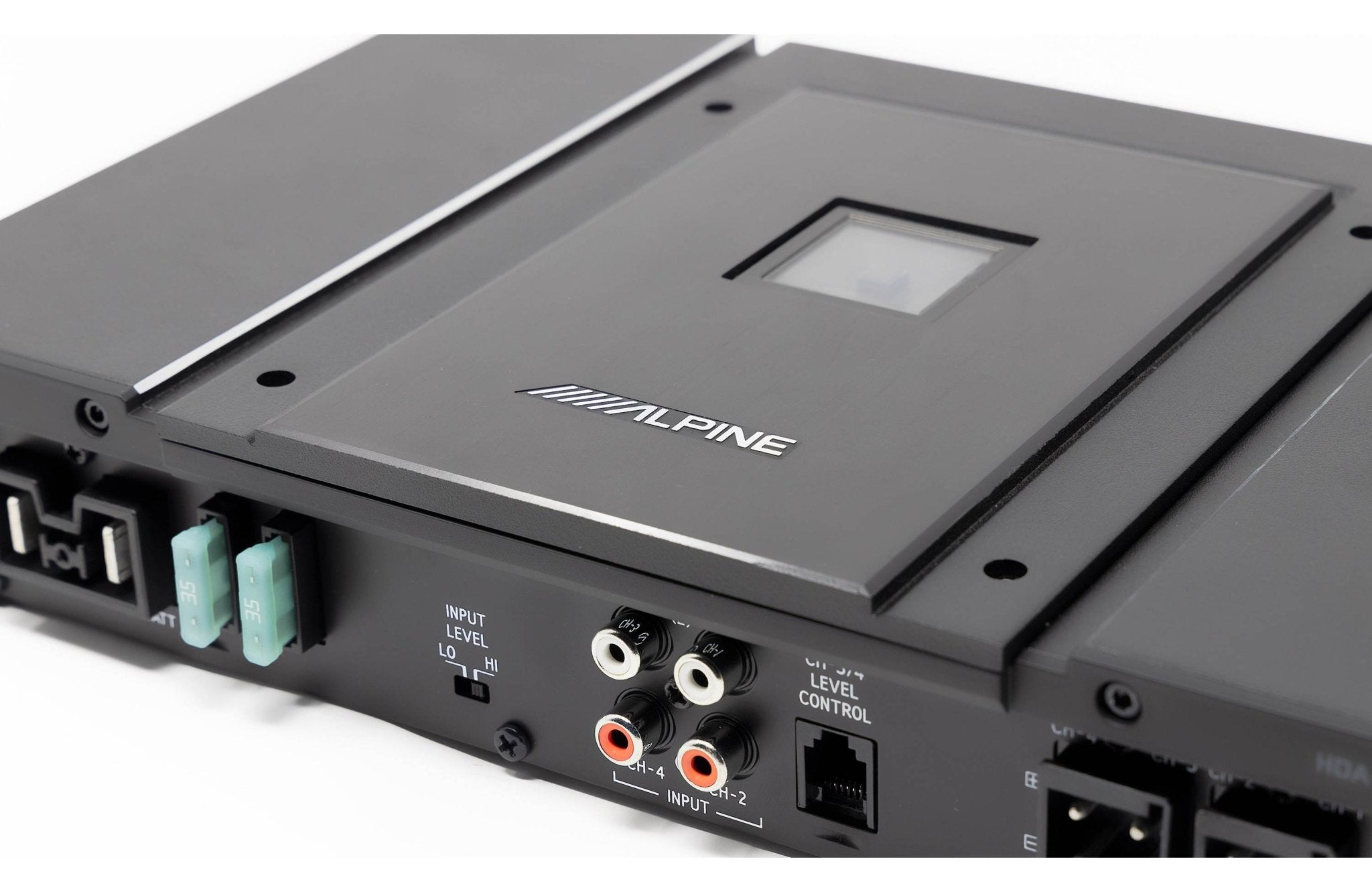

Alpine HDA-F60 Status Series Hi-Res 4-Channel Amplifier
The Alpine HDA-F60 is a high-resolution, 4-channel amplifier from Alpine's Status Series, designed to deliver exceptional sound quality and performance. Utilizing advanced Class-D amplification and Alpine's proprietary technologies, the HDA-F60 ensures precise and dynamic audio reproduction, making it an ideal choice for audiophiles seeking studio-quality sound in their vehicles.
Key Features
| Feature | Details |
|---|---|
| Power Output |
|
| Amplifier Class | Class D with Dual Negative Feedback Control Circuit |
| High-Resolution Audio | Supports 192kHz/24Bit playback; frequency response: 10Hz – 60kHz (-3dB) |
| Signal-to-Noise Ratio | 106dB (ref. 1W into 4Ω) |
| Total Harmonic Distortion | ≤0.02% (10W into 4Ω) |
| Damping Factor | >500 |
| Input Options | Selectable High (0.5–10V) / Low (0.2–4V) level inputs; 2/4 channel input selector |
| Crossovers | Variable High-Pass and Low-Pass Filters (50–400Hz, 12dB/octave) |
| Design | Compact chassis with copper-plated design and black circuit board; one-sided terminal layout for easy installation |
| Remote Control | Compatible with Alpine RUX-KNOB.2 or RUX-H01 (sold separately) |
What’s in the Box
| Alpine HDA-F60 4-Channel Amplifier |
| Top cover (installed) |
| Power connector plug |
| 2 Speaker connector plugs |
| 2 Mounting legs |
| Two 35-amp ATO fuses (installed) |
| 2mm, 2.5mm, and 4mm Allen wrenches |
| Four 3/4" Screws |
| Eight 3/8" Screws |
| Owner's Manual |
| Alpine Verification Certificate |
| Warranty Information |
| Product Registration Information |
| Power Wiring Note |
Technical Specifications
| Spec | Value |
|---|---|
| RMS Power Output |
|
| Frequency Response | 10Hz – 60kHz (-3dB) |
| Signal-to-Noise Ratio | 106dB (ref. 1W into 4Ω) |
| Total Harmonic Distortion | ≤0.02% (10W into 4Ω) |
| Damping Factor | >500 |
| Input Sensitivity | High: 0.5–10V; Low: 0.2–4V |
| Minimum Impedance | 2Ω (unbridged); 4Ω (bridged) |
| Fuse Rating | 35A x 2 (external fuse required) |
| Dimensions (W×H×D) | 11.4375" × 2.125" × 7.5" |
| Weight | Approximately 5.5 lbs |
| Warranty | 1 Year |
