Alpine PXE-C80-88
Optim8™ 8-channel Hi-Res car amplifier with automatic digital signal processing
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

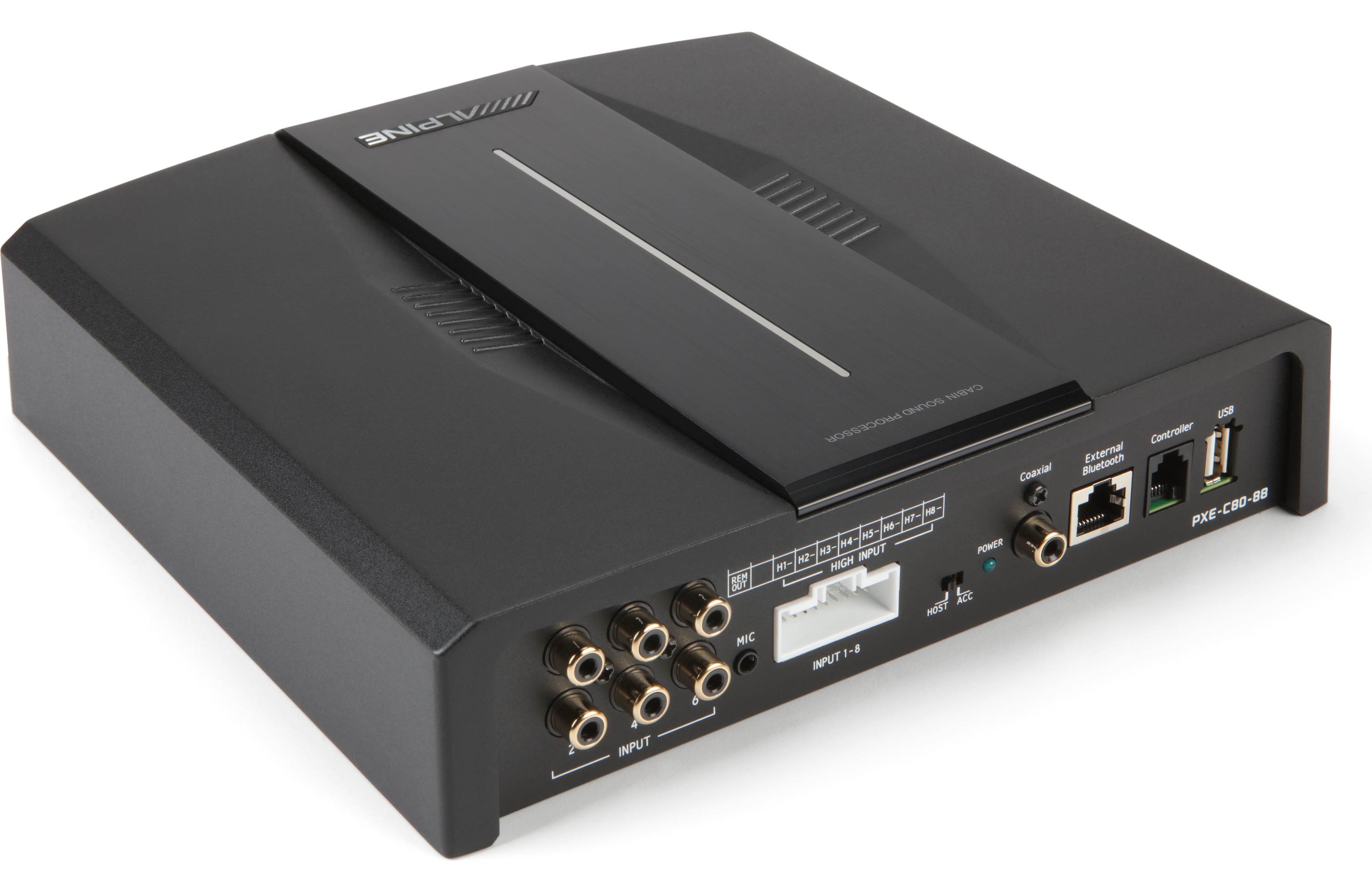

Alpine PXE-C80-88 OPTIM8™ 8-Channel Hi-Res DSP Amplifier
The Alpine PXE-C80-88 OPTIM8™ is an all-in-one digital sound processor and amplifier designed to enhance and fine-tune your vehicle's audio system with precision. Featuring Hi-Res Audio playback, automatic sound tuning, and versatile input/output configurations, it offers audiophiles a seamless integration and premium performance experience.
Key Features
| Feature | Details |
|---|---|
| Audio Processing | Hi-Res Audio Playback at 96kHz/24Bit; 192kHz/32Bit system sampling rate |
| Amplifier Output | 50W x 6 @ 4Ω + 150W x 2 @ 4Ω; 50W x 6 @ 2Ω + 300W x 2 @ 2Ω (14.4V, 1kHz, 10% THD) |
| Equalization | 31-band parametric and graphic EQ per channel; Q: 0.404 ~ 28.85; Gain: -12.0dB ~ +12.0 dB |
| Crossovers | High-pass, low-pass, and band-pass filters per channel; crossover points: 20Hz – 20KHz; slopes: 12dB to 48dB/octave; filter types: Butterworth, Linkwitz-Riley, Bessel |
| Time Correction | Up to 20ms delay per channel; delay units: milliseconds, centimeters, or inches; phase adjustment: 0° or 180° per channel |

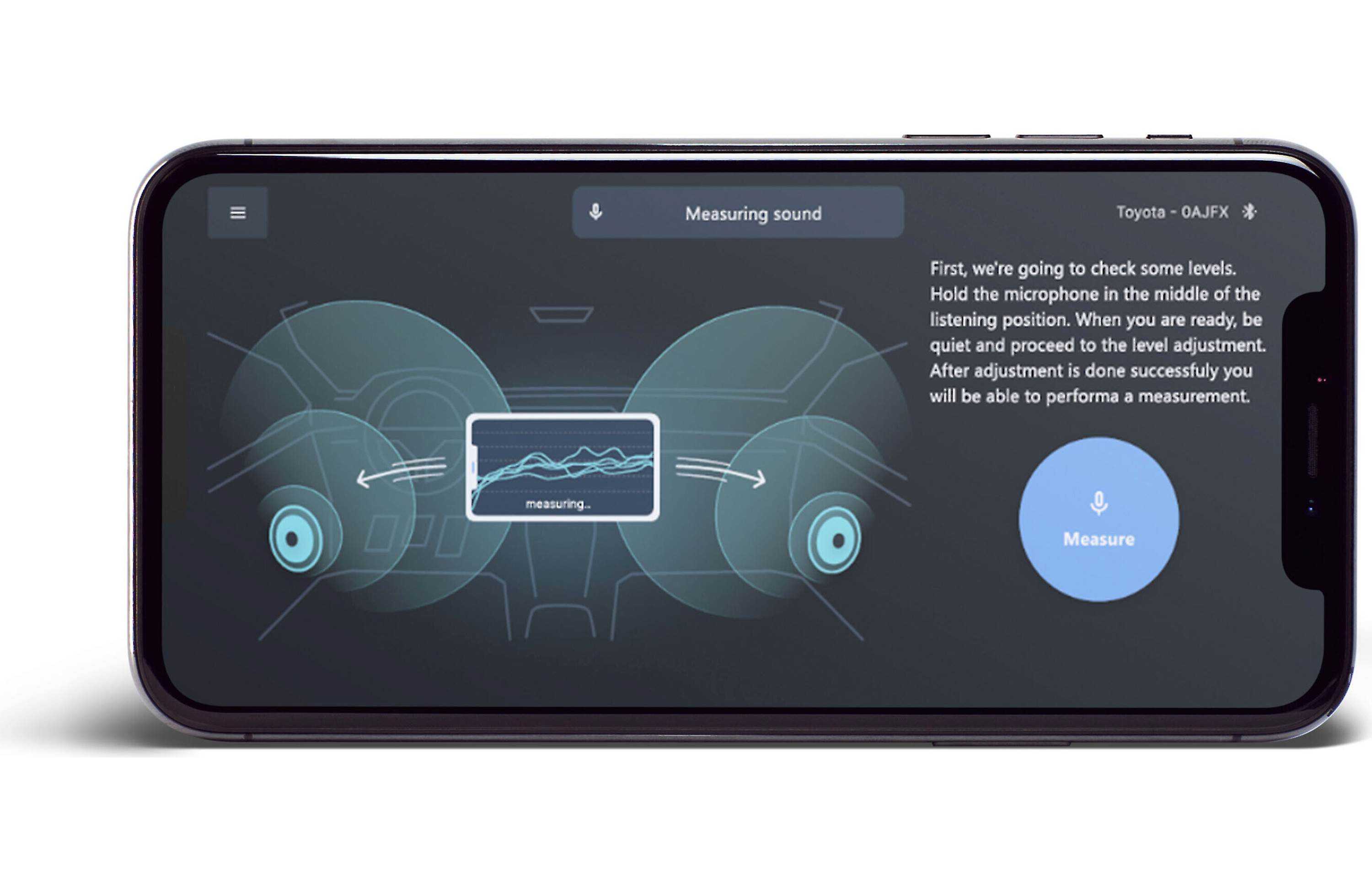

| Control Interface | Wireless tuning via smartphone (iOS/Android) and PC; includes wired LCD remote controller for volume, preset storage/recall, subwoofer level, and source selection |

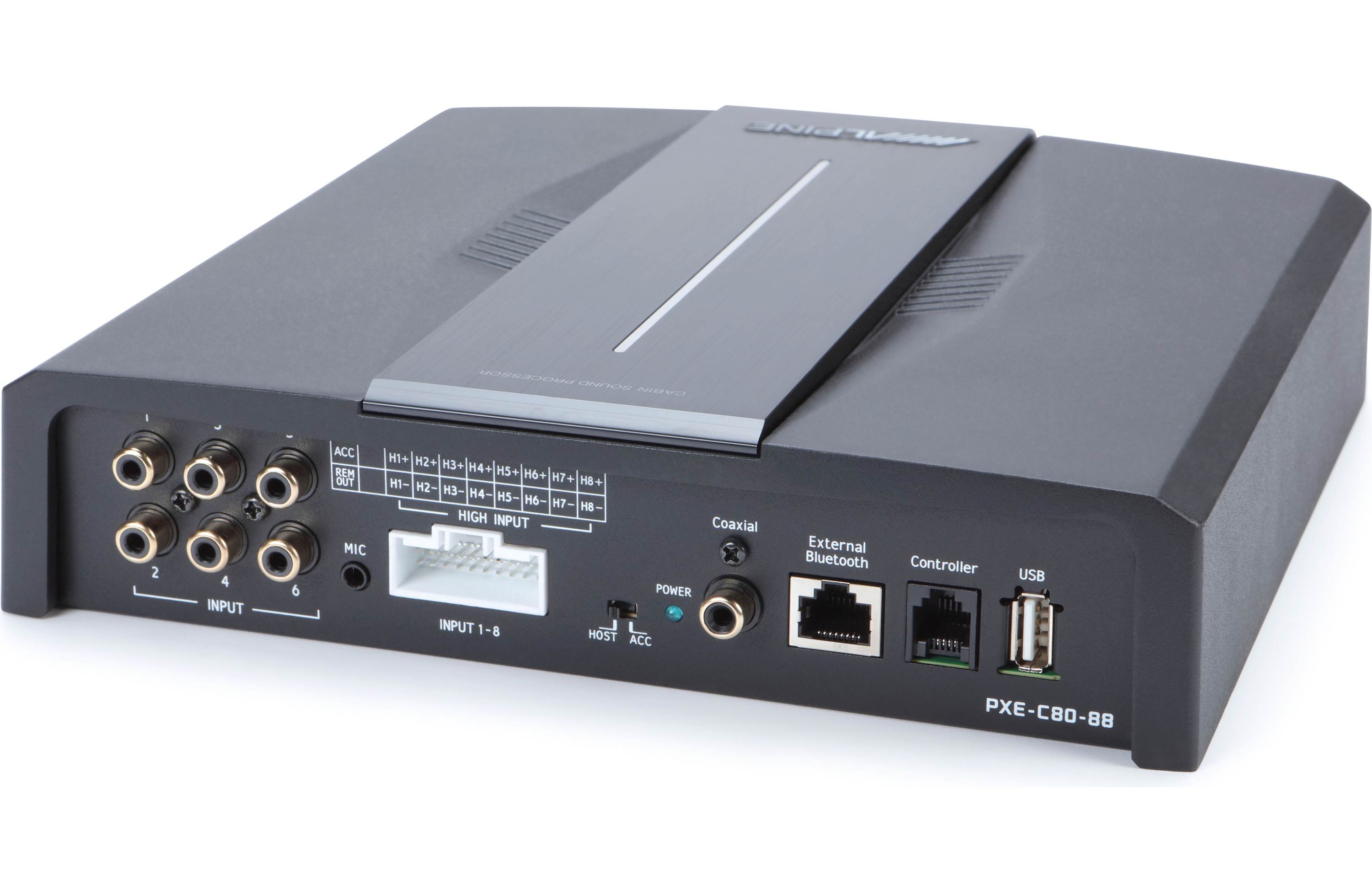

| Inputs | 8-channel high-level speaker inputs (up to 30V); 6-channel RCA inputs; optical and USB digital inputs; Bluetooth audio streaming with included external module |
| Outputs | 8-channel 4V RCA outputs; 8 powered speaker outputs |
| Installation | Compact design with included installation bracket; suitable for dashboard or center console mounting |
| Factory Integration | Anti-EQ for OEM systems; eliminates factory EQ curve for clean sound |

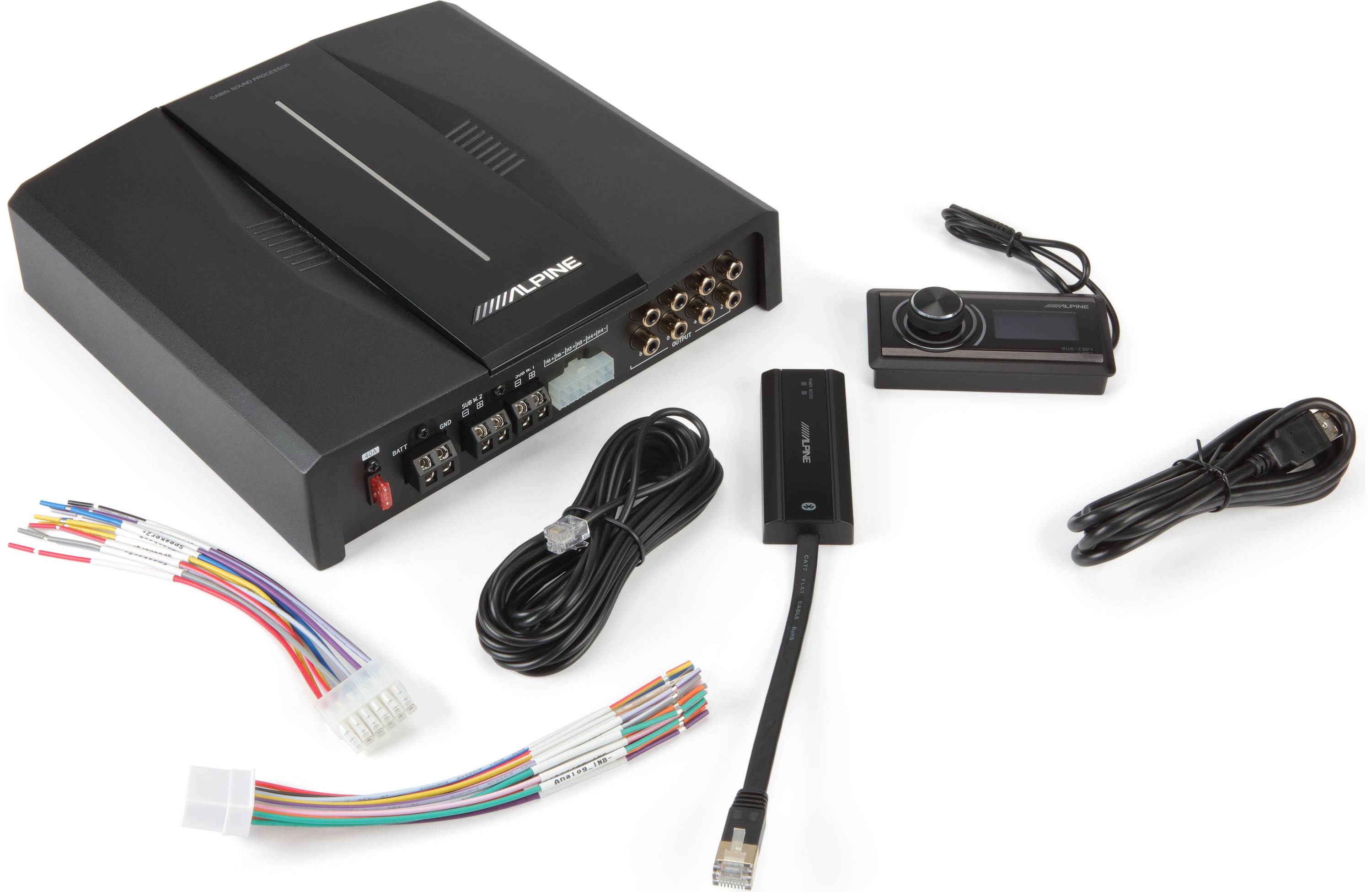

What’s in the Box
| Alpine PXE-C80-88 Digital Sound Processor Amplifier |

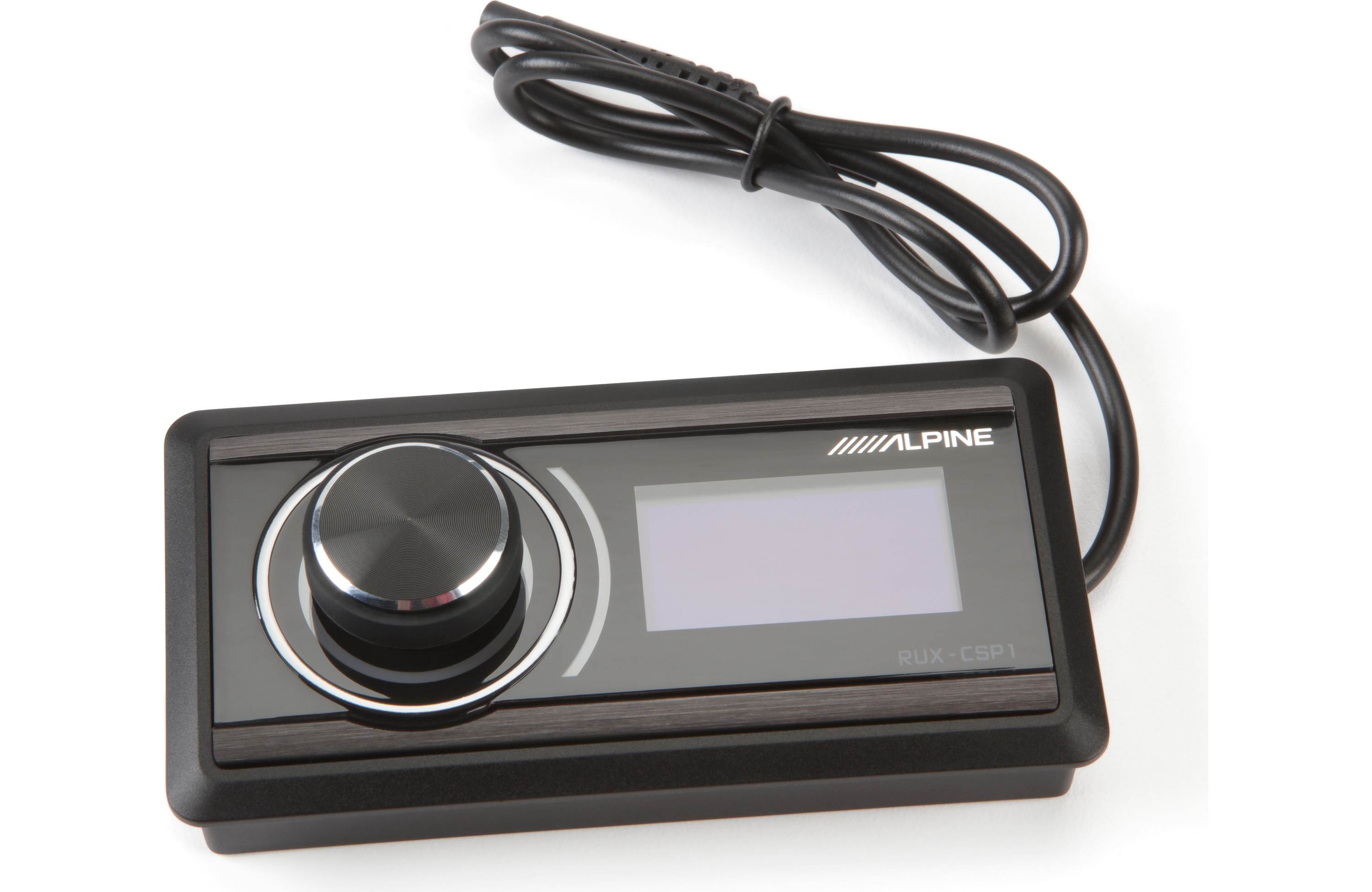

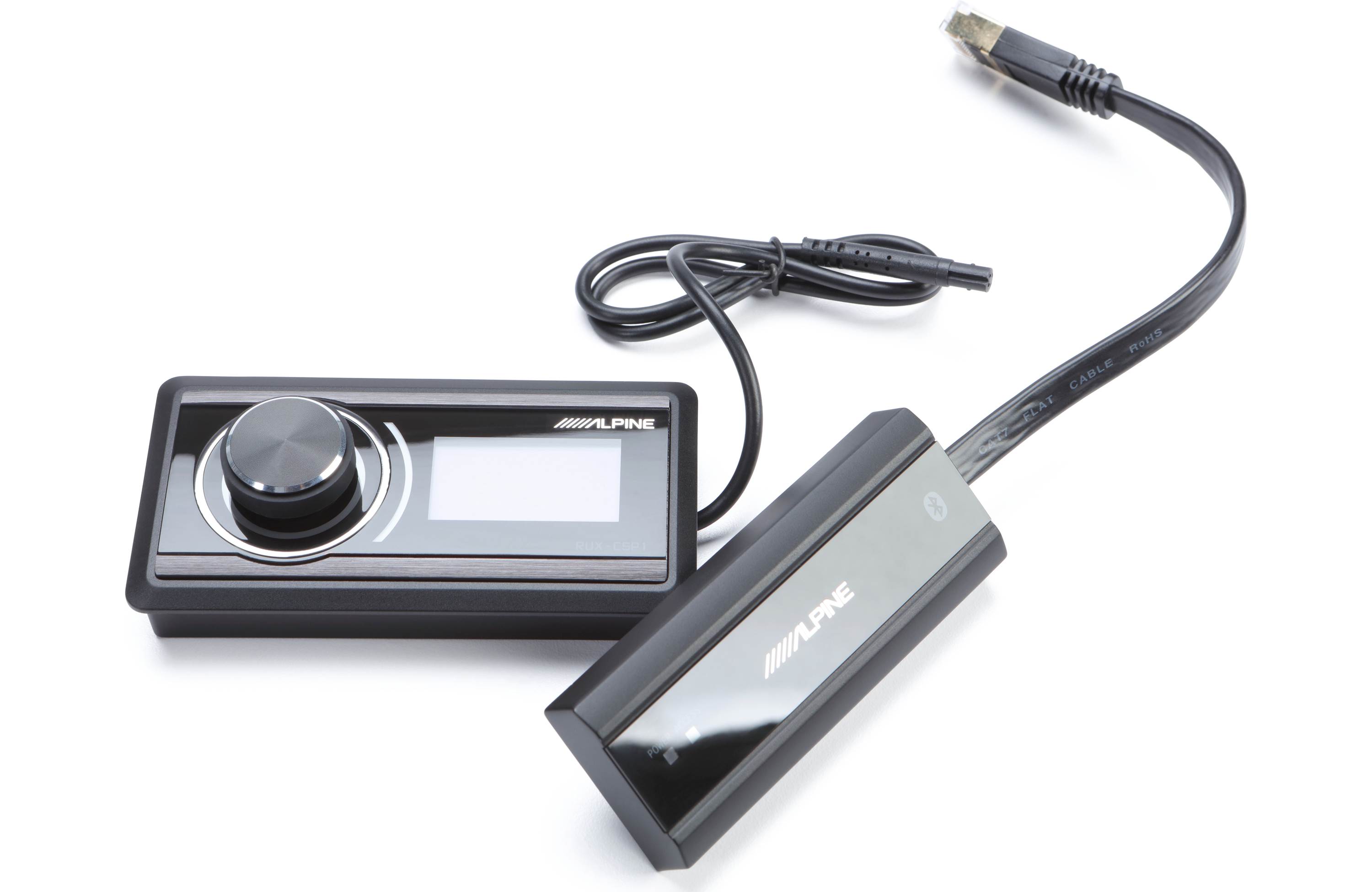

| Wired LCD Remote Controller with attached 16" 4-pin cable |

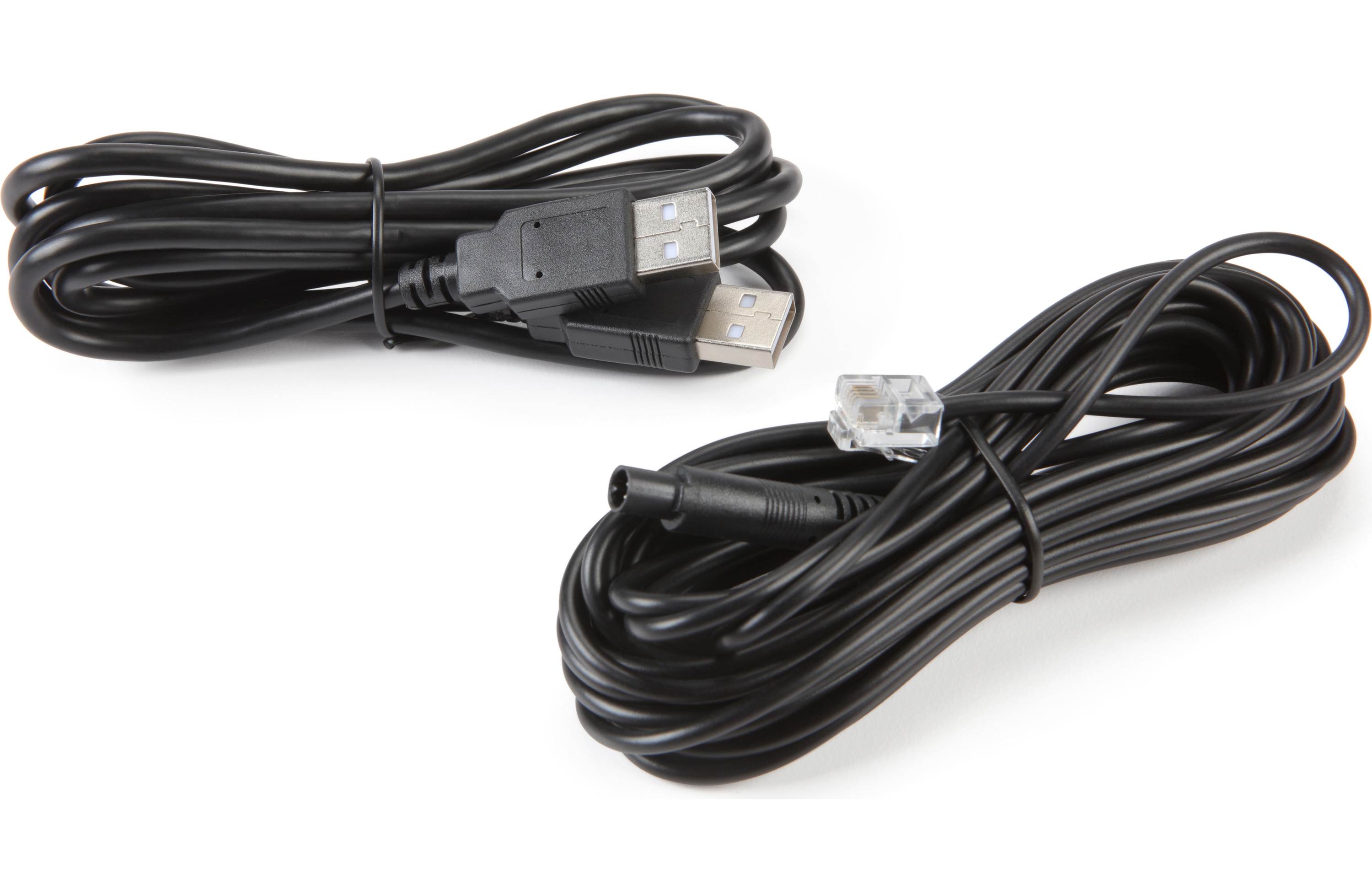

| 16.5' Extension Cable (4-pin to RJ-12 connectors) |

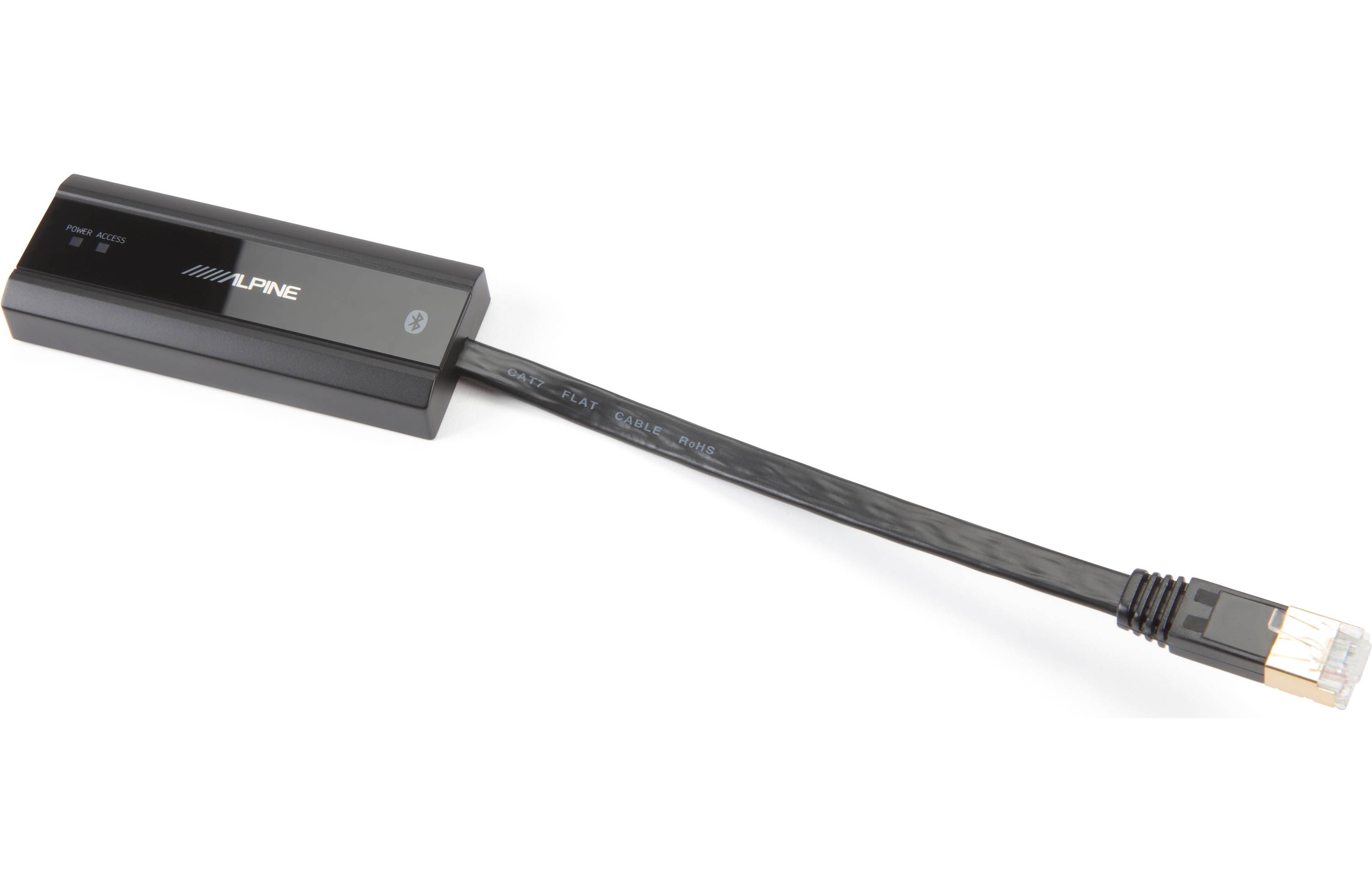

| External Bluetooth Module with 6" cable |

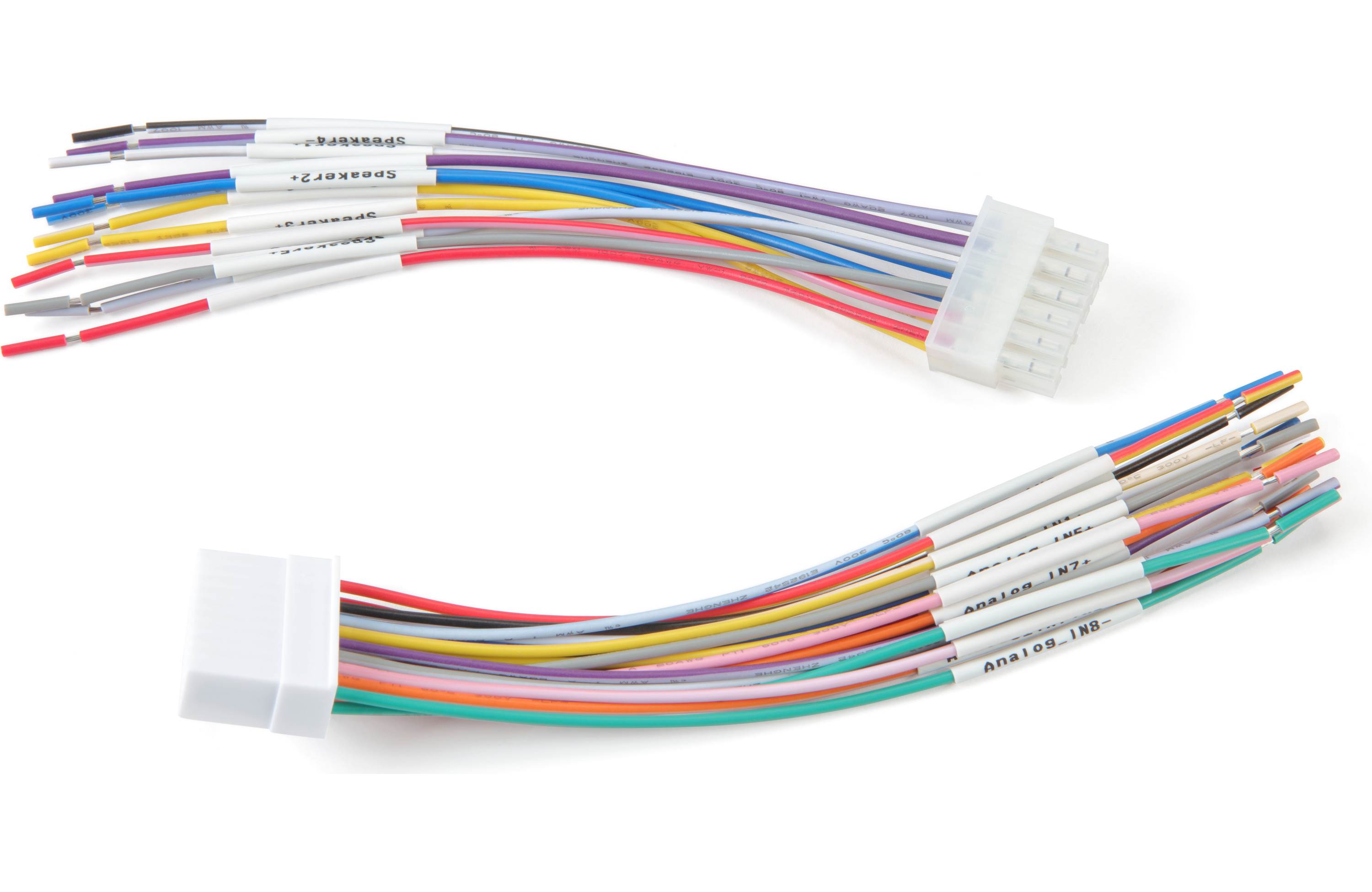

| 6" Power/Ground/Input Harness |
| Two 6" Speaker Output Harnesses |
| Mounting Brackets and Hardware |
| USB-to-USB Connector for PC |
| Owner's Manual and Installation Guide |
Technical Specifications
| Spec | Value |
|---|---|
| Frequency Response | 20Hz – 40kHz |
| Signal-to-Noise Ratio | ≥95 dB |
| Total Harmonic Distortion | ≤0.06% |
| Input Voltage | High-Level: Up to 30V; RCA: Up to 11V |
| Output Voltage (RCA) | 4V RMS |
| Input Impedance | High-Level: >50kΩ; RCA: >50kΩ |
| Output Impedance | 51Ω |
| Power Supply | DC 9V – 16V |
| Dimensions (W×H×D) | 8.875" × 2.1875" × 10.4375" |
| Weight | 8 lbs |
| Warranty | 1 Year |
