Alpine PXE-X121-12EV
EV-Series 12-channel amplifier with digital signal processing — 25 watts RMS x 4 + 50 watts RMS x 6 + 100 watts RMS x 2
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?

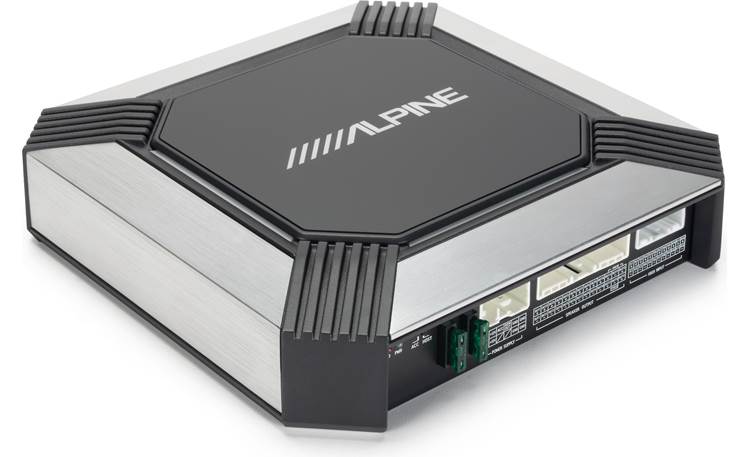

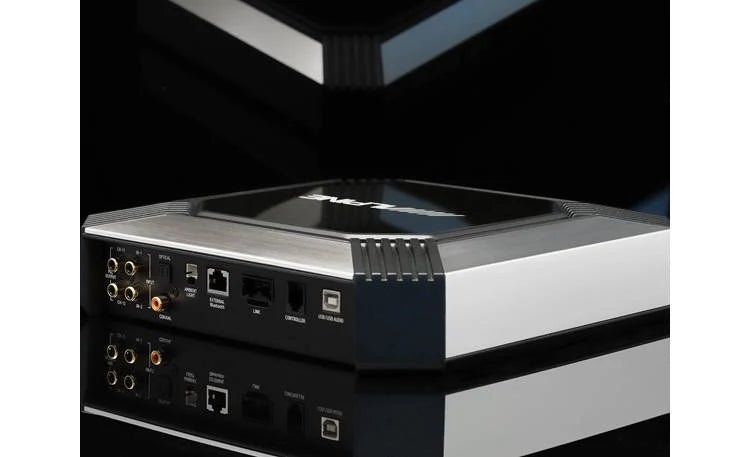

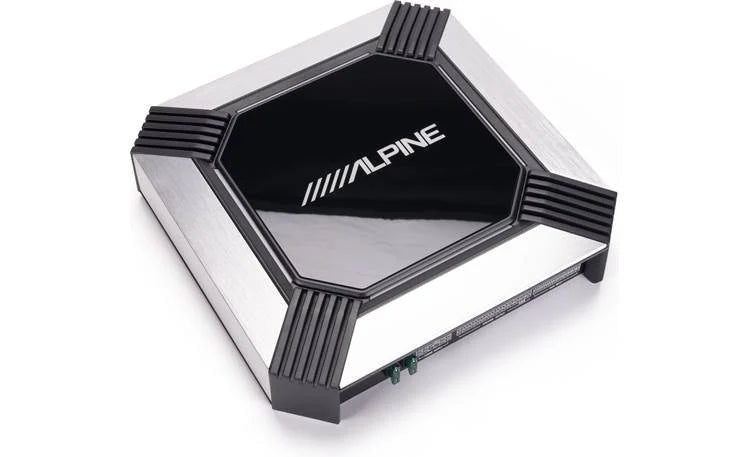

Alpine PXE-X121-12EV 12-Channel Hi-Res DSP & Amplifier
Product overview:

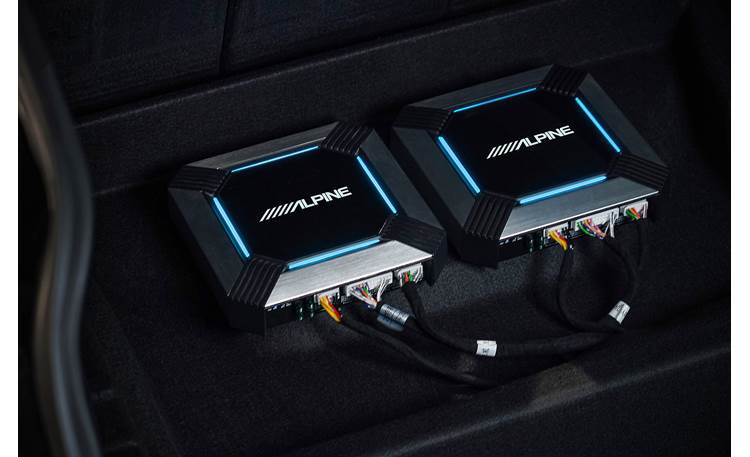

The Alpine PXE-X121-12EV is a sophisticated, all-in-one audio solution designed for high-resolution sound processing and multi-channel amplification. Part of Alpine's EV-optimized lineup, this compact powerhouse combines a 12-channel Digital Sound Processor (DSP) with a built-in 12-channel amplifier. It is specifically engineered to integrate seamlessly into modern vehicles (especially EVs) where space is at a premium and power efficiency is critical.
Features
Seamless Integration

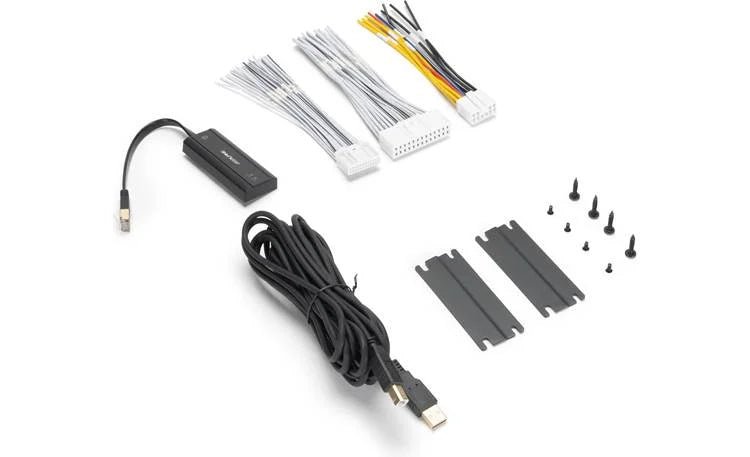

The PXE-X121-12EV features Matrix input summing, allowing it to merge complex factory signals into a clean, full-range output. With 12 channels of high-level inputs, optical/coaxial digital inputs, and HD Bluetooth streaming (via the included module), it fits into any system architecture. It essentially acts as the "brain" of your car audio, taking control of your factory head unit's signal and refining it for aftermarket speakers.
Professional-Grade Control
Tuning is handled via a user-friendly PC or Smartphone application. The interface allows you to manage a 31-band parametric or graphic EQ and precise crossovers (HPF, LPF, and Bandpass) for every single channel. This level of professional control ensures that each speaker in your car—from the dash tweeters to the rear fills—is playing exactly the frequencies it was designed for, with perfect phase alignment using all-pass filters.
Built-In 12-Channel Amp
This unit delivers a unique staggered power output to match the varying needs of a full system: 25W RMS x 4 + 50W RMS x 6 + 100W RMS x 2. This configuration is perfect for driving tweeters, mid-range speakers, and mid-bass drivers simultaneously. For those needing a bit more "thump," channels 11 and 12 can be run in parallel for a 2-Ohm load, providing extra flexibility for small subwoofers or high-power woofers.
Fine Tune Your Sound
The Hi-Res Audio playback (96kHz/24Bit) ensures that the "visual ambiance" of your music is crystal clear and lifelike. By utilizing the time correction features, you can "fine-tune" the arrival time of sound from each speaker to your ears, effectively moving the "soundstage" to the center of your dashboard. Its highly efficient design reduces heat and power draw, making it a "must-have" for electric vehicles where every watt counts.
Full Specs:
| Category | Specification |
| General | |
| Audio Quality | Hi-Res Audio Certified (96kHz/24Bit) |
| Configuration | 12-Channel Input / 12-Channel Output |
| Tuning | PC & Smartphone App (via Bluetooth or USB) |

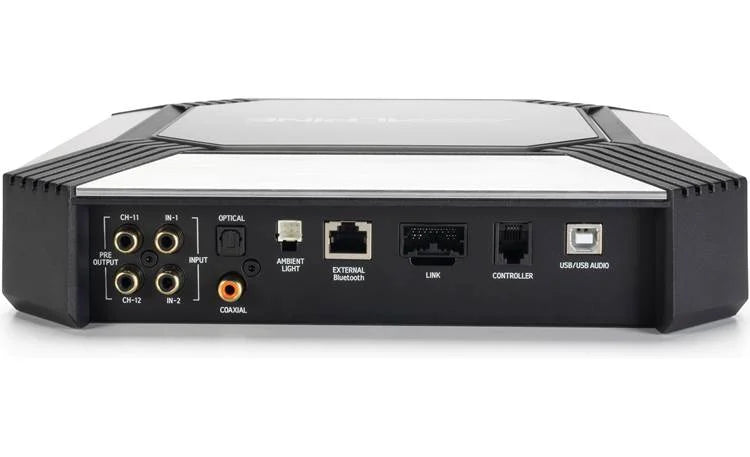

| Inputs | 12 High Level, 2 RCA, Optical, Coaxial, USB DAC, HD BT |

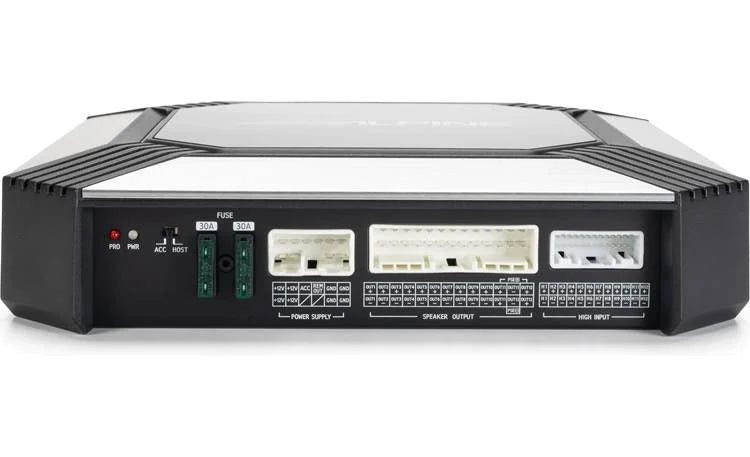

| Outputs | 10 High Level, 2 RCA |
| Dimensions | Compact Chassis (EV-ready) |
| Amplifier Section | |
| Staggered Power | 25W x 4, 50W x 6, 100W x 2 (RMS) |
| Special Mode | Channels 11 & 12 parallelable for 2-Ohm load |
| Efficiency | High-efficiency Class D architecture |
| DSP Features | |
| Equalizer | 31-Band Parametric or Graphic |
| Filters | All-pass, HPF, LPF, Bandpass (per channel) |
| Warranty Information | |
| Parts/Labor Warranty | 1 Year Limited |
