Alpine R2-W8D2
R Series 8" subwoofer with dual 2-ohm voice coils
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?
Alpine R2-W8D2 8-Inch R-Series Subwoofer
Product overview:
The Alpine R2-W8D2 is a next-generation 8-inch subwoofer from the legendary R-Series line, engineered to deliver massive bass in a compact footprint. This 2nd-gen model features a larger motor structure and double-stacked magnets for authoritative low-end performance. It’s the ideal choice for those who need high-output bass but have limited space, such as behind truck seats or in compact sealed enclosures.
Features
Seamless Connectivity

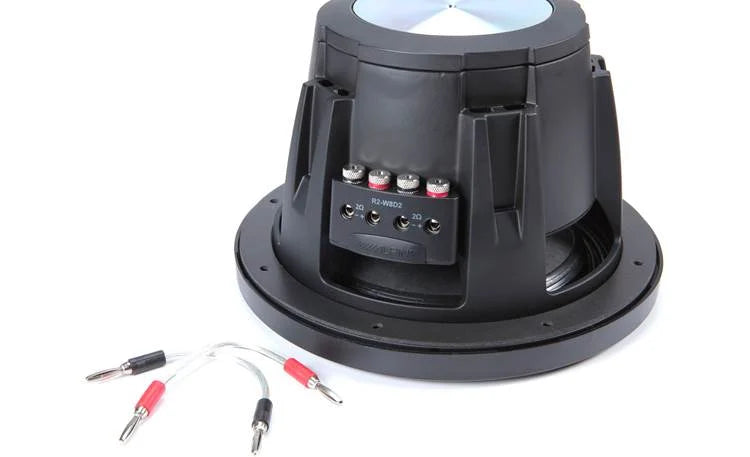

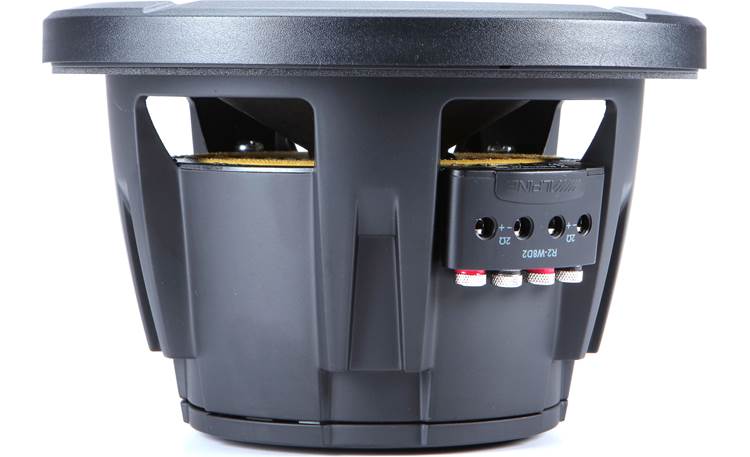

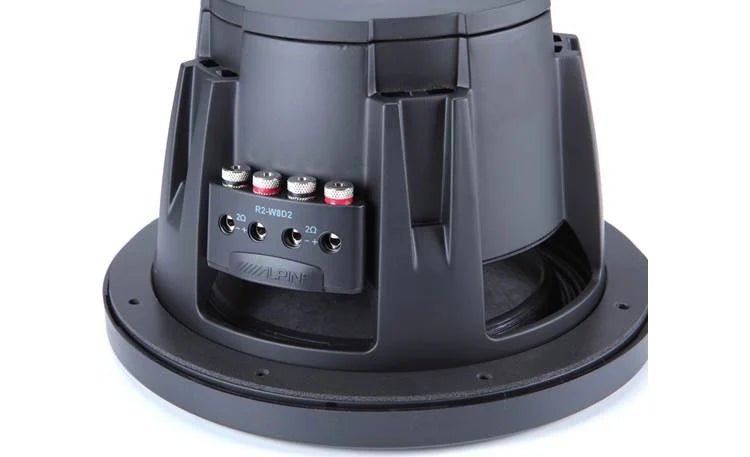

The R2-W8D2 is built with Dual 2-Ohm Voice Coils, providing maximum wiring flexibility to match your amplifier’s optimal impedance. It includes easy-to-use configuration jumpers that allow you to quickly switch between a 1-ohm or 4-ohm load. For wiring convenience, the spring terminals are all located on one side of the woofer and can accept bare wire up to 8AWG or banana plugs.
Safety & Convenience
To protect your investment, the subwoofer features an "EZ-Change" twist-lock grille mounting system. This allows you to easily install or remove the optional KTE-8G protective grille (sold separately) without needing extra mounting screws. The rugged construction and Kevlar-treated pulp cone ensure the woofer remains durable and reliable even during extended, high-volume listening sessions in the harsh automotive environment.
Enhanced Audio & Ambiance
This subwoofer is Hi-Res Audio Certified, ensuring your bass isn't just loud, but incredibly accurate. It utilizes a polypropylene/ceramic composite dust cap that provides internal damping to smooth out frequency response and reduce distortion. The visual ambiance of your custom build is further enhanced by the clean, matte-black finish and the included cosmetic trim ring that hides the mounting hardware for a professional, stealthy look.
Fine Tune Your Sound
Alpine’s patented High-Amplitude Multi-Roll (HAMR) Surround allows for a massive 12mm of linear excursion, enabling the small 8-inch cone to move a tremendous volume of air. This results in the "thump" usually reserved for much larger drivers. You can "fine-tune" the performance by choosing your enclosure: it performs exceptionally in a tiny 0.3 cu. ft. sealed box for tight, accurate kicks, or a 0.73 cu. ft. ported box for maximum SPL output.
Full Specs:
| Category | Specification |
| General | |
| Subwoofer Size | 8-Inch |
| Power Handling | 350W RMS / 1000W Peak |
| Impedance | Dual 2-Ohm |
| Frequency Response | 30Hz – 200Hz |
| Sensitivity (1W/1m) | 83.6 dB |
| Xmax (Linear Excursion) | 12 mm |
| Construction | |
| Cone Material | Kevlar Reinforced Pulp |
| Dust Cap | Polypropylene/Ceramic Composite |
| Surround | HAMR Santoprene Rubber |
| Magnet | Double-Stacked Ferrite (56 oz) |
| Installation | |
| Mounting Depth | 4.56 Inches |
| Cutout Diameter | 6.91 Inches |
| Recommended Sealed Box | 0.3 cu. ft. |
| Recommended Ported Box | 0.73 cu. ft. |
| Warranty Information | |
| Parts/Labor Warranty | 1 Year Limited |
Alpine R2-W8D2 R Series 8" 350W RMS (1000W Peak Power Handling) Dual 2 Ohms, Voice Coil Car Subwoofer
The Alpine R2-W8D2 8" R-Series subwoofer delivers deep, impactful bass with precise control and high power handling. Its dual 2-ohm voice coil configuration provides flexible wiring options, while the reinforced pulp cone and Santoprene surround ensure tight, punchy bass. The progressive spider and vented pole design enhance heat dissipation and reduce distortion, making it reliable for extended listening sessions. Compact and versatile, it works well in both sealed and ported enclosures.
Key Features
– 8-inch R-Series subwoofer
– Dual 2-ohm voice coils for flexible wiring
– Reinforced pulp cone with Santoprene surround
– High-excursion design for maximum cone movement
– Progressive spider and vented pole for heat dissipation and reduced distortion
– Compact size for easy installation
– Compatible with sealed or ported enclosures
What's Inside?
- (1) 8" R Series Car Subwoofer
- (2) 4.5" jumper wires (each wire has a single banana connector on both ends)
- Plastic trim ring
- Application guide (English/ French)
