Alpine R2-W8D4
R Series 8" subwoofer with dual 4-ohm voice coils
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?

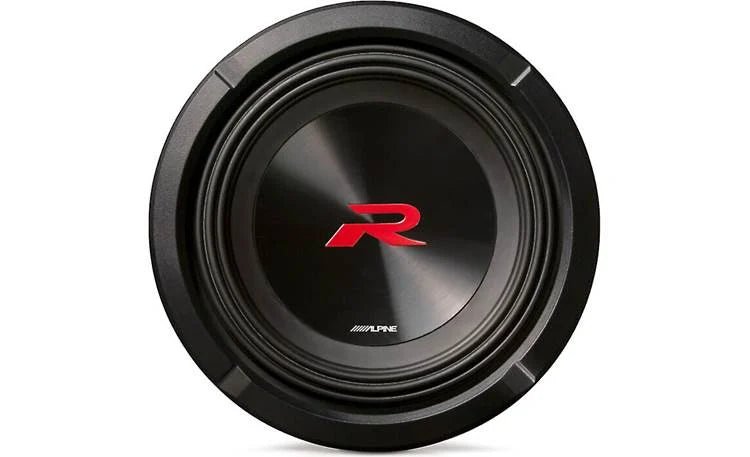

Alpine R2-W8D4 8-Inch R-Series Subwoofer
Product overview:
The Alpine R2-W8D4 is the Dual 4-Ohm version of Alpine's next-generation 8-inch R-Series subwoofer. It is engineered for audiophiles who need a versatile, high-output bass solution that fits into tight spaces. This 2nd-generation model features a larger, double-stacked motor structure that provides more magnetic force, resulting in deeper bass and tighter control compared to previous versions.
Features
Seamless Connectivity
The R2-W8D4 features Dual 4-Ohm Voice Coils, making it the perfect choice for systems where you want to wire a single sub to a 2-ohm load or a pair of subs to a 1-ohm or 4-ohm load. It includes Alpine’s convenient configuration jumpers, allowing you to change impedance easily at the terminals without complex wiring. The push-type terminals support heavy-gauge wire up to 8AWG for maximum signal transfer.
Safety & Convenience
To shield the high-excursion cone from damage, this subwoofer is equipped with the "EZ-Change" twist-lock grille mount system. This allows you to securely attach the optional KTE-8G grille without the need for additional mounting screws. The unit comes with a cosmetic trim ring that covers the mounting hardware, giving your enclosure a clean, finished appearance.
Enhanced Audio & Ambiance
This subwoofer is built with a Kevlar-reinforced pulp cone and a new polypropylene/ceramic composite dust cap. This combination provides the rigidity needed for intense bass while offering internal damping to absorb unwanted vibrations. The result is a smooth, accurate bass response that enhances the musical ambiance of your vehicle without the "muddiness" often found in smaller drivers.
Fine Tune Your Sound
Featuring Alpine’s patented High-Amplitude Multi-Roll (HAMR) Surround, the R2-W8D4 achieves an impressive 12mm of linear excursion (X-max). This allows the 8-inch driver to "punch above its weight class" by moving a significant volume of air. You can fine-tune the output by choosing the right box: use a 0.3 cu. ft. sealed enclosure for tight, punchy detail, or a 0.73 cu. ft. ported enclosure for maximum low-end roar.
Full Specs:
| Category | Specification |
| General | |
| Subwoofer Size | 8-Inch |
| Power Handling | 350W RMS / 1000W Peak |
| Impedance | Dual 4-Ohm |
| Frequency Response | 30Hz – 200Hz |
| Sensitivity (1W/1m) | 83.5 dB |
| X-max (Linear Excursion) | 12 mm |
| Construction | |
| Cone Material | Kevlar Reinforced Pulp |
| Dust Cap | Polypropylene/Ceramic Composite |
| Surround | HAMR Santoprene Rubber |
| Magnet Weight | 56 oz (Double-Stacked) |
| Installation | |
| Mounting Depth | 4-3/8” (118mm) |
| Cutout Size | 6-15/16” (176mm) |
| Terminals | Push-Type (up to 8AWG) |
| Warranty Information | |
| Parts/Labor Warranty | 1 Year Limited |
Alpine R2-W8D4 R Series 8" 350W RMS (1000W Peak Power Handling) Dual 4 Ohms, Voice Coil Car Subwoofer
The Alpine R2-W8D4 8" R-Series subwoofer delivers hard-hitting, accurate bass with exceptional reliability. Its Kevlar-treated cone and High Amplitude Multi-Roll (HAMR) surround provide durability and maximum cone excursion, while the dual 4-ohm voice coils offer flexible wiring options. Powered at 350W RMS (1000W peak) with a frequency response of 30–200 Hz and 83.7 dB sensitivity, it produces deep, controlled bass, making it ideal for high-volume car audio applications.
Key Features
– 8-inch R-Series subwoofer
– Dual 4-ohm voice coils for versatile wiring
– Kevlar-treated cone with HAMR surround for durability and excursion
– 350W RMS / 1000W peak power handling
– Frequency response: 30–200 Hz
– Sensitivity: 83.7 dB
– Massive double-stacked magnet motor for solid low-frequency control
– Compact design for easy installation
What's Inside?
- (1) 8" Dual 4-ohm voice coil subwoofer
- (2) 4.5" jumper wires (each wire has a single banana connector on both ends)
- Plastic trim ring
- Application guide (English/ French)
