Alpine RS-SB10
R-Series sealed enclosure with 10" 2-ohm shallow-mount subwoofer
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?
Alpine RS-SB10 10-Inch R-Series Shallow Preloaded Subwoofer Enclosure
Product overview:

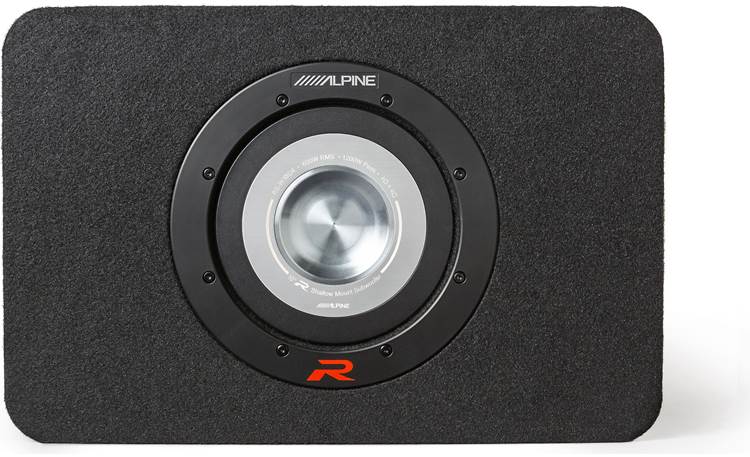

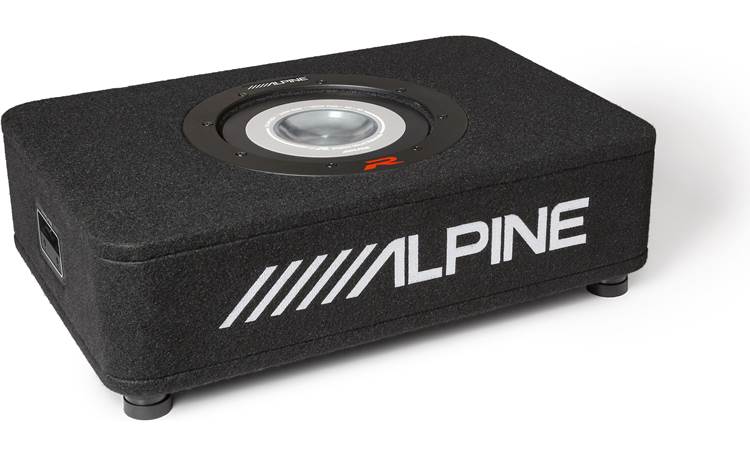

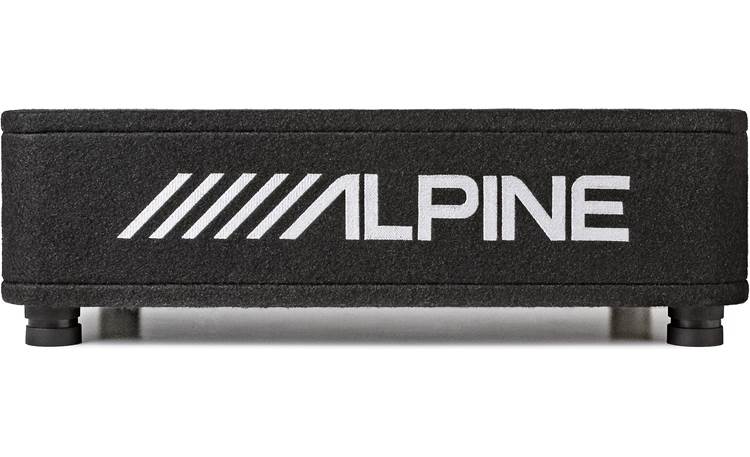

The Alpine RS-SB10 is a high-performance, ultra-shallow sealed enclosure designed to deliver the legendary punch of the R-Series in vehicles with strictly limited space. At only 5.25 inches deep, this compact powerhouse houses a pre-installed RS-W10D4 shallow subwoofer. It is the perfect "no-compromise" solution for truck owners or anyone needing to fit premium bass behind a seat or in a small cargo area without sacrificing utility.
Features
Seamless Connectivity
The RS-SB10 is engineered for immediate, high-efficiency output. The internal 10-inch subwoofer features dual 4-ohm voice coils that are pre-wired in parallel, presenting a 2-ohm nominal load at the recessed terminal cup. This configuration is an optimal power match for Alpine’s mono amplifiers, such as the S2-A60M or R2-A75M, ensuring you get the full 600W RMS of performance right out of the box.
Safety & Convenience

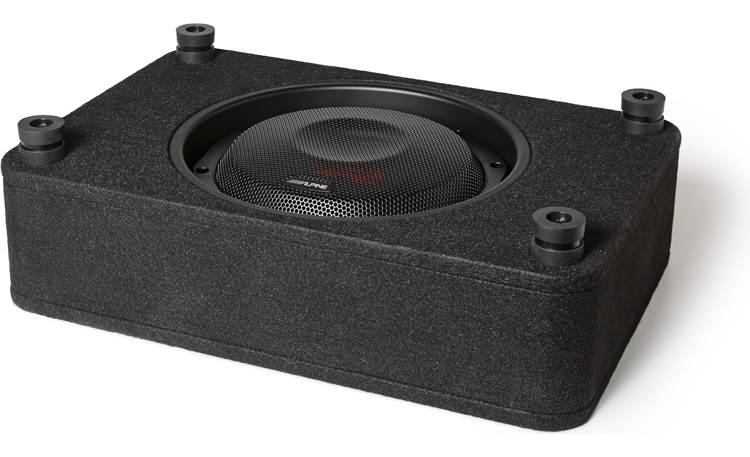

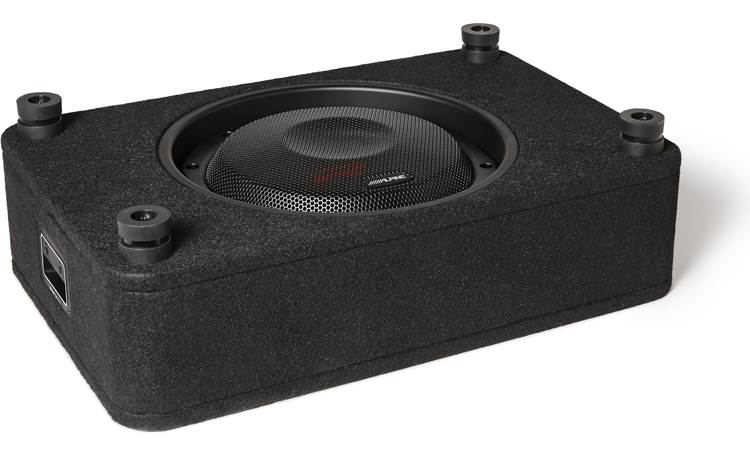

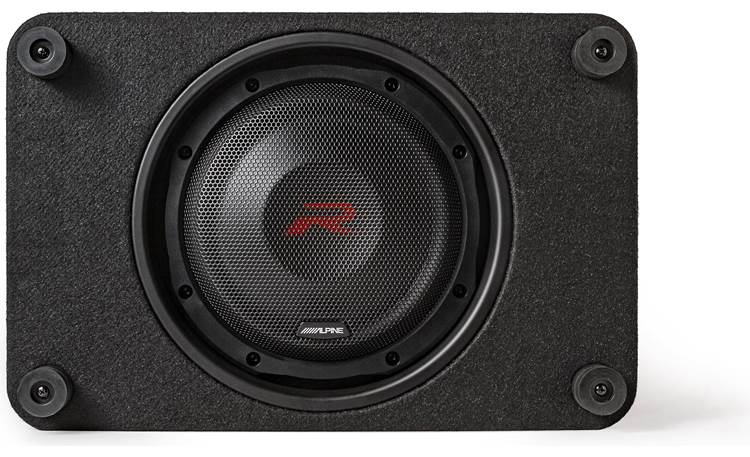

Built from rugged 3/4" MDF and wrapped in premium black carpet, this enclosure is as durable as it is sleek. It includes adjustable, stackable rubber feet and spacers, allowing you to set up the box in an up-firing or down-firing configuration to navigate uneven floors or maximize bass loading against the vehicle's cabin. A pre-installed steel mesh grille ensures the subwoofer remains protected from shifting cargo at all times.
Enhanced Audio & Ambiance
Don't let the slim profile fool you; the RS-SB10 features the same 20mm of 1-way excursion as full-sized R-Series subwoofers. It utilizes Alpine’s Gen2 DD-Linear Magnetic Circuit and a powerful neodymium magnet to maintain precise control and lower distortion. The rigid aluminum dust cap provides a high-tech visual ambiance and ensures a hard-hitting, smooth bass response across its 29Hz–200Hz range.
Fine Tune Your Sound
To handle sustained high-volume play, the enclosure incorporates integrated cooling fins and Alpine’s CoolMount™ Dual-panel motor mount. These technologies efficiently dissipate heat, allowing you to "fine-tune" your audio experience for hours of uninterrupted playtime. For those who want to expand their system, the enclosure is also compatible with the ProLink™ linking system, allowing you to join two units together for a massive dual-sub setup.
Full Specs:
| Category | Specification |
| General | |
| Subwoofer Size | 10" Shallow-Mount (RS-W10D4) |
| Enclosure Type | Sealed (3/4" MDF) |
| Power Handling | 600W RMS / 1800W Peak |
| Impedance | 2-Ohm (Final) |
| Frequency Response | 29Hz – 200Hz |
| Sensitivity | 78 dB (1W/1m) |
| X-Max | 20mm (1-way) |
| Physical Specs | |
| Dimensions | 21.15" W x 5.25" H x 16" D |
| Weight | Approx. 33 lbs |
| Terminals | Recessed Spring Posts |
| Mounting Style | Up-firing or Down-firing |
| What's in the Box | |
| Enclosure | (1) Loaded Sealed Cabinet |
| Hardware | 8 Rubber Feet, 4 Spacers, Mounting Screws |
| Protection | Pre-installed Steel Mesh Grille |
| Warranty Information | |
| Parts/Labor Warranty | 1 Year Limited |
