Alpine S2-SB10 10-Inch PrismaLink S-Series Subwoofer Enclosure
Product Overview:

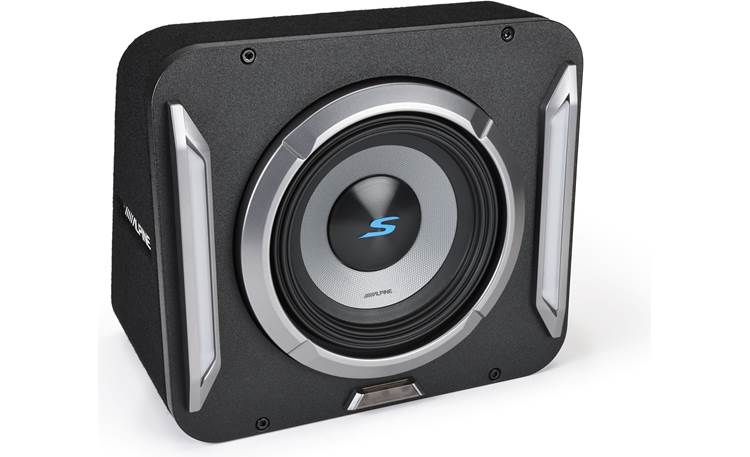

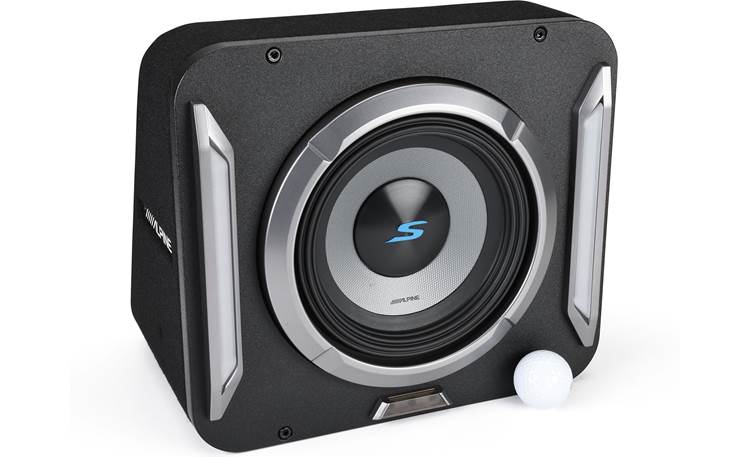

The Alpine S2-SB10 is a next-generation 10-inch preloaded subwoofer enclosure that introduces the PrismaLink™ system, combining high-performance bass with integrated RGBW lighting. This sealed wedge enclosure is designed to fit comfortably in a variety of vehicle types while providing a modern, customizable aesthetic. It comes preloaded with an S2-W10D4 driver, specifically engineered to deliver a punchy and accurate low-end response.
Features
Integrated RGBW Lighting

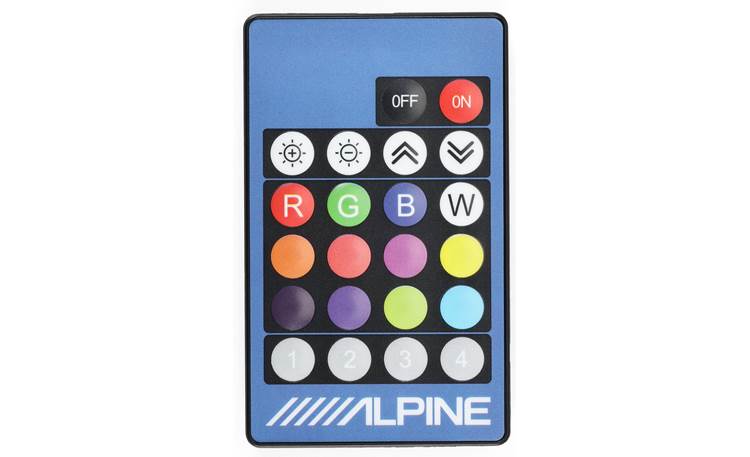

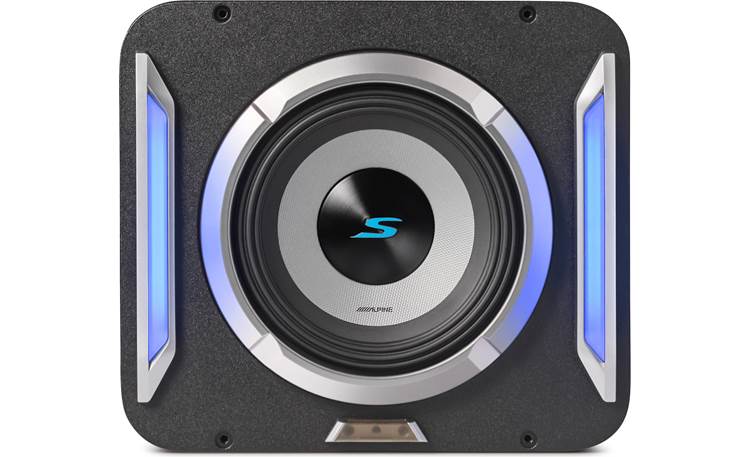

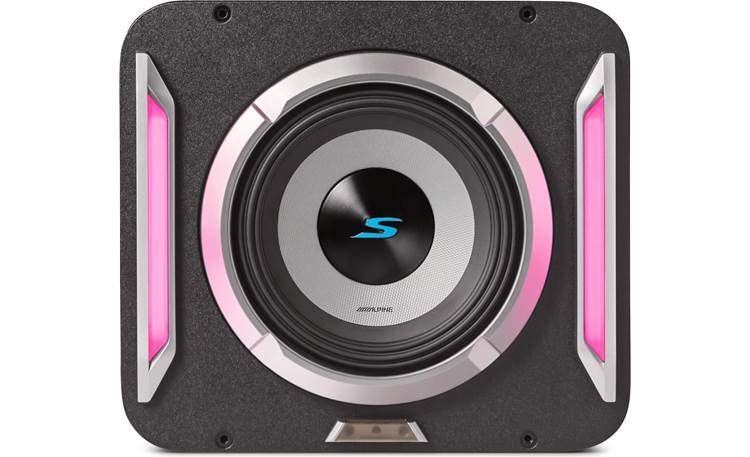

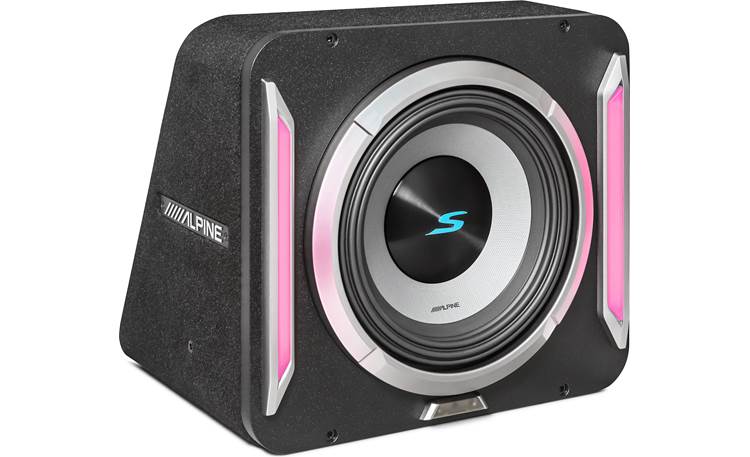

The standout feature of the S2-SB10 is its built-in lighting system. Two RGBW trim bars run along the front of the enclosure, offering 12 static colors and 4 dynamic modes. These can be controlled via the included IR remote or directly through the touchscreen interface of an Alpine iLX-W670 receiver (sold separately) using the Lighting Link feature.
PrismaLink™ Multi-Link Capability
For users wanting more impact, the PrismaLink™ design allows you to daisy-chain multiple enclosures together. Using the optional KTX-LK10 linking kit, you can physically and electronically connect two or more S2-SB10 units. This creates a unified visual and audio display, with the lighting synchronized across all linked enclosures.
Advanced S-Series Performance
The internal driver features Alpine’s High-Amplitude Multi-Roll (HAMR) surround, which allows for extreme excursion while maintaining precise control. The cone is constructed from a carbon fiber and polypropylene blend, making it both lightweight and rigid for fast, accurate transients. With a power handling of 600W RMS, this system is built to provide significant "thump" without distorting at higher volumes.
Rugged Wedge Design

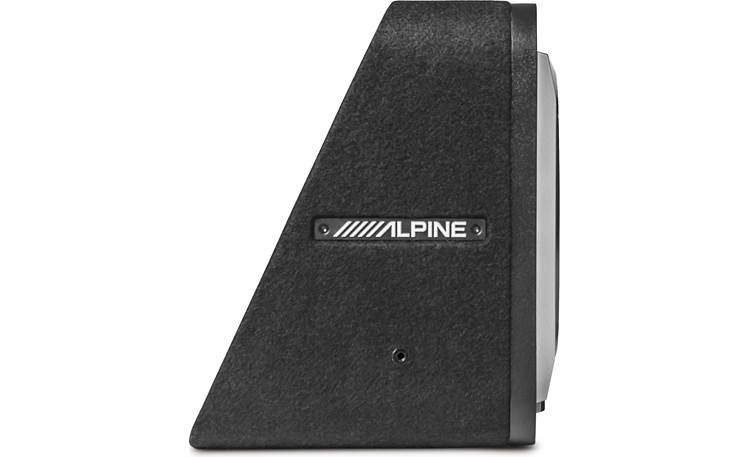

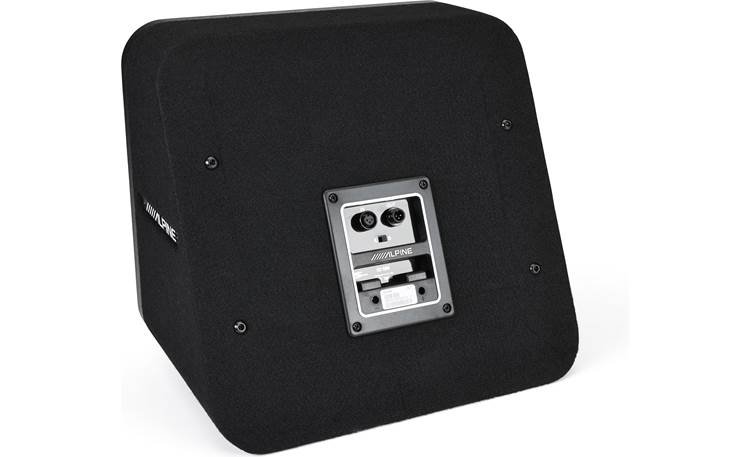

The enclosure is built from 3/4" MDF and wrapped in premium black carpet, ensuring it can withstand the vibrations of high-output bass. Its sealed wedge shape is optimized for tight, accurate bass reproduction and easy placement against the back of vehicle seats. The terminal cup features spring posts that are pre-wired in parallel to present a simple 2-ohm load to your amplifier.
Full Specs:
| Category | Specification |
| General | |
| Subwoofer Size | 10-Inch |
| Enclosure Type | Sealed Wedge |
| Power Handling | 600W RMS / 1800W Peak |
| Nominal Impedance | 2-Ohm (Final) |
| Frequency Response | 25Hz – 215Hz |
| Sensitivity | 85 dB |
| Lighting | |
| Lighting Type | Integrated RGBW Trim Bars |
| Control | IR Remote (Included) or iLX-W670 |
| Lighting Modes | 12 Static, 4 Dynamic |
| Construction | |
| Cone Material | Carbon Fiber / Polypropylene |
| Surround | HAMR Rubber |
| Dimensions | 14.5” W x 13” H x 11.25” D |
| Weight | Approx. 22.5 lbs |
| Expansion | |
| Linking Kit | KTX-LK10 (Optional) |
| Optional Grille | KTE-10G.3 |
