Alpine S2-SB12V
Halo Series 12" linkable ported subwoofer enclosure
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?

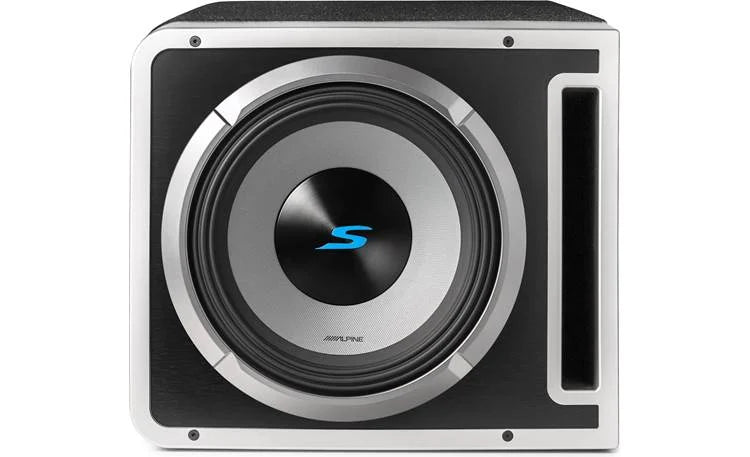

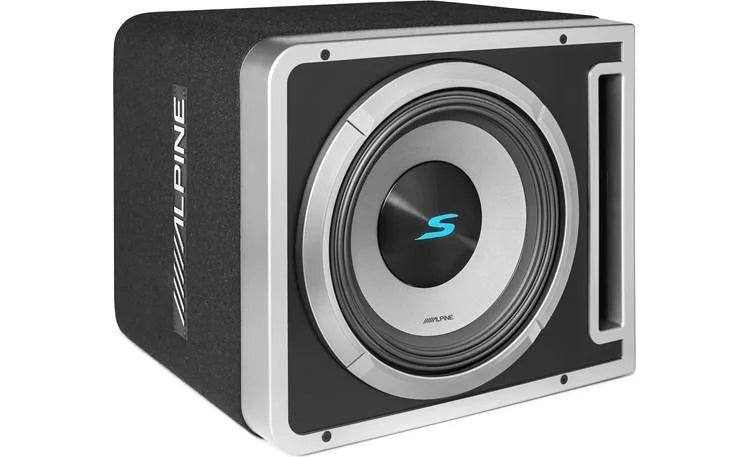

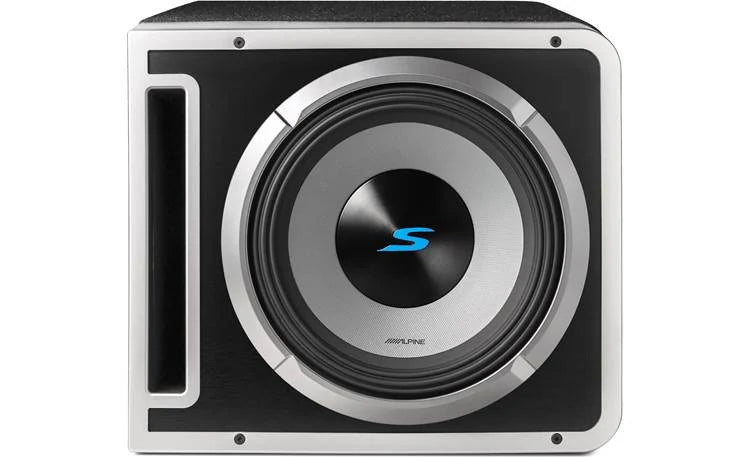

Alpine S2-SB12V 12-Inch S-Series Halo Ported Enclosure
Product Overview:
The Alpine S2-SB12V is a preloaded ported subwoofer enclosure that draws visual inspiration from the Alpine Halo display series. It features distinctive curved edges, a sleek silver trim, and a brushed aluminum-finished metallic front baffle for a high-end, custom look. This enclosure is specifically engineered to maximize the performance of the next-generation S-Series subwoofer, delivering deep, high-output bass with a professional aesthetic.
Features
Double Your Bass with ProLink™

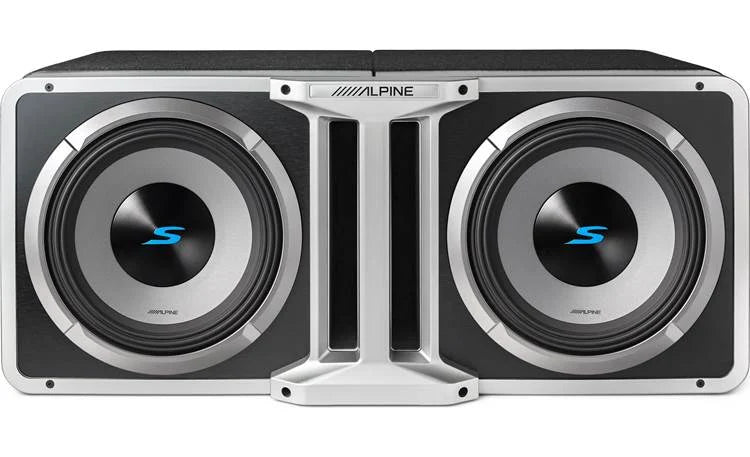

The standout feature of the S2-SB12V is its ProLink™ technology. This unique design allows you to physically and electronically link two of these enclosures together using the optional KTX-H12 linking kit (sold separately). This setup transforms two single boxes into a sturdy, dual-subwoofer system with a unified appearance, effectively doubling your bass impact.
Optimized Ported Performance
Designed for maximum output, the enclosure features a ported (vented) design tuned specifically to 35Hz (or 36Hz depending on the specific tuning variant). The port is engineered with rounded internal edges to reduce air turbulence, resulting in deeper, more reliable bass response that enhances the richness of your music compared to standard sealed boxes.
Next-Gen S-Series Driver
Inside the enclosure is the S2-W12D4 12-inch subwoofer. It uses a Kevlar-reinforced pulp cone (or a carbon fiber/polypropylene blend in some variants) paired with Alpine’s High-Amplitude Multi-Roll (HAMR) surround. This construction allows for 15mm of linear excursion, enabling the sub to handle a constant 600W RMS while maintaining low distortion and high precision.
Rugged Halo Construction

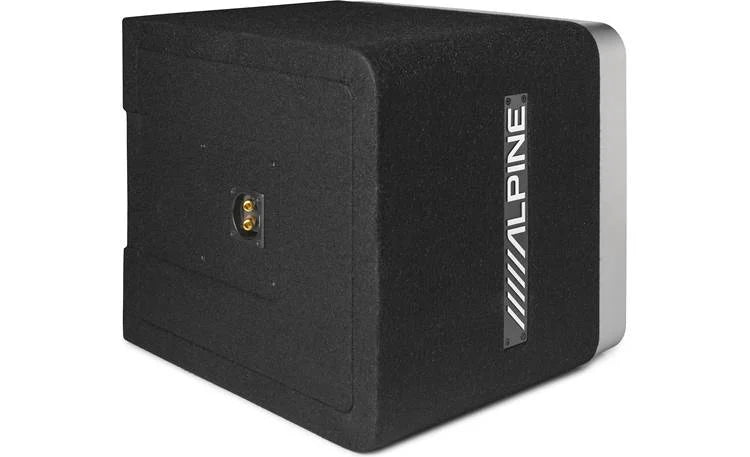

The cabinet is built from high-quality 3/4" MDF and wrapped in premium black carpet with a silver embossed Alpine logo. It is designed to be a "plug-and-play" solution, with its dual 4-ohm voice coils pre-wired in parallel to a single 2-ohm load. The enclosure features heavy-duty binding post terminals that provide a secure connection for high-current power delivery.
Full Specs:
| Category | Specification |
| General | |
| Subwoofer Size | 12-Inch |
| Enclosure Type | Ported / Vented |
| Power Handling | 600W RMS / 1800W Peak |
| Nominal Impedance | 2-Ohm (Final) |
| Frequency Response | 23Hz – 215Hz |
| Sensitivity (1W/1M) | 86.2 dB |
| Construction | |
| Enclosure Material | 3/4" MDF |
| Finish | Black Carpet / Metallic Front Baffle |
| Subwoofer Model | S2-W12D4 |
| Surround Type | HAMR Rubber |
| Dimensions | |
| Width | 17" |
| Height | 14.625" |
| Depth | 15" |
| Weight | Approx. 33 - 53 lbs (depending on configuration) |
| Expansion | |
| Linking Kit | KTX-H12 (Optional) |
| Optional Grille | Twist-Lock System (KTE-12G.3) |
