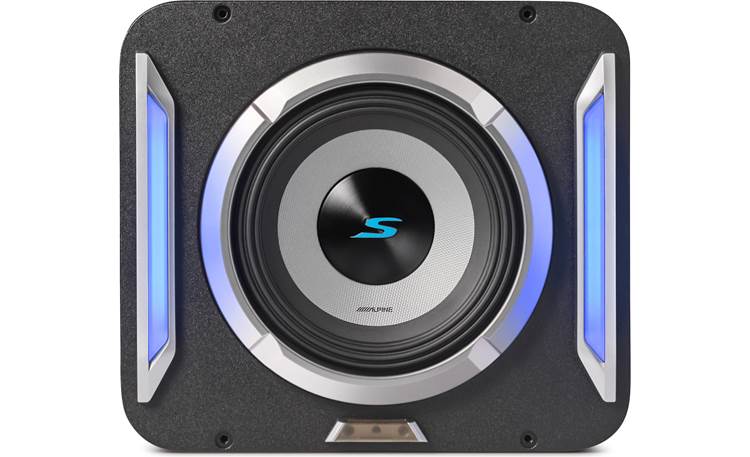

Alpine S2-SB8
PrismaLink S2-Series sealed subwoofer enclosure with 8" subwoofer and RGB lighting
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?
Alpine S2-SB8 8-Inch PrismaLink S-Series Subwoofer Enclosure
Product Overview:

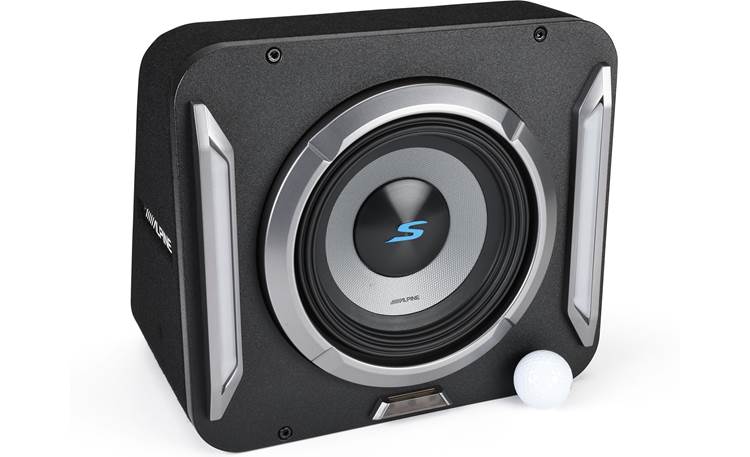

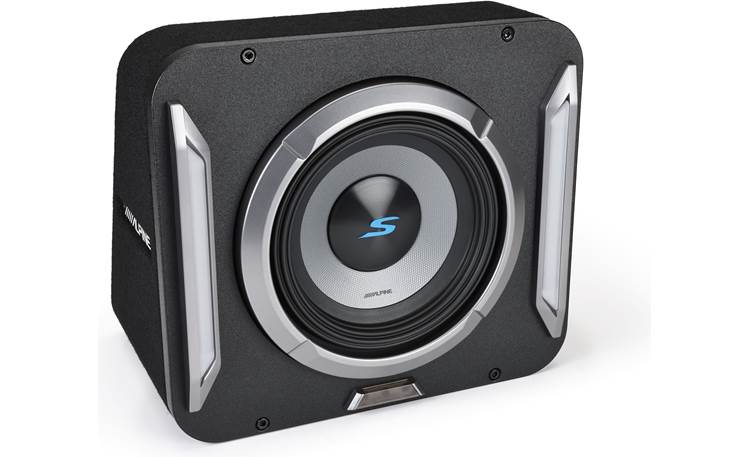

The Alpine S2-SB8 is a compact 8-inch preloaded subwoofer enclosure that introduces the PrismaLink™ system, blending high-performance bass with customizable RGBW lighting. Despite its smaller size, this sealed wedge enclosure is engineered to deliver punchy and accurate low-end response, making it an excellent solution for vehicles where space is at a premium.
Features
Integrated RGBW Lighting

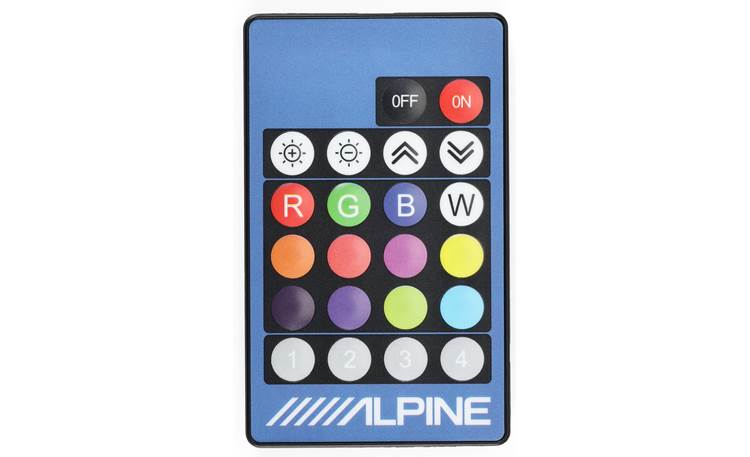

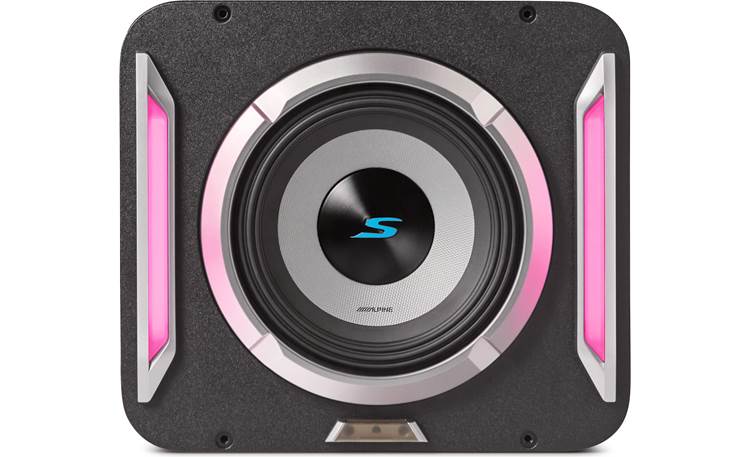

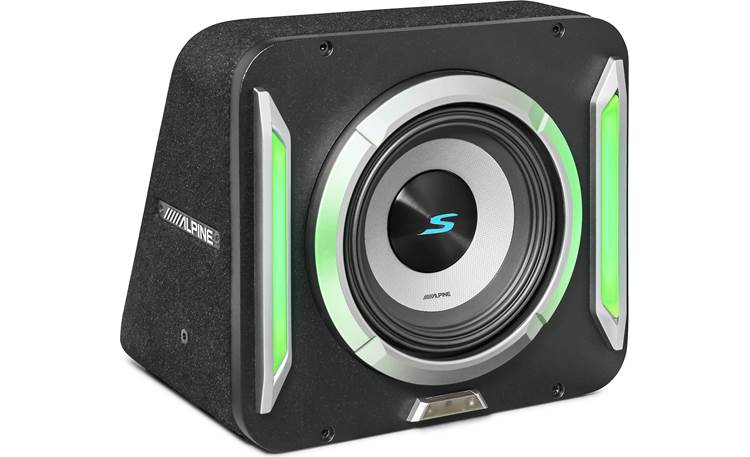

The S2-SB8 stands out with its built-in RGBW lighting bars integrated into the enclosure trim. You can choose from 12 static colors and 4 dynamic modes using the included IR remote. For advanced control, the lighting can be managed directly through the touchscreen of an Alpine iLX-W670 receiver (sold separately), allowing you to sync your audio and visual ambiance.
PrismaLink™ Multi-Link Capability
Designed for expandability, the S2-SB8 is multi-link capable. Using the optional KTX-LK8 linking bracket, you can physically connect two or more 8-inch enclosures together. This creates a unified, high-output subwoofer system with synchronized lighting that looks as professional as it sounds.
Next-Gen S-Series Performance
Inside the enclosure is the S2-W8D4 subwoofer, which features a carbon fiber and polypropylene blend cone. This material is both lightweight and rigid, allowing for high output with minimal distortion. Combined with Alpine’s High-Amplitude Multi-Roll (HAMR) surround, the driver achieves 13mm of linear excursion, providing an enhanced "punch" that is rare for an 8-inch driver.
Rugged and Versatile Design

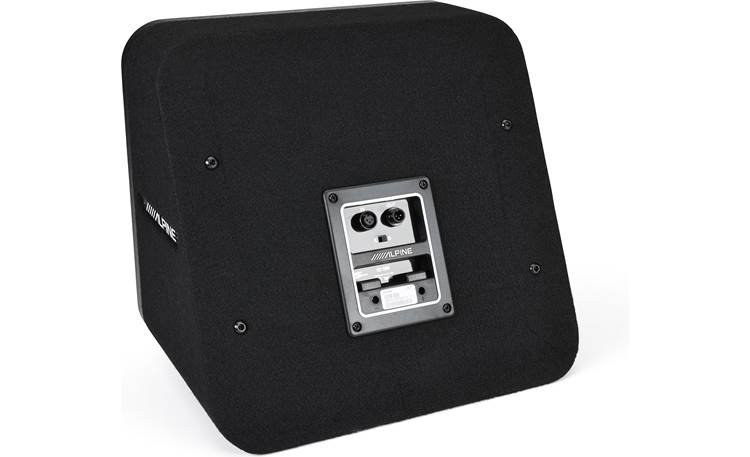

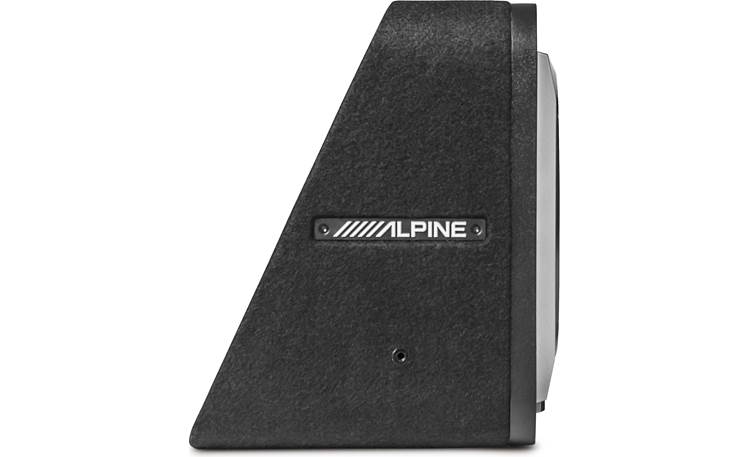

The cabinet is constructed from 3/4" MDF and wrapped in premium black carpet to withstand the rigors of vehicle life. Its sealed wedge shape is optimized for tight, accurate bass reproduction and fits easily behind or under seats. The dual 4-ohm voice coils are pre-wired in parallel to a single terminal cup, presenting a 2-ohm final load for easy connection to your amplifier.
Full Specs:
| Category | Specification |
| General | |
| Subwoofer Size | 8-Inch |
| Power Handling | 300W RMS / 900W Peak |
| Nominal Impedance | 2-Ohm (Final) |
| Frequency Response | 35Hz – 215Hz |
| Sensitivity | 83 dB |
| Lighting | |
| Lighting Type | Integrated RGBW Trim Bars |
| Control | IR Remote (Included) or iLX-W670 |
| Lighting Modes | 12 Static, 4 Dynamic |
| Construction | |
| Enclosure Type | Sealed Wedge (3/4" MDF) |
| Cone Material | Carbon Fiber / Polypropylene |
| X-Max (1-Way) | 13mm |
| Dimensions | 12.5” W x 11” H x 9.25” D |
| Expansion | |
| Linking Kit | KTX-LK8 (Optional) |
| Optional Grille | KTE-8G.3 |
