Alpine S2-W8D2 8-Inch S-Series Subwoofer
Product Overview:
The Alpine S2-W8D2 is the redesigned, next-generation 8-inch S-Series subwoofer. It is built to deliver Hi-Res Audio performance, providing powerful and accurate bass even in compact spaces. Featuring Dual 2-Ohm Voice Coils, this driver offers flexible wiring options, making it a perfect fit for smaller custom enclosures or under-seat installations.
Key Features

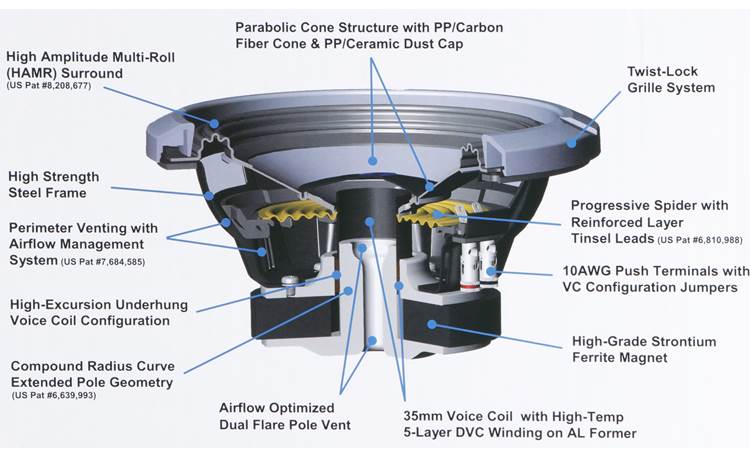

Enhanced Punch & Reliability
The S2-W8D2 utilizes a cone constructed from a carbon fiber and polypropylene blend. This material choice ensures the woofer is lightweight and rigid, which minimizes distortion and provides a deep, rich "punch" that enhances the overall depth of your music. A polypropylene and ceramic dust cap adds further structural integrity for long-term reliability.
High-Amplitude Multi-Roll (HAMR) Surround
This subwoofer features Alpine’s proprietary HAMR rubber surround technology. This multi-roll design allows the cone to move a significant amount of air while remaining cool and stable during intense playback. It supports 13mm of one-way linear excursion, delivering a level of accuracy and impact that is highly impressive for an 8-inch driver.
Flexible Installation
Equipped with Dual Voice Coils (DVC) and included configuration jumpers, the S2-W8D2 makes wiring simple. You can easily configure the sub for a 1-ohm or 4-ohm load to match your amplifier's output. It also features a twist-lock grille mounting system, allowing for the easy addition of an optional protective grille without the need for extra mounting screws.
Superior Power Management
The motor structure includes high-grade strontium ferrite magnets and a 1.4-inch high-temperature voice coil. These components allow the sub to handle 300W RMS consistently. For the best performance, it is a perfect power match for the Alpine S2-A60M mono amplifier, which can effortlessly power one or two of these 8-inch subwoofers.
Technical Specifications
| Category | Specification |
| General | |
| Subwoofer Size | 8-Inch |
| Power Handling | 300W RMS / 900W Peak |
| Nominal Impedance | Dual 2-Ohm |
| Frequency Response | 23Hz – 215Hz |
| Sensitivity (1W/1M) | 82.6 dB |
| X-Max (1-Way) | 13 mm |
| Construction | |
| Cone Material | Carbon Fiber / Polypropylene |
| Dust Cap | Polypropylene / Ceramic |
| Magnet Weight | 34 oz |
| Voice Coil Size | 1.4" |
| Installation | |
| Mounting Depth | 3-3/4" |
| Cutout Diameter | 6-15/16" |
| Terminals | Push-Type (Up to 8AWG) |
| Grille System | Twist-Lock (Grille sold separately) |
| Warranty | |
| Parts/Labor | 1 Year Limited |
Alpine S2-W8D2 S-Series 8" 300W RMS (900 Peak Power Handling) Dual 2 Ohm Voice Coils Subwoofe
Alpine’s S-Series S-W8D2 8" subwoofer delivers deep, punchy bass with precision in a compact design, making it ideal for tight installation spaces. Its Kevlar®-reinforced cone stays rigid under pressure, while the rubber High Amplitude Multi-Roll (HAMR) surround allows maximum cone excursion. Dual 2-ohm voice coils provide versatile wiring options, and it performs exceptionally in both sealed and ported enclosures, handling up to 300 watts RMS with ease.
Key Features
– 8-inch high-performance S-Series subwoofer
– Dual 2-ohm voice coils for wiring flexibility
– Kevlar® treated cone for durability and rigidity
– HAMR surround for maximum cone excursion
– Handles up to 300 watts RMS power
– Suitable for sealed or ported enclosures
– Compact, shallow design for tight installations
What's Inside?
- (1) 8" Dual 2-ohm voice coil subwoofer
- (1) Rubber concealing ring (installed)

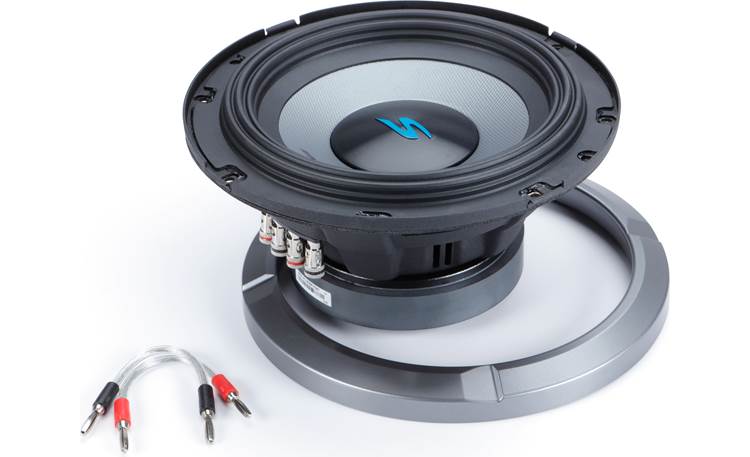

- (2) 3" jumper cables (each has a single banana connector on each end)
- Subwoofer Application Guide (English/ French)
