Alpine S2-W8D4
S-Series 8" subwoofer with dual 4-ohm voice coils
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?

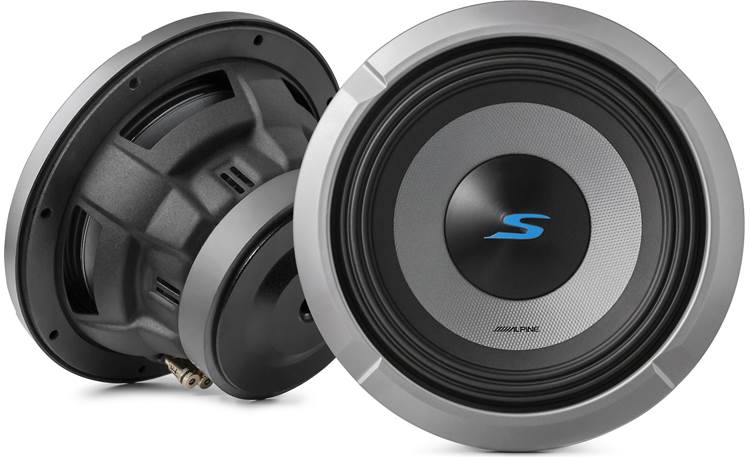

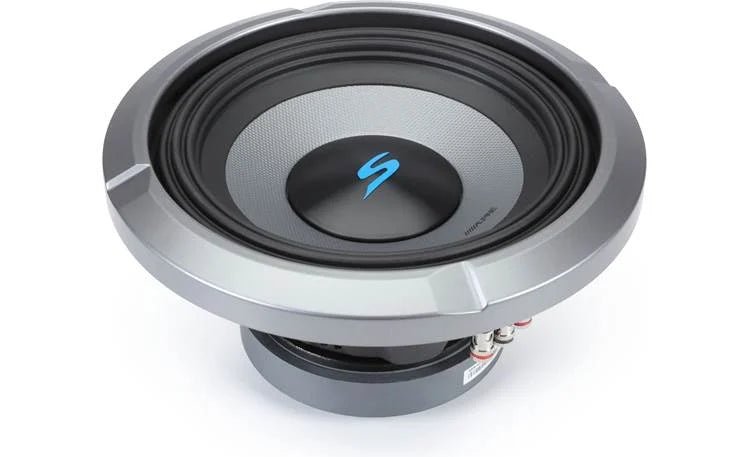

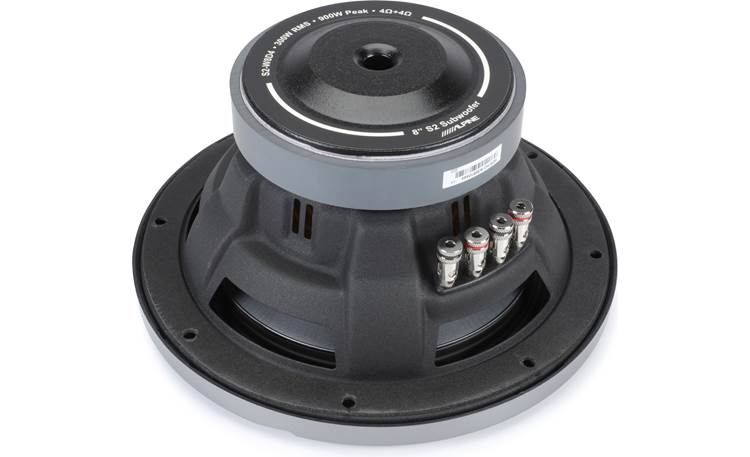

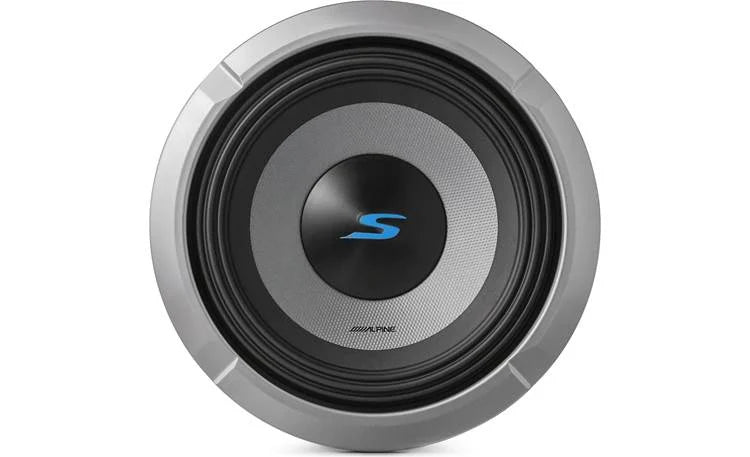

Alpine S2-W8D4 8-Inch S-Series Subwoofer
Product Overview:
The Alpine S2-W8D4 is a redesigned, next-generation 8-inch subwoofer that brings high-end technology to a budget-friendly price point. It is specifically engineered to provide noticeable audio upgrades in vehicles where space is limited, such as hatchbacks or under-seat installations. With Dual 4-Ohm Voice Coils, this driver offers flexible wiring configurations for easy integration into various amplifier setups.
Key Features
Advanced Material Construction
The S2-W8D4 features a cone built from a lightweight yet rigid carbon fiber and polypropylene blend. This material ensures fast response and deep, low-distortion bass. To ensure long-term reliability, it includes a polypropylene and ceramic dust cap that maintains structural integrity even under high-power demands.
HAMR Surround Technology
Equipped with Alpine's proprietary High-Amplitude Multi-Roll (HAMR) rubber surround, this 8-inch driver can move a significant amount of air while staying cool and stable. This design allows for 13mm of one-way linear excursion, delivering a punchy and accurate performance that rivals larger subwoofers.
Simplified Wiring with Pro Jumpers

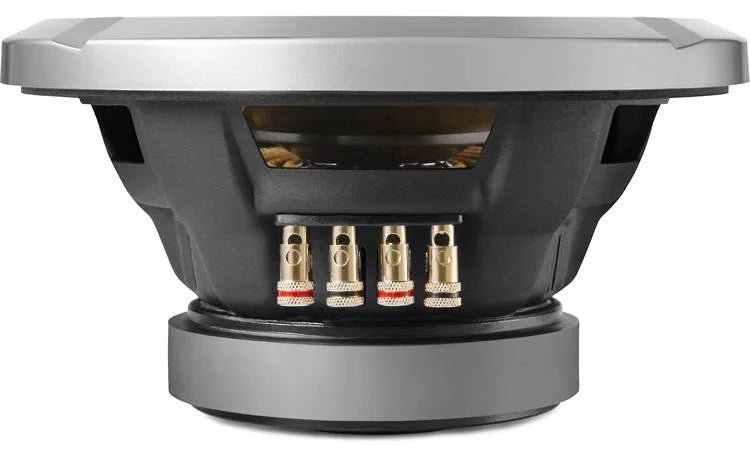

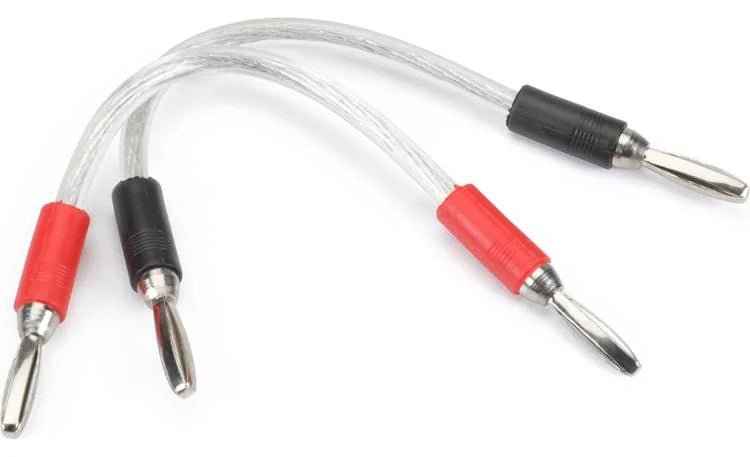

The dual 4-ohm voice coil design includes pre-installed configuration jumpers, allowing customers to easily switch between a 2-ohm (parallel) or 8-ohm (series) load. This feature simplifies the installation process and ensures the subwoofer can be perfectly matched to the output of a mono amplifier.
Versatile Mounting & Protection
Designed for shallow-depth applications, the S2-W8D4 has a top-mount depth of only 3-3/4 inches. It also features a unique twist-lock grille mounting system, allowing customers to add an optional protective grille without the need for extra screws, maintaining a sleek and professional appearance.
Technical Specifications
| Category | Specification |
| Performance | |
| Subwoofer Size | 8-Inch |
| Power Handling | 300W RMS / 900W Peak |
| Nominal Impedance | Dual 4-Ohm |
| Frequency Response | 23Hz – 215Hz |
| Sensitivity (1W/1m) | 82.7 dB |
| X-Max (1-Way) | 13 mm |
| Dimensions | |
| Mounting Depth | 3-3/4" |
| Cutout Diameter | 6-15/16" |
| Magnet Weight | 34 oz |
| Voice Coil Diameter | 1.4" |
| Enclosure Recs | |
| Ideal Sealed Box | 0.30 cubic feet |
| Ideal Ported Box | 0.61 cubic feet |
| Tuning Frequency | 35Hz (Ported) |
