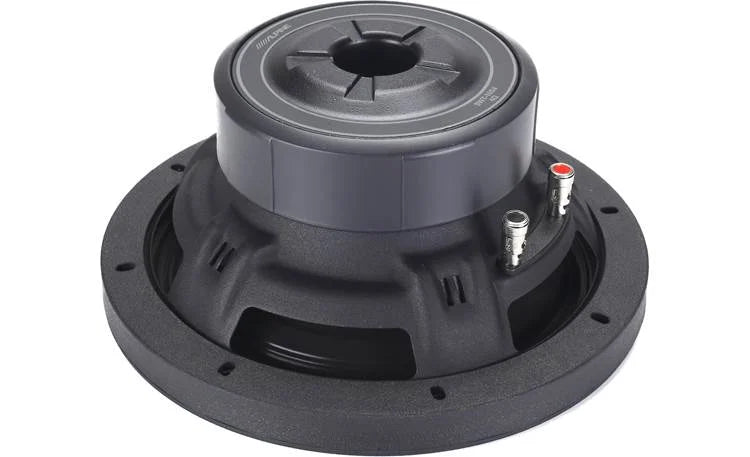

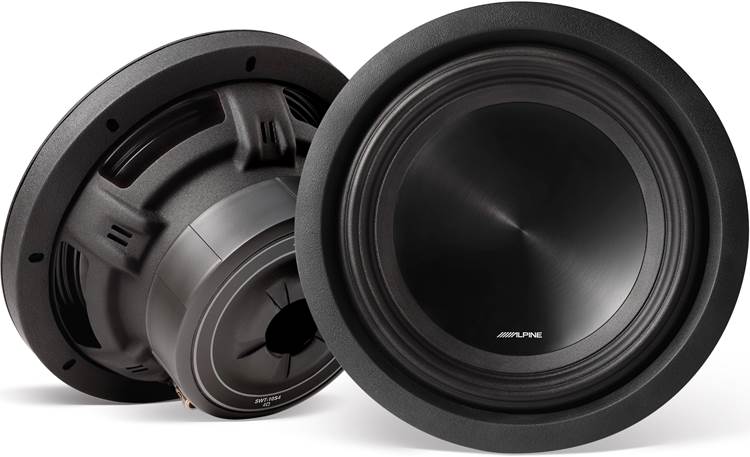

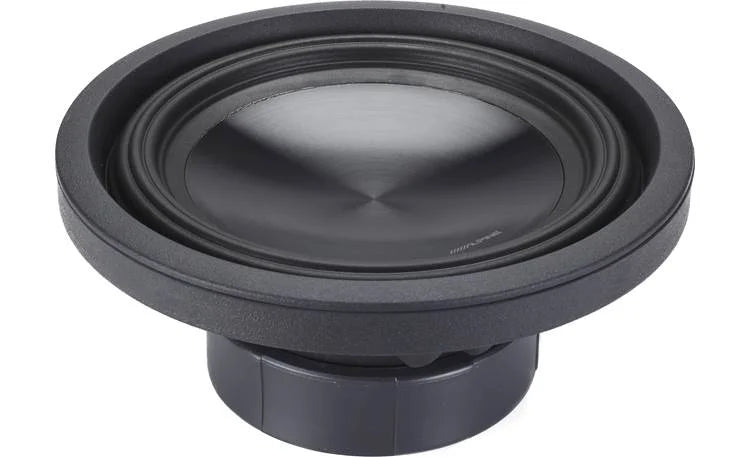

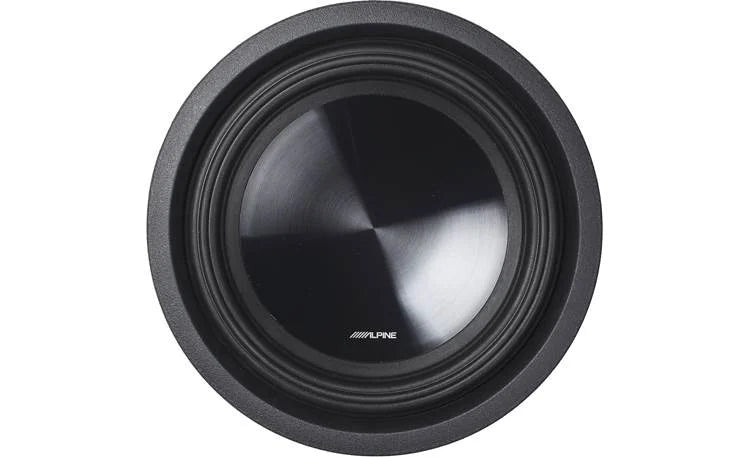

Alpine SWT-10S4 10-Inch Truck Subwoofer (4Ω)
Product Overview:
The SWT-10S4 is a specialized 10-inch subwoofer specifically engineered to deliver high-output bass in the restricted cabin spaces of pickup trucks. Designed to fit where traditional subwoofers cannot, it combines a shallow mounting profile with the heavy-hitting performance characteristics of Alpine's legendary R-Series. This driver is optimized for extremely small enclosures, making it the ideal choice for behind-the-seat or under-seat installations.
Key Features
Optimized for Tight Spaces
The SWT-10S4 features an ultra-shallow mounting depth of just 4-1/8 inches. This design allows truck owners to build or buy compact enclosures that fit into narrow crevices without sacrificing the deep bass performance expected from a full-sized 10-inch driver. It is specifically vented and tuned to perform at its peak in these smaller air volumes.
Extreme Output and Excursion
Equipped with Alpine’s High-Amplitude Multi-Roll (HAMR) Surround, this subwoofer achieves a remarkable 11mm of linear excursion. This allows the cone to move a massive amount of air while maintaining total control and symmetry. The result is "best-in-class" bass output and high SPL levels that typically require much deeper, larger speaker cabinets.
Advanced Thermal Management
To handle up to 350W RMS in a cramped environment, the SWT-10S4 utilizes a Radial Vented Voice Coil Heat Sink and an Airflow Management System. This technology actively forces air across the internal components to dissipate heat, ensuring the subwoofer remains cool and reliable even during extended, high-volume listening sessions.
Low Distortion Engineering
The motor structure is FEA-Optimized (Finite Element Analysis) to create a perfectly symmetrical magnetic field. This precision engineering greatly reduces harmonic distortion and improves power handling, ensuring that your bass sounds clean, accurate, and physical rather than "muddy" or strained.
Technical Specifications
| Category | Specification |
| Performance | |
| Subwoofer Size | 10-Inch |
| Power Handling | 350W RMS / 1000W Peak |
| Nominal Impedance | 4-Ohm (Single Voice Coil) |
| Frequency Response | 30Hz – 200Hz |
| Linear Excursion (Xmax) | 11 mm |
| Construction | |
| Cone Material | Poly-Mica Dust Cap & Pulp-Kevlar |
| Surround Material | Polyurethane Foam (HAMR Design) |
| Voice Coil | 65mm High-Temp 4-Layer |
| Frame Material | High Strength Steel |
| Installation | |
| Mounting Depth | 4-3/16" (105.5mm) |
| Mounting Diameter | 8-15/16" (227mm) |
| Terminal Type | 8AWG Push Terminals |
| Gasket | Concealed Mount (Grille Ready) |
Alpine SWT-10S4 SWT Series 10" 350W RMS (1000W Peak Power Handling) 4 Ohm, Single Voice Coil Shallow Mount Truck Subwoofer
The Alpine SWT-10S4 is a compact 10-inch shallow-mount truck subwoofer engineered to deliver deep, powerful, and accurate bass in tight installation spaces. With its rugged construction and space-saving design, it’s perfect for enhancing low-end performance without sacrificing interior or cargo room. Delivering 350W RMS and up to 1000W peak power, this subwoofer produces strong, dynamic bass that remains clean even at high output levels. Its high-excursion cone and large roll surround allow for greater cone movement, resulting in louder and more precise bass. A vented motor structure helps control heat buildup, ensuring long-lasting, consistent performance during extended listening sessions.
Key Features
-10" shallow-mount subwoofer ideal for trucks and limited-space installations
-350W RMS / 1000W peak power handling for strong bass output
-Single 4-ohm voice coil for flexible amplifier matching
-High-excursion cone for accurate, distortion-free low-frequency performance
-Large roll surround for improved cone movement and deeper bass
-Durable and lightweight cone construction for long-lasting reliability
-Vented motor structure for better cooling and consistent performance
-Thin-mount design fits easily into compact enclosures and tight spaces
What's Inside?
- 10" Thin-mount subwoofer (No Grille)
- Rubber trim-ring (installed)
- Application Guide
- On-line product registration information (English/ French/ Spanish)
