Pioneer DMH-1770NEX
6.8" Touchscreen Media Receiver with Wired Apple Carplay & Android Auto
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?
The Pioneer DMH-1770NEX is a high-performance digital multimedia receiver designed to bring modern connectivity and exceptional audio-visual experiences to your vehicle. Featuring a 6.8-inch capacitive touchscreen, Apple CarPlay, Android Auto, and Bluetooth, this double-DIN receiver integrates your smartphone for seamless access to navigation, music, and communication. Whether you're streaming music, making hands-free calls, or using voice commands, the DMH-1770NEX ensures a safe and enjoyable driving experience.
Key Features
| 6.8-Inch Capacitive Touchscreen | Bright, responsive display with WVGA resolution (800 x 480) for easy control of apps and media |
| Apple CarPlay & Android Auto | Seamless smartphone integration for navigation, music, messaging, and voice control |
| Bluetooth Connectivity | Hands-free calling and wireless audio streaming with dual phone pairing and built-in microphone |
| High-Resolution Audio Support | FLAC and other high-res audio formats for superior sound quality |
| SiriusXM-Ready | Access satellite radio with an additional tuner and subscription |
| Backup Camera Ready | Dedicated input for rear-view cameras to enhance parking and safety |
Specifications
| Display | 6.8-inch capacitive touchscreen, WVGA (800 x 480), customizable interface |
| Apple CarPlay & Android Auto | Full integration for navigation, music, messaging, and voice commands |
| Bluetooth | Hands-free calling, audio streaming, dual phone pairing with clear built-in microphone |
| Audio Support | High-resolution formats including FLAC; USB media playback |
| SiriusXM | Compatible with separate tuner and subscription |
| Backup Camera | Dedicated input for rear-view cameras |
| Audio Customization | 13-band graphic equalizer for fine-tuning sound |
| Connectivity | USB input, steering wheel control compatible (adapter required) |
What's in the Box
- Pioneer DMH-1770NEX Multimedia Receiver
- Owner’s Manual
- Wiring Harness
- Mounting Hardware
- Remote Control

Pioneer DMH-1770NEX 6.8" Touchscreen 2-DIN Digital Multimedia Receiver with Wired Apple CarPlay & Android Auto, Bluetooth, SiriusXM® and Back-up Camera Ready
Fine-tune your listening experience with the built-in 13-band graphic equalizer, high-pass, and low-pass filters — giving you full control over frequency response and sound detail. Whether you prefer deep bass or crisp highs, this receiver adapts to your style perfectly.
Key Features
- 6.8" Capacitive Touchscreen Display
- Apple CarPlay® & Android Auto™ Compatible
- Built-In Bluetooth® for Hands-Free Calling & Audio Streaming
- 13-Band Graphic EQ with HPF & LPF Filters
- SiriusXM®-Ready & Built-In AM/FM Tuner
- Android USB Mirroring Support
- 14W RMS x 4 (50W Peak) Built-In Amplifier
- 6-Channel Preamp Outputs (Front / Rear / Sub)
- Remote Control Included

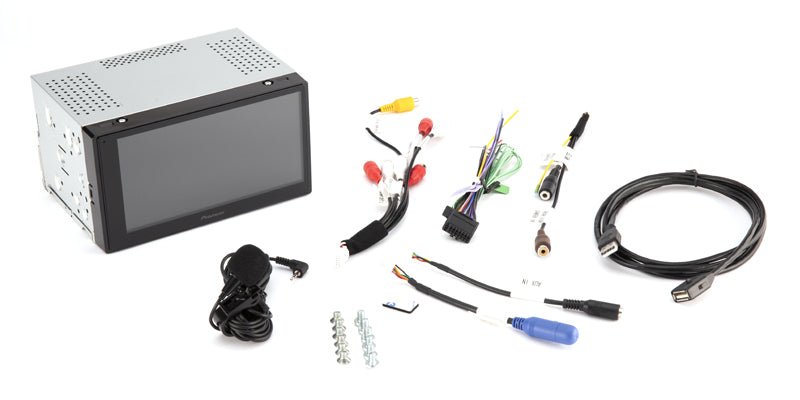

What's Inside?
- Digital multimedia receiver(10A fuse)
- Wiring harness
- Remote control (CXE5116)
- CR2025 3V lithium battery (installed in remote)
