Focal ASE 130 | Auditor Series 5.25" 2-Way Component System
The Focal ASE 130 is a versatile 130 mm (5.25") component kit designed as an ideal first step into the world of Focal's signature "Performance" sound. Part of the Auditor line, it is engineered for high sensitivity and power handling, making it a perfect upgrade for those seeking a neutral, dynamic soundstage without needing a massive external amplifier.
Product Highlights
-

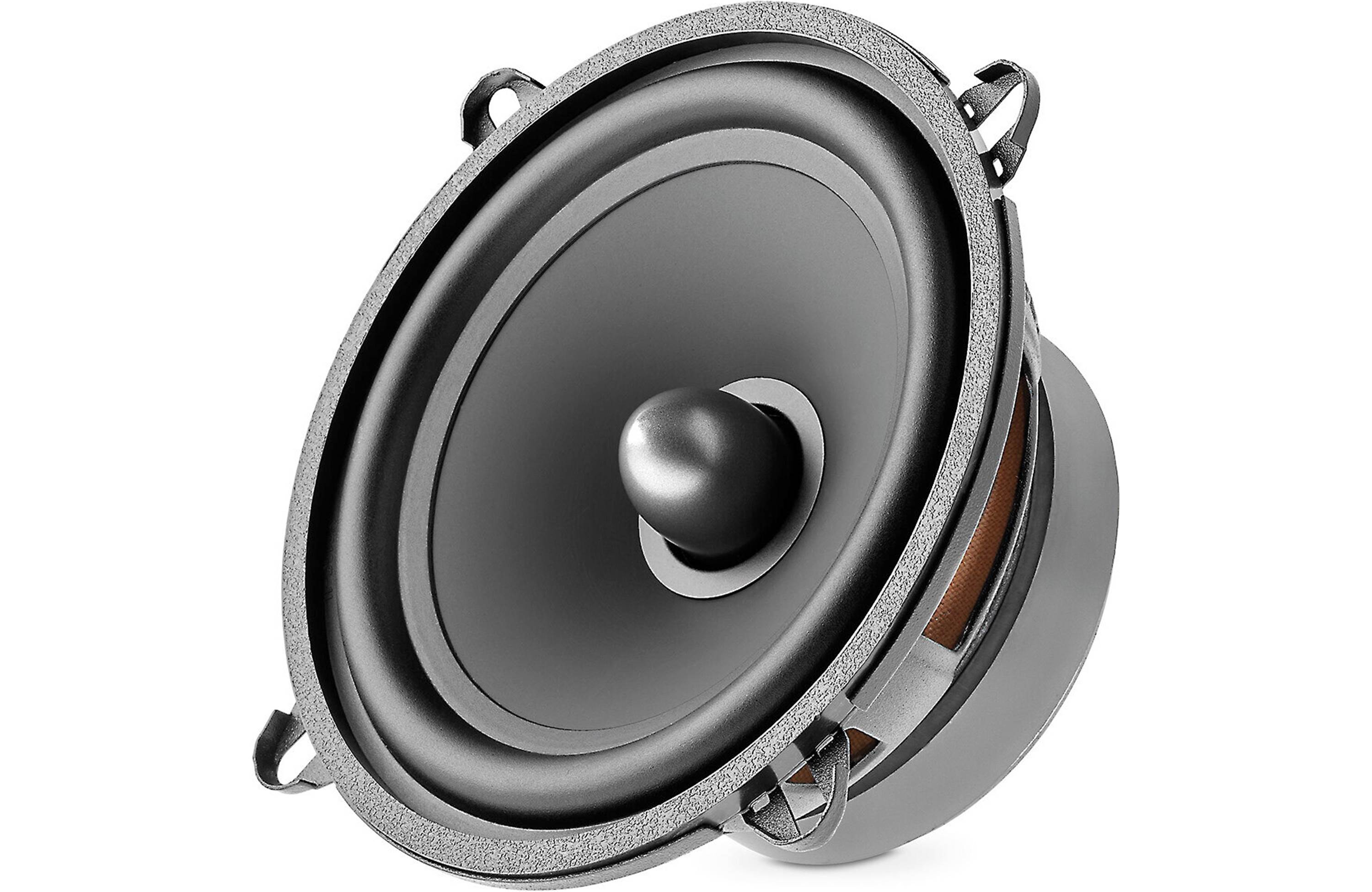

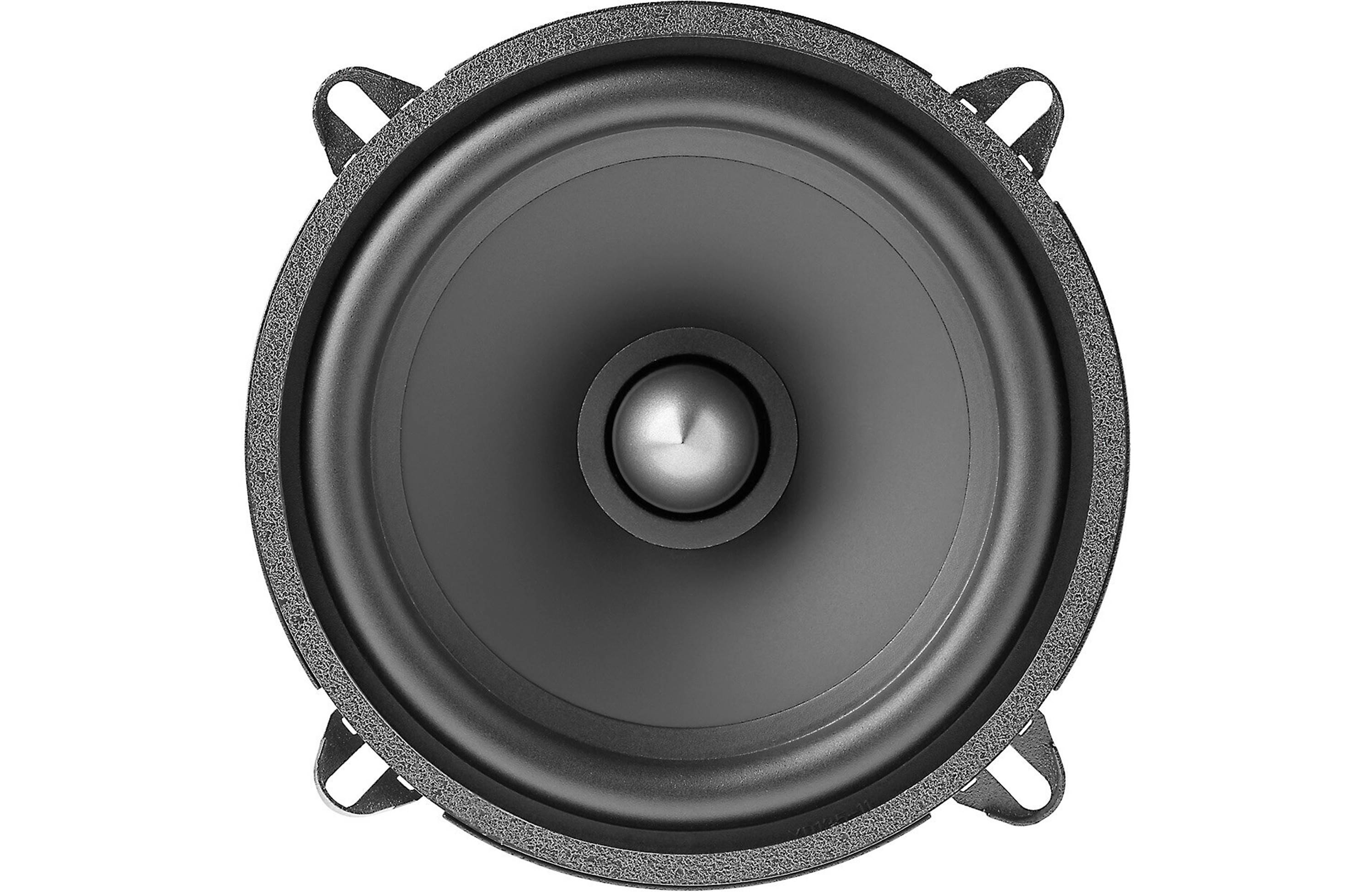

Polypropylene Cone: The woofer features a polypropylene membrane that delivers a neutral and dynamic sound. This material is chosen for its robustness, providing long-lasting performance in the demanding automotive environment.
-

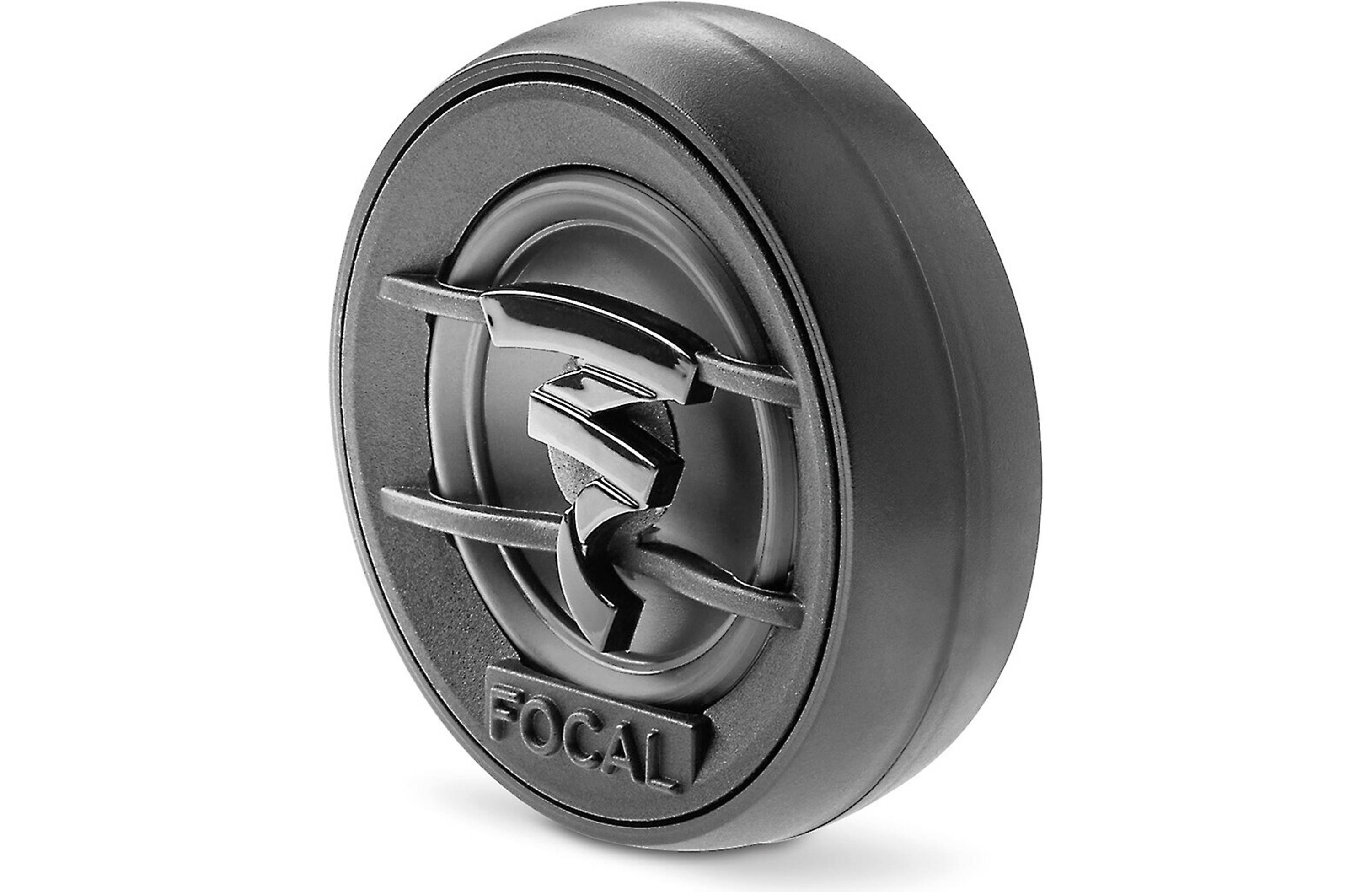

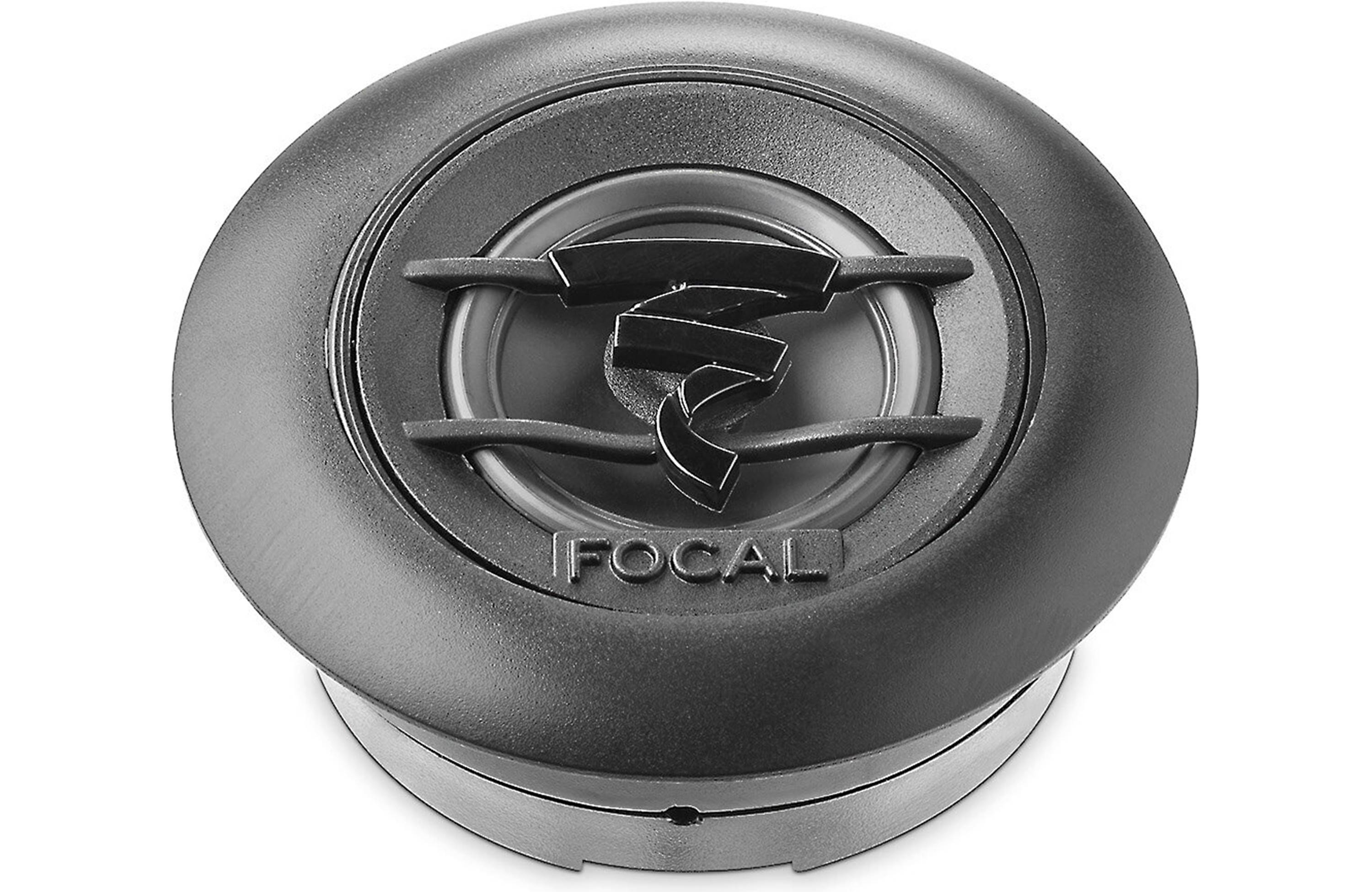

Inverted Dome Mylar Tweeter: Focal’s signature inverted dome design is utilized here to ensure optimal spatial dispersion. The mylar material provides precise, clear treble that significantly lifts the soundstage from the lower door panels.
-

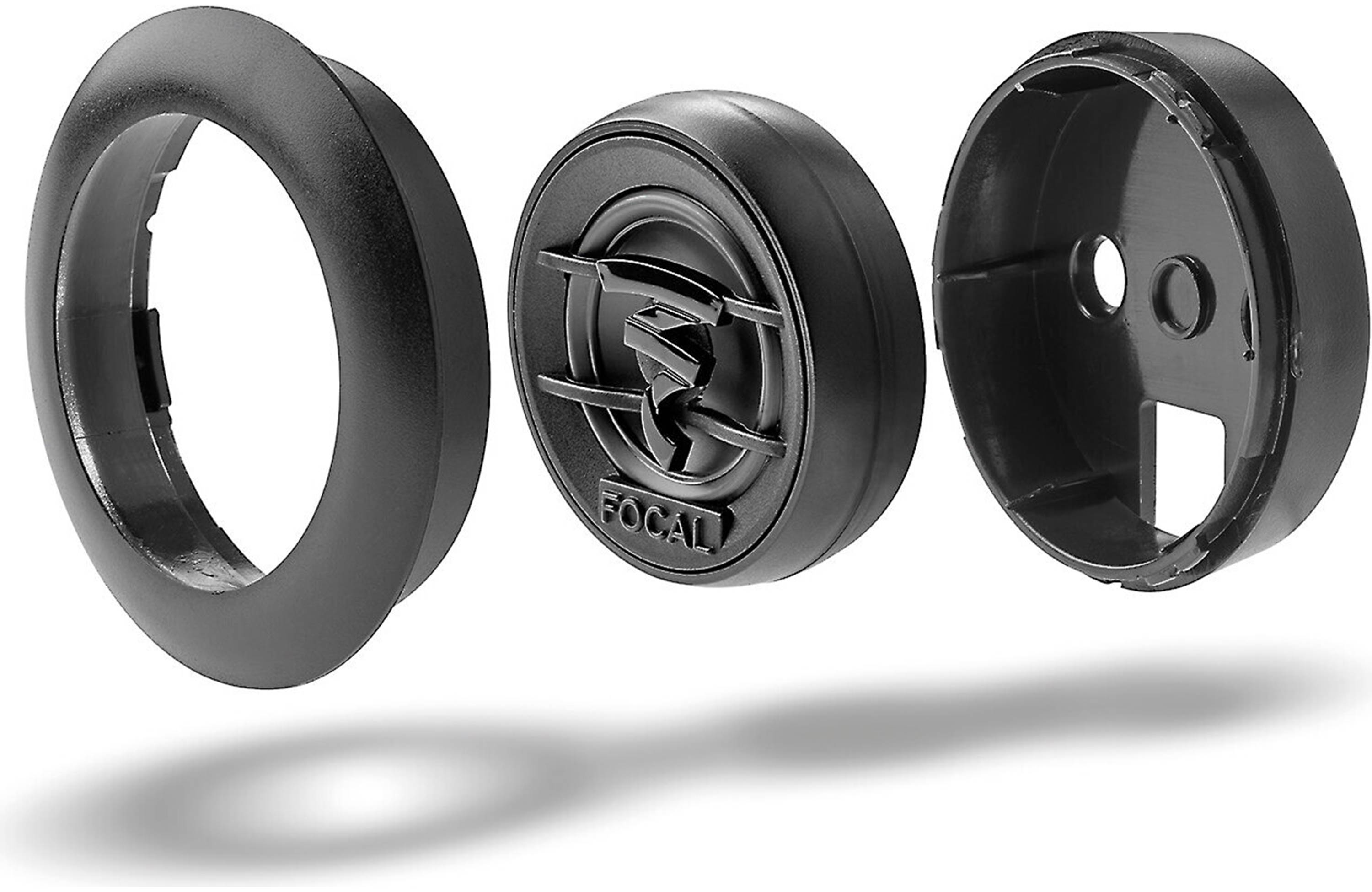

Adjustable Tweeter Mounting: The tweeters are "steerable" and come with flexible mounting hardware. They can be flush-mounted into original factory slots or surface-mounted on windshield pillars for better imaging.
-
Butyl Rubber Surround: The woofer is equipped with a high-quality butyl surround, adding robustness and reliability while maintaining excellent control over cone movement for tight, accurate mid-bass.
Key Features
-

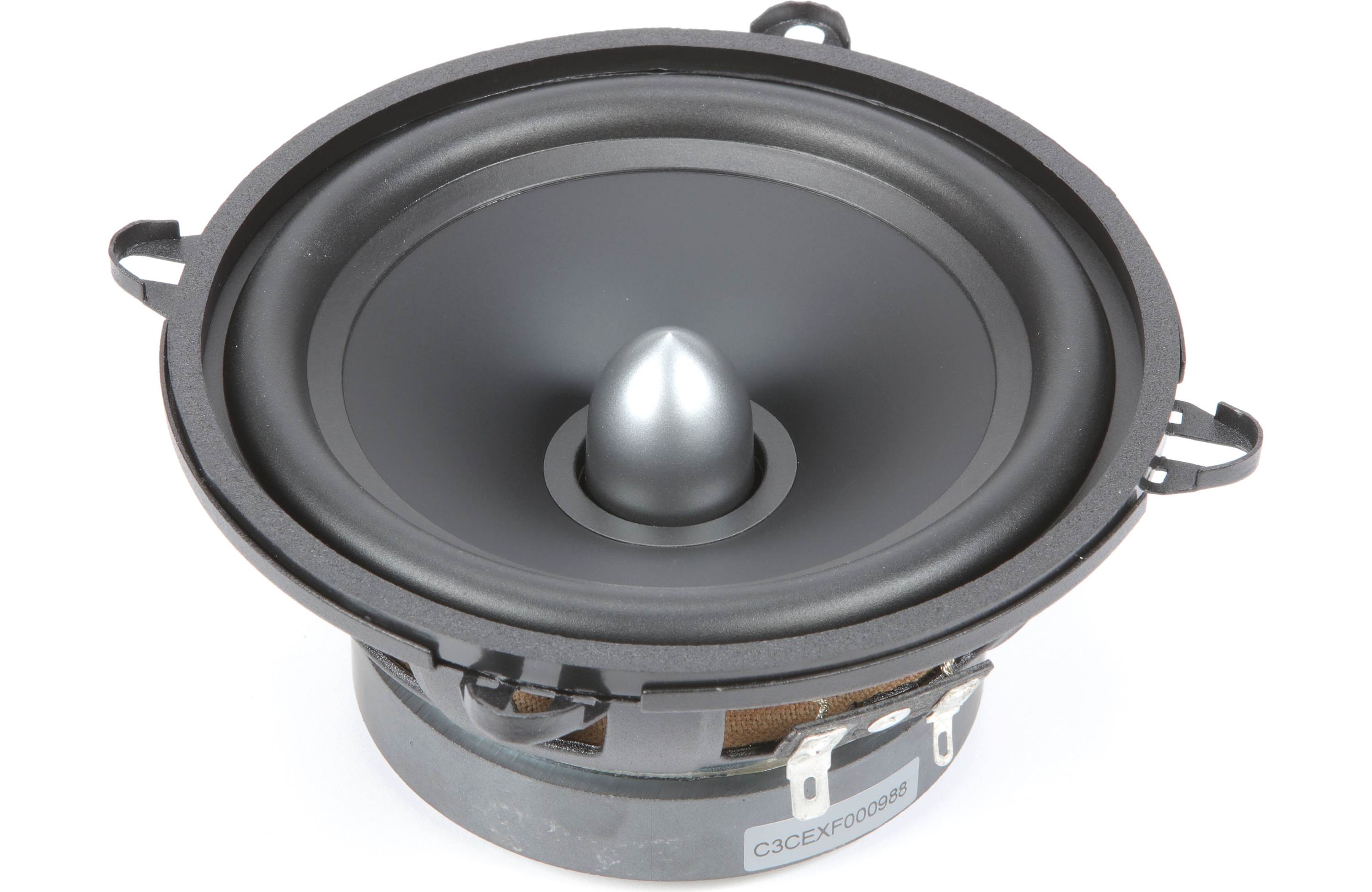

Central Ogive (Phase Plug): The woofer features a central phase plug that contributes to improved off-axis listening. This ensures that even when the speakers are mounted low in the doors, the mid-range frequencies reach the listener clearly.
-

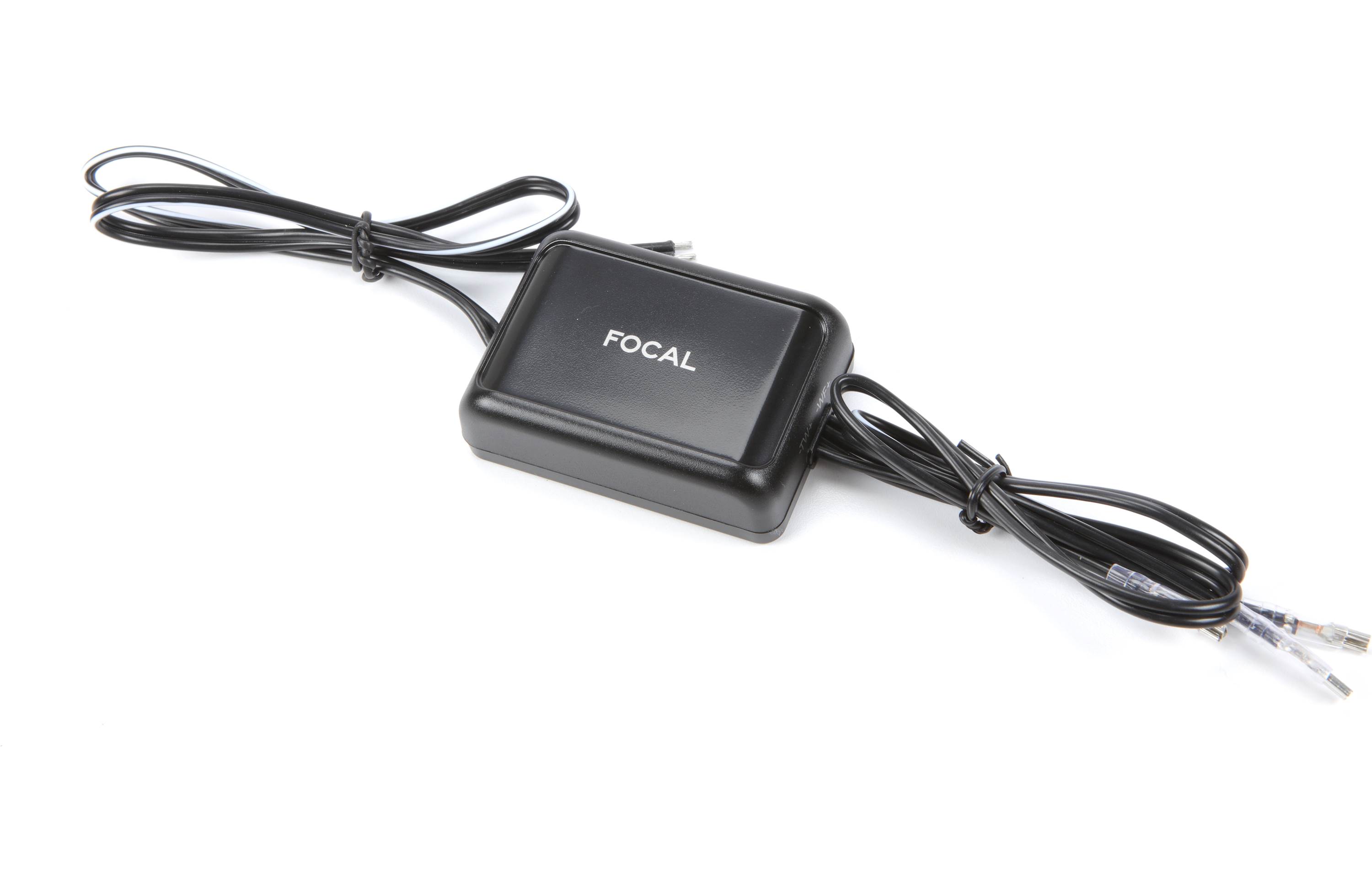

Pre-Tuned External Crossovers: The kit includes dedicated crossover networks that are pre-tuned for a seamless transition between the woofer and tweeter. Their compact size makes them easy to hide within door panels.
-

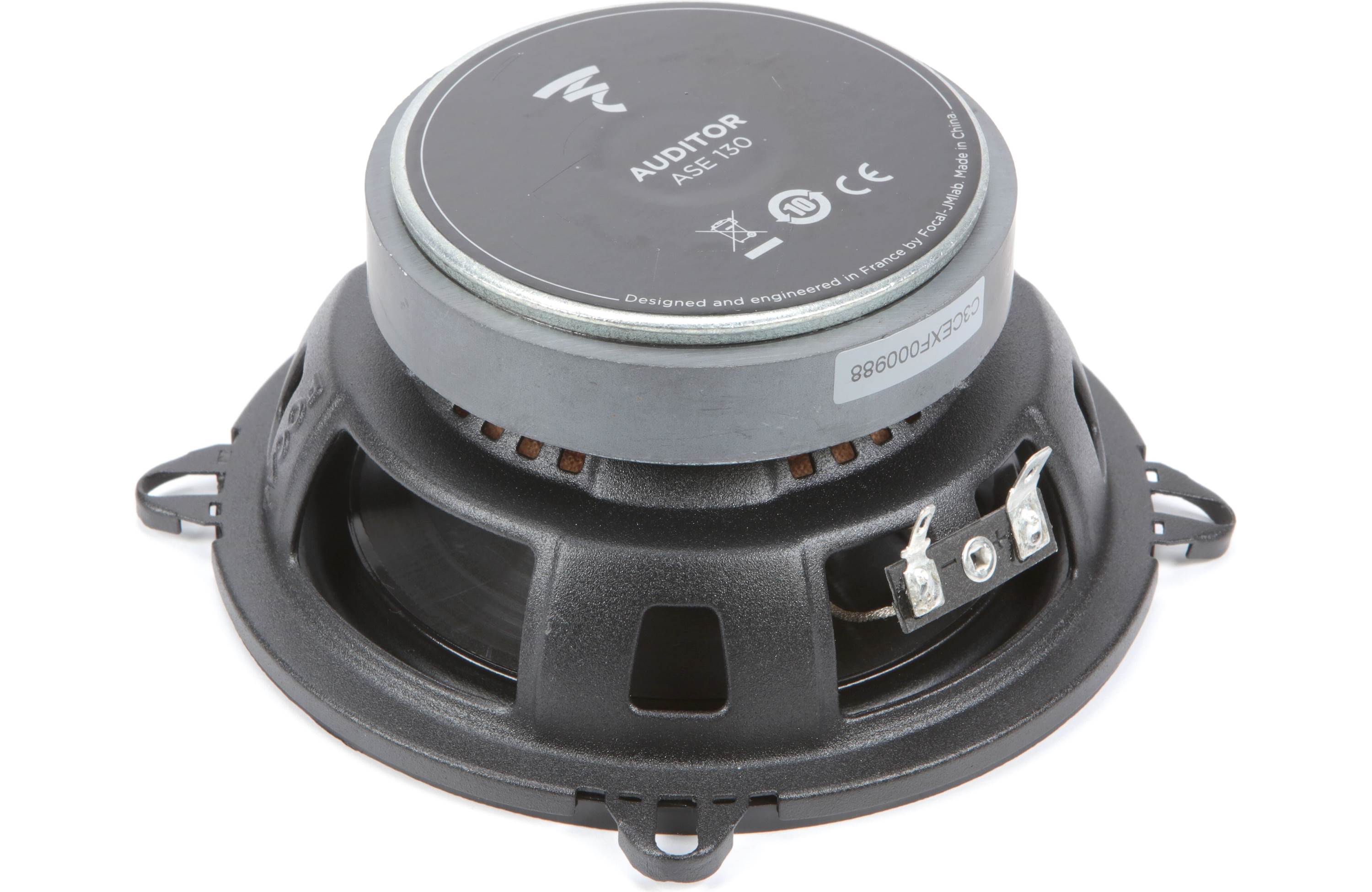

High-Grade Steel Basket: The woofer is built into a sturdy steel "salad bowl" basket, ensuring structural rigidity and durability while facilitating efficient cooling of the internal motor assembly.
-
Flexible Power Options: With a high sensitivity of 90 dB, these speakers can be easily driven by a factory head unit or a small external amplifier for even greater dynamic range.
Technical Specifications
| Feature | Specification |
| Part Number | ASE-130 |
| Speaker Size | 130 mm (5.25 in.) |
| Design | 2-Way Component System |
| Power Handling (RMS) | 50 Watts |
| Power Handling (Peak) | 200 Watts |
| Impedance | 4-Ohms |
| Frequency Response | 65 Hz – 21,000 Hz |
| Sensitivity | 90 dB (2.83V/1m) |
| Mounting Depth | 2.19 in (55.5 mm) |

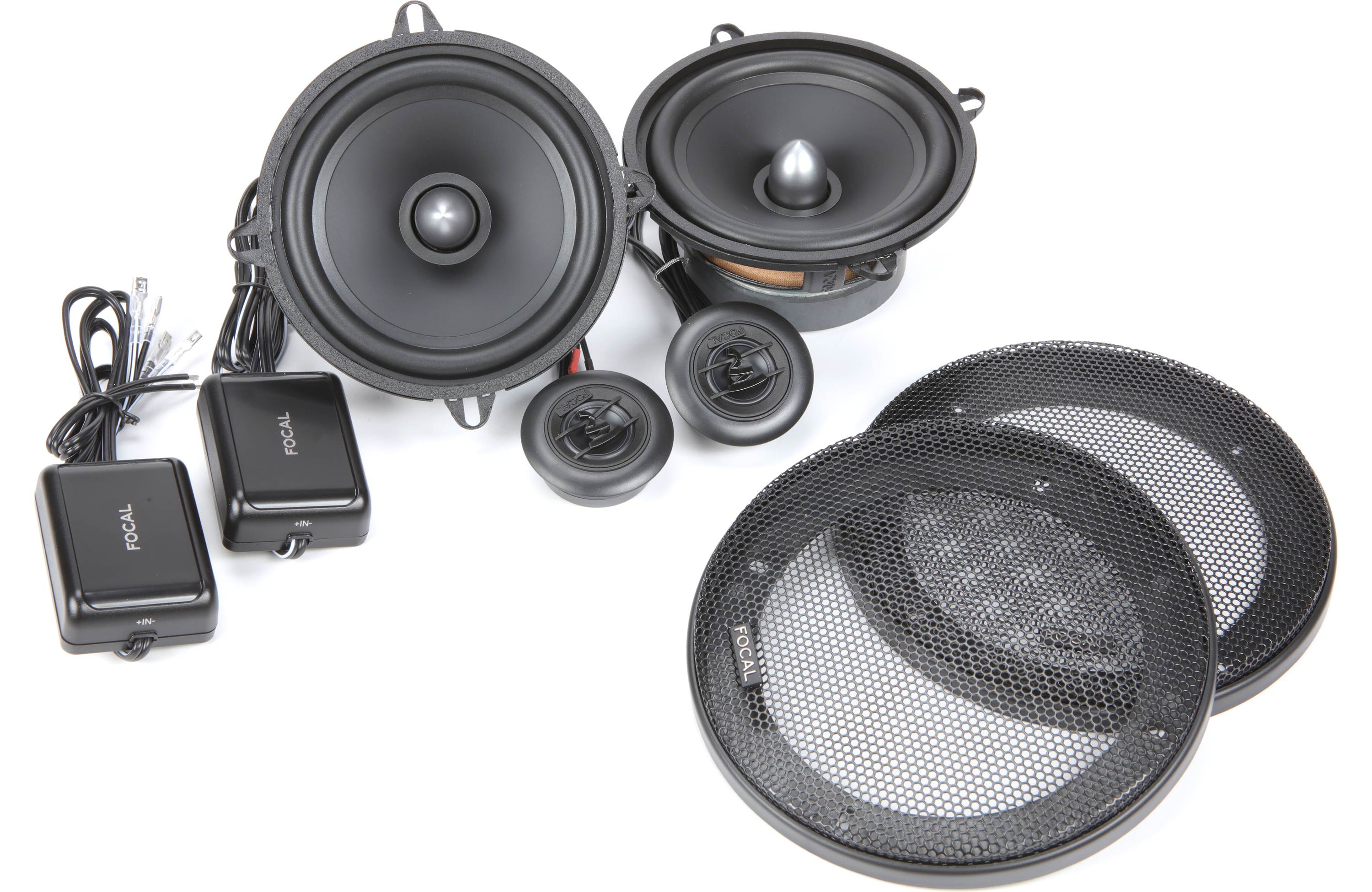

What’s In The Box?
-
(2) Focal ASE 130 5.25" Woofers
-
(2) Inverted Dome Mylar Tweeters
-
(2) Pre-wired External Crossovers
-

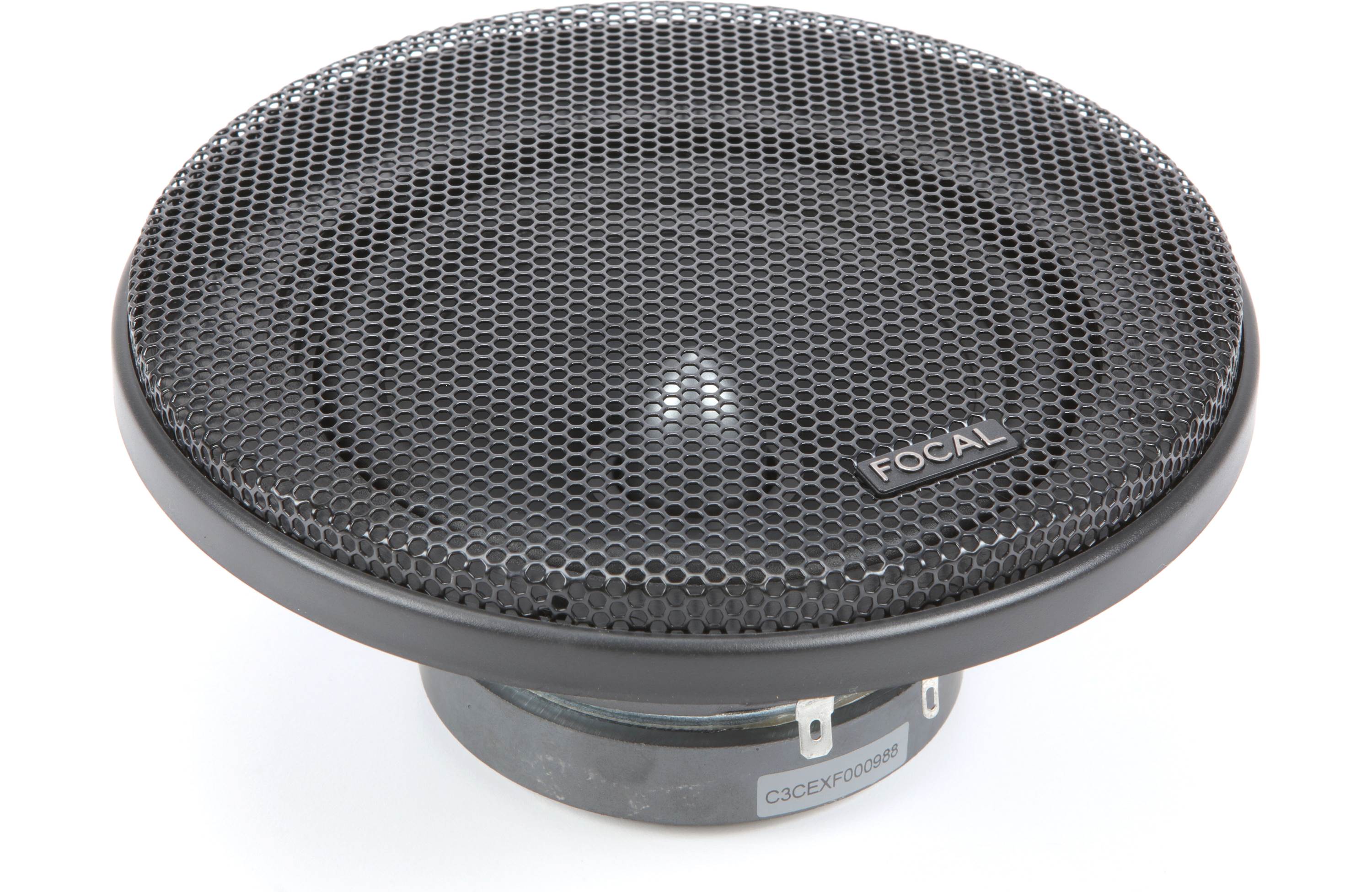

(2) Protective Grilles (Steel Mesh)
-
Tweeter mounting pods and flush-mount rings
-
Mounting screws and owner’s manual
Focal ASE130 Auditor EVO Series 5.25" 50W RMS (100W Peak Power Handling) 2-way Component Kit
Experience audio excellence with the Focal ASE 130 2-Way Component Kit, designed to deliver a balanced, dynamic, and detailed sound performance. Featuring a 5 1/8” (13cm) woofer with a polypropylene cone and an adjustable mylar inverted dome tweeter, this system ensures precise high frequencies and an expansive soundstage for an immersive listening experience.
The ASE 130 is built for versatility, allowing seamless integration with your vehicle’s factory setup or external electronics. You can easily mount the tweeters in the A-pillars or within your car’s original tweeter locations, giving you flexible installation options without compromising sound quality.
Perfect for both beginners and audiophiles, this component kit combines excellent power handling, high sensitivity, and premium construction to bring superior clarity and detail to your car’s audio system. Whether you're upgrading a stock setup or creating your first Focal system, the ASE 130 delivers exceptional value and performance.
What's Inside
– (2) Woofers

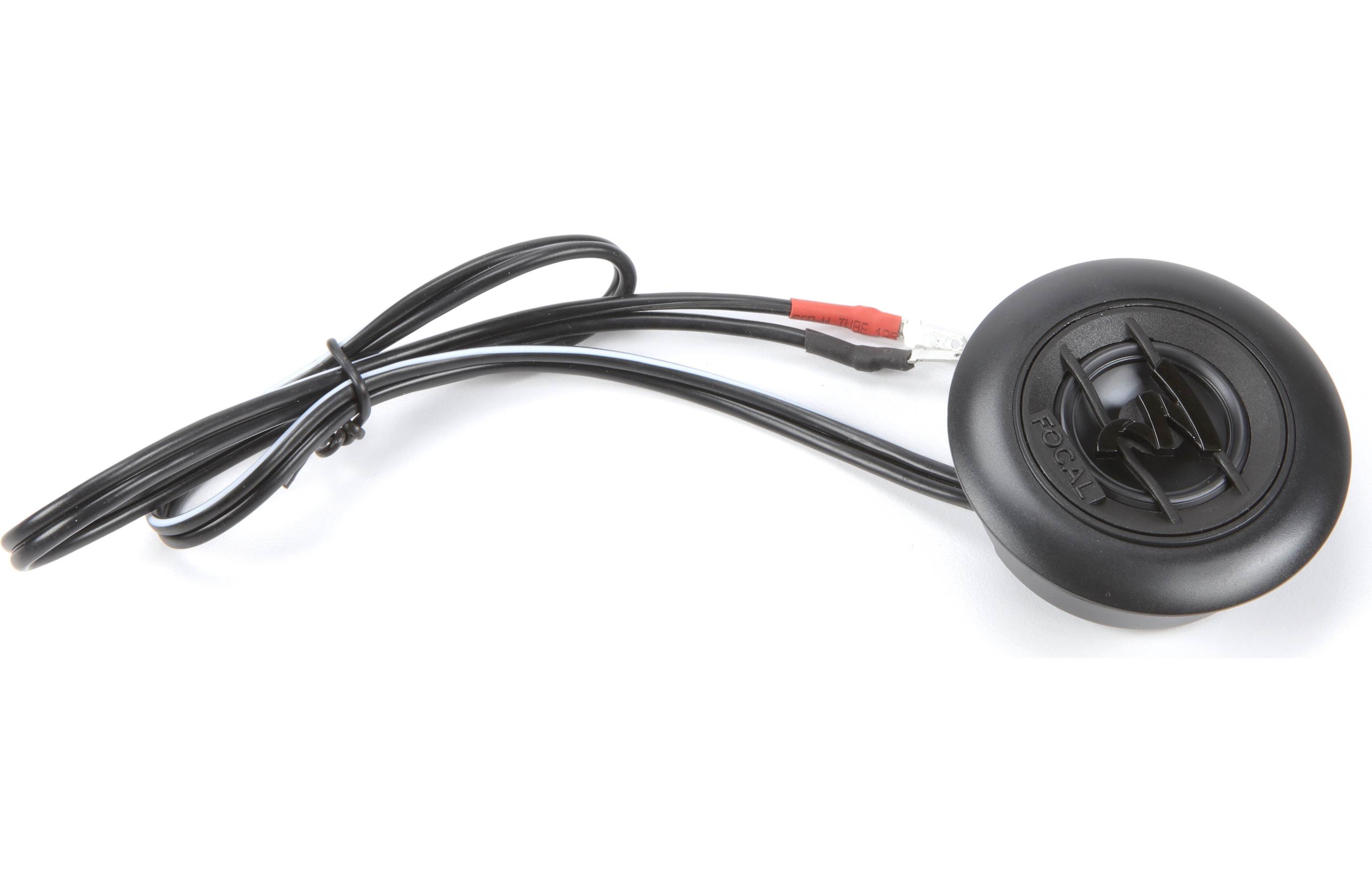

– (2) Tweeters (each with 18" length of speaker wire attached)
– (2) Flush mount tweeter cups (installed)
– (2) Surface mount tweeter adapters
– (2) Angled surface mount tweeter adapters
– (2) Crossovers
– (2) Woofer grilles
– (2) Woofer grille mounting rings
– (12) Speed clips
– (8) 1-3/8" Screws
– (4) 1" Screws
– (2) Adhesive backed pads
– Owner's Manual (English, French, German, Spanish, Italian, Portuguese, Dutch, Polish, Chinese, Russian, Korean, Japanese, Arabic)
Key Features
– 5 1/8” (13cm) 2-way component kit for clear and powerful audio
– Polypropylene cone woofer for accurate, distortion-free sound
– Adjustable mylar inverted dome tweeter for precise high frequencies
– Multiple mounting options: flush, surface, or angled installation
– Compatible with factory systems or aftermarket amplifiers
– Excellent power handling and sensitivity for strong, balanced output
– Ideal for beginners or enthusiasts upgrading to Focal’s superior sound quality
What's Inside?
- woofers
- tweeters (each with 18" length of speaker wire attached)
- Flush mount tweeter cups (installed)
- Surface mount tweeter adapters
