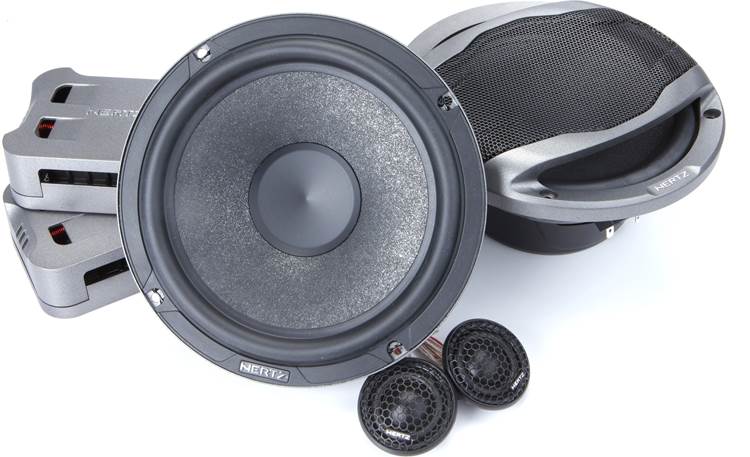

Hertz CK 165 F
Cento Series 6-1/2" flat-profile component speaker system
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?
Hertz C 165 F | Cento Series 6.5" Flat Profile Woofer
The Hertz C 165 F is a specialized 165 mm (6.5") shallow-mount woofer designed to solve the most common challenge in modern car audio: limited mounting depth. Part of the Cento series, the C 165 F features a super-slim basket that allows for high-fidelity sound in problematic OEM locations where standard speakers simply won't fit. Despite its compact profile, it delivers the signature "Hertz Sound Experience" with a punchy mid-bass response and impressive efficiency.
Product Highlights
-

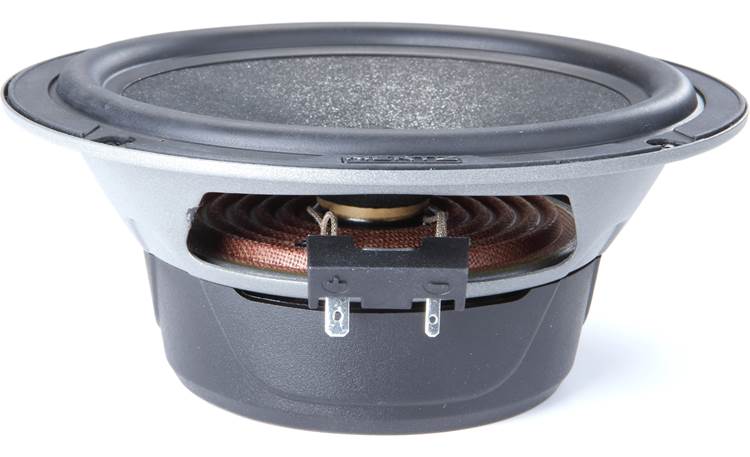

Super Slim Profile: With a mounting depth of only 43.5 mm (1.71 in.), this woofer is specifically engineered for new-generation vehicles with extremely shallow door cavities, eliminating the need for bulky spacers or custom door modifications.
-
SPP-M (Semi-Pressed Paper-Mica) Cone: The C 165 F utilizes a specialized cone material that blends paper with Mica powder. This results in a diaphragm that is both lightweight and rigid, providing the perfect balance between high efficiency and a natural, uncolored sound.
-

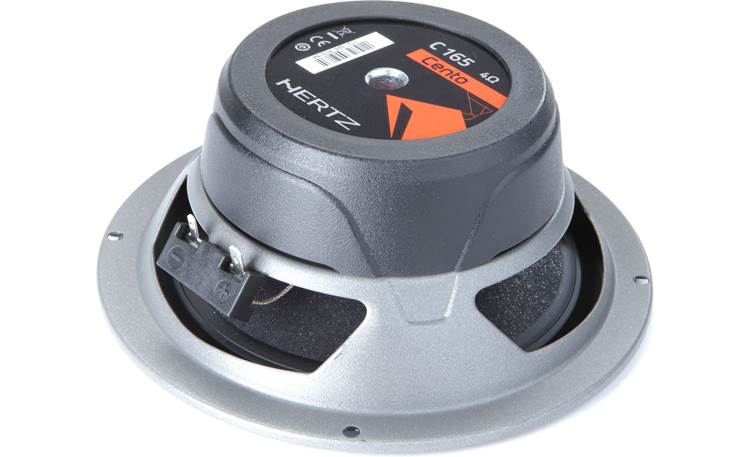

High-Density Ferrite Magnet: Even with its reduced size, the motor assembly features a high-flux ferrite magnet. This ensures the 25 mm (1") voice coil maintains excellent control and thermal stability, even during demanding musical passages.
-
Optimized Excursion: The Hertz R&D team redesigned the dustcap and cone geometry specifically for this flat profile. This optimization allows the mobile group to maintain significant linear excursion, ensuring punchy mid-bass that defies the speaker's slim dimensions.
Key Features
-
Enhanced Dispersion: The geometry of the C 165 F is tuned to provide a wide off-axis response. This is critical in car environments where the woofer is often placed low in the door, ensuring the midrange frequencies reach the listener’s ears clearly.
-
Durable Construction: The low-profile basket is finished with a resistant coating to protect against humidity and temperature fluctuations found inside vehicle doors, ensuring long-term reliability.
-

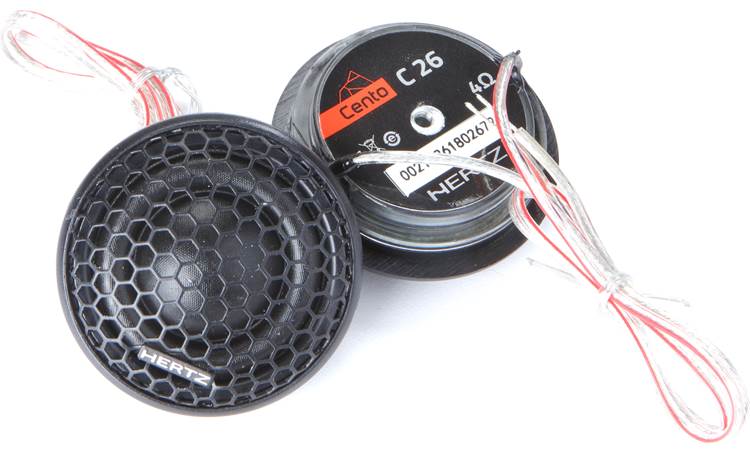

Easy Integration: Designed as a dedicated woofer, it integrates seamlessly into active systems or can be paired with Cento series tweeters (like the C 26) to create a high-end custom component set.
-
High Sensitivity: A 93 dB SPL rating makes these woofers incredibly easy to drive, allowing them to provide a significant volume increase and improved clarity even when used with standard factory head units.
Technical Specifications
| Feature | Specification |
| Speaker Size | 165 mm (6.5 in.) |
| Component Type | Flat Profile Woofer |
| Power Handling (Continuous) | 70 Watts RMS (140W per pair) |
| Power Handling (Peak) | 180 Watts (360W per pair) |
| Impedance | 4-Ohm |
| Frequency Response | 65 Hz – 4,500 Hz |
| Sensitivity | 93 dB SPL |
| Woofer Mounting Depth | 1.71 in (43.5 mm) |
What’s In The Box?
-
(2) Hertz Cento C 165 F Flat Profile Woofers
-
(8) Mounting screws
-
(8) Speed clips
-
Owner's manual
