Hertz DCX 170.3
Dieci Series 6-3/4" 2-way car speakers
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Free Shipping on all orders nation wide
Free Return on all orders
Need Help?

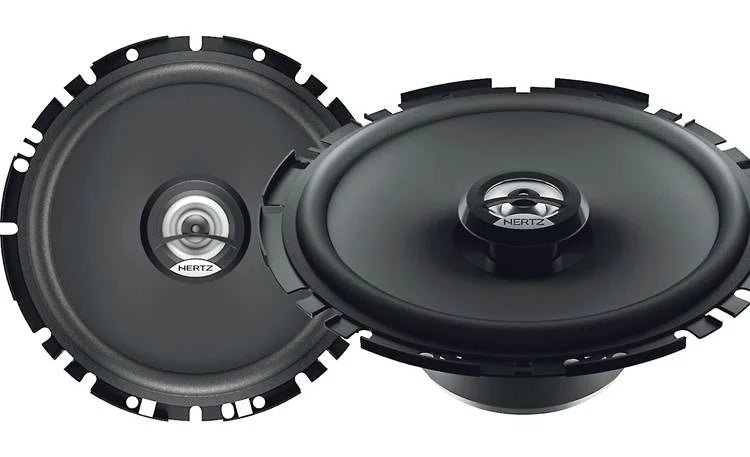

Hertz DCX 170.3 | Dieci Series 6.7" 2-Way Coaxial Speakers
The Hertz DCX 170.3 is a high-performance "flat" coaxial speaker specifically designed for vehicles with shallow mounting depths. With a maximum depth of only 51 mm (2.0 in.), these speakers are the perfect solution for modern door panels and restricted spaces where standard speakers won't fit. Despite their slim profile, they deliver the signature "Hertz Sound" through advanced materials and painstaking Italian engineering.
Product Highlights
-
Ultra-Shallow Design: Optimized for seamless installation in reduced spaces without sacrificing acoustic reproduction quality.
-
Neodymium Tweeter: Features a powerful Neodymium magnet and PEI dome for brilliant, energetic high-frequency response.
-
TPU Surround: The Thermoplastic Polyurethane surround ensures high excursion and resonance damping, even at high volume levels.
-
Exceptional Efficiency: With a 93 dB sensitivity, these speakers provide high output even when powered by a standard factory head unit.
Key Features
-
Water-Repellent Pressed Paper Cone: Provides a natural sound and resists moisture, making it ideal for the automotive door environment.
-
Copper Voice Coil: Wound on a Conex former for superior lightness and efficient thermal dissipation.
-
Integrated Crossover: Built-in crossover ensures a smooth transition between the woofer and tweeter for a balanced audio profile.
-
High-Density Flux Ferrite Magnet: Provides the magnetic force necessary for punchy mid-bass despite the shallow basket design.
Technical Specifications
| Feature | Specification |
| Speaker Size | 170 mm (6.7 in.) |
| Design | 2-Way Coaxial |
| Power Handling (RMS) | 50 Watts |
| Power Handling (Peak) | 100 Watts |
| Impedance | 4-Ohm |
| Frequency Response | 60 Hz – 21,000 Hz |
| Sensitivity | 93 dB SPL |
| Mounting Depth | 2.0 in. (51 mm) |
What’s In The Box?
-
(2) Hertz DCX 170.3 6.7" Coaxial Speakers
-
(8) Mounting screws
-
(8) Speed clips
-
Owner’s manual
-
Warranty documentation
Hertz DSK170.3 Dieci Series 6.5" 80W RMS (160W Peak Power Handling) 4 Ohms, 2-Way Car Component System
High-Performance Car Audio System with Premium Materials
Experience top-tier audio performance with Dieci car audio systems, designed to deliver exceptional sound quality with simplicity and precision. Featuring woofers with the exclusive V-cone® profile, these speakers provide outstanding off-axis response and detailed mid-to-high range clarity. The TPU (Thermoplastic Polyurethane) surround ensures linearity and reduces unwanted resonance, even during high-excursion playback, while the neodymium motor assembly and PEI membrane extend the high-frequency response for a richer, more immersive audio experience.
Premium Components for Maximum Control and Power Handling
Engineered to fully exploit the potential of Hertz HCP and HDP amplifiers as well as all 2 Ω stable electronics, these speakers feature a 95 mm ferrite magnet allowing a ±4.5 mm voice coil linear excursion for precise control. The Boundary Free Surround moves more air for deeper bass, while the V-cone® profile improves off-axis dispersion for realistic in-car listening. The aluminium alloy basket neutralizes unwanted vibrations, ensuring clean, distortion-free sound across all frequencies. Passive filters are conveniently integrated into the supplied connection cables, and a full set of accessories enhances install-friendliness and reduces installation time.
Physical Specifications
– A: 165 mm (6.5 in.)
– B: 144 mm (5.7 in.)
– C: 72 mm (2.8 in.)
– D: 64 mm (2.5 in.)
Key Features
– Exclusive V-cone® woofer profile for improved off-axis response
– TPU surround for linearity and reduced resonance
– Neodymium motor assembly and PEI membrane for extended high frequencies
– 95 mm ferrite magnet for precise voice coil excursion
– Boundary Free Surround for increased air movement and deeper bass
– Aluminium alloy basket to neutralize vibrations
– Passive filters integrated into connection cables
– Optimized for Hertz HCP and HDP amplifiers and 2 Ω stable systems
– Includes a full accessory set for fast, easy installation
What's Inside?
- (2) DV 170.3 Woofers
- (2) DT 24.3 Tweeters (with attached 6" length of speaker wire)
- (2) DX 300 Crossover networks
- (2) Tweeter flush mount trim rings
