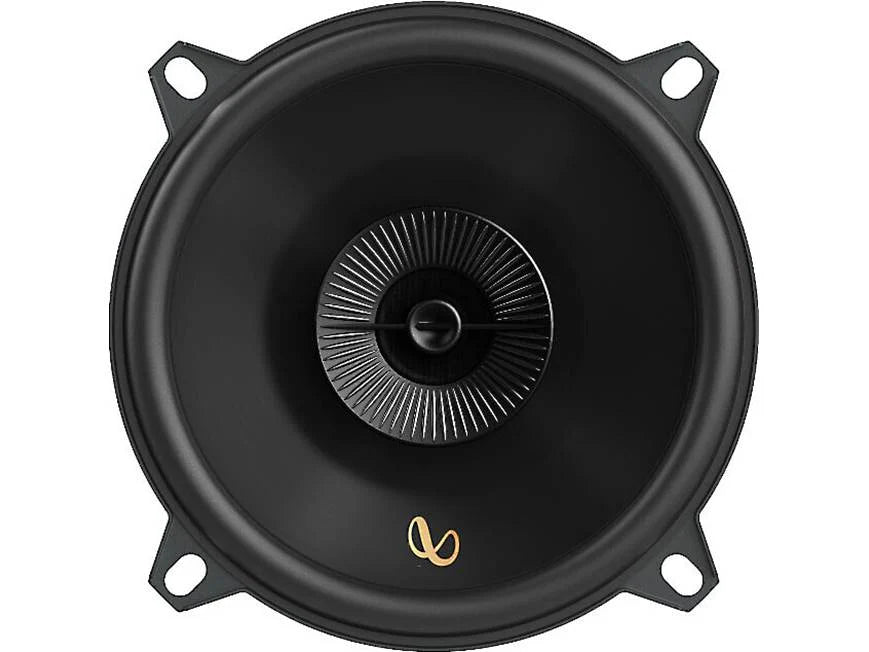

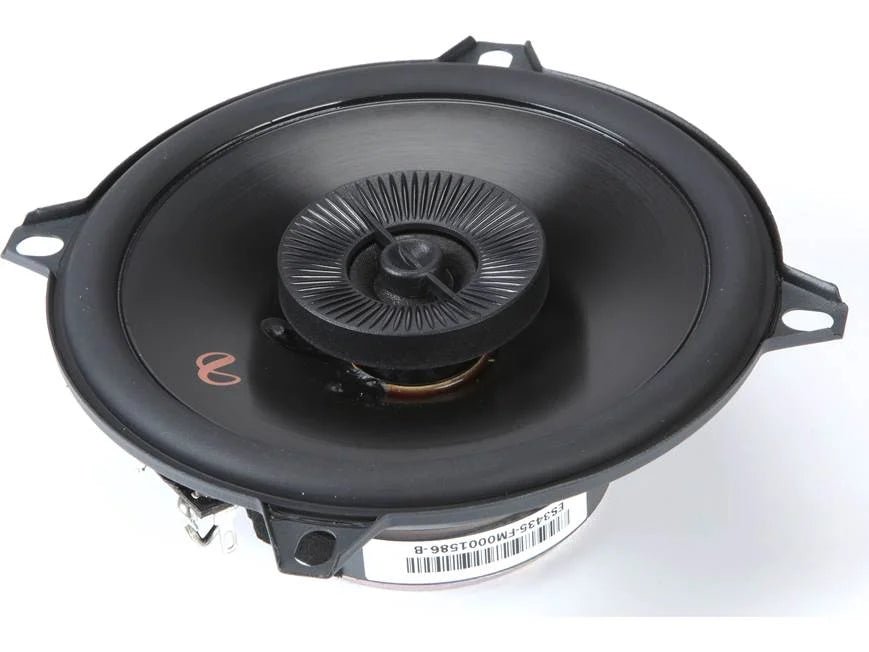

Infinity Primus 503F 5.25" 2-Way Coaxial Car Speakers
Product Overview:
The Infinity Primus 503F is a 5-1/4" coaxial speaker designed as a direct high-fidelity upgrade for factory car audio systems. Part of the refreshed Primus line, these speakers focus on compact fitment, high sensitivity, and the signature "lifelike" sound Infinity is known for. They are particularly effective in vehicles with low-power factory head units that need a boost in clarity and volume.
Key Features
Plus One™ Woofer Cones
Infinity uses its patented Plus One™ polypropylene cones, which extend the cone surface area closer to the edge of the basket. This provides up to 35% more radiating surface area than other speakers in the same size class, resulting in deeper bass response and higher efficiency without needing a larger mounting hole.
Edge-Driven Silk Dome Tweeters
Unlike cheaper balanced-dome tweeters, the 503F features edge-driven silk dome tweeters. This design provides a broader high-frequency dispersion and smoother response, ensuring that vocals and high-frequency details remain crisp and natural even at high volume levels.
True 4-Ohm Architecture
These speakers utilize a 3-ohm low-impedance voice coil. This design is engineered to compensate for the high resistance found in thin factory speaker wiring, allowing your head unit or amplifier to deliver more power. This "true 4-ohm" setup safely extracts every watt possible for a stronger, clearer sound.

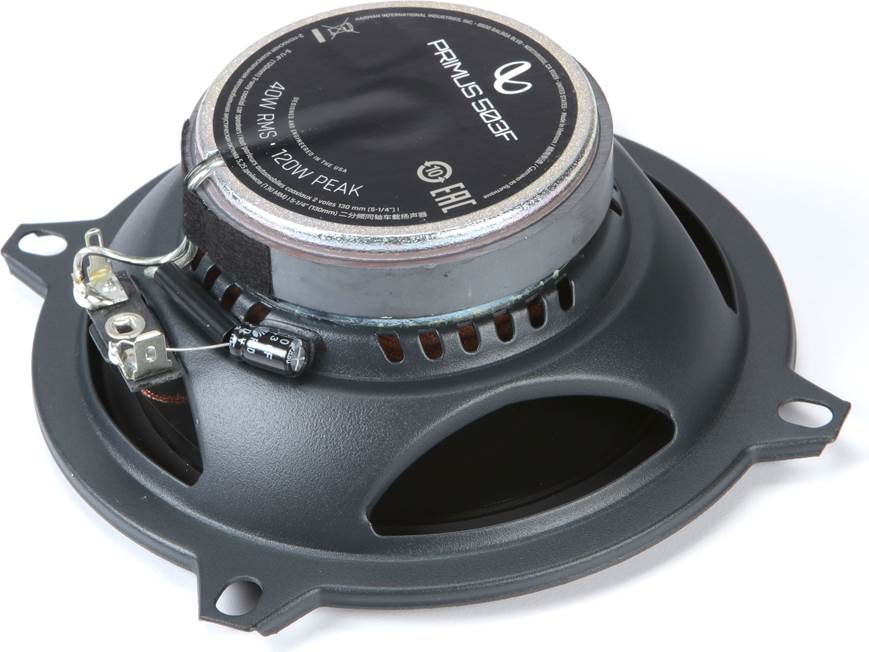

Vented Basket Design
The super-rigid vented basket does more than just look sleek; it acts like a fan to wick heat away from the motor structure as the cone moves. This cooling effect results in lower distortion at high output levels and increases the overall longevity of the speaker components.
Technical Specifications
| Category | Specification |
| Performance | |
| Speaker Size | 5-1/4" (130mm) |
| Power Handling | 40W RMS / 120W Peak |
| Nominal Impedance | 3.0 Ohms |
| Frequency Response | 75Hz – 20kHz |
| Sensitivity (2.83V@1m) | 91 dB |
| Construction | |
| Woofer Material | Polypropylene with Rubber Surround |
| Tweeter Material | Edge-driven Silk Dome |
| Crossover Point | 6kHz @ 6dB/octave |
| Dimensions | |
| Mounting Depth | 1-13/16" |
| Cutout Diameter | 5-1/8" |
