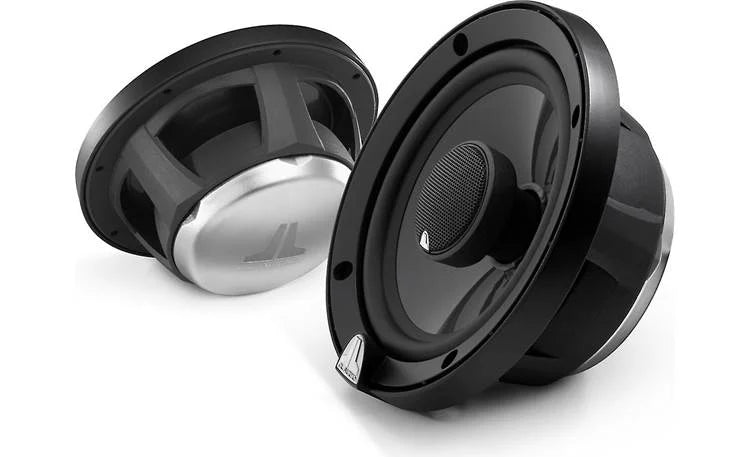

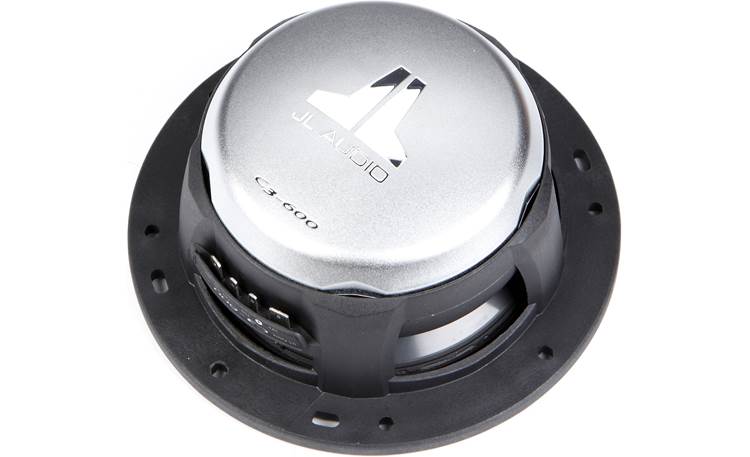

JL Audio C3-600cw | 6-inch Component Woofer (Single)
The JL Audio C3-600cw is a high-performance 6-inch (150 mm) woofer designed for those who demand outstanding bass response and installation flexibility. Part of the innovative C3 series, this woofer can be deployed as part of a separate component system or converted into a coaxial configuration. Built with JL Audio's proprietary Elevated Frame Cooling and DMA-optimized motor, it delivers clean, impactful mid-bass that anchors any premium mobile audio system.
Product Highlights
-

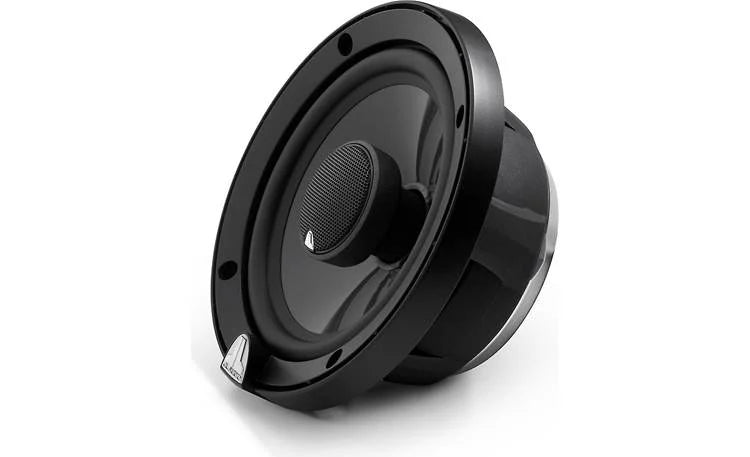

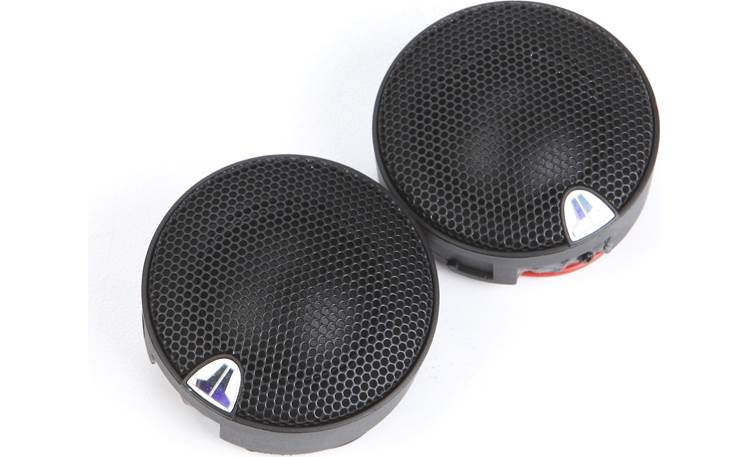

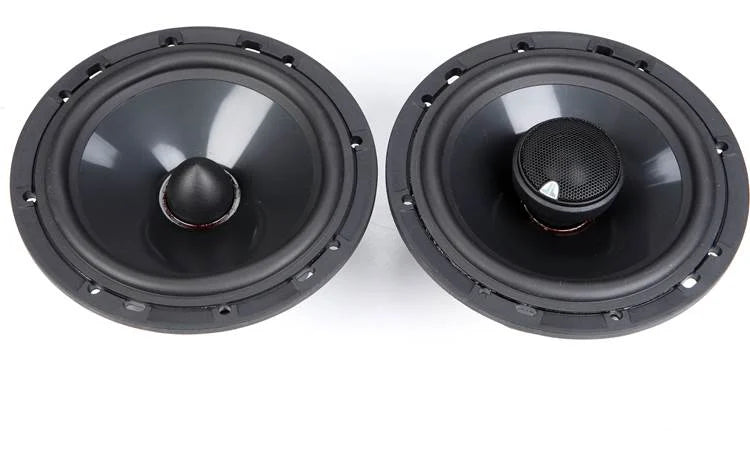

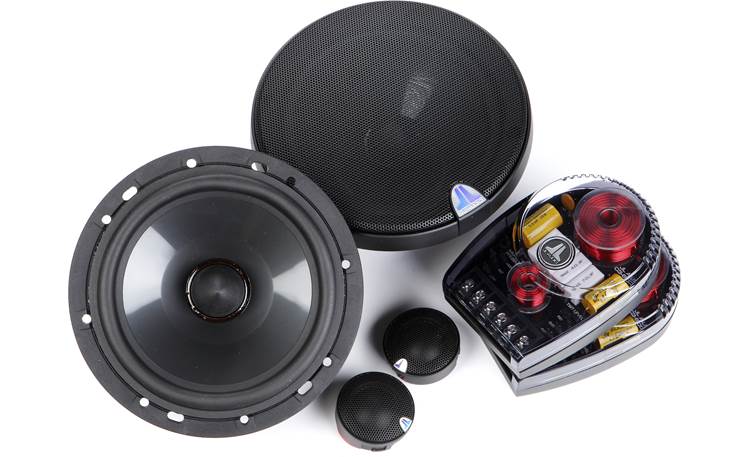

Convertible Design: Offers the unique ability to function as a dedicated component woofer or be transformed into a coaxial system by mounting a C3 tweeter (sold separately) to its center.
-
DMA-Optimized Motor: JL Audio’s proprietary Dynamic Motor Analysis system ensures the woofer maintains a linear magnetic field under power, resulting in significantly reduced distortion and tighter bass.
-
Superior Cooling: The Elevated Frame Cooling design creates a path for air to flow directly over the voice coil, improving power handling and long-term reliability.
-
Premium Mid-Bass: Engineered specifically to provide a smooth, powerful transition between subwoofers and high-frequency drivers.
Key Features
-
Mineral-Filled Polypropylene Cone: A lightweight yet stiff cone material that provides excellent internal damping for a natural, uncolored sound.
-
Oversized Voice Coil: Features a 1.2-inch voice coil that allows for high excursion and superior thermal management compared to standard 6-inch drivers.
-
Durable Composite Basket: The glass-filled polymer basket is non-magnetic and non-resonant, ensuring the motor's energy is focused entirely on moving the cone.
-
Long Excursion Design: Optimized for high output capability, allowing the woofer to play louder and cleaner than conventional factory replacements.
Technical Specifications
| Feature | Specification |
| Woofer Size | 6.0 in / 150 mm |
| Continuous Power (RMS) | 75 Watts |
| Peak Power Handling | 150 Watts |
| Recommended Amp Power | 25 - 75 Watts RMS |
| Nominal Impedance | 4-Ohm |
| Frequency Response | 50 Hz – 5,000 Hz |
| Efficiency (1W/1m) | 89.5 dB |

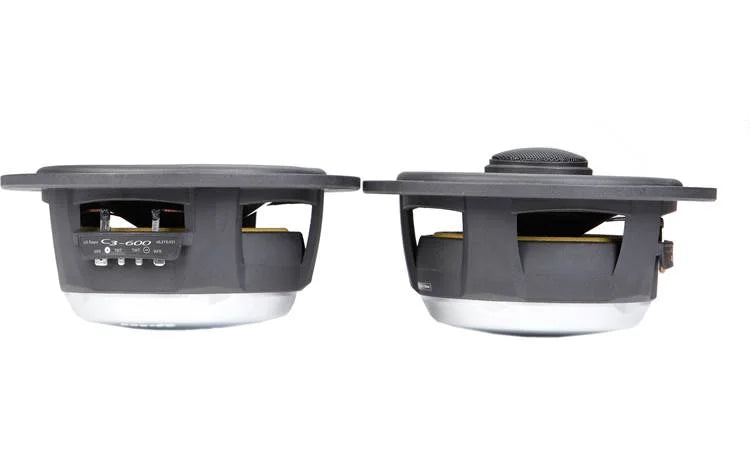

| Mounting Depth | 2.50 in / 64 mm |
What’s In The Box?
-
(1) JL Audio C3-600cw 6-inch Woofer
-

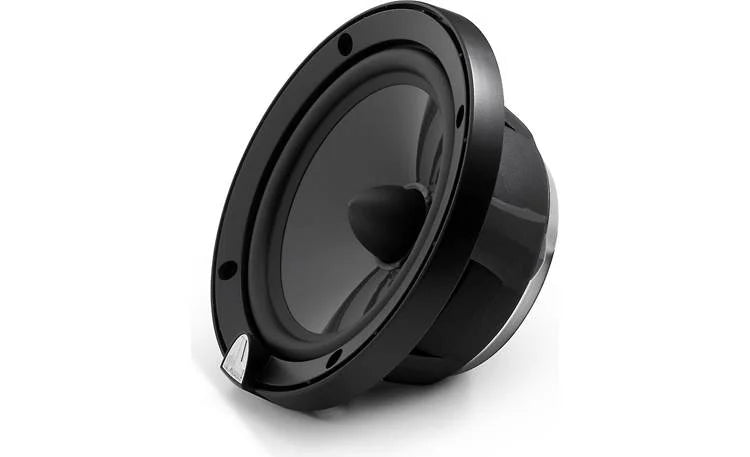

(1) Integrated phase plug (pre-installed)
-
(1) Coaxial tweeter mounting post
-
(1) Protective woofer grille and mesh insert
-
Mounting hardware and wire connectors
-
Owner’s manual
