JL Audio JD700/5
5-channel car amplifier — 75 watts RMS x 4 at 4 ohms + 300 watts RMS x 1 at 2 ohms
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

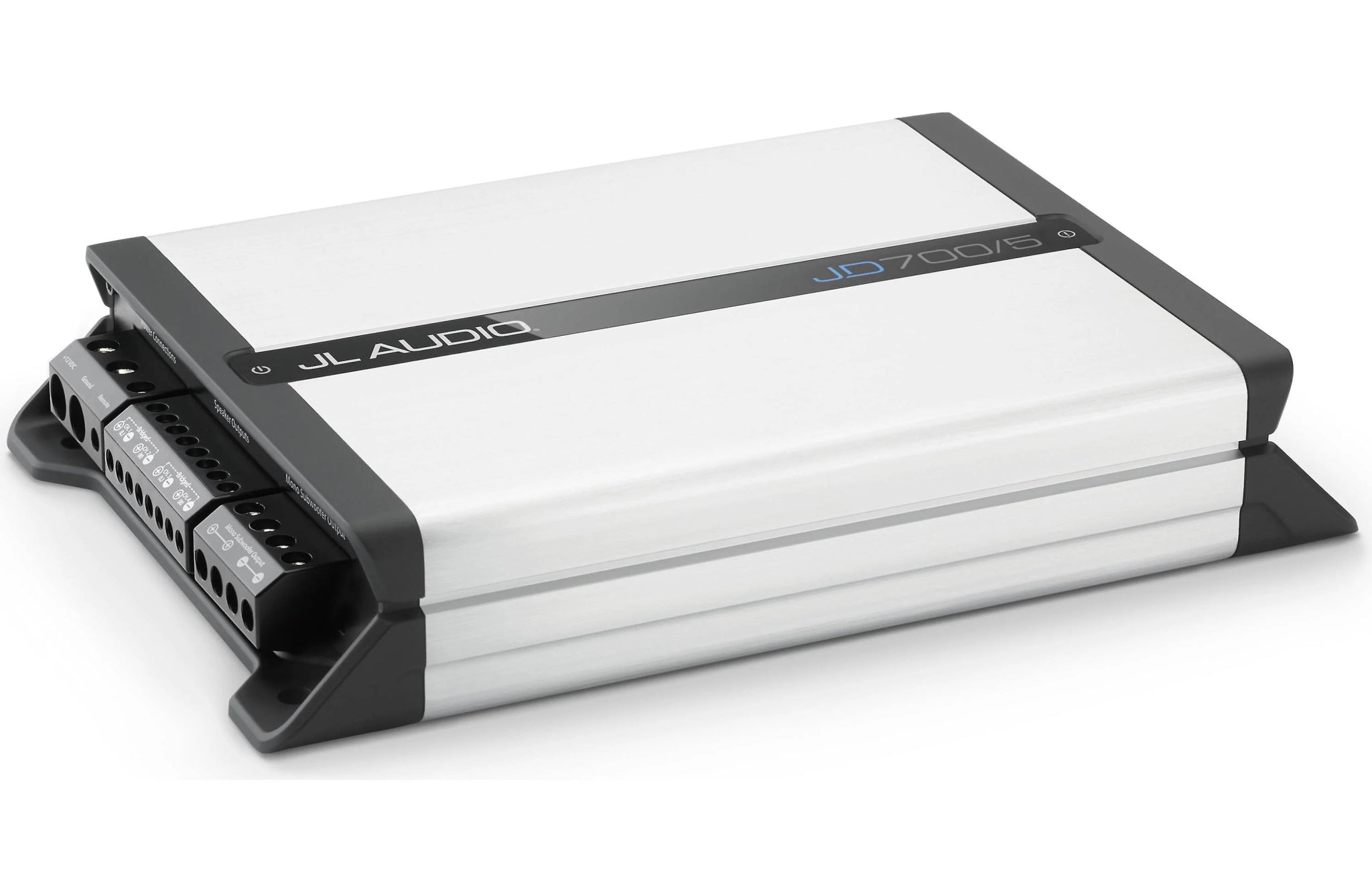

JL Audio JD700/5 Class‑D 5‑Channel Car Amplifier
The JD700/5 delivers a full stereo system and subwoofer solution in a compact Class‑D design. It outputs powerful, efficient levels — ideal for both clarity and depth — with a rugged, industrial chassis and advanced signal processing features.
| Key Features | |
|---|---|
| Power Output | 75 W × 4 @ 4 Ω • 100 W × 4 @ 2 Ω • 180 W @ 4 Ω (sub) • 300 W @ 2 Ω (sub) |
| Bridged Configuration | 200 W × 2 channels bridged @ 4 Ω |

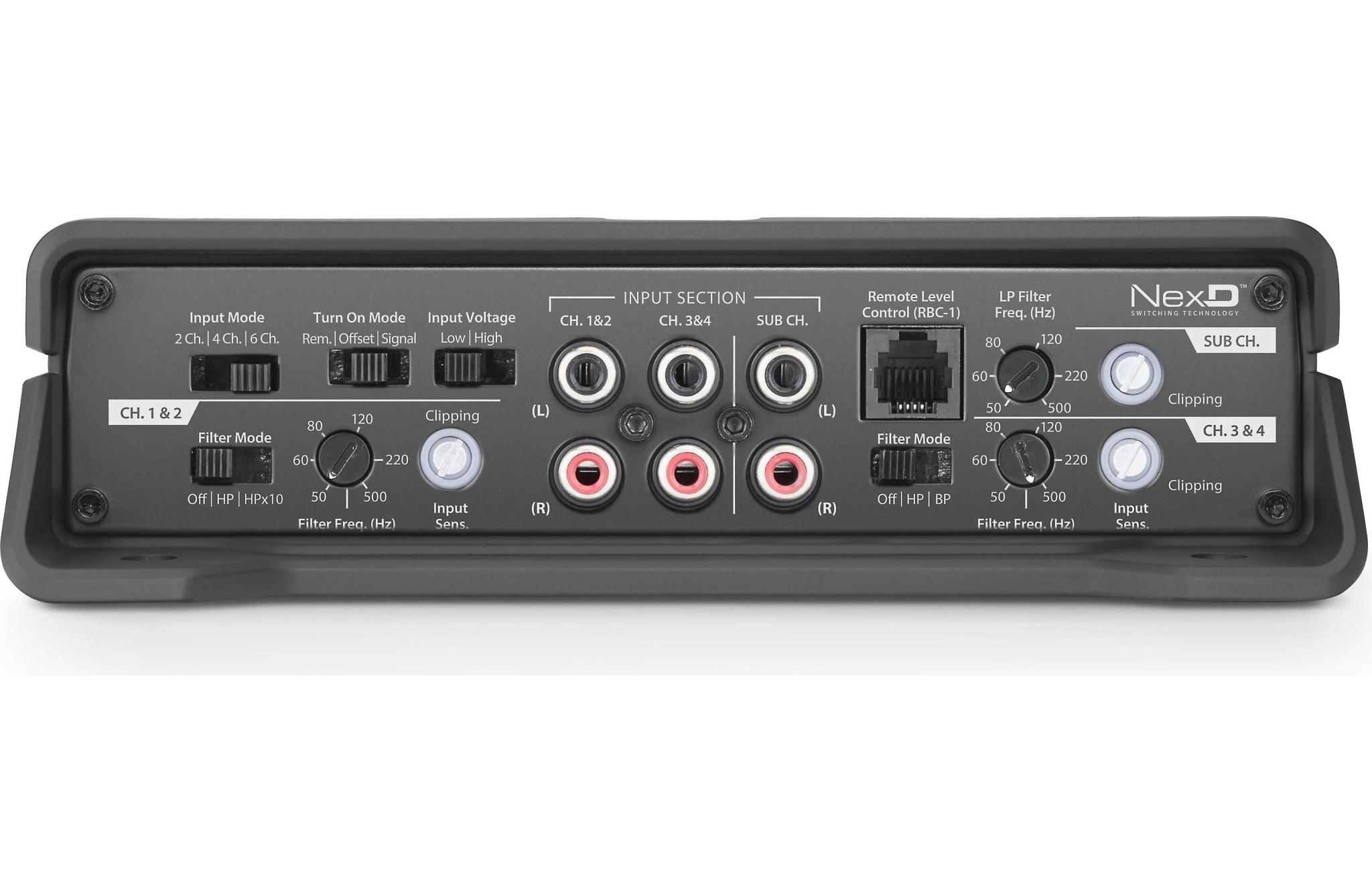

| Signal Processing | 12 dB/oct filters with selectable HP, LP, or band-pass (50–500 Hz, expanded ×10 range) |
| Input Options | Switchable RCA inputs (200 mV–2 V or 800 mV–8 V), plus signal‑sense turn-on |
| LED Clipping Indicators | LED rings around gain knobs for quick sensitivity tuning |
| Design | Class D with NexD™ switching, metal extruded chassis, molded end caps, LED protection LEDs |
| Protection | Input under/over‑voltage, over‑temperature, short circuit |
| What’s in the Box |
|---|
| 1 × JD700/5 amplifier |
| 1 × Owner’s manual |
| 1 × Performance certificate |
| Speaker-level adapters for RCA if needed |
| Technical Specifications | |
|---|---|
| Frequency Response | Main: 12 Hz–22 kHz • Sub: 7 Hz–500 Hz |
| THD | < 1% |
| SNR | Main: >104 dB • Sub: >80 dB |
| Fuse | 40 A (AFS, AGU, or MaxiFuse recommended) |
| Wiring | Requires 4 AWG power/ground |
| Dimensions | 11.86″ × 2.10″ × 7.50″ |
| Warranty | 2 Years |
JL Audio JD700/5 JD Series 5-Channel 75W RMS x 4 at 4 Ohm + 5th Sub Channel 180W x 1 at 4 Ohm, Class-D Full Range Car Amplifier
This Class-D 5-channel full-range car amplifier delivers compact power with cutting-edge clarity, designed to bring your car audio system to life. Featuring NexD switching technology, it provides 100 watts x 4 channels of pure power for door speakers, producing punchy, precise sound while running cool and efficiently. Its sleek, space-saving design allows powerful performance without compromising installation flexibility.
For deep, immersive bass, the amplifier includes a dedicated 300W mono channel for 10" or 12" subwoofers, delivering rich lows that elevate every track. Built-in high- and low-pass filters and an adjustable frequency range from 50–500 Hz give you full control over your audio, allowing precise tuning for crystal-clear clarity and tight bass response across any music genre.
Durability and ease-of-use are at the core of this amplifier. LED clipping rings make input level adjustments quick and foolproof, while the rugged industrial design with molded end caps and a durable aluminum chassis ensures long-lasting performance and effective heat management. Differential-balanced inputs reduce interference for pristine sound, and bright LED indicators keep you informed of your system’s status at a glance.
Key Features
– Class-D 5-Channel Full-Range Car Amplifier with Compact, Space-Saving Design
– 100W x 4 Channels for Door Speakers and 300W Mono Channel for Subwoofer
– NexD Switching Technology for High Efficiency and Crystal-Clear Sound
– Built-In High- and Low-Pass Filters with Adjustable Frequency Range (50–500 Hz)
– LED Clipping Rings for Easy Input Level Adjustments
– Differential-Balanced Inputs for Noise-Free Audio
– Rugged Industrial Design with Molded End Caps and Durable Aluminum Chassis
– Bright LED Indicators to Monitor System Status
– Includes 2mm, 2.5mm, and 3mm Allen Wrenches, and Owner’s Manual
What's Inside?
- Class-D 5-Channel Full Range Car Amplifier
- 2 mm Allen-wrench
- 2.5 mm Allen-wrench
- 3 mm Allen-wrench
