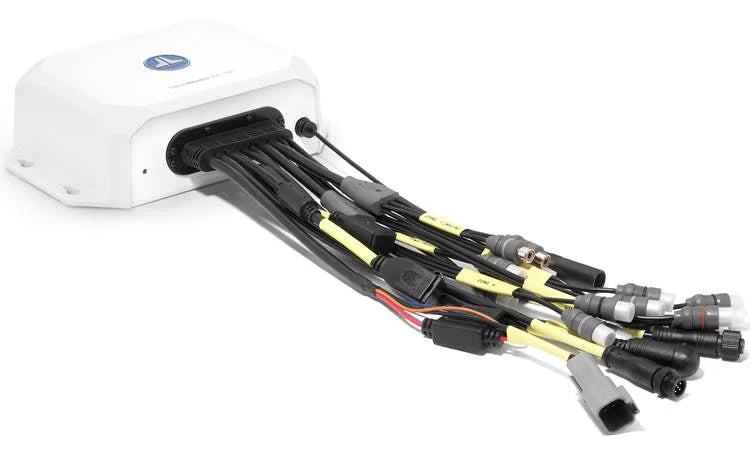

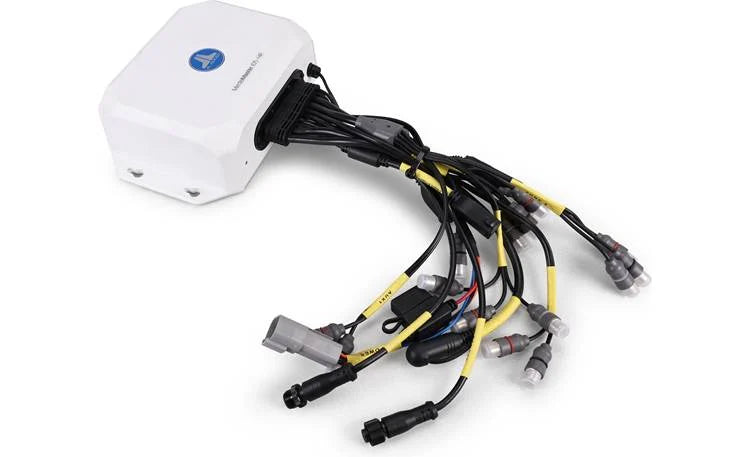

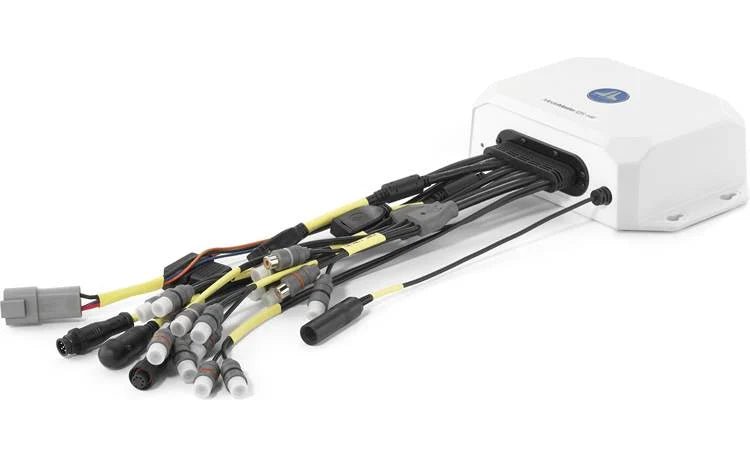

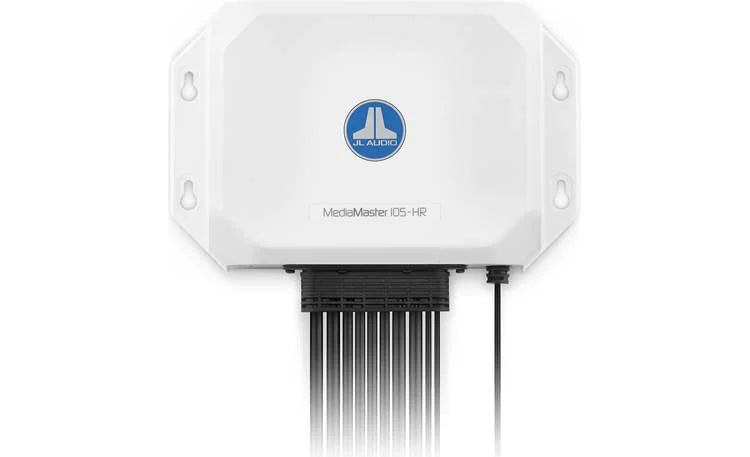

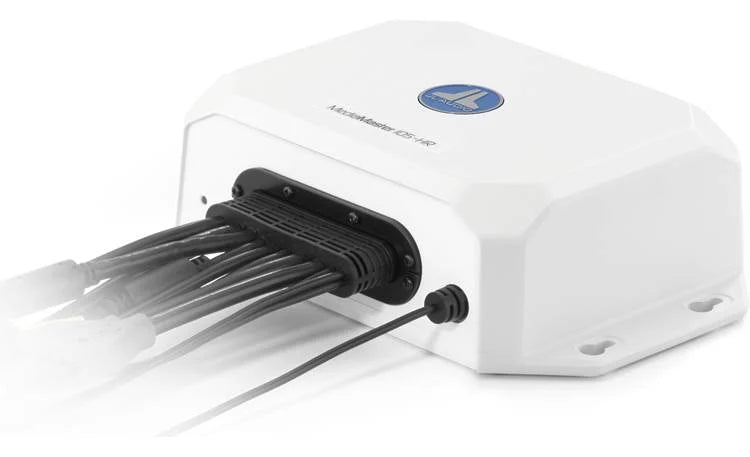

JL Audio MediaMaster MM105-HR Premium Hidden Source Unit
The JL Audio MM105-HR is a "headless" marine source unit designed to be tucked away out of sight. It provides all the audiophile-grade performance of the flagship MM105 but dispenses with the physical screen and controls in favor of a concealed, space-saving installation. This makes it the ideal choice for modern glass-helm vessels where audio control is handled entirely through Multi-Function Displays (MFDs).
Key Features
NMEA 2000® Integration
The MM105-HR is NMEA 2000® Certified, allowing it to interface directly with compatible displays from brands like Garmin, Simrad, Lowrance, and Raymarine. You can control your volume, source, and zone settings directly from your MFD's interface. For physical control at the helm or in a cabin, it is also compatible with the MMR-40 Network Controller (sold separately).
Audiophile-Grade Architecture
Designed for high-end systems, this unit does not include a built-in amplifier. Instead, it features 12 channels of 4V RMS preamp outputs. This setup is optimized to provide a clean, noise-free signal to high-performance marine amplifiers, ensuring your music sounds crisp even at the high volumes required on open water.
Four Independent Audio Zones
Manage sound across your entire vessel with four nameable audio zones. Each zone features independent level and tone controls, as well as its own subwoofer output with a selectable low-pass crossover (60/80/100 Hz). The system also includes a Volume Limit feature, allowing you to set a maximum volume for specific areas like the cabin or sun deck.
Modern Digital Connectivity
The MM105-HR is built for digital media. It features Bluetooth® 5.0 with Qualcomm® aptX™ for high-fidelity wireless streaming and dual USB ports for direct iPhone/iPod control and charging. It also supports SiriusXM (with optional tuner) and includes a global AM/FM tuner with RDS for extended program information.
Technical Specifications
| Feature | Specification |
| Output Type | 12-Channel Preamp Only (No internal amp) |
| Output Voltage | 4V RMS |
| Audio Zones | 4 (Independent or Linked) |
| Water Rating | IP67 (Weatherproof) |
| Connectivity | Bluetooth 5.0 (aptX), 2x USB, 2x AUX, NMEA 2000 |
| Tuner | AM/FM/DAB+/HD Radio (North America) |
| Operating Temp | -4°F to +158°F (-20°C to +70°C) |
