Kenwood CMOS-740HDLP HD Backup Camera
The Kenwood CMOS-740HDLP is a high-definition rearview camera with HDR, 1280×720 resolution, wide field of view, and IP67 water/dust protection. Ideal for compatible Kenwood receivers, it delivers clear imagery in bright or dark conditions.
| Key Features | |
|---|---|
| Resolution | 1280 × 720 (720p HD) |
| HDR | High Dynamic Range to balance bright/dark areas |
| Viewing Angle | 180° horizontal / 103° vertical |
| Sensor | 1/3.8" CMOS, ~1.3 MP |
| Low-Light Performance | 1.0 lux sensitivity |
| Water / Dust Resistance | IP67 rated |
| Voltage Compatibility | 12V / 24V support |

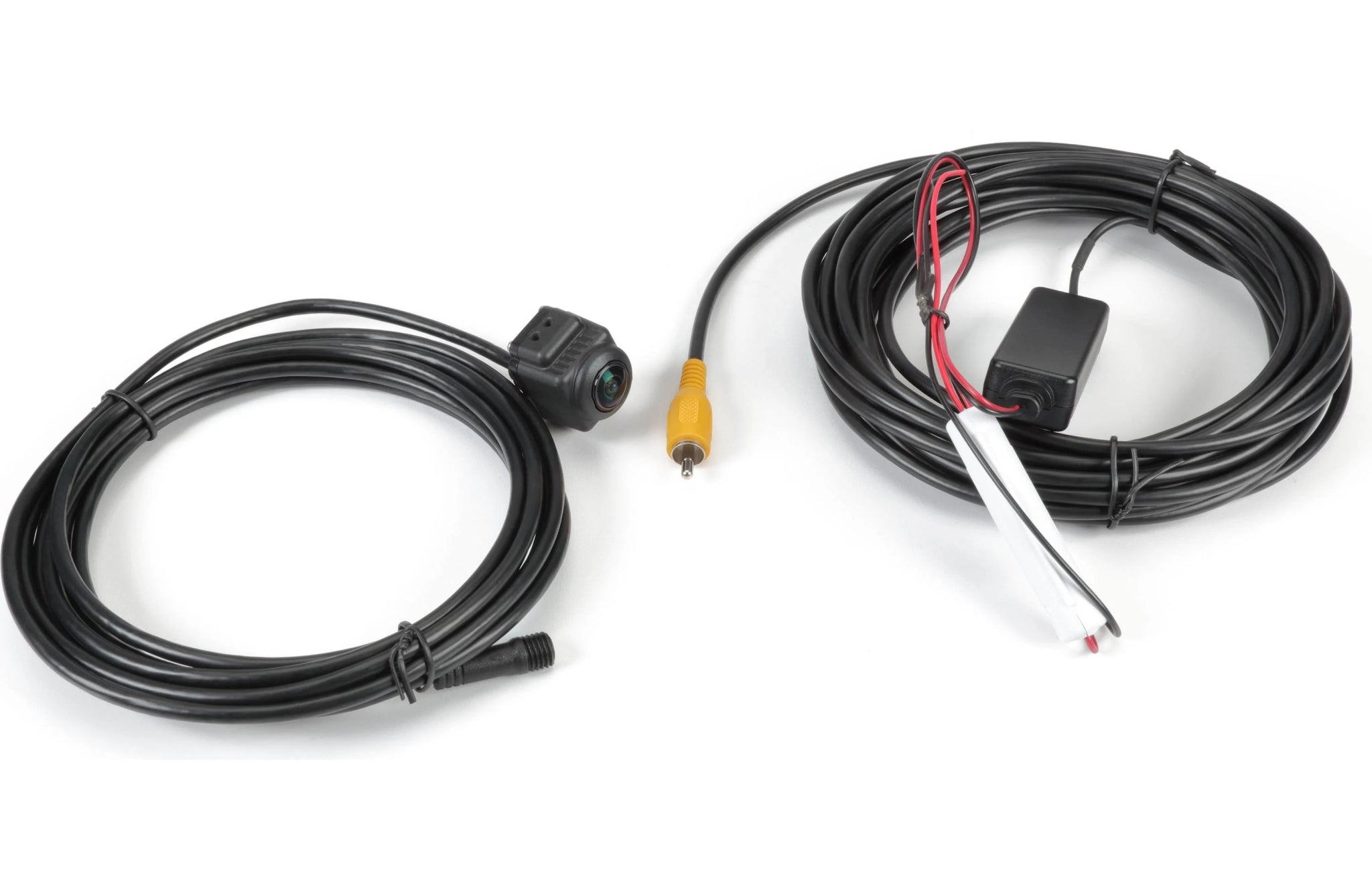

| What’s in the Box |
|---|

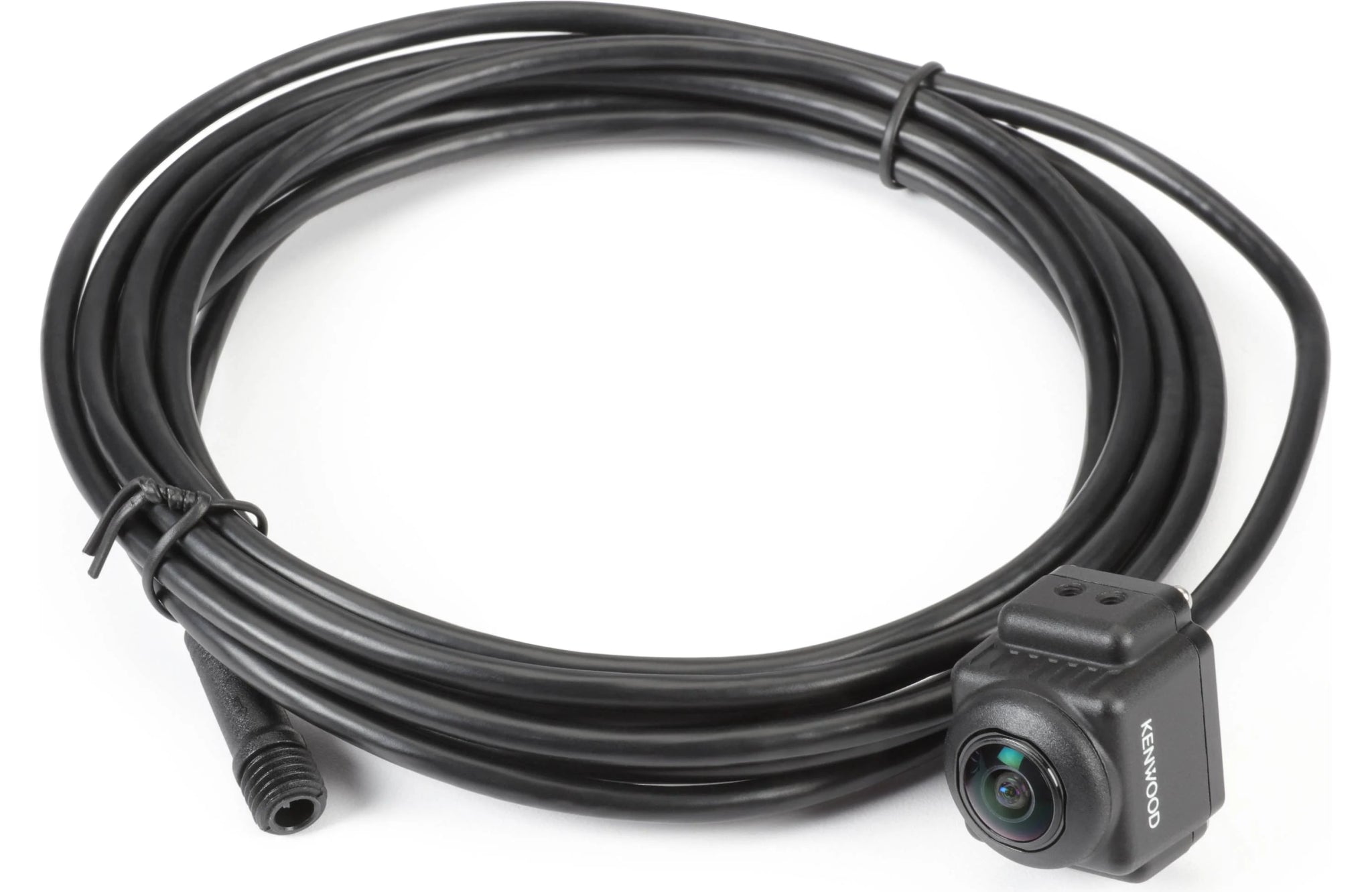

| 1x CMOS-740HD backup camera (with attached cable) |
| 1x 20 ft extension cable |

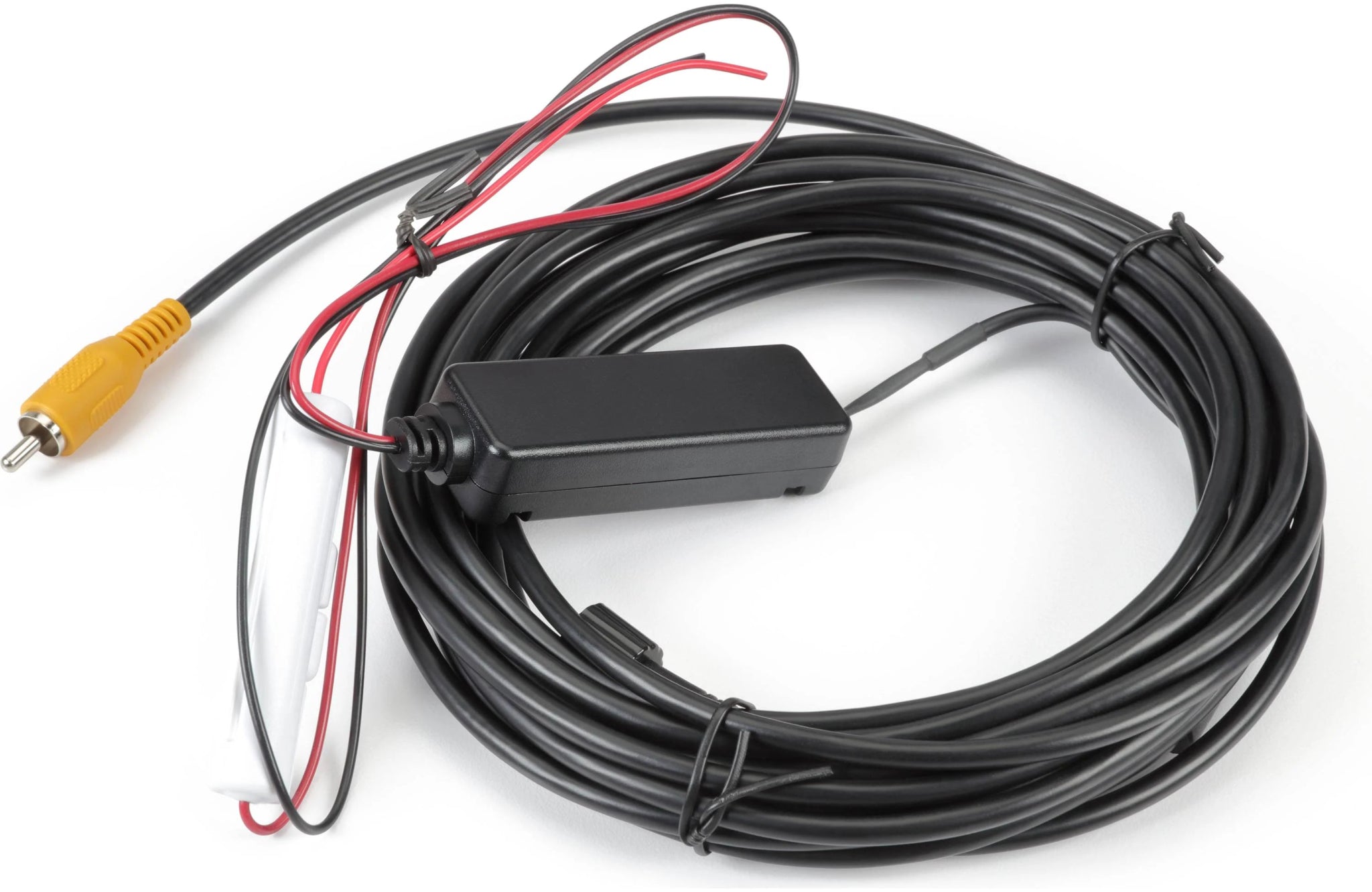

| 1x 23 in power / ground harness |

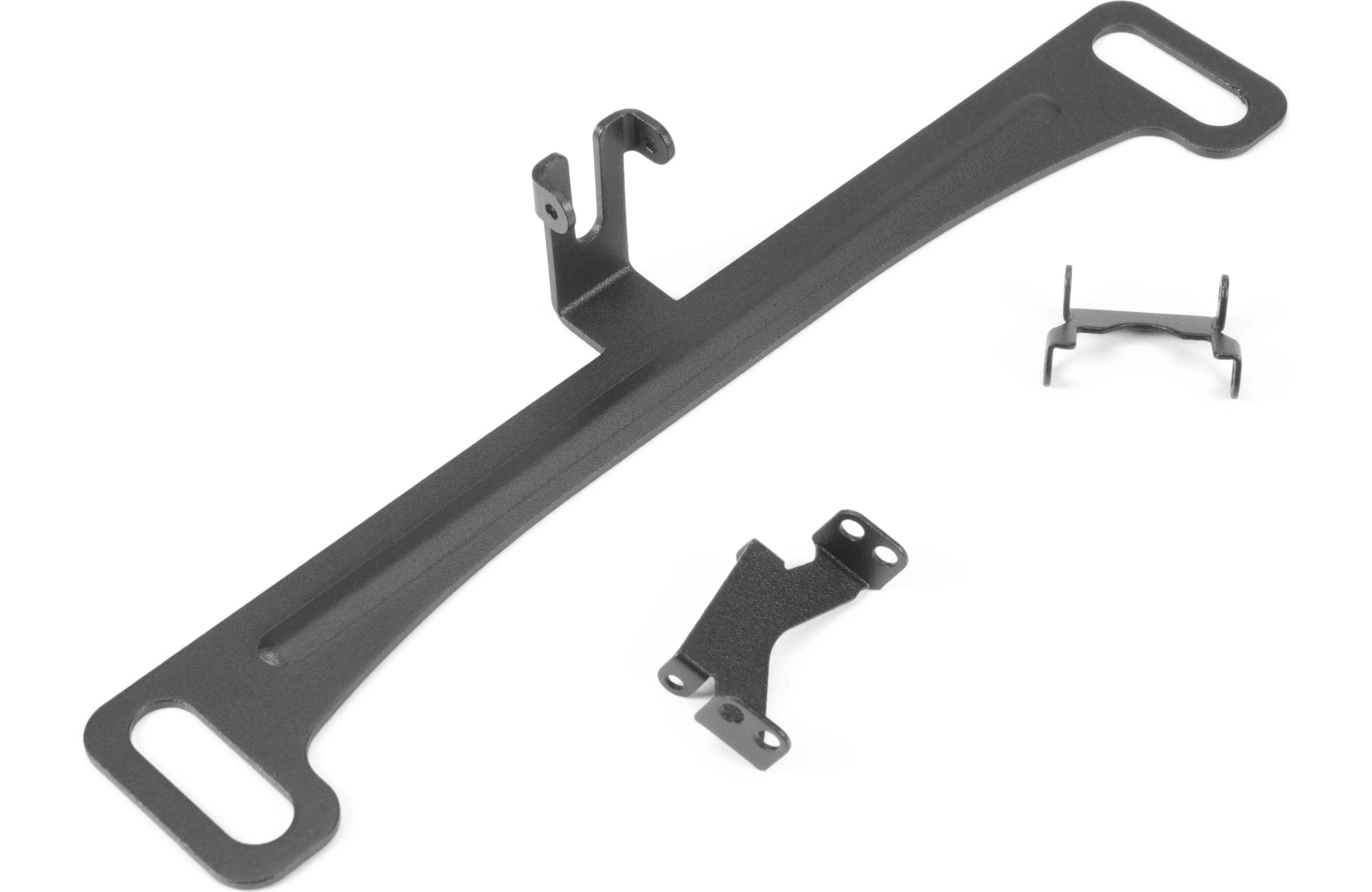

| 1x License plate mounting bracket (CA-LPM10) |
| 1x Bracket (for camera) |
| 1x Set of mounting screws (various sizes) |
| 1x Rubber grommet |
| 1x Cable-tie |
| 1x Instruction manual & warranty card |
| Technical Specifications | |
|---|---|
| Sensor | 1/3.8" CMOS (~1.3 MP) |
| Viewing Angle | 180° (H) / 103° (V) |
| Resolution / Frame Rate | 1280 × 720 @ 30 fps |
| Output Format | HD-TVI (via composite cable) |
| Illumination | 1.0 lux to 100,000 lux object luminance |
| Dimensions (W × H × D) | 31.1 × 23.0 × 25.2 mm (≈1.25" × 0.94" × 1.0") |
| Cable Lengths | Camera side: 9.84 ft / 3 m, DC box side: 19.69 ft / 6 m |
| Voltage | 12V / 24V compatible |
| Operating Temp | –30 °C to +85 °C (–22 °F to +185 °F) |
| Water / Dust Protection | IP67 |
| Mounting Bracket Dimensions | 7.75" × 1.375" × 1.125" (≈197 × 35 × 29 mm) |
| Warranty | 1 Year |
