Kenwood Excelon X503-1
Mono subwoofer amplifier — 500 watts RMS at 2 ohms
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

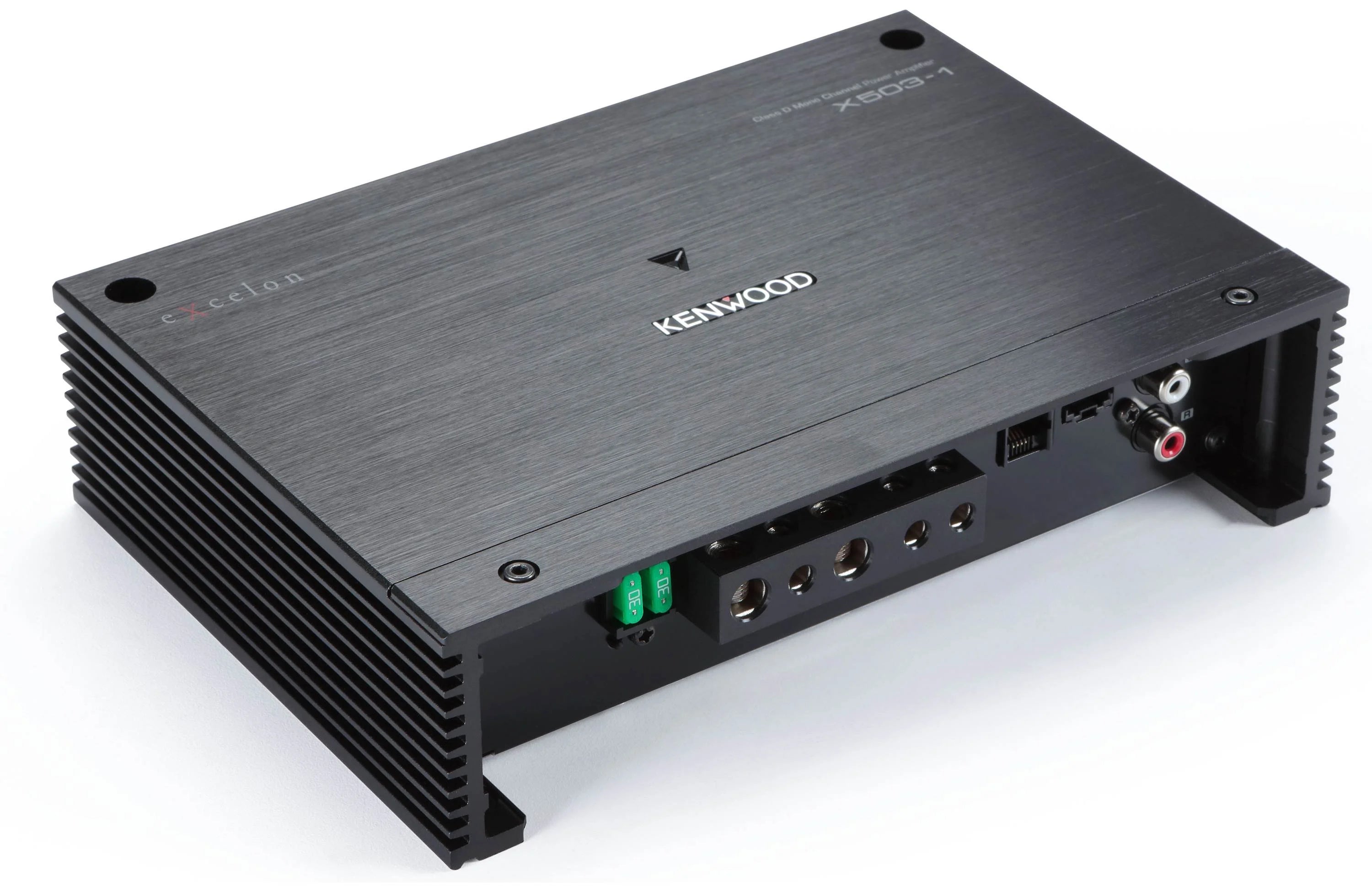

Kenwood Excelon X503-1 Class D Mono Subwoofer Amplifier
The Kenwood Excelon X503-1 is a compact, high-performance mono Class D amplifier that delivers up to 500W RMS at 2Ω. It features a variable low-pass filter, infrasonic filter, bass boost, and a wired remote level control—engineered to provide clean, powerful bass in tight installation spaces.
| Key Features | |
|---|---|
| RMS Power @ 4Ω | 300W |
| RMS Power @ 2Ω | 500W |
| Max Power | 1,000W |

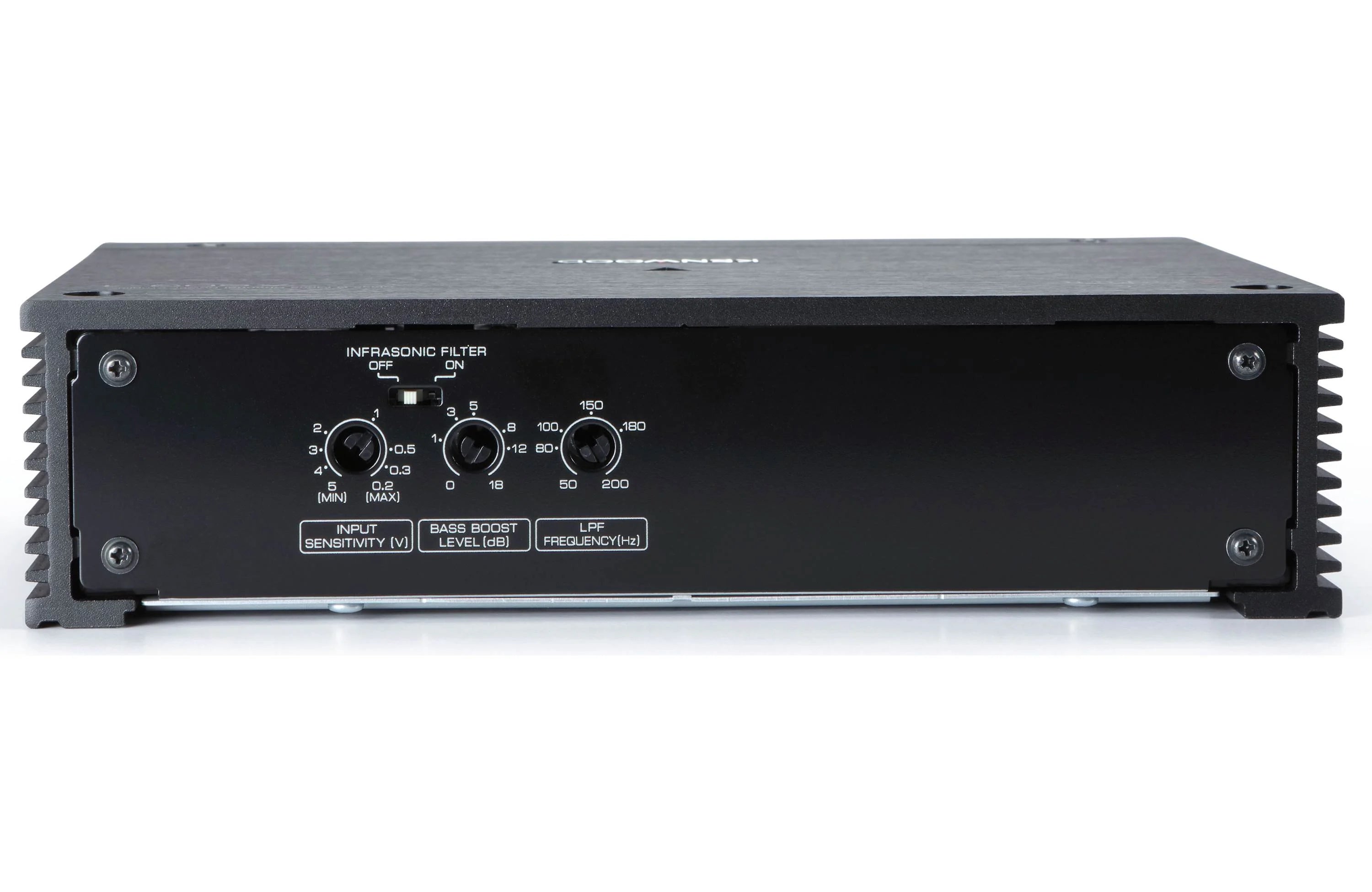

| Low-Pass Filter | 50–200 Hz, 24 dB/octave |
| Infrasonic Filter | 25 Hz, 24 dB/octave |
| Bass Boost | 0–18 dB @ 40 Hz |

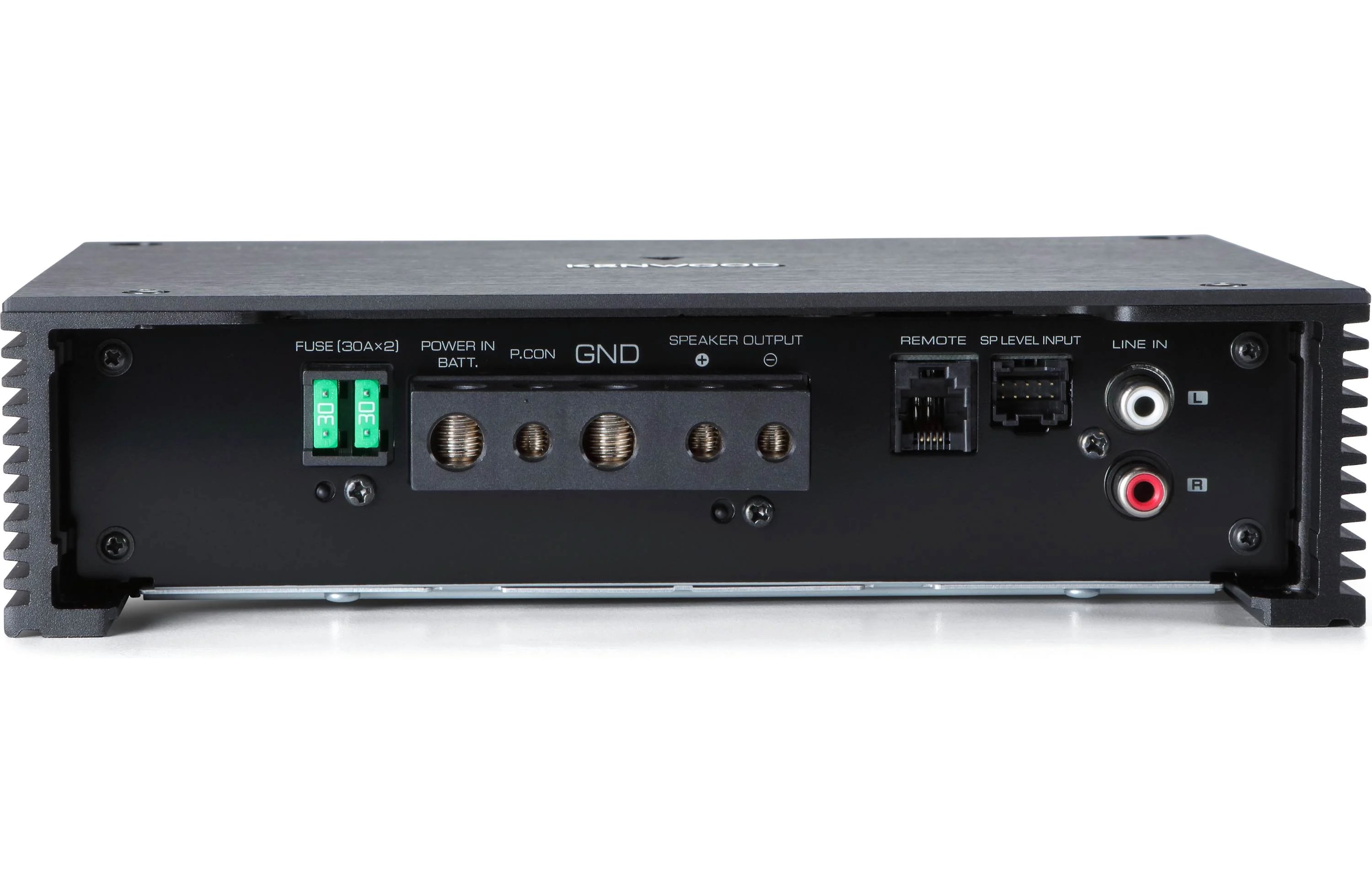

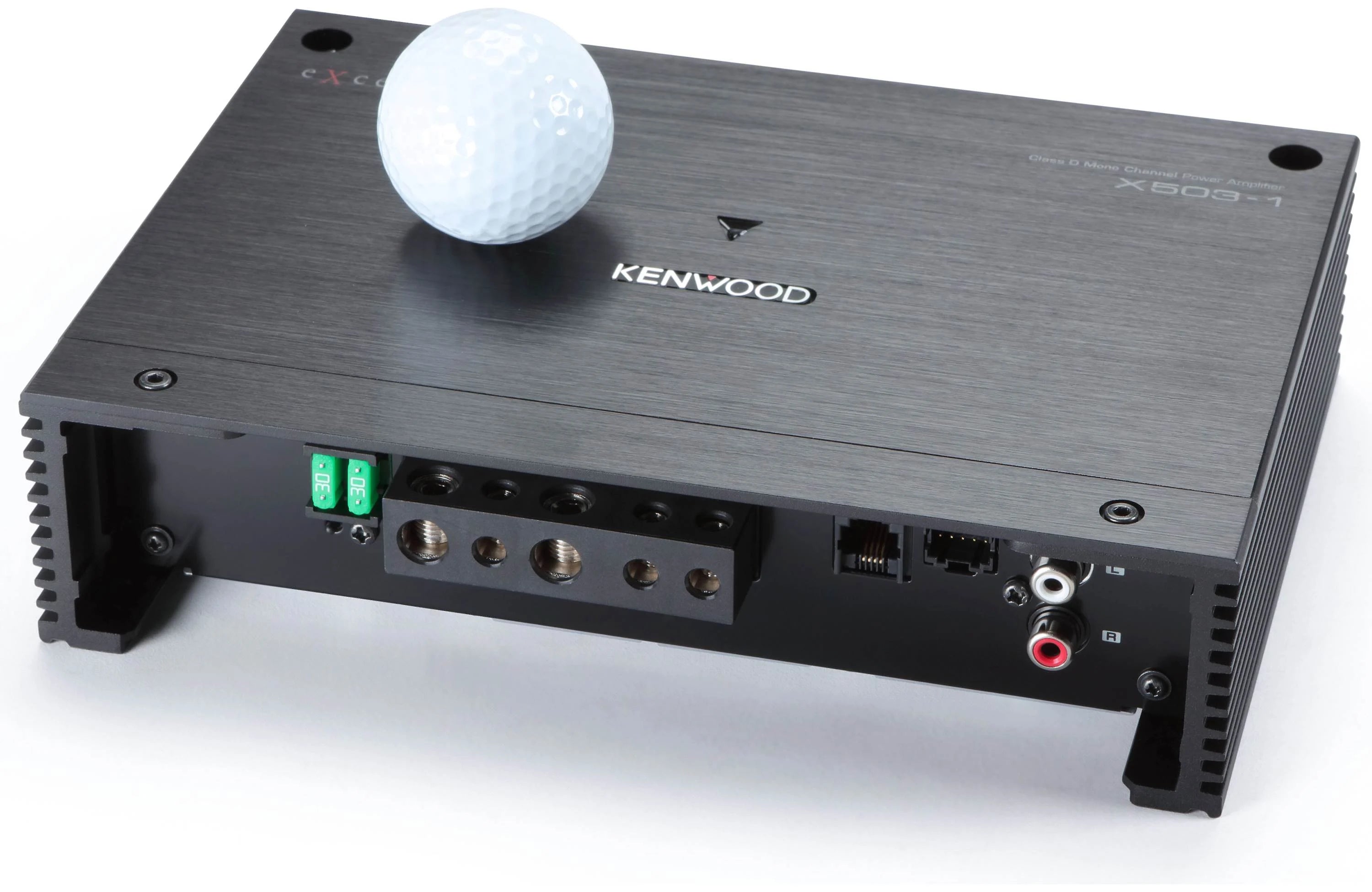

| Install-Friendly | All connections on one side; compact chassis |
| Build | Shielded output coil, premium components for low distortion |
| What’s in the Box |
|---|
| 1x X503-1 mono amplifier (2 × 30A fuses pre-installed) |
| 1x 7" speaker-level input harness |

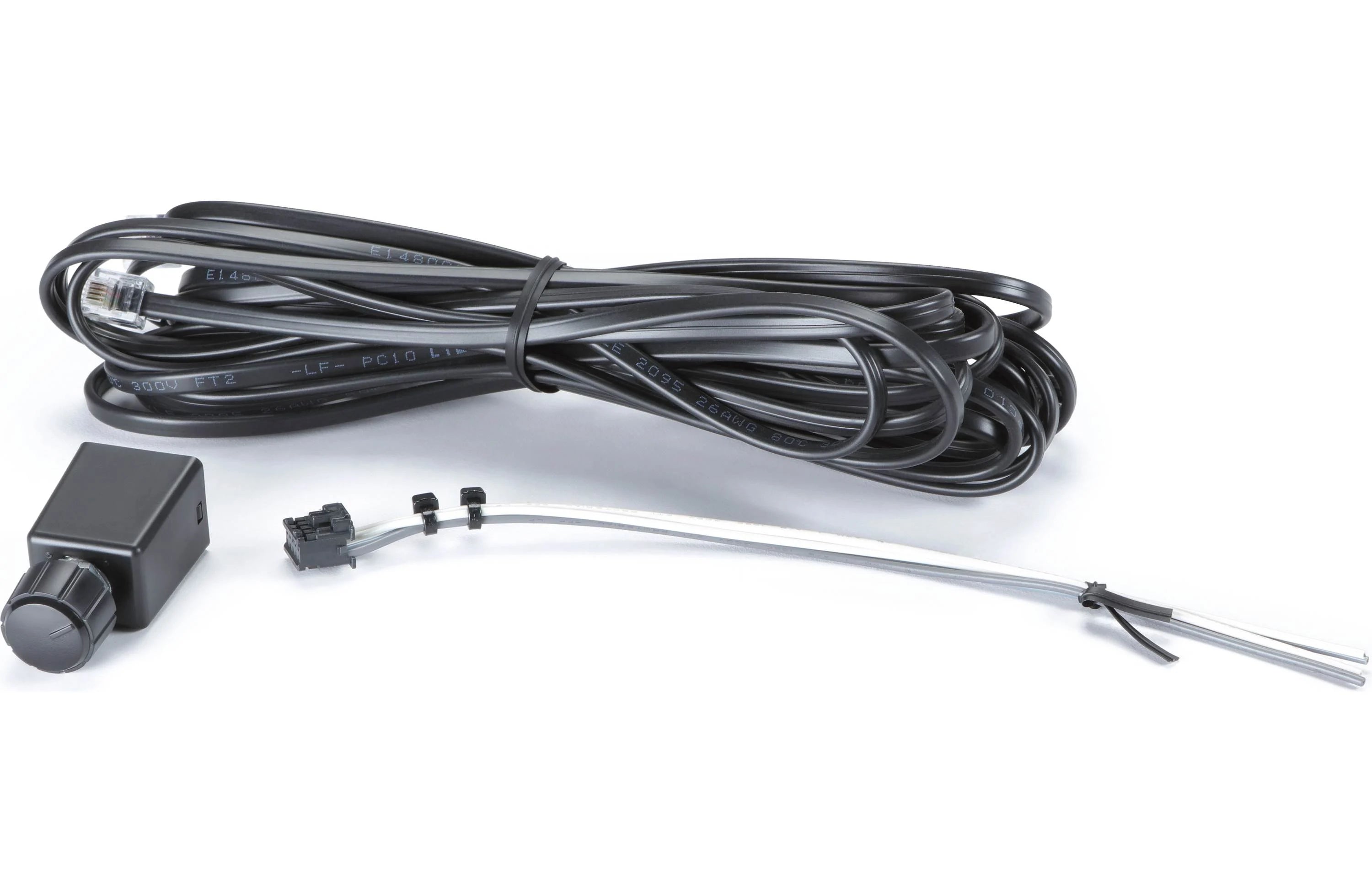

| 1x Wired remote level control |
| 1x 19.5' remote level control cable (RJ-14) |
| 1x Hex nut |
| 1x Flat washer |
| 4x 1/2" mounting screws |
| 2x Allen keys (4 mm & 2.5 mm) |
| 1x Instruction manual & warranty information |
| Technical Specifications | |
|---|---|
| Frequency Response | 20 Hz – 200 Hz |
| Signal-to-Noise Ratio | 100 dB (ref. rated power into 4Ω) |
| Input Sensitivity (RCA) | 0.2V – 5.0V |
| Speaker-Level Input Sensitivity | 4.0V – 12.0V |
| Fuse Rating | 2 × 30A mini-ATC |
| Dimensions (W × H × D) | 8-3/8" × 2-1/16" × 5-7/8" (≈213 × 53 × 149 mm) |
| Operating Voltage | 11–16V DC (14.4V nominal) |
| Current Draw | 28A (approx.) |
| Warranty | 2 Years (parts & labor) |
