Kenwood Excelon XR-W1002
10" 2-ohm component subwoofer
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

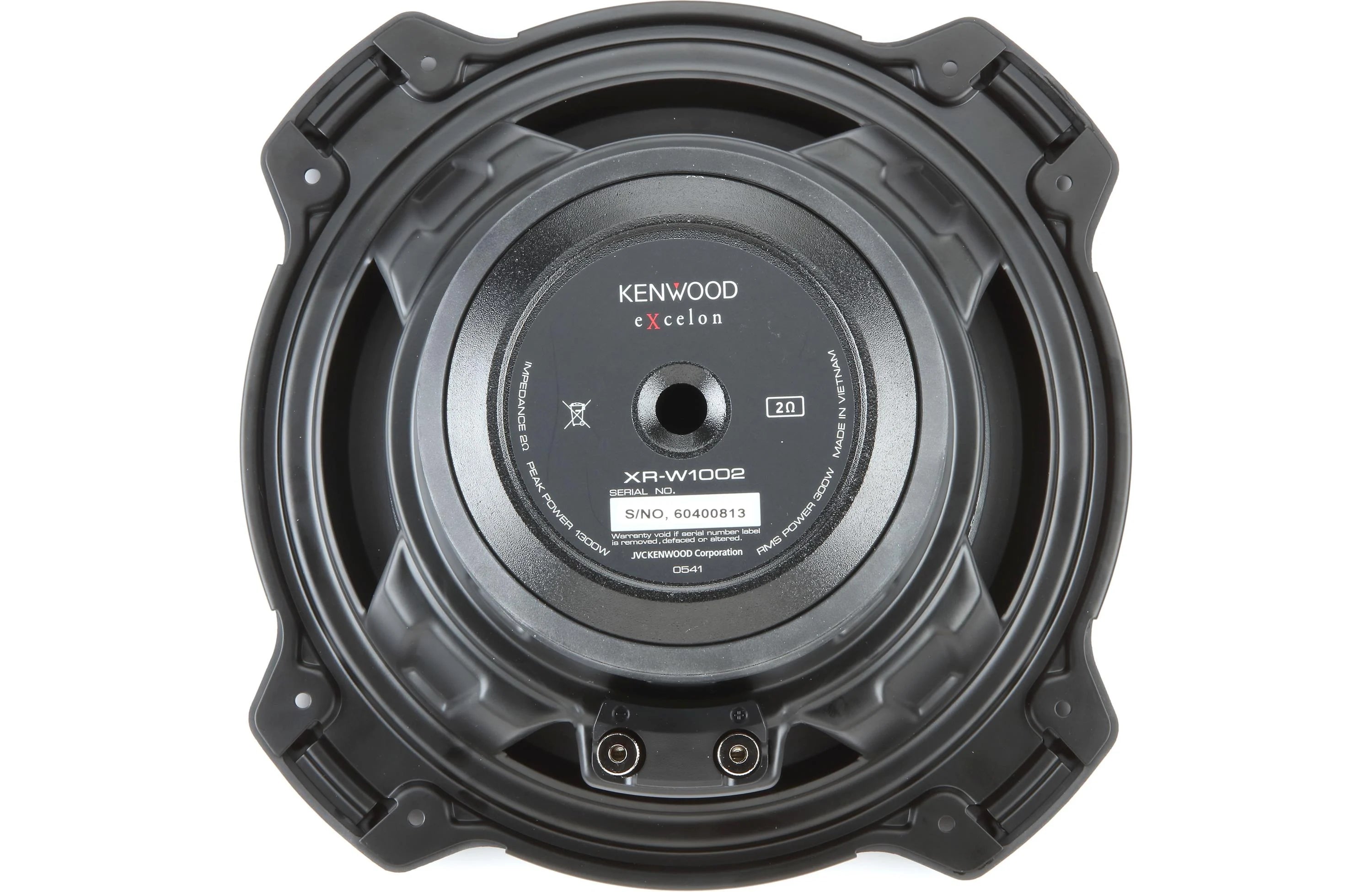

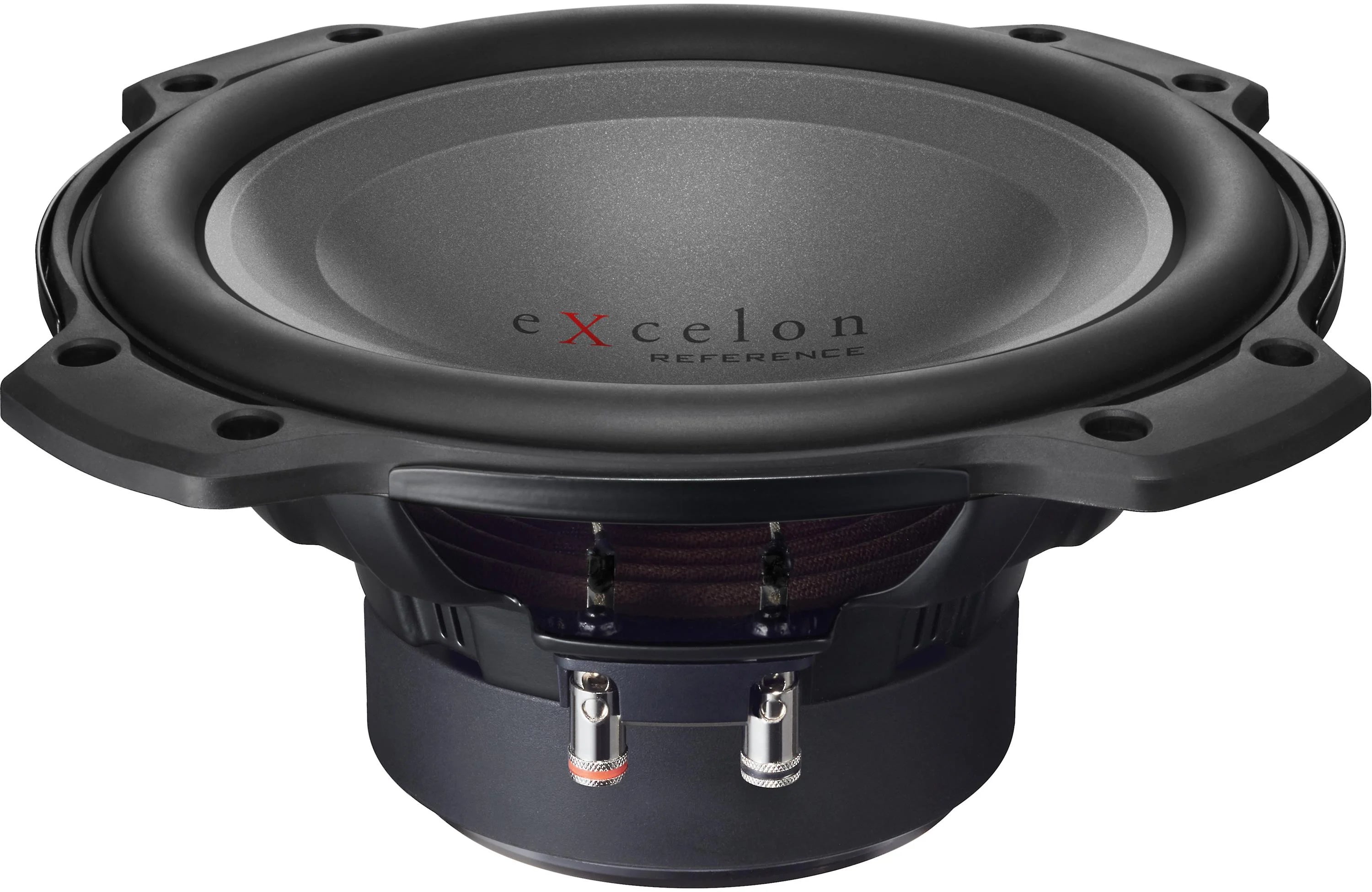

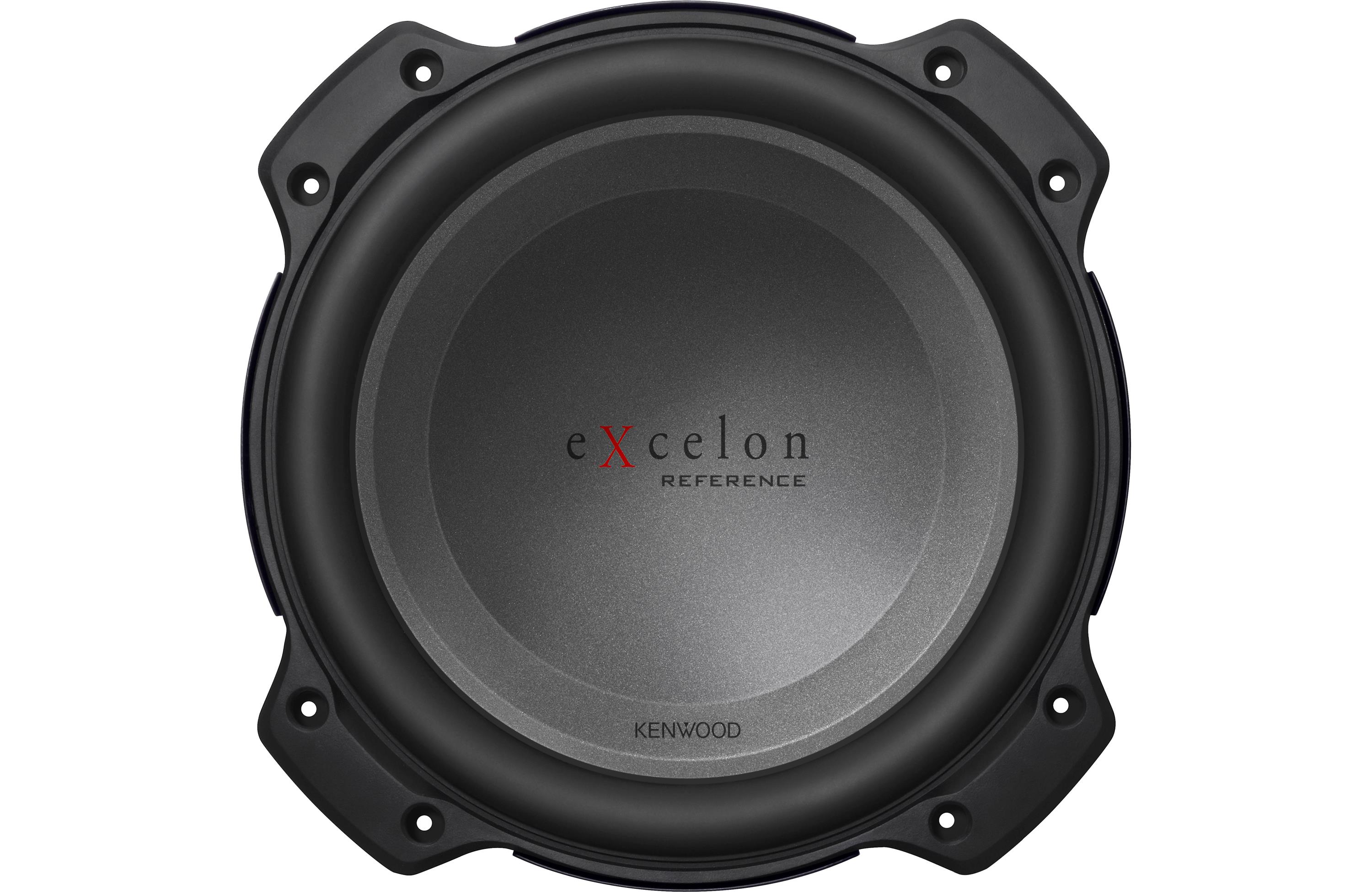

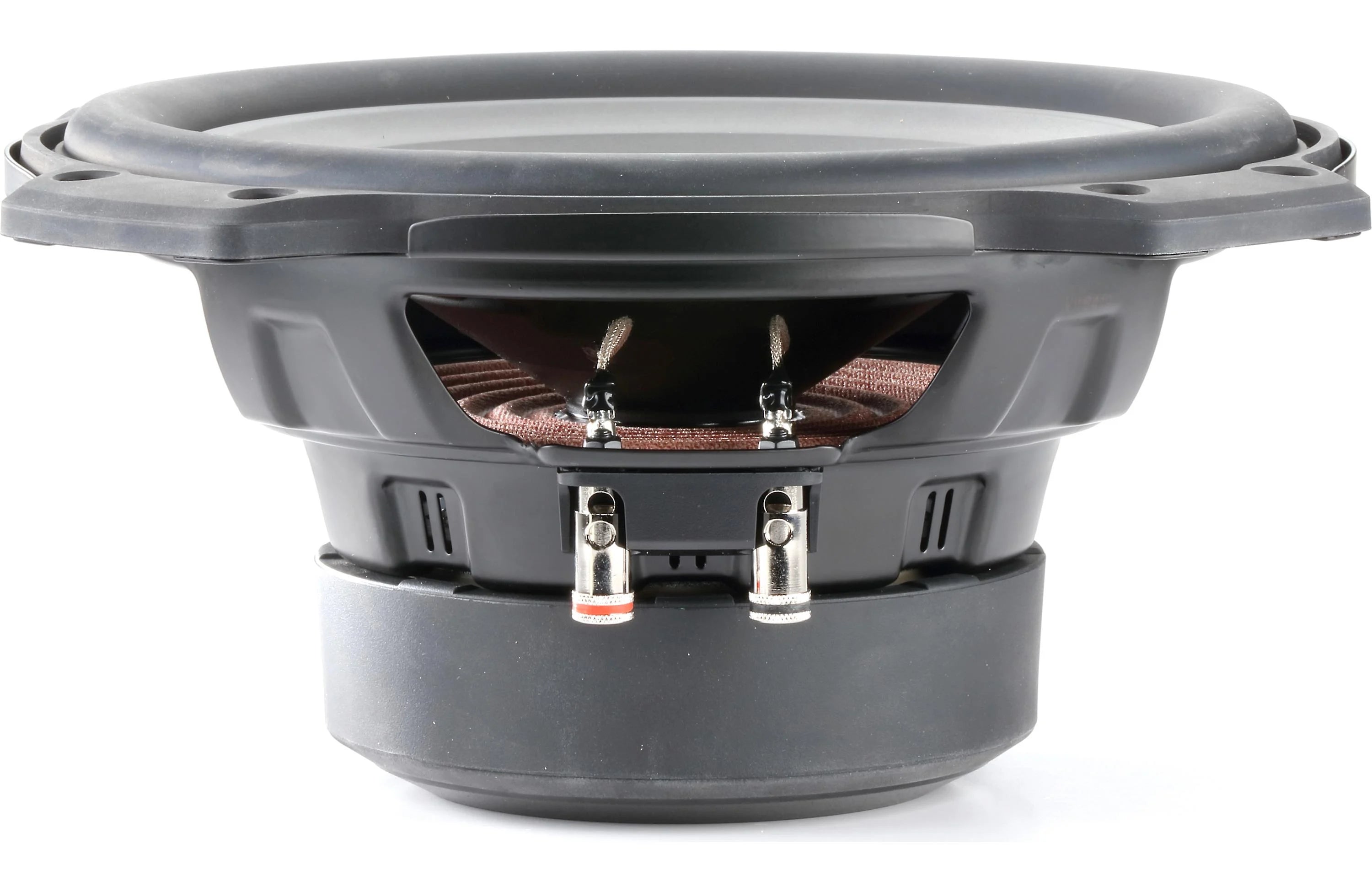

Kenwood Excelon XR-W1002 10" Subwoofer
The Kenwood Excelon XR-W1002 is a 10" oversized component subwoofer with a polypropylene cone and dual ventilation system to keep it cool under load. Designed for deep, controlled bass with reliability and performance in mind.
| Key Features | |
|---|---|
| Power Handling (RMS) | 300 W |
| Peak Power | 1,300 W |
| Impedance | 2 Ω |
| Sensitivity | 80 dB (1 W / 1 m) |
| Frequency Response | 31 Hz – 300 Hz |
| Mounting Depth | 4-13/16" (≈122 mm) |
| Cutout Diameter | 9-1/8" (≈231 mm) |
| Ventilation & Cooling | Dual ventilation system to reduce heat buildup |
| What’s in the Box |
|---|
| 1x XR-W1002 subwoofer |
| 8x Screws (φ4 × 35 mm) |
| 1x Adhesive foam gasket |
| 1x Cardboard cutout template |
| 1x Instruction / installation manual |
| 1x Warranty card |
| Technical Specifications | |
|---|---|
| Model | XR-W1002 |
| Woofer Size | 10" / Oversized 25 cm |
| Cone Material | Polypropylene (PP) |
| Surround | Rubber |
| Basket Material | Steel |
| Magnet Structure | Ferrite φ140 × t16 × 2 pcs |
| Nominal Impedance | 2 Ω |
| Power Handling | 300 W RMS / 1,300 W Peak |
| Sensitivity | 80 dB |
| Frequency Response | 31 – 300 Hz |
| Mounting Depth | 4-13/16" |
| Cutout Diameter | 9-1/8" |
| Special Features | Dual ventilation, stress-free damper, 8 AWG push terminals |
| Warranty | 2 Years (parts & labor) |
JL Audio JD1000/1 JD Series 1000W RMS x 1 at 2 Ohms, Class-D Mono Subwoofer Car Amplifier
The Kenwood Excelon XR-W1002 10" oversized subwoofer is designed to elevate your car audio experience with deep, punchy bass and precise low-frequency performance. Engineered with rugged construction and advanced materials, this high-performance subwoofer features an oversized diaphragm and dual ventilation system for efficient cooling, allowing it to handle high power levels while maintaining optimal performance. With a peak power handling of 1300 Watts, 300 Watts RMS, and a frequency response of 31–300 Hz, the XR-W1002 delivers tight, impactful bass that enhances both music and cinematic soundtracks. Its single 2-ohm voice coil offers flexible wiring options and compatibility with a variety of amplifiers, while the shallow mounting depth ensures easy installation in compact spaces.
Key Features:
-Oversized 10" diaphragm with dual ventilation system for high power handling and efficient cooling
-Single 2-ohm voice coil for flexible wiring options and amplifier compatibility
What's Inside?
- (1) 10" Subwoofer
- (8) 1-3/8" Screws
- Adhesive backed foam gasket
- Cardboard template
