Memphis Audio MX800.4 Powersports 4-Channel Amplifier
Product Overview:
The Memphis Audio MX800.4 is a compact, high-output Class D amplifier specifically engineered for the demanding environments of powersports, marine, and UTV applications. Despite its small footprint, it delivers a massive 800W RMS total power. Its ultra-durable design features an IP66 rating, making it completely resistant to dust and high-pressure water, ensuring your music keeps playing through mud, rain, or ocean spray.
Key Features
Extreme Weather Protection
Built to survive where standard amplifiers fail, the MX800.4 features conformal-coated circuit boards that protect internal components from moisture and corrosion. The unit is equipped with sealed connectors for power and signal, and the control panel is shielded by a water-resistant top cover, ensuring the sensitive tuning dials remain dry and functional in any weather.

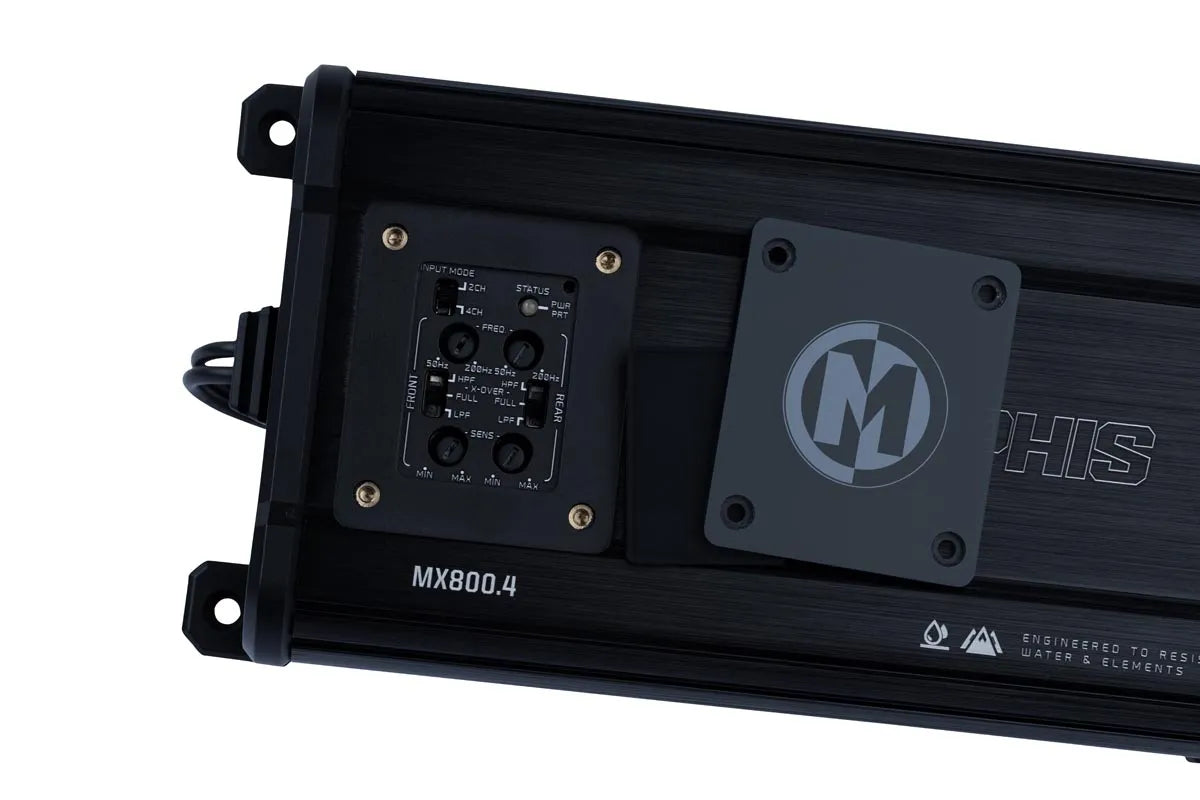

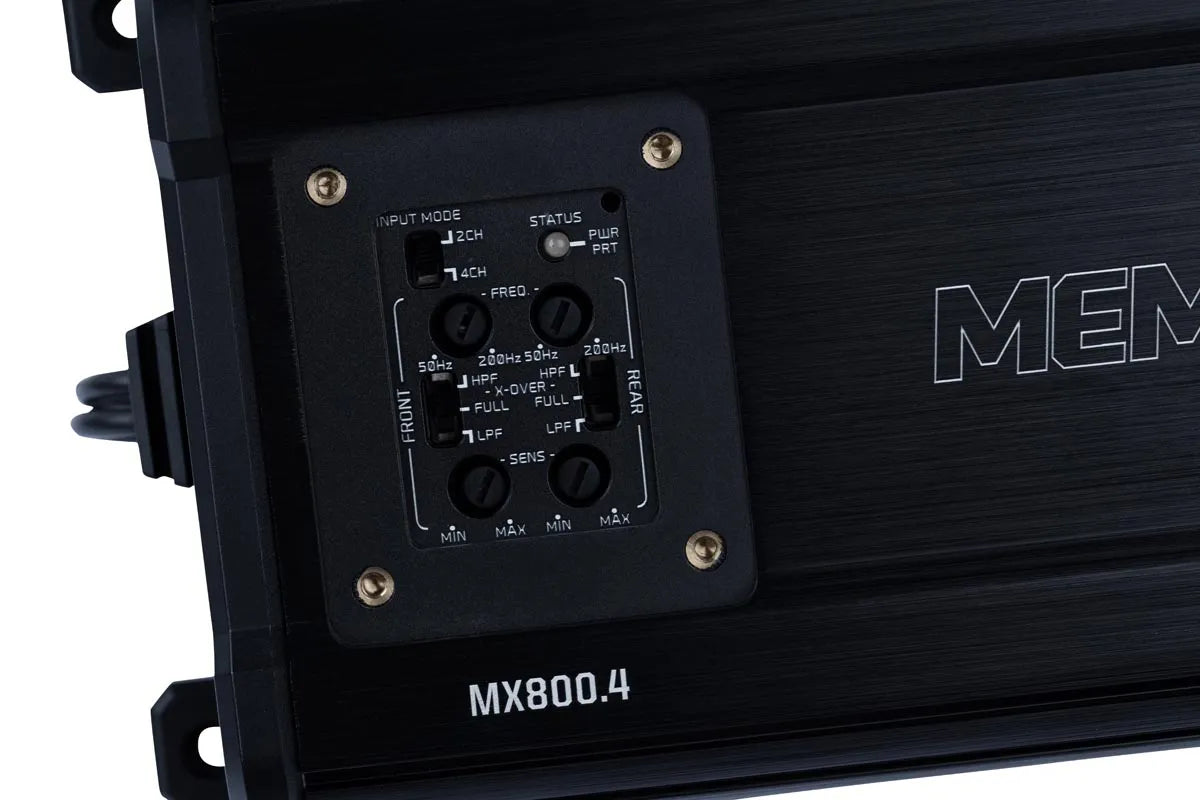

Installer-Friendly "Top-Mount" Controls
In tight powersports installations, accessing side-mounted controls can be nearly impossible. Memphis solved this by placing all crossover and gain controls on the top of the amplifier. This allows you to easily fine-tune the sound even after the unit is mounted in a cramped glove box or under a dash.
Versatile Power Configurations
The MX800.4 is highly flexible, offering 4-channel, 3-channel, or 2-channel (bridged) modes. You can use it to power four high-output speakers at 200W each, or bridge two channels to drive a subwoofer with 400W RMS while the remaining two channels handle your front speakers.
Seamless Integration
Equipped with a 2/4 channel input switch, this amplifier can create a 4-channel output even if your head unit only has a single set of RCA outputs. It also supports both high-level (speaker) and low-level (RCA) inputs, making it compatible with both aftermarket stereos and factory-installed systems.
Technical Specifications
| Category | Specification |
| Power Output (RMS) | 125W x 4 @ 4Ω / 200W x 4 @ 2Ω |
| Bridged Power (RMS) | 400W x 2 @ 4Ω |
| Total RMS Power | 800 Watts |
| Amplifier Class | High-Efficiency Class D |
| Weather Rating | IP66 (Water, Dust, and Element Resistant) |
| Frequency Response | 10Hz – 20kHz |
| THD @ 4Ω | < 1% |
| Input Range | 300mV – 9.7V |
| Recommended Wire | 8-Gauge Power/Ground (8GKIT) |
| Dimensions (L x W x H) | 8.35" x 4.35" x 1.75" |
