Rockford Fosgate P2D4-10
Punch Series P2 10" Subwoofer with Dual 4-ohm Voice Coils
Enjoy a complimentary $75 Installation credit on all Online Orders. Limit one per customer. Terms and Conditions apply.
Need Help?

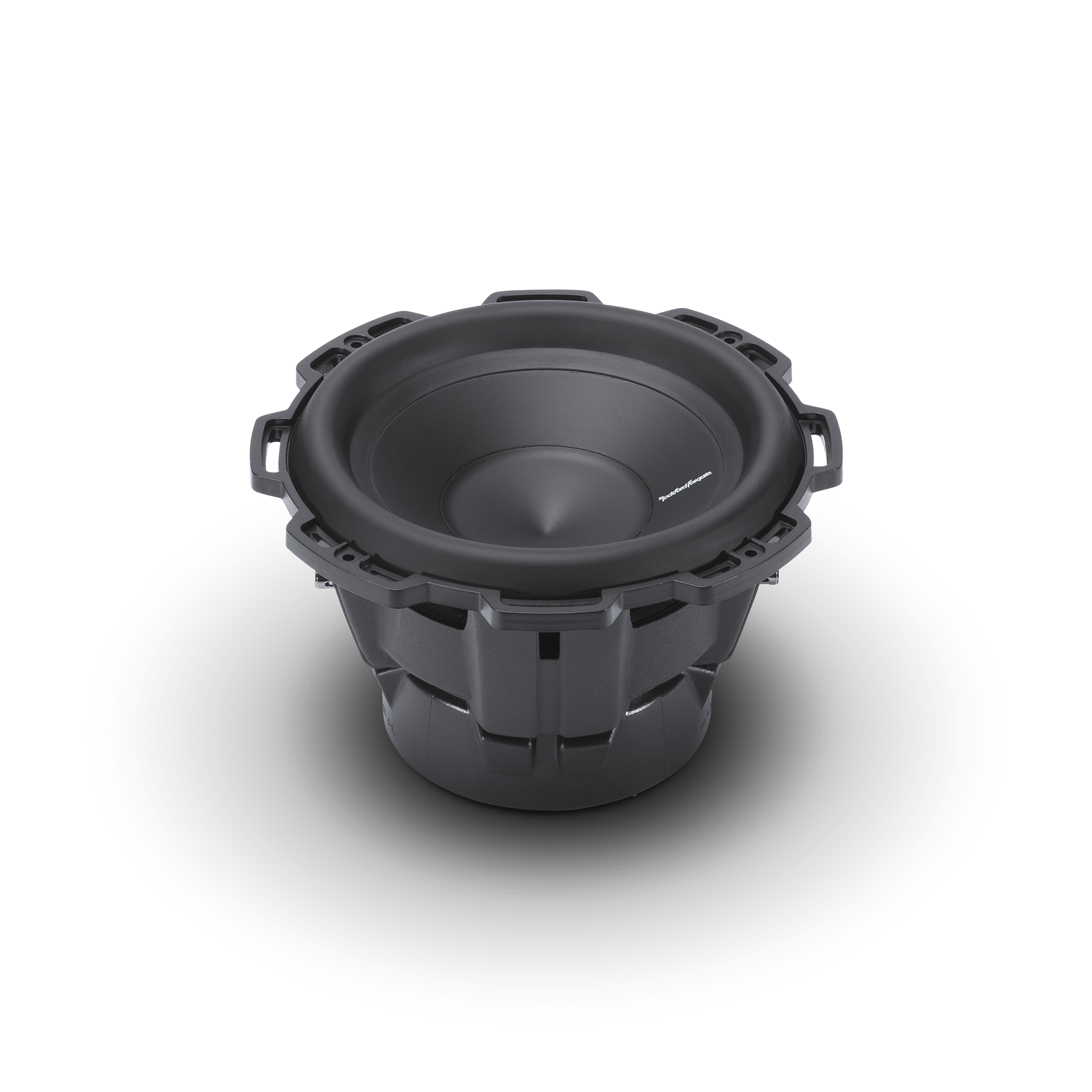

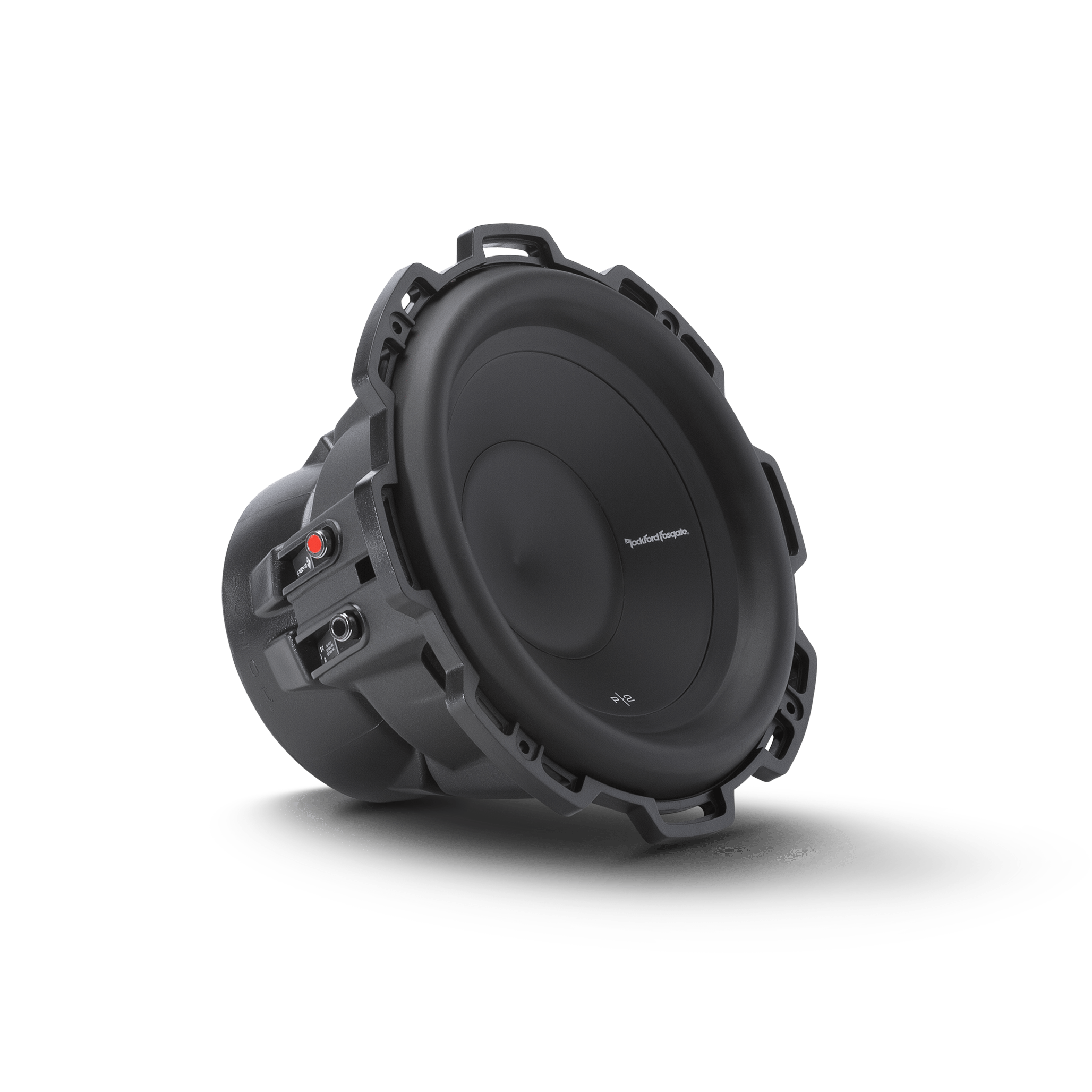

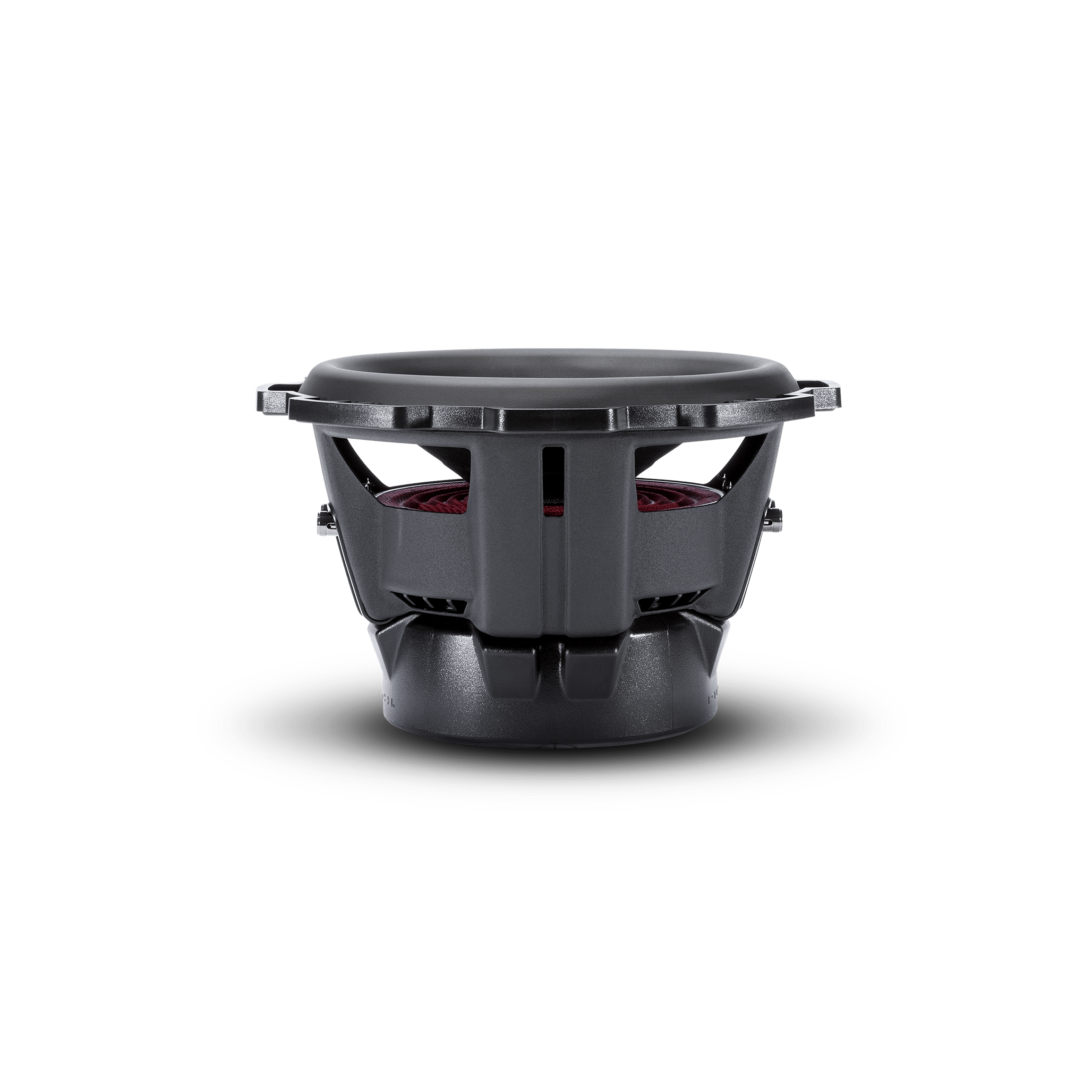

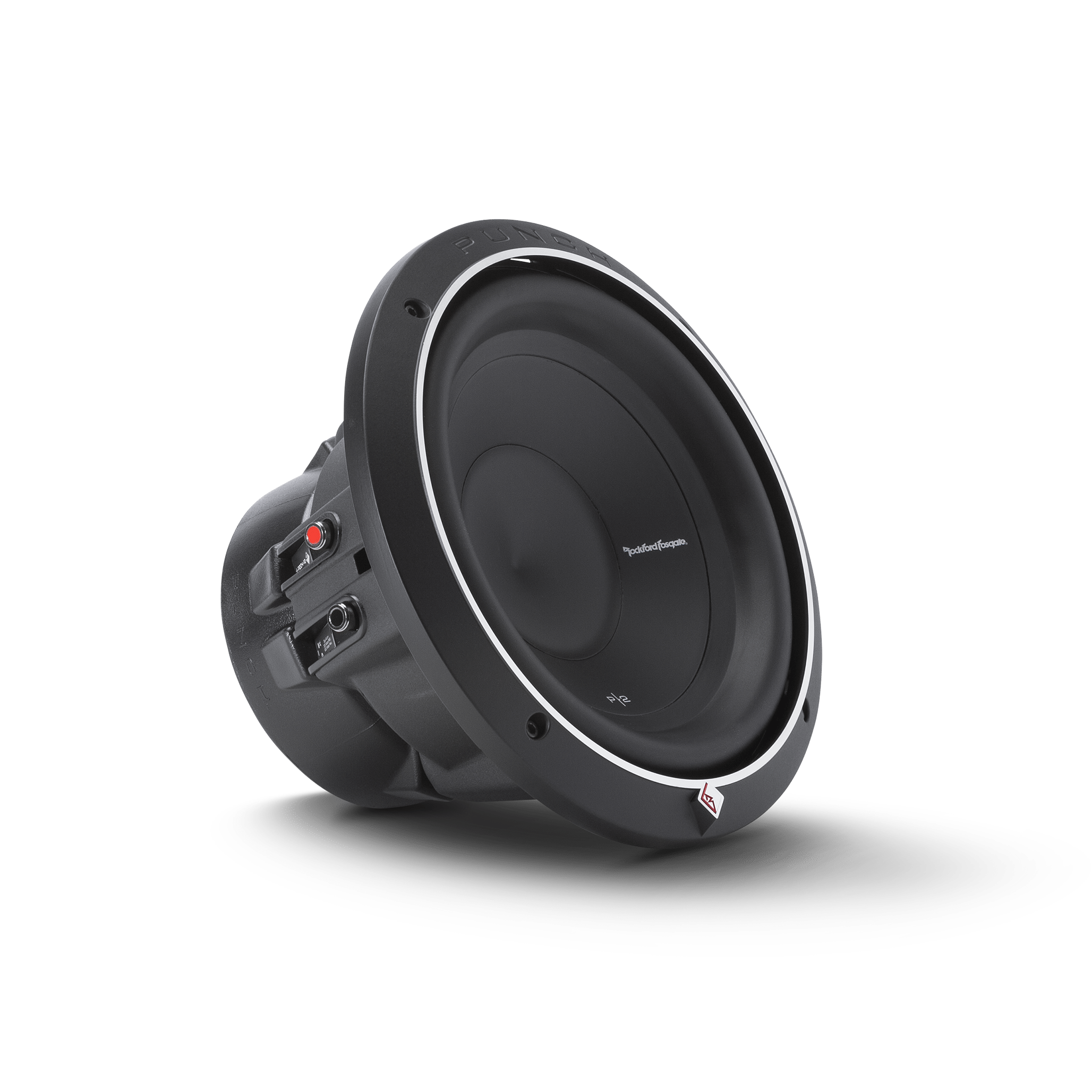

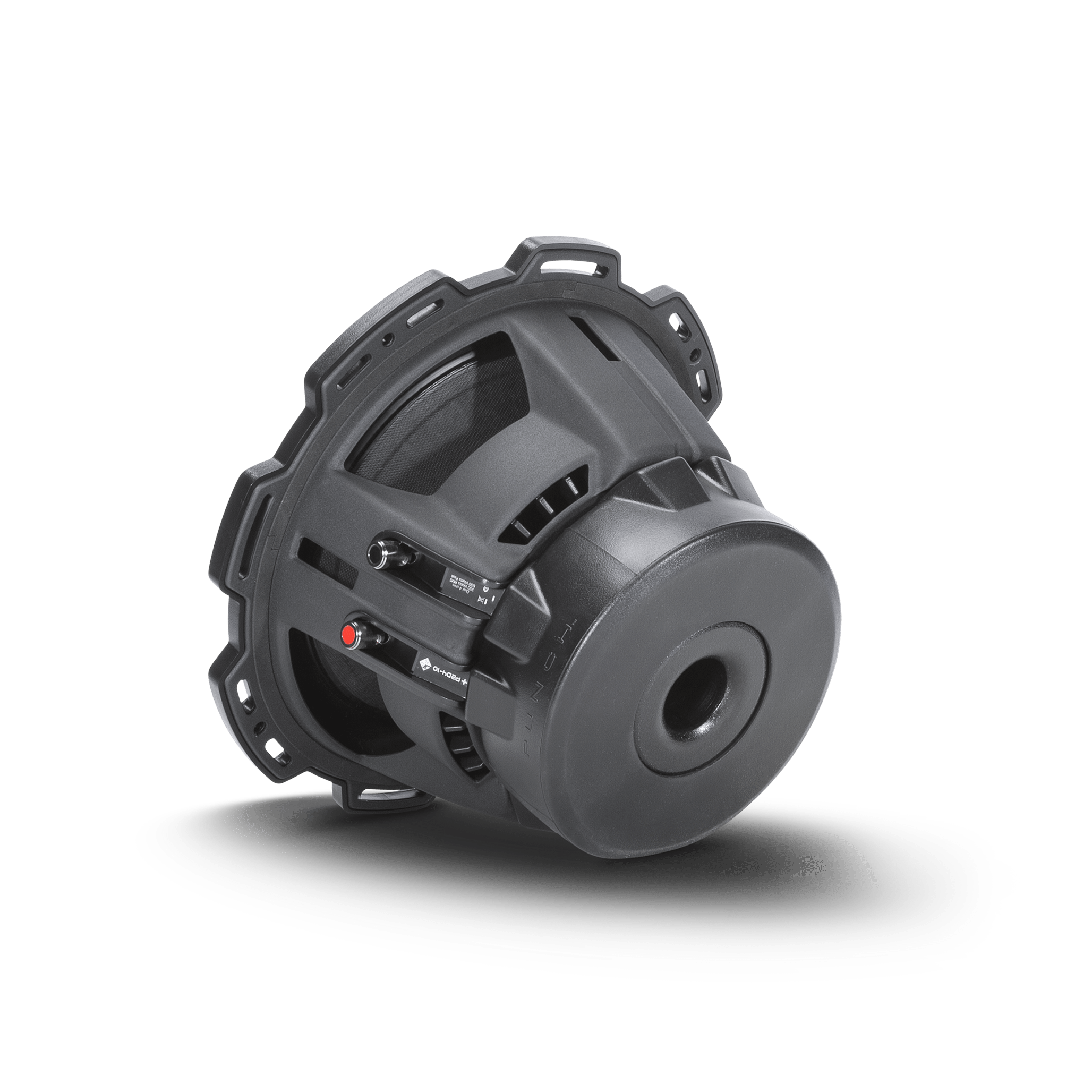

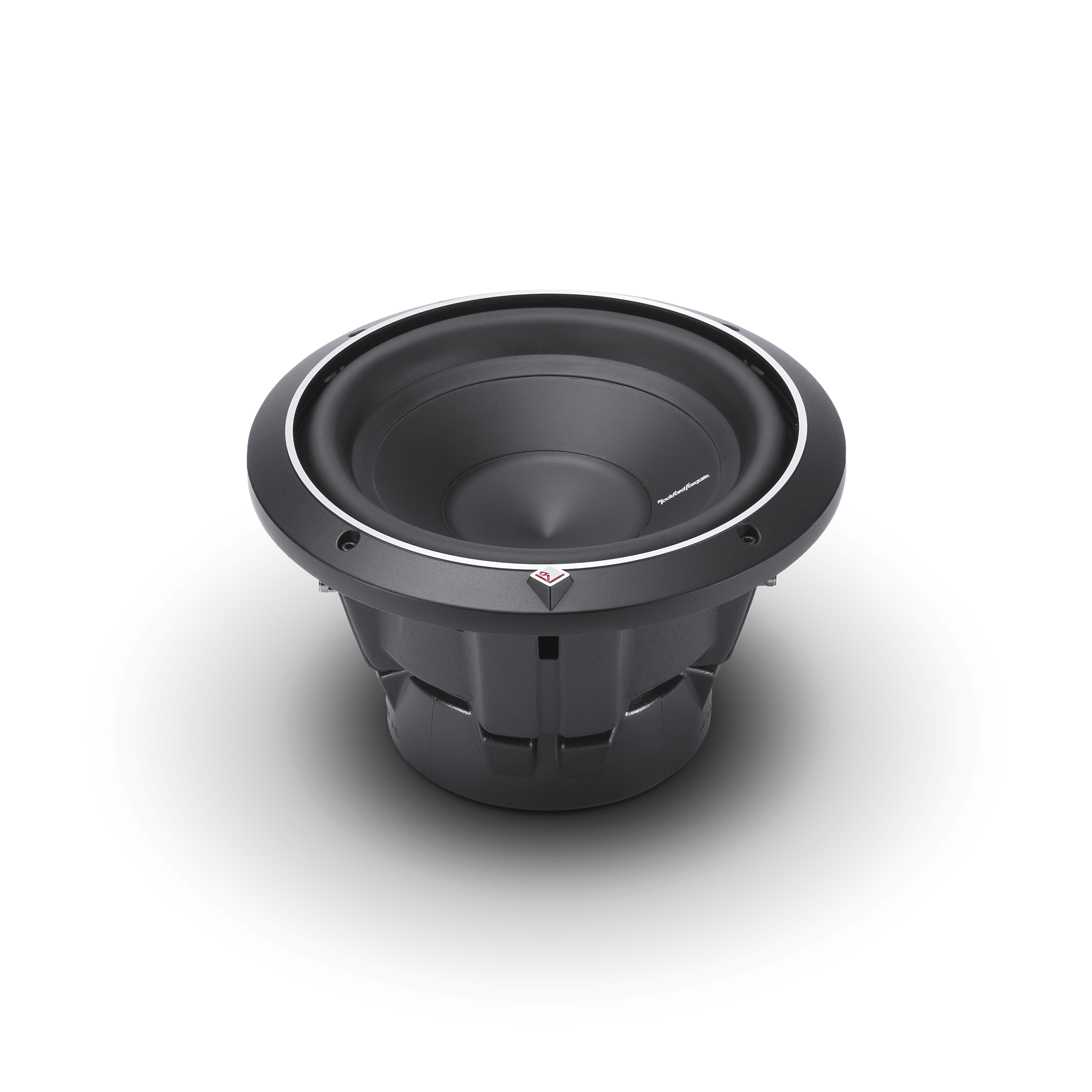

Punch 10" P2 4-Ohm DVC Subwoofer
P2D4-10
The Rockford Fosgate P2 10” subwoofer continues “The PUNCH” tradition. The P2D4-10 features a Dual 4-Ohm voice coil, 300 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.
What's in the Box?
| ⬥ (1) Punch P2 Series Subwoofer |
| ⬥ (1) Painted Aluminum decorative trim ring |
| ⬥ (8) Socket head wood screws |
| ⬥ (1) Socket hard driver bit |
Features
⬥ Dual linear spider with embedded 16 AWG tinsel leads
⬥ High-temp voice coil with spun-laced Nomex® re-inforcement collar
⬥ Extended pole piece and bumped vented backplate
⬥ Protective PVC textured magnet cover
⬥ Custom 10-AWG nickel plated push terminals
⬥ Kevlar fiber reinforced paper cone
⬥ StampCast basket with integrated spider venting
⬥ Diamond cut cast aluminum trim ring with optional grille
General Specifications
| Size | 10" |
| Subwoofer Type | Standard |
| Nominal Impedance (Ohms) | Dual 4-Ohm |
| Power Handling (Watts RMS) | 300 Watts RMS 600 Watts PEAK |
| Voice Coil Diameter | 2.25" (57.15 mm) |
| Voice Coil Type | Dual Voice Coil |
| Magnet Weight (oz) | 66.4 oz. (1.88 kg.) |
| Fs (Hz) | 30.8 |
| Re (Ohms) | 6.40 |
| Le (mH) | 5.3 |
| Sd (cm2) | 360 |
| Qms | 7.00 |
| Qes | 0.62 |
| Qts | 0.57 |
| Vas | 35.4 |
| SPL (dB @ 1w/1m) | 84 |
| Xmax (mm) | 11.0 |
| Woofer Displacement | 0.060 cu. ft. (1.7 Liters) |
| Speaker Connector | Dual 10 AWG compression |
| Sealed Box Volume (Vb) | 0.59 cu. ft. (16.7 Liters) |
| Vented Box Volume (Vb) | 1.4 cu. ft. (39.6 Liters) |
| Cutout Diameter | 9.13 in. (232 mm) |
| Mounting Depth | 5.92 in. (150.4 mm) |
| Shipping Weight | 13.6 Lbs. (6.16 kg) |
